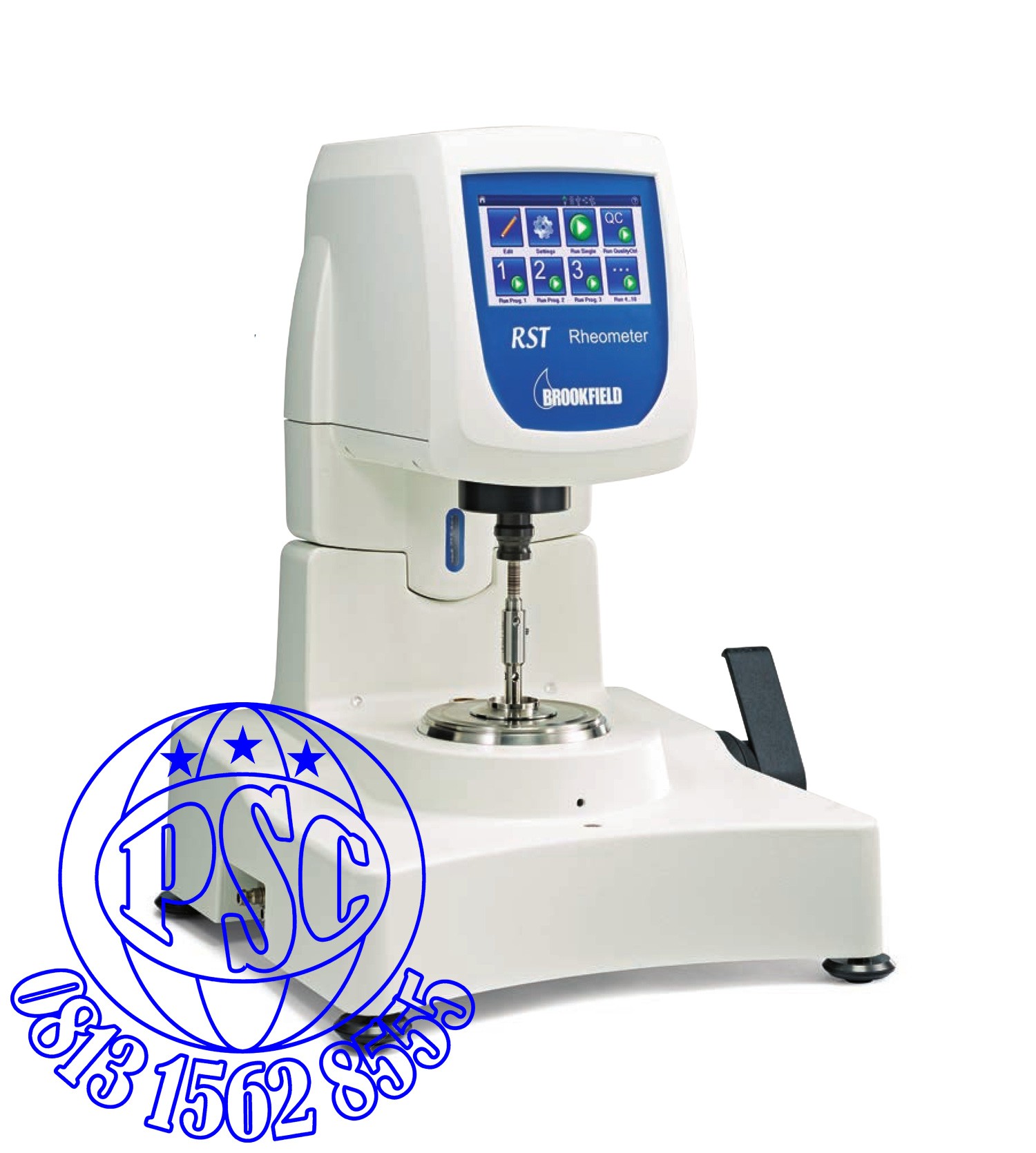

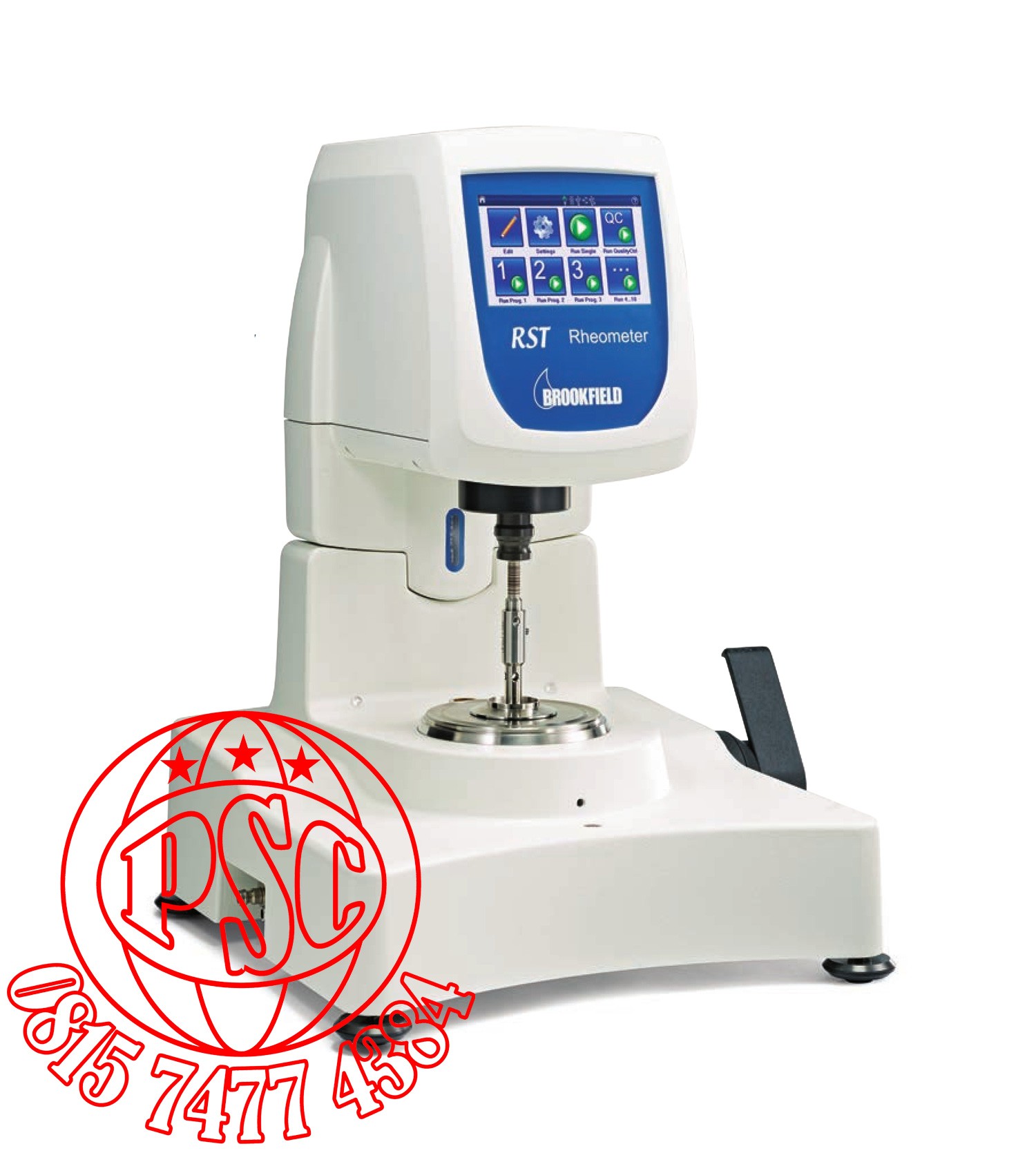

Rheometer RST-CPS Touch Screen Brookfield

Controlled shear stress/shear rate operation makes it easy to study material behavior from initial yield to flow curve response

User-friendly Touch Screen and graphical display for stand-alone operation

Quick Connect Coupling System for easy spindle attachment

Very Small Sample Size permits rapid test set up and clean up

Spindle Barcode for auto spindle recognition

Optional Rheo3000 Software allows for PC control and data acquisition/analysis of multiple test files

Automatic or Manual Gap Setting for quick and easy gap setting

Rapid Temperature Control of plate with Peltier option for quick profiling of viscosity vs. temperature

Viscosity Range

( Pa*s )

Speeds

Model

Min.

Max.

RPM

RST-CPS Cone/Plate

0.0006

814K

0.01 - 1.3K

RST-CPS Cone/Plate

0.002

2.49M

0.01 - 1.3K

K = 1 thousand

M = 1 million

1 Pa*s + 1000 cP ( centipoise )

Temperature Control Options

Model

Description

Temperature

RST-CPS-FH

Bath

-20 ⁰ to 200 ⁰C

RST-CPS-PA

Peltier Air

20 ⁰ to 1800 ⁰C*

RST-CPS-PO

Peltier Oil

0 ⁰ to 180 ⁰C

RST-CPS-EH

Electric

40 ⁰ to 250 ⁰C

Ɨ High temperature available on request

* 75 mm plates cannot be used with peltier systems
