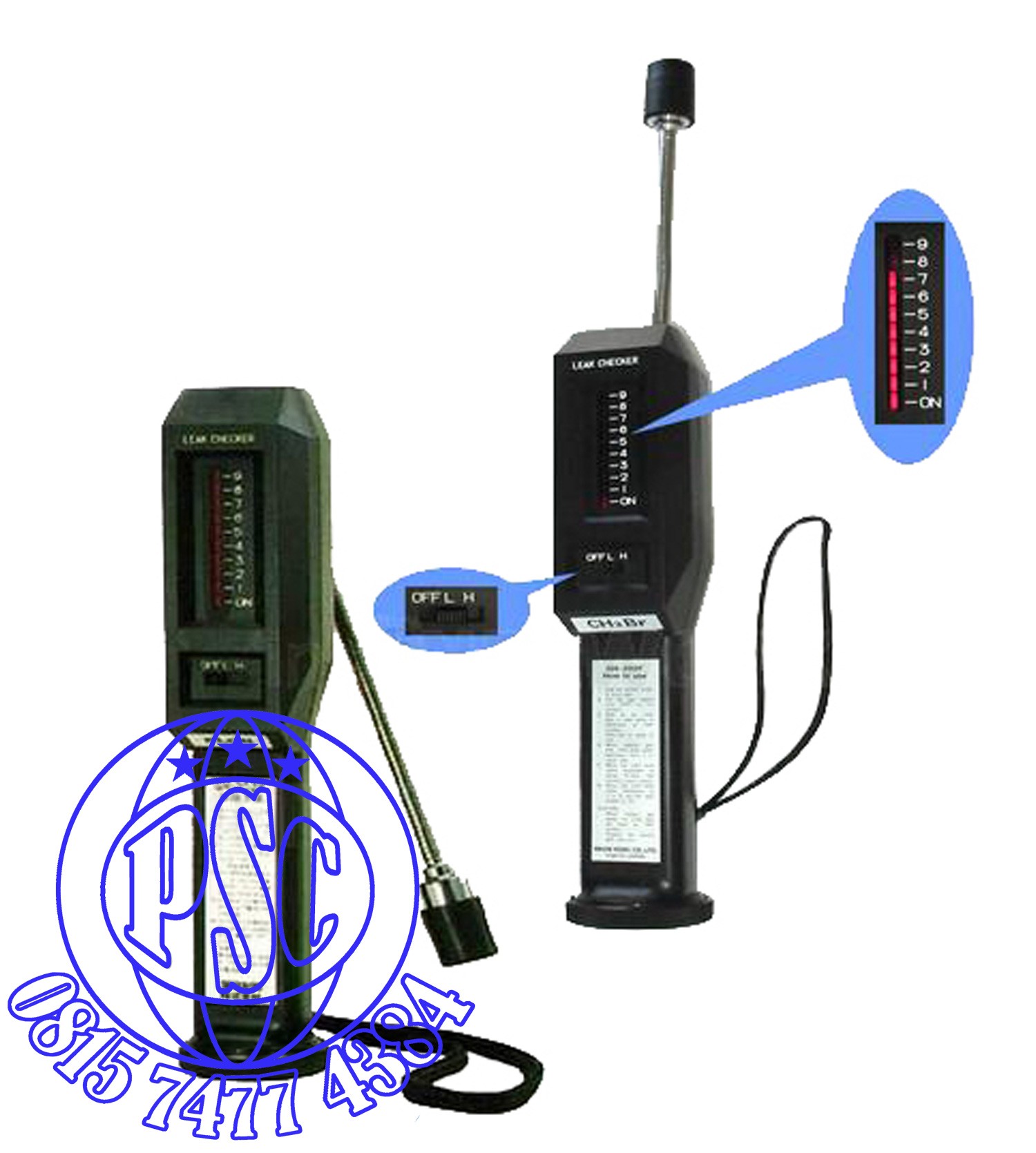

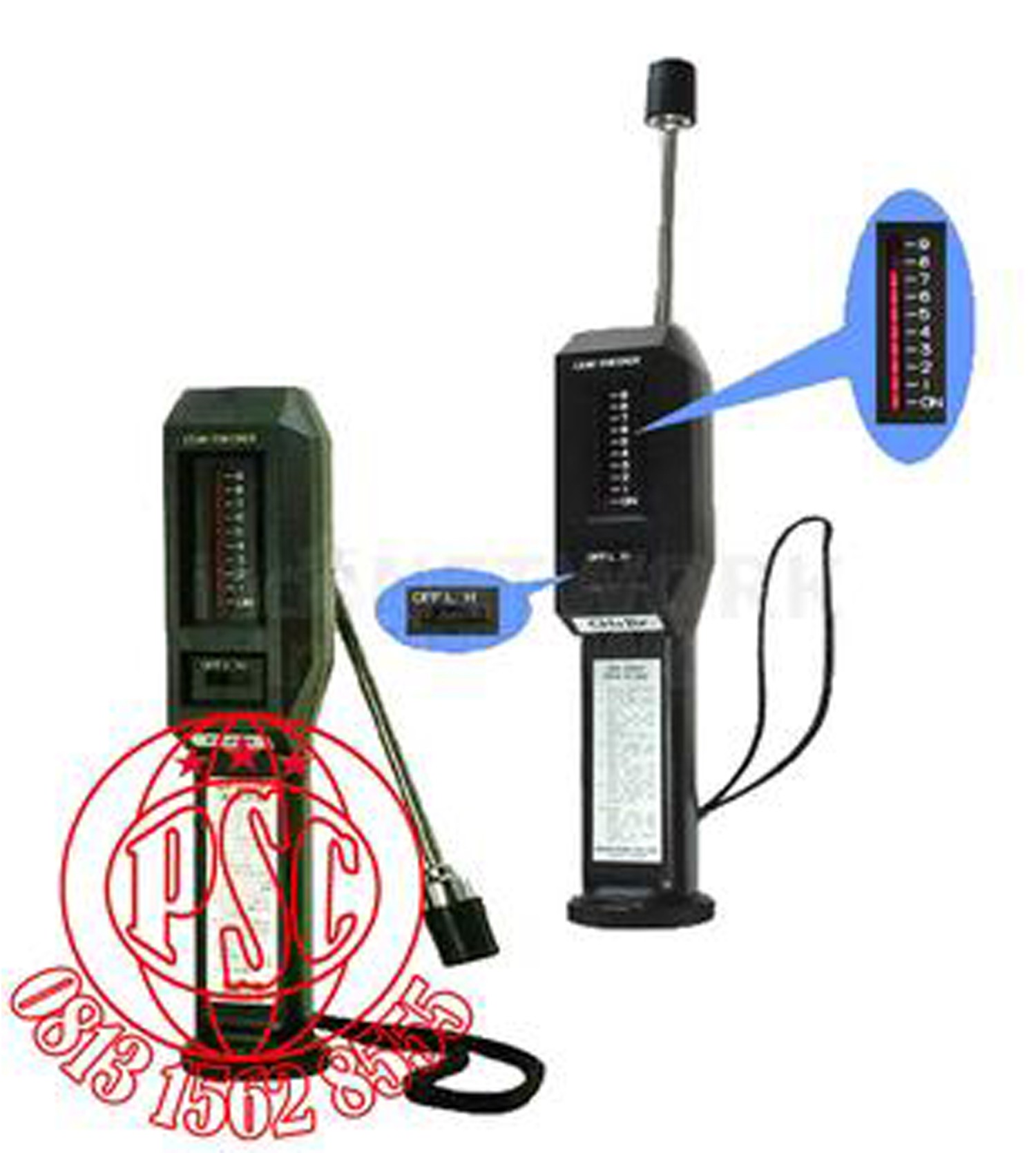

Riken Keiki GH-202F Gas Leak Checker-Detector

Specifications

Sensor type

Semi-conductor

Maximum detection sensitivity

H: 0 - 20 ppm ( 30 ppm with Flon 12 ) & L : 0 -200 ppm

Sampling flow rate

Approx. 300 cc/min

Temperature range

-5 °C to 40 °C

Continuous operating hours

Approx 4 hours by alkaline dry batteries

Warm-up time

Less than 40 seconds

Leak display

Continuous illumination by LED bar graph

Precaution of battery life

Flashing of power lamp

Dimensions

50 ( W ) x 270 ( H ) x 60 ( D ) mm

Features

Easy-to-read LED lever meter

High sensitivity sensor

Long life semi-conductor sensor

Internal automatic balance circuit

Rapid warm-up

Compact design

For detection of

LPG

Town gas

Methyl bromide

Flon 12

Ammonia and many others

General

Model GH-202F is a fully compact and handy battery operated instrument with a built in high sample drawing fan and high sensitive semi-conductor gas sensor. The basic versions are designed to detect and trace leaking sources of Flon 12, Methyl Bromide, Ammonia and Hydrocarbons. The GH-202F has an easy to read LED level meter and a audio alarm. The instrument incorporates a unique automatic balance and purge circuit. This allows the GH-202F to compensate for any background noise and temperature variations. A high and low sensitivity switch allows you to choose between a higher or lower range. When the battery voltage is dropped to replacement level, the power lamp starts flashing at the “ON” position.
