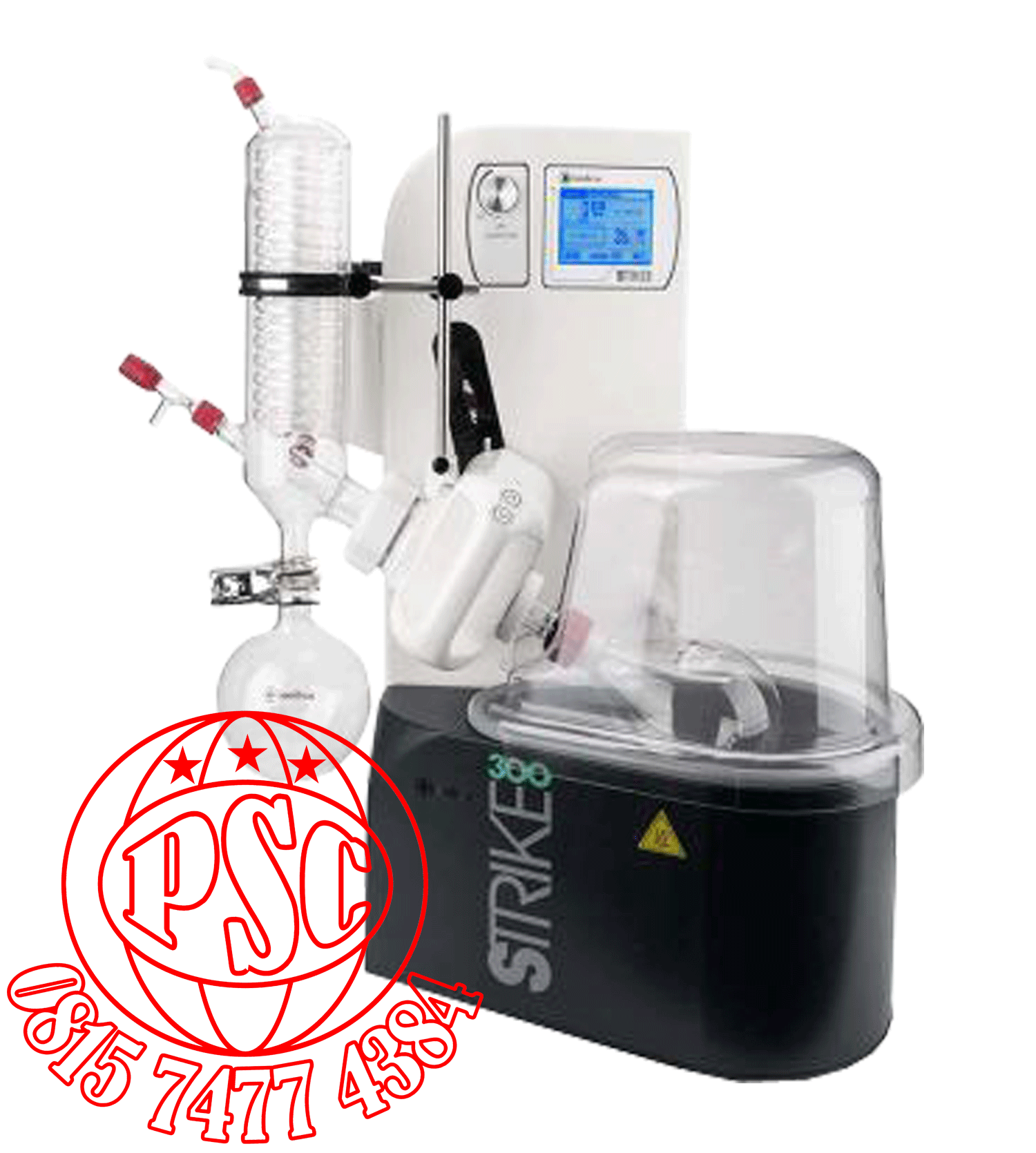

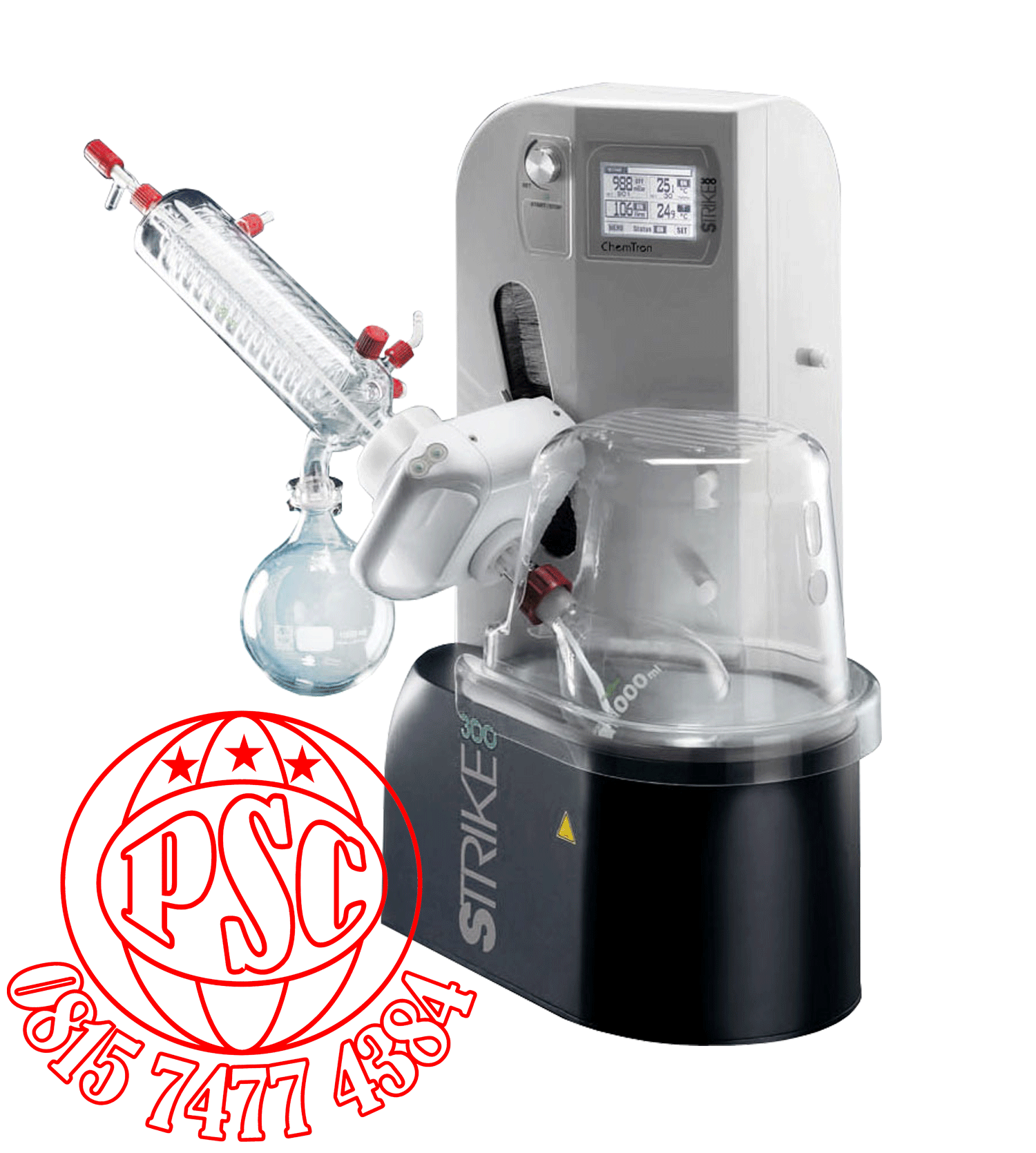

| Rotary Evaporator-Vertical glassware |
| Evaporating asks: 1000ml ( optional 50 to 3000 ml ) |
| Model: STRIKE 300 Vertical glassware ( Steam Rising Type ) |
| Order NO.: SQED059111 |
| STANDARD FEATURES AND PERFORMANCE: |
| * Removable safety shield |
| * Glassware lifting made possible with or without protective shield |
| * Maintenance-free PTFE and carbon graphite seals |
| * Powered glassware lifting equipment with safety release (in case of power failure) |
| * 3,5" monochromatic LCD touch screen |
| * Quick Start/Stop control and parameter selector |
| * Rodavis evaporation ask connection system |
| * Removable thermostatic bath, PTFE coated |
| * GLP-compliant instrument (with USB interface) |
| * Optional fume temperature probe |
| * Optional vacuum controller |
| * Rotation speed from 20 to 280 rpm (150W induction motor) |
| * Thermostatic bath ambient temperature: 185℃ (2 possible settings: water and oil) |
| * Bath heater: 1200W |
| * Bath capacity: 5 liters |
| * Bath material: PTFE coated |
| * Removable bath for emptying |
| * Models available with vertical or slanting, standard or plastic-coated glassware |
| * Evaporating asks: 1000ml (optional 50 to 3000ml) |
| * Collecting asks 1000ml: (optional 250 to 2000ml) |
| * Overall dimensions: 690x700x430mm (vertical version) |
| * Weight:26,5 Kg (vertical version) |
| * Overall dimensions: 690x790x430mm (slanting version) |
| * Weight:26 Kg (slanting version) |
| * Voltage: 230 V AC, 50Hz |
| * Power consumption: 1400W |
| ConTROL PANEL AND MICROPROCESSOR |
| * 3.5" LCD graphic display touch screen (320 x 240 pixel) |
| * START/STOP control and quick basic parameter selection |
| * Real-time display of all basic operating parameters (bath temperature, rotation speed), vacuum level and fume temperature (if optional probe and vacuum controller are present) |
| * Real-time display of working method |
| * Method saving and retrieving (up to 10 methods) |
| * Timer |
| * Possibility to operate according to fume temperature (if optional probe is present) |
| * Possibility to create manual and automatic ramps according to time, by differentiating all working parameters (if vacuum controller is present) |
| * Possibility to download working method to PC through USB port and retrieve it at any time |
| * USB updatable multi-language software. |
