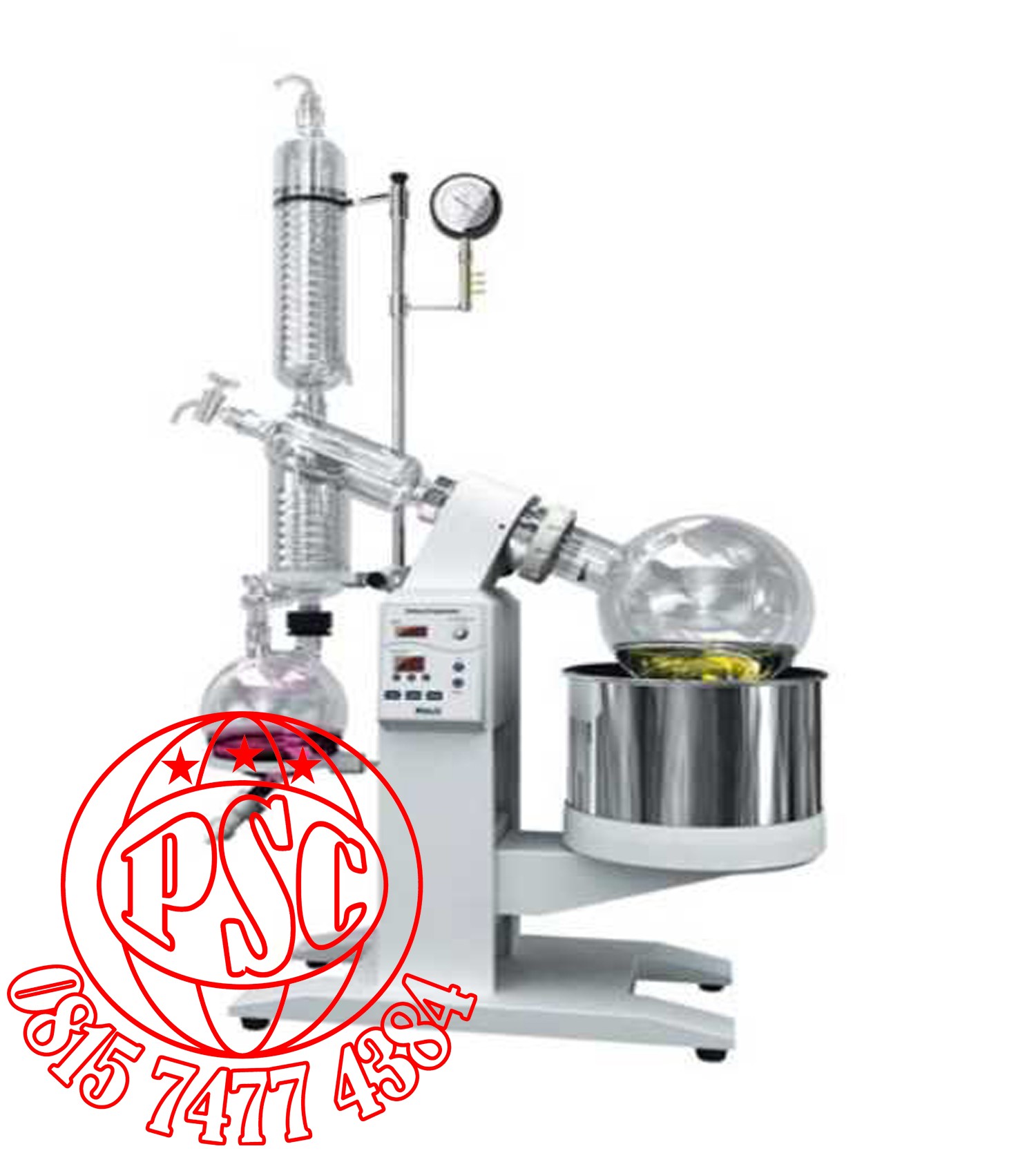

Rotary Evaporator WEV-1010 & WEV-1020 Daihan Scientific

Specification

Model

“WEV-1010”

“WEV-1020”

Evaporating Flask

10 Lit., Flange Opening Φ95 mm

20 Lit., Flange Opening Φ95 mm

Receiving Flask

5 Lit.

10 Lit.

Condenser

Standing, Main & Auxiliary Cooling and Highly Efficient 3 Circulating

Cold Trap

Temp. Range

Ambient Temp. +5 ℃ ~ 99 ℃

Rotary Speed

10 ~ 130 rpm

Evaporating Capability

Water : 3.2 Lit./h, Alcohol : 6.5 Lit./h

Water : 5 Lit./h, Alcohol : 11 Lit./h

Cooling Surface

Main Condenser 4,500 cm

Main Condenser 8,000 cm

Auxiliary Condenser 2,000 cm²

Auxiliary Condenser 3,500 cm²

Achievable Vacuum

399.9 Pa ( below 3 mmHg )

Functional of Lifting Table

Electric

Elevating Stroke

0 ~ 160 mm

0 ~ 190 mm

Vacuum Sealing

PTFE and Fluorine Rubber Dual Rotating Seal

Motor

Phase AD Induction Motor

90 W

180 W

Heating Boiler

Stainless steel Water Bath

Display

Digital display

Power Consumption

4.8 KW

6.3 KW

Dimension

920 × 550 × h1700 mm

1250 × 600 × h2100 mm

Power Supply & Cord Plug

220V, 50 Hz

380V, 50 Hz
