Rotators SB2 & SB3 Stuart

Fully adjustable mixing angle

Choice of tube holders to hold a number of different sized tubes

Spillage tray

SB2 comes with fixed 20 rpm speed

SB3 comes with adjustable speed between 2 and 40 rpm

The SB rotators give gentle but effective mixing, ideal for keeping biological samples in suspension e.g. blood, aerating cultures and for general mixing applications.

The rotators can be used in incubators up to 40°C and in cold rooms down to 4°C. The angle of rotation is fully adjustable with a scale to measure and reproduce the mixing angle, from horizontal for minimal mixing to vertical for full end-over-end mixing. An integral tray catches any spillage from the rotating tubes

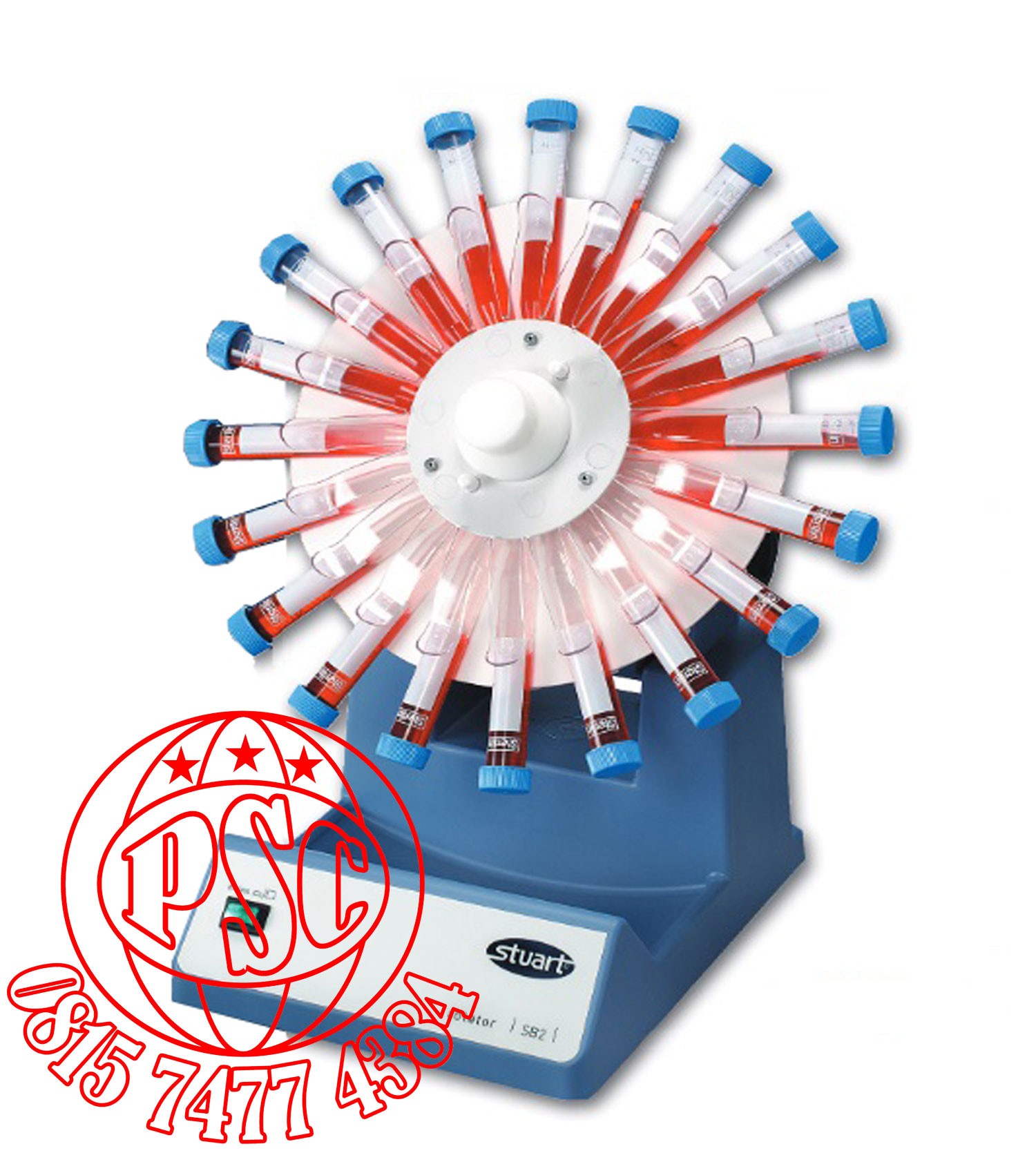

SB2

The SB2 rotator has a constant speed of 20 rpm

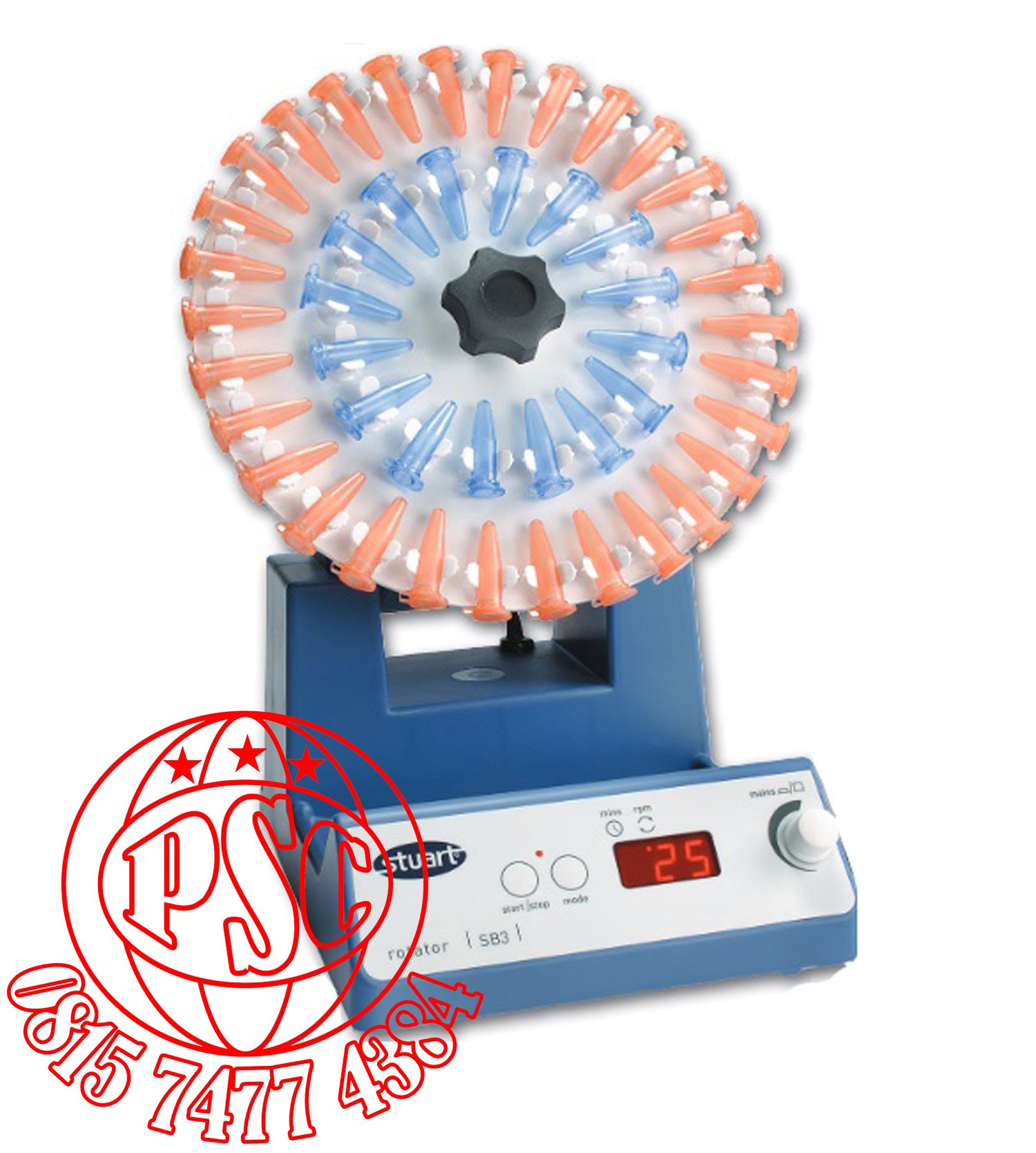

SB3

The SB3 has a digital timer and speed display allowing procedures to be accurately repeated for optimal results.

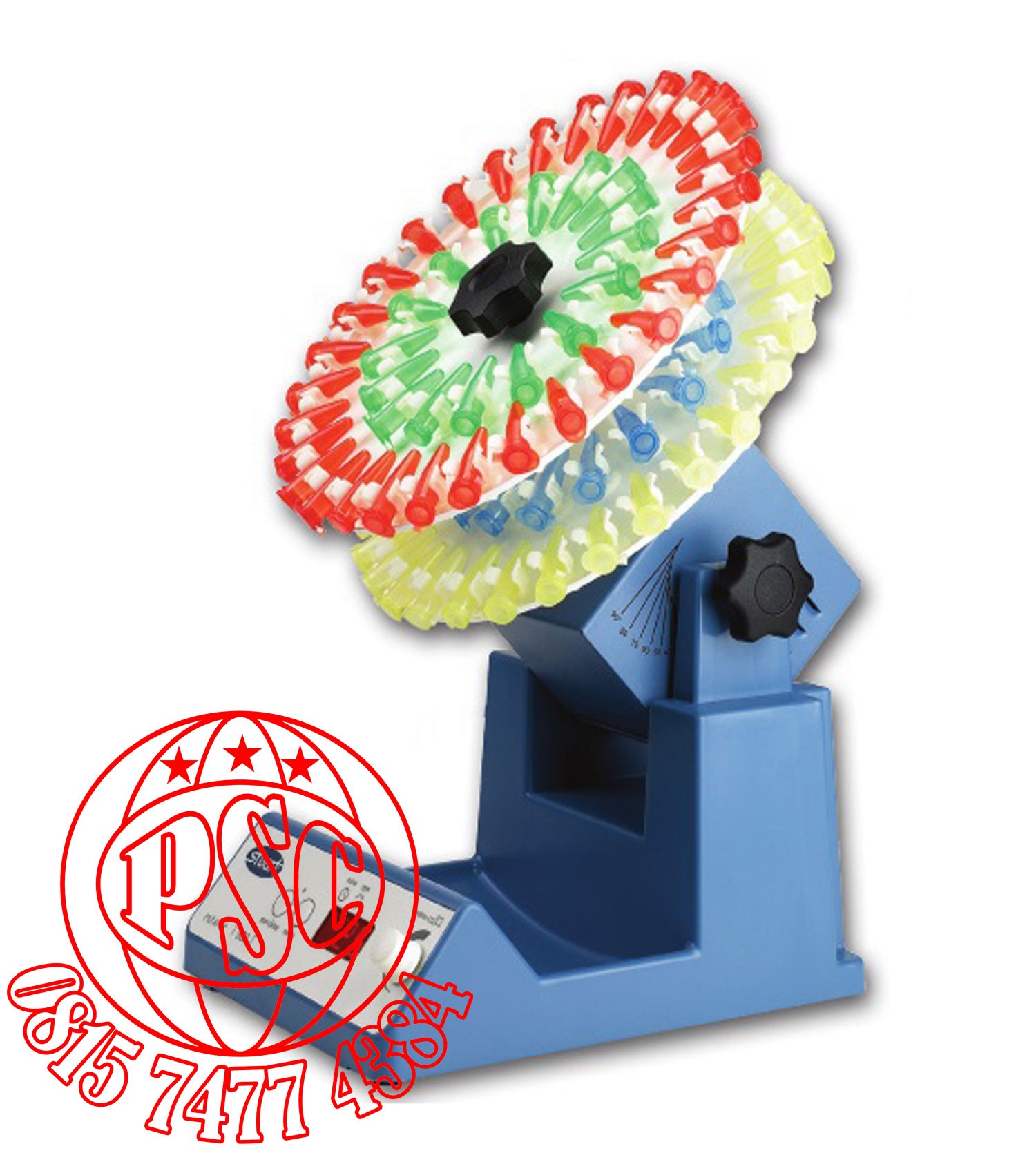

A choice of six tubes holders are available to fulfill most applications. It is possible to use two tube holders simultaneously with our dual holder accessory.

Holder must be ordered separately

Tube holders

Choice of six types

Quick and easy loading and removal of tubes

End-over-end or rolling action

SB3/DUAL available to allow any two tube holders to be used simultaneously

Click here for more information on rotator tube holders

Specifications

Model

SB2

SB3

Speed range

Fixed at 20 rpm

2 to 40 rpm

Speed control

NA

Digital

Timer

NA

1 to 999 minutes

Dimensions ( w x d x h )

200 x 270 x 230 mm

200 x 270 x 230 mm

Net weight

3.2 kg

3.2 kg

Electrical supply

230 V, 50Hz, 50 W

230 V, 50 Hz, 50 W
