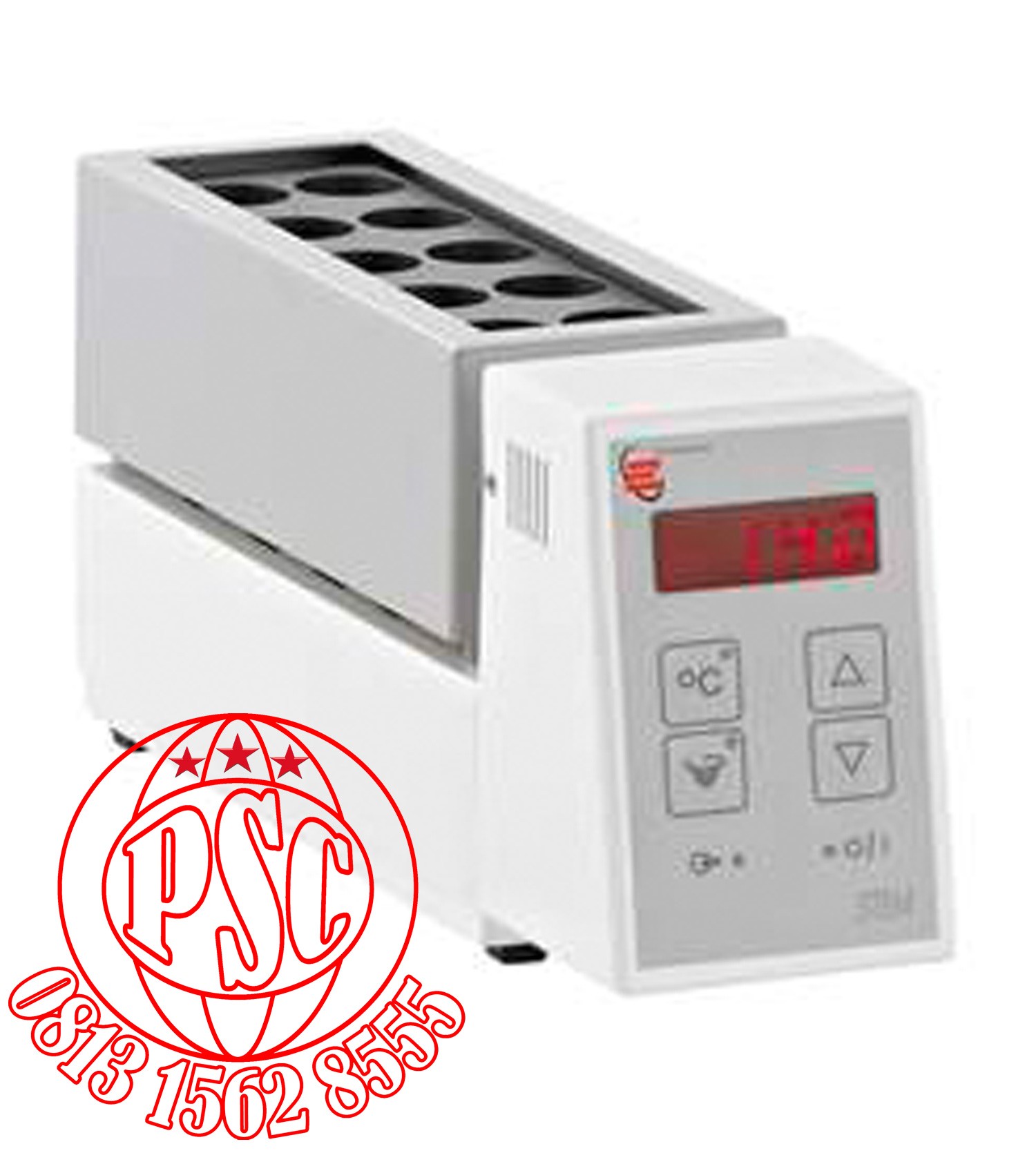

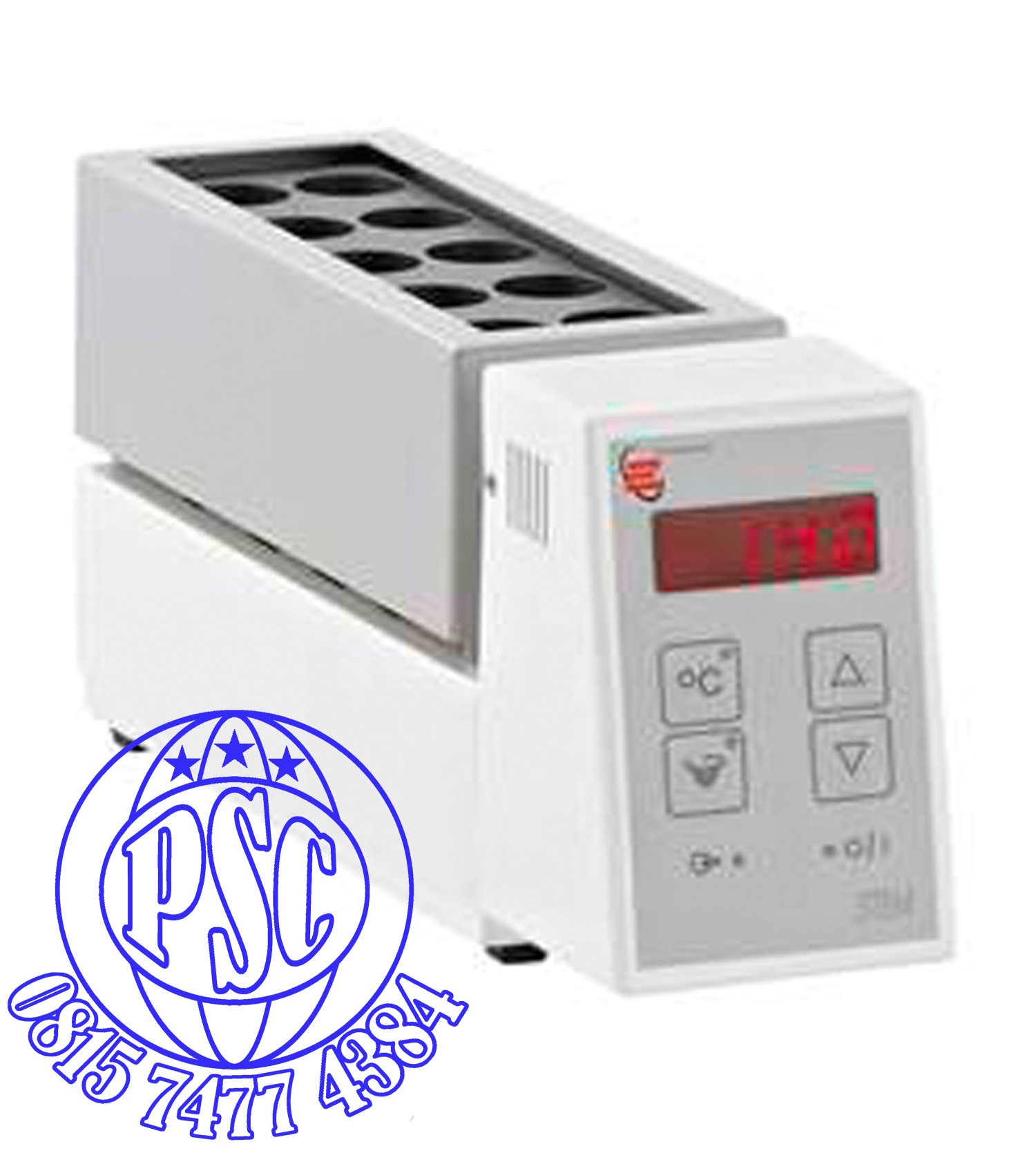

STEM RS1000 Reaction Station
Technical Specification
Model	RS1000
Stirred Positions	10
Tube Diameter	24 or 25 mm
Sample Volume	1 - 25 ml
Stir speed range	400 to 2000 rpm
Soft start ( to full ramp )	Adjustible 0 - 10 mins
Temperature Range	+ 5 to 150°C
Temperature Stability	± 0.5°C
Time to max temperature	15 mins
Dimensions	80 x 150 x 305 mm
Shipping weight	4 kg
Ordering Information
Part Code	Model	Electrical requirements
PS80010	RS1000	230V, 50- 60Hz, 300 W
PS80033	RS1000	115V, 50- 60Hz, 300 W
Accessories Ordering Information
Part Number	Description
ATS10075	24 150 mm SVL thread test tubes x10
ATS10377	SVL thread PTFE inerting caps x10
AZS4206	Stirrer bars 10 6 mm x10
AZS4235	Stirrer bars 12 4.5 mm x10
ATS10055	Small volume test tubes 24- 16 mm taper x10
ATS10056	Reducing sleeves for ATS10055 x10
ATS10101	Reducing sleeves 24 - 11 mm for ATS10209 x10
ATS10209	24- 11 mm text tubes ( 1 ml ) x10
AZS4255	Data Cable - 9 way D socket
