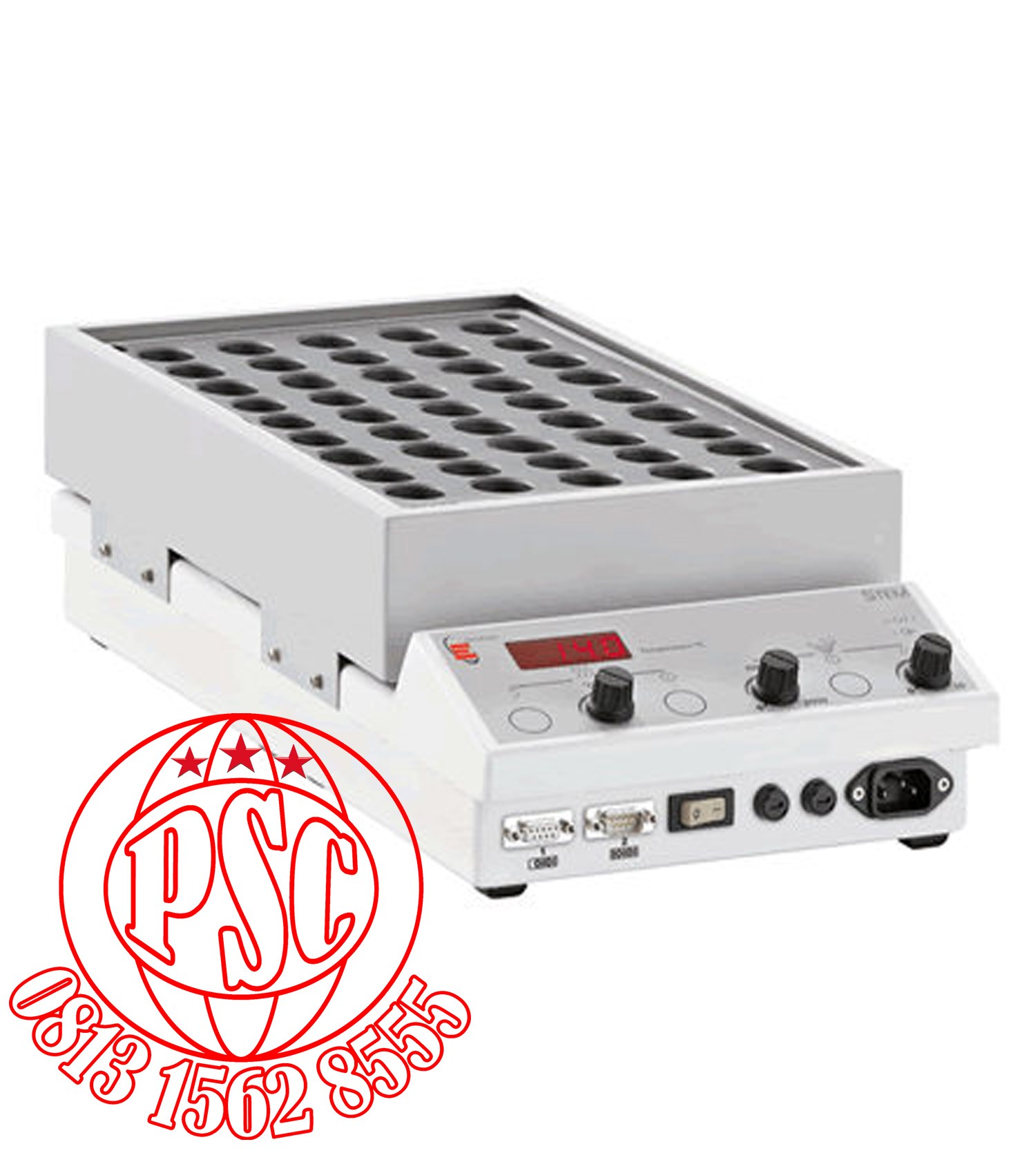

STEM RS5000 Reaction Station
The STEM RS5000 Reaction Station has 50 positions that can be programmed to run at the same temperature and stirring rate simultaneously. It can be used for a wide range of applications from simple synthesis in the laboratory to process optimisation in industry.
Save up to 90% equipment running costs by using RS Reaction Stations
Key features
- 50 position reaction station
- Designed for 24 mm/25 mm diameter vessels
- Can accommodate 16 mm and other diameter vessels with appropriate adaptor sleeves
- Sample sizes from 1 ml to 25 ml
- Controlled temperature range from ambient +5°C to 150°C
- Powerful stir speed from 400 to 2000 rpm
- Manual or external control via the RS232/ 485 interface ports
- Compact footprint for easy integration onto a robotic platform
- Warranty : 1 year parts and labour
- Certification : CE
Technical Specification
| Model | RS5000 |
| Stirred positions | 50 |
| Tube Diameter | 24 or 25 mm |
| Tube diameter sleeves | 16 mm, 20 mm |
| Sample volume | 1 - 25 ml |
| Stir speed range | 400 to 2000 rpm |
| Soft start ( to full ramp ) | Adjustable 0- 10 mins |
| Temperature Range ( ambient ) | + 5 to 150°C |
| Temperature Stability | ± 0.5°C |
| Time to maxmin temperature | 30 mins |
| Interface ports | RS232 RS485 & manual |
| Dimensions ( W x H x D ) | 250 x 145 x 460 mm |
| Shipping Weight | 13.8 kg |
| Part Number | Model | Bore Diameter | Electrical Requirement |
| PS80050 | RS5000 | 50 x 24/ 25 mm | 230 V, 50/ 60Hz, 800 W |
| PS80037 | RS5000 | 50 x 24/ 25 mm | 115 V, 50/ 60Hz, 800 W |
