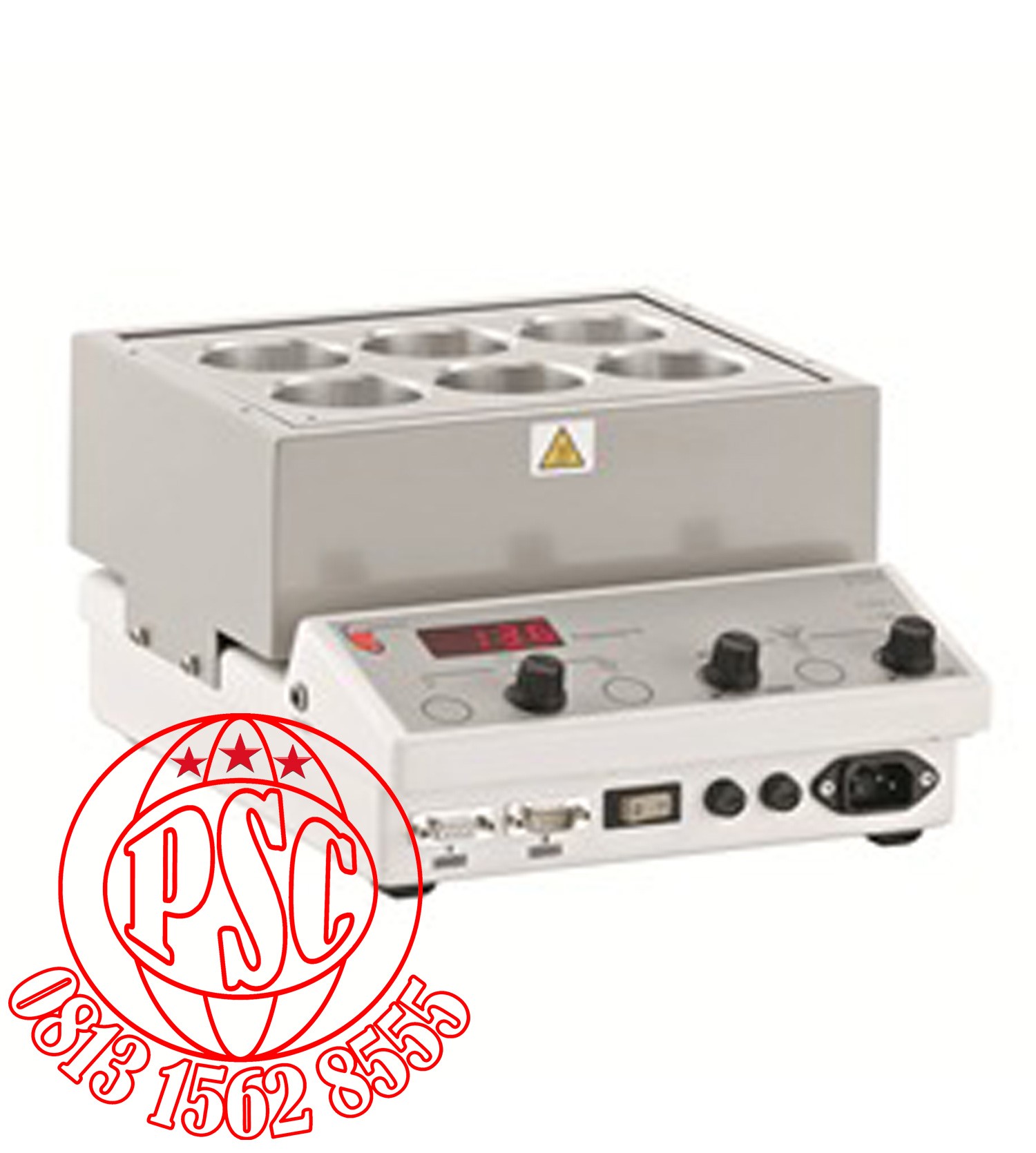

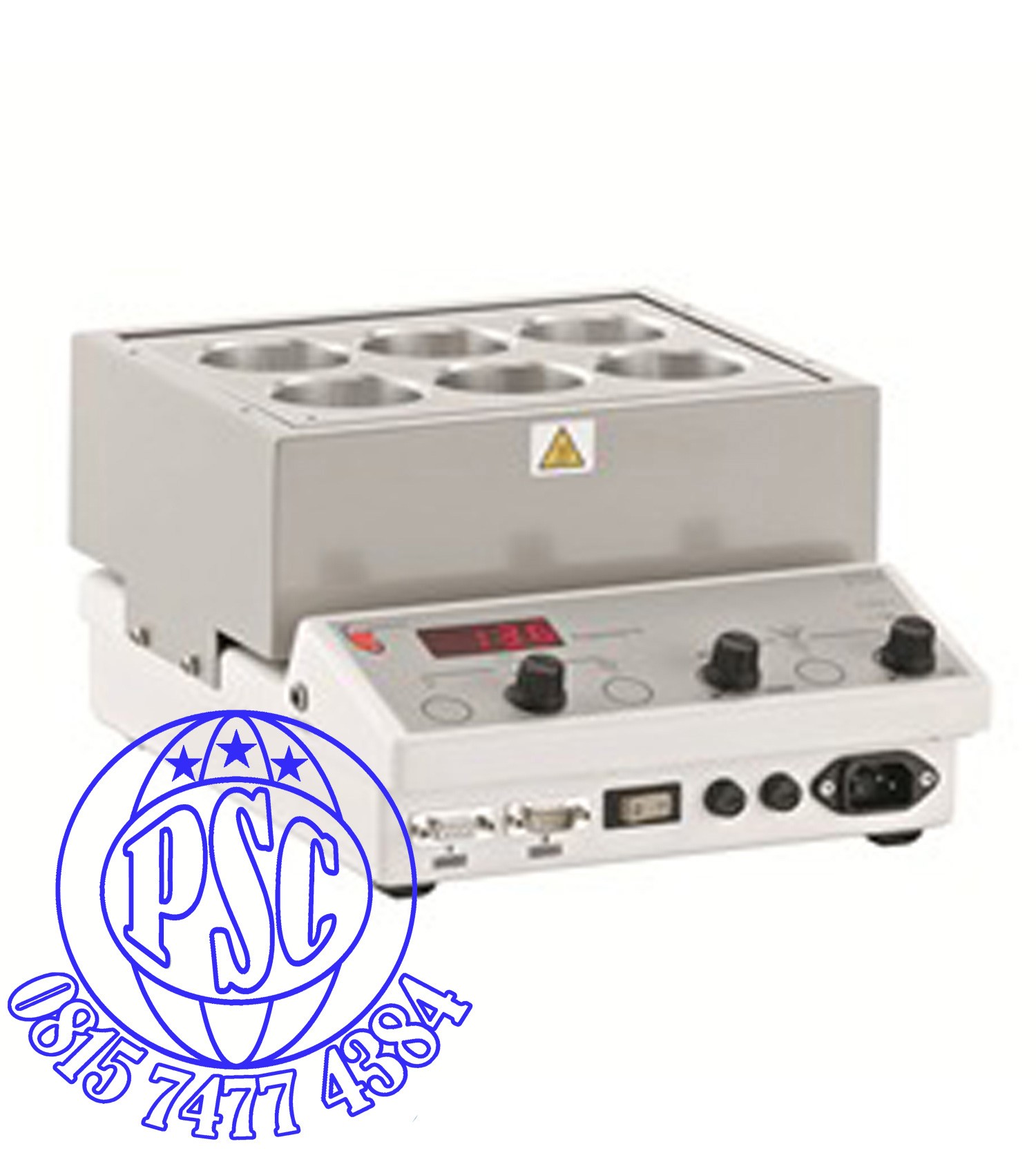

RS600 STEM Reaction Blocks
The STEM RS600 Reaction Station has 6-positions which may be programmed to run at the same temperature and stirring rate simultaneously. It is designed for use both as a standalone unit but also for incorporation onto robotics platforms.
Key features
- Six position reaction block designed for 57.5 mm diameter vessels
- Can also accommodate 40 mm and other diameter vessels with appropriate adaptor sleeves
- Sample sizes up to 250 ml
- Controlled temperature range from ambient +5°C to 250°C
- Powerful stir speed from 400 to 2000 rpm, including a bi-directional stirring option
- Manual control or external control via the RS232/RS485 interface ports
- Compact footprint for easy integration onto a robotic platform
Technical Specification
| Model | RS600 |
|---|---|
| Stirred Positions | 6 x 57.5 mm |
| Tube Diameter | 40 mm |
| Sample Volume | Up to 250 ml |
| Stir Speed Range | 400 to 2000 rpm |
| Soft Start ( to full ramp ) | 0 - 10 mins ( adjustable ) |
| Temperature Range ( ambient ) | + 5 to 250°C |
| Temperature Stability | ± 0.5°C |
| Time to max/min temperature | 15 min |
| Dimensions ( w x d x h ) | 248 x 157 x 312 mm |
| Shipping weight | 10 kg |
Ordering Information
| Part Code | Model | Electrical requirements |
| PS80034 | RS600 | 230V, 50- 60Hz, 600 W |
| PS80043 | RS600 | 115V, 50- 60Hz, 600 W |
