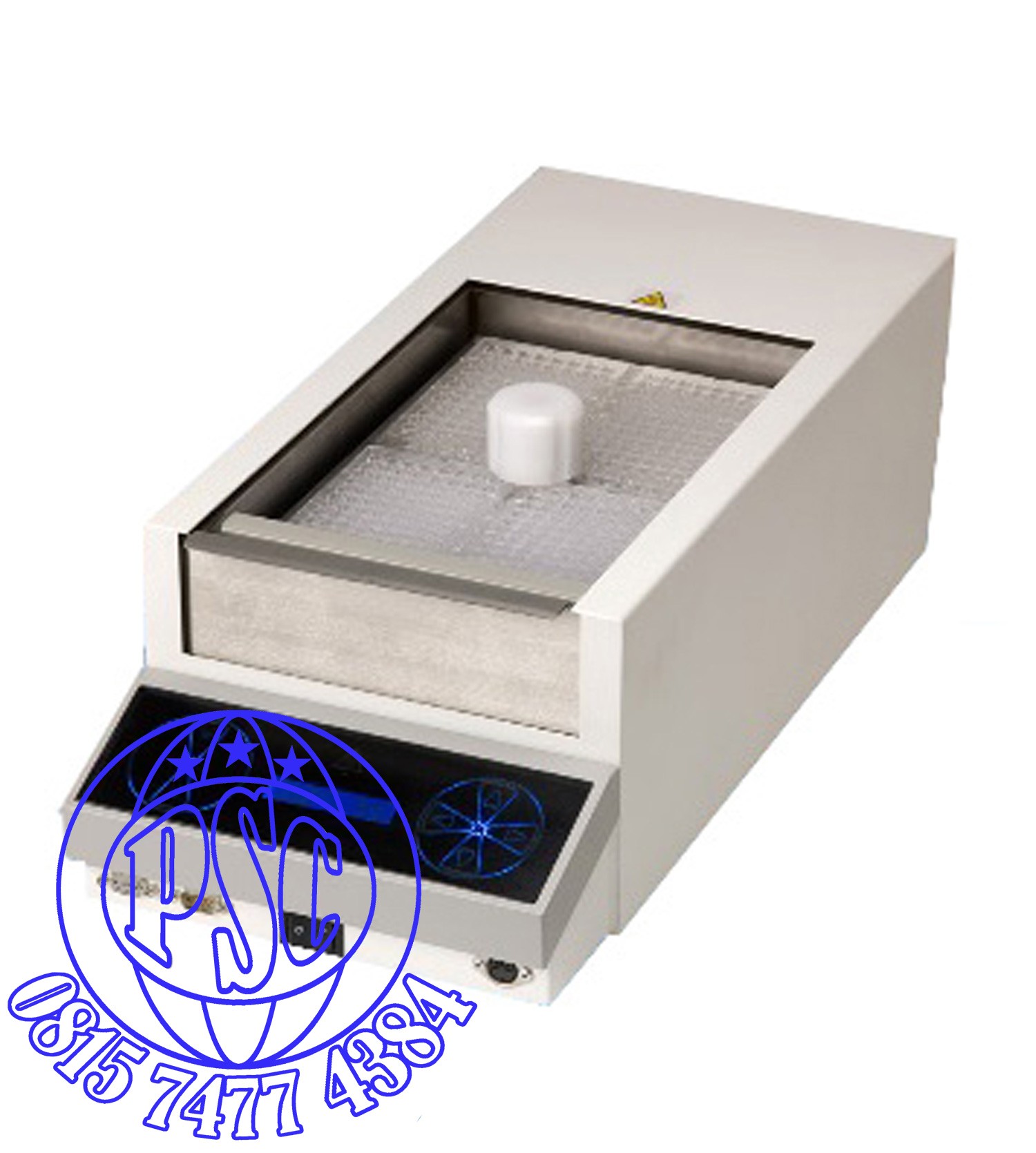

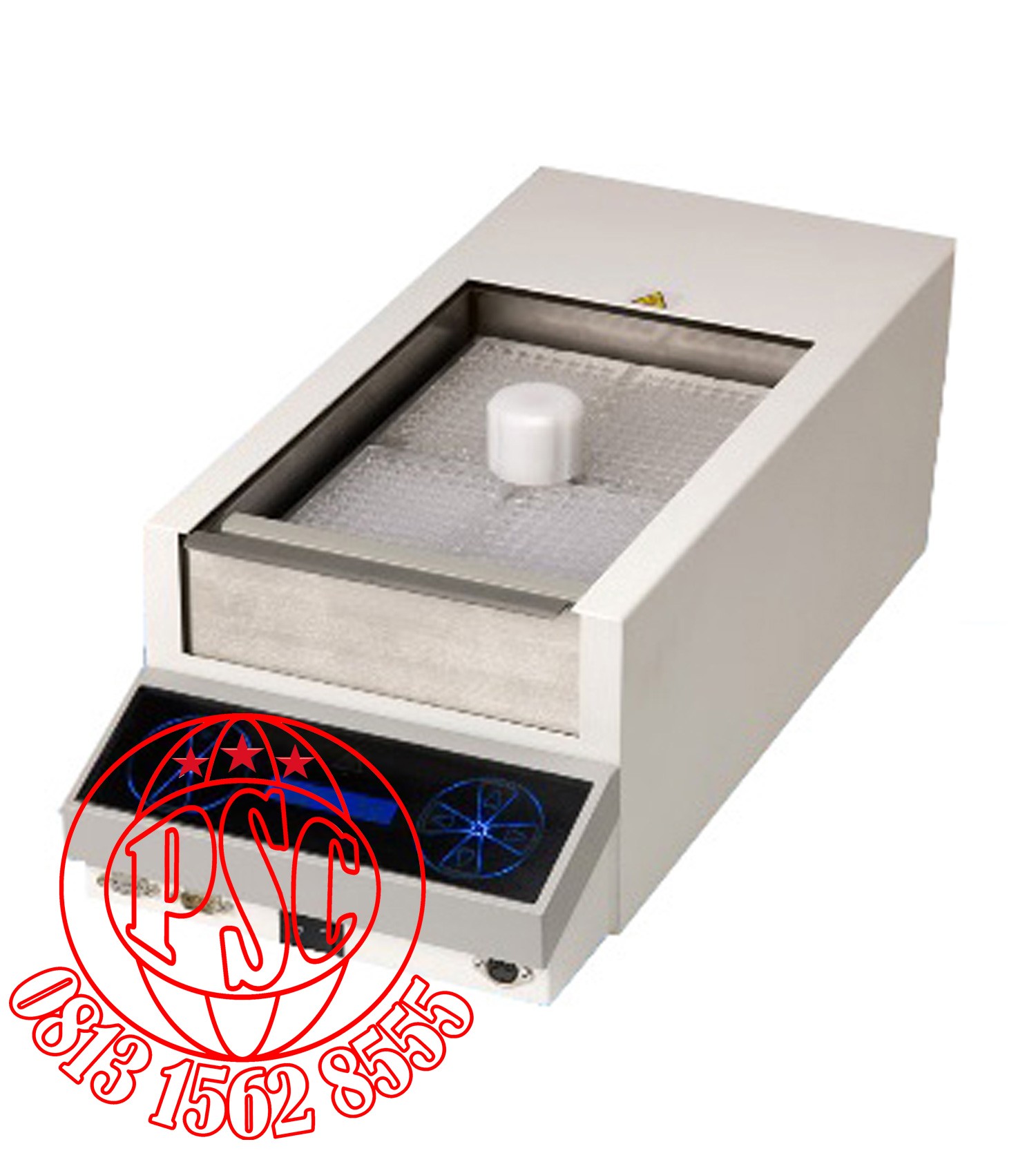

RS9000 Heater/Shaker Reaction Station
The RS9000 Heater/Shaker Reaction Station can be used within a robotic workstation or as a stand-alone apparatus within the lab. On a robotic platform, heating and shaking cycles can be controlled by external software or as part of a fully automated system, through the RS232/ RS485/ GSIOC ports; for standalone use, there is the additional option of controlling heating and shaking cycles via the user-friendly touchscreen.
The touchscreen panel enables the temperature and shaking speeds to be changed using up/down arrows and the actual values are clearly displayed on a high definition LCD display which has an anti-glare coating. The LCD display is cool blue to be visible in both bright and dim lighting conditions, without deleteriously affecting light-sensitive chemicals. The touchscreen has a laminated toughened glass panel that is chemically resistant to most solvents.
The touchscreen panel enables the temperature and shaking speeds to be changed using up/down arrows and the actual values are clearly displayed on a high definition LCD display which has an anti-glare coating. The LCD display is cool blue to be visible in both bright and dim lighting conditions, without deleteriously affecting light-sensitive chemicals. The touchscreen has a laminated toughened glass panel that is chemically resistant to most solvents.
Temperature probe
The RS9000 operates over a temperature range of ambient to 150°C. An optional temperature probe can be purchased and plugged into the din socket on the front panel.
Key features
- Very versatile as reaction blocks can be inter-changed to accommodate different vessels and tray formats
- Customised reactor blocks also available
- Can be used on a robotic platform or within a laboratory
- Choice of touchscreen control or external control via RS232/ RS485/ GSIOC ports
- Operates over a temperature range of ambient to 150°C
- Agitation speed of 100-600 rpm
- Optional temperature probe
- 2-axis X-Y gyration system on solid bronze chassis that is both reliable and stable
- Auto-park feature enables use on robotic platforms
- Soft start ramping to minimise splashing
- Very safe to operate
- Designed for reliable, continous 24 hour heating and agitation
Safety features
- Thermal cut-off eliminates runaway conditions
- Hot block warning via a highly visible warning display icon to alert you to when the block temperature is above 50°C, even when the apparatus is unplugged from the power supply
- Can be stopped rapidly in case of emergency by pressing down on the front sliding door. The front display will indicate "Door Open" and immediately stop
- Heating and stirring can be reset after stopping by closing the door and pressing the function key zones on the front panel to reactivate.
Technical specification
| Model | RS9000 | RS9000X1 |
|---|---|---|
| Electrical requirements | 230V, 50-60Hz, 900 W | 115V, 50-60Hz, 900 W |
| Heating temperature range | Ambient to 150°C | Ambient to 150°C |
| Timer range | 1 - 99 hours | 1 - 99 hours |
| Agitation speed | 100 - 600 rpm | 100 - 600rpm |
| LCD display | Backlit blue double line dot matrix | Backlit blue double line dot matrix |
| Glass touch panel | 3mm clear with 2mm anti-reflective clear with toughened grey laminate bonded sandwich | 3mm clear with 2mm anti-reflective clear with toughened grey laminate bonded sandwich |
| Touch key zones | Capacitance sensor touch | Capacitance sensor touch |
| Weight ( excluding a reaction block being in place ) | 42 kg | 42 kg |
| Maximum load weight | 7kg max for each reaction block | 7kg max for each reaction block |
| Dimensions ( W x D x H ) | 240 x 510 x 165 mm | 240 x 510 x 165 mm |
| Part Code | Description |
|---|---|
| PS83000 | RS9000 Heater Shaker Reaction Station, 230V |
| PS83000X1 | RS9000 Heater Shaker Reaction Station, 115V |
| Part Code | Description |
|---|---|
| PS80052 | Reaction Block for test tubes, 96 x 16 mm OD |
| PS80064 | Reaction Block for test tubes, 40 x 24 mm OD |
| PS80114 | Reaction Block for 96 x 1.5 ml eppendorf tubes |
| PS80074 | Reaction Block for 4 x standard microtitre plates |
| PS80047 | Reaction Block for 4 x PTFE microtitre plates |
| AZ140940 | Temperature probe ( external ) |
