K23050 Salts in Crude Analyzer Koehler Instrument

Test Method

Salt content is determined by measuring the conductivity of a solution of crude oil in a polar solvent when subjected to an alternating electrical current and is obtained by comparison of the resulting conductance to a calibration curve of known salt mixtures.

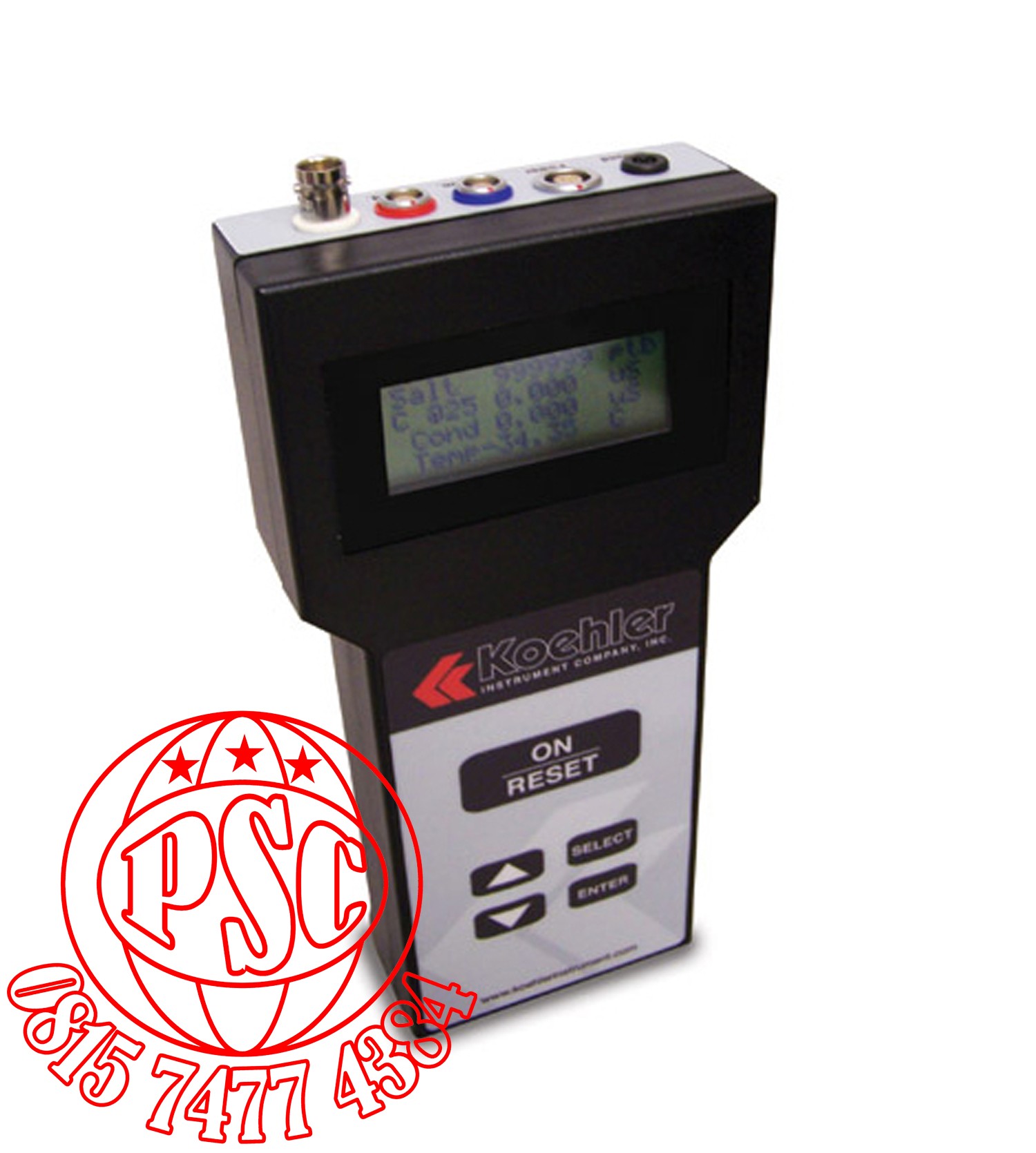

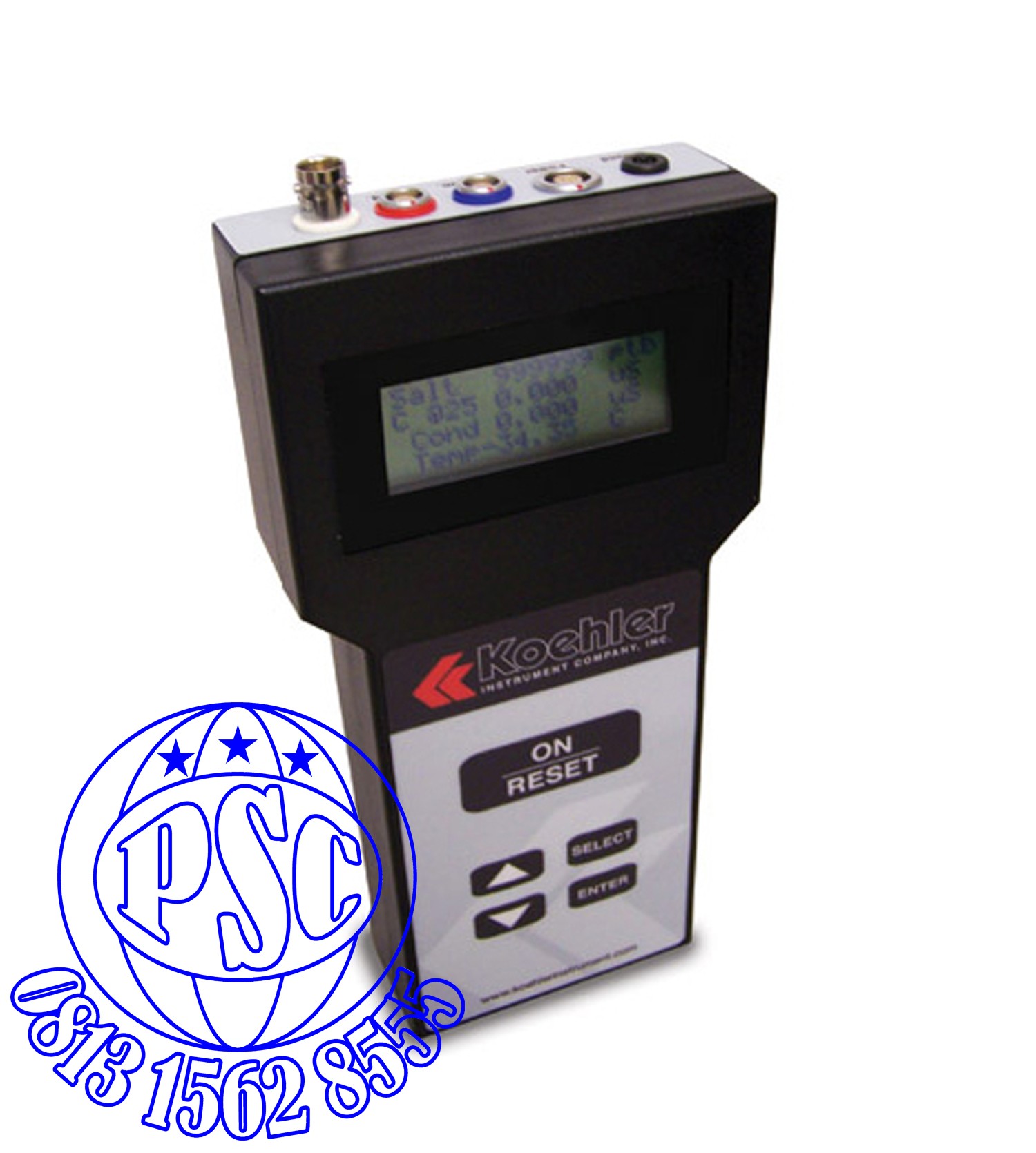

K23050 Electrometric Salt Determinator

• Conforms to ASTM D3230 test specifications

• Measures salt content, conductance, and temperature of crude oil samples, and pH measurements of aqueous samples

• Portable for field or laboratory testing with up to 8 hours of continuous operation from internal Ni-Cd rechargeable batteries

• 18-bit analog-to-digital converter for high precision

• 24 Kb RAM dedicated for data storage ( about 500 test results )

• Data can be uploaded in a comma delimited format to a PC with easy to use Windows® 2000/XP/Vista – based software via an RS232 serial data port

Determines the salt content, conductance, and temperature of crude oil samples according to ASTM D3230 specifications. Utilizes the latest low-voltage, synchronous detection technology for conductivity measurements and a high-accuracy thermistor array to measure sample temperature. Automatically calculates salt concentration directly from acquired temperature and conductivity values. Measures conductivity over four ranges 0-2, 2-20, 20-200, and 200-1500 mS with automatic range selection. Self-calibration feature allows operator to adjust for any drift without re-entering standard temperature curves. Complete data storage of test results which is limited only by the hard drive capacity of external PC. Easy-to-read alpha-numeric display shows any four of the following parameters at one time as chosen by the operator: salts, conductance, conductance @ 25 °C, pH, pH millivolts, temperature ( °C or °F ), internal and external battery voltages, date, time, logging ID, and ID increment value.

Dimensions L x W x H

9 x 4.25 x 2.5 in ( 23 x 10.8 x 6.5 cm )

Net Weight

2 lbs ( 1 kg )

Shipping Information

Shipping Weight

6 lbs ( 2.75 kg )

Dimensions

1.5 Cu. ft.

 Ordering Information

Catalog Number

Product Description

Electrical Requirements

K23050 *

Salt in Crude Analyzer

115/230 V 50/60 Hz
