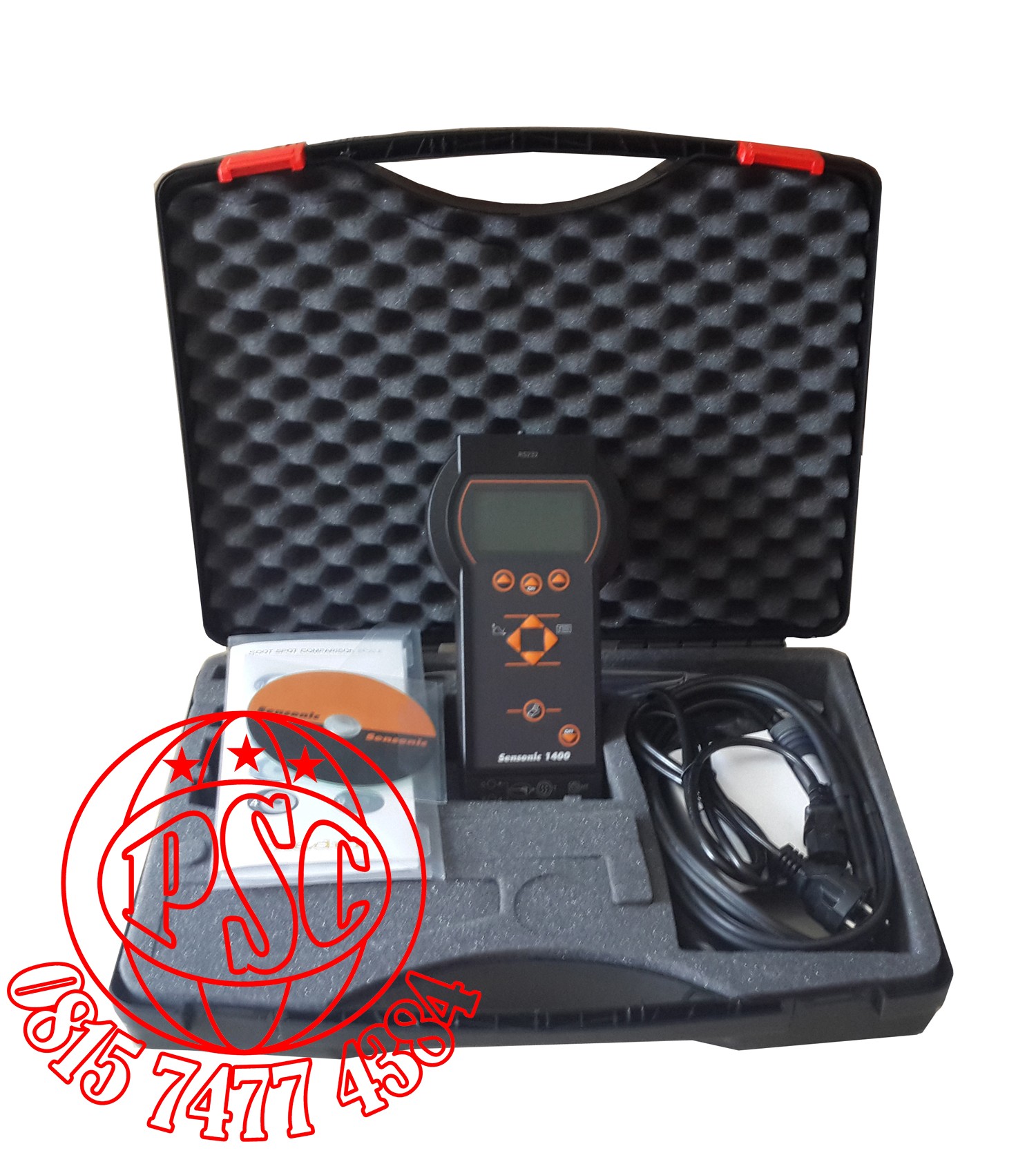

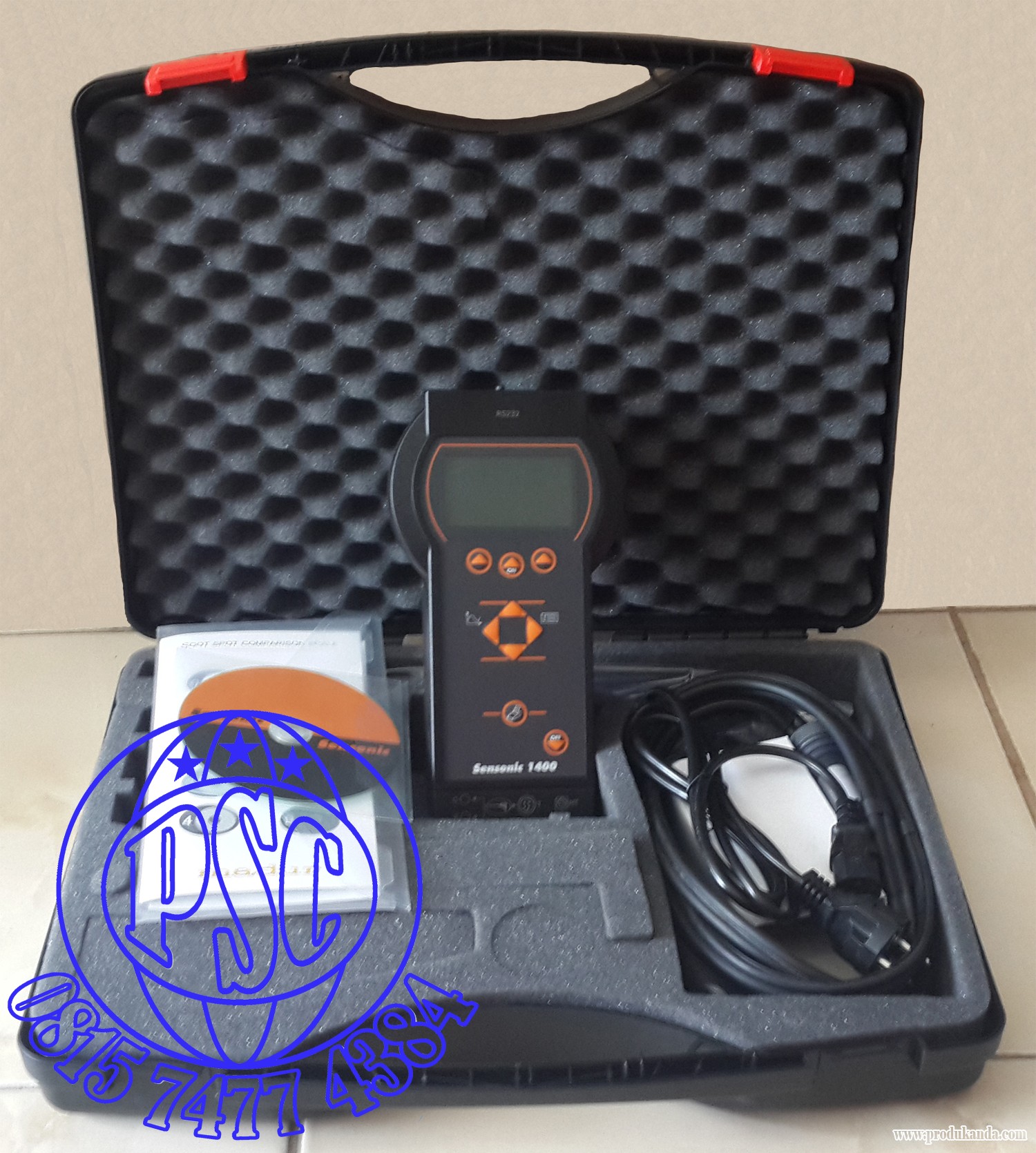

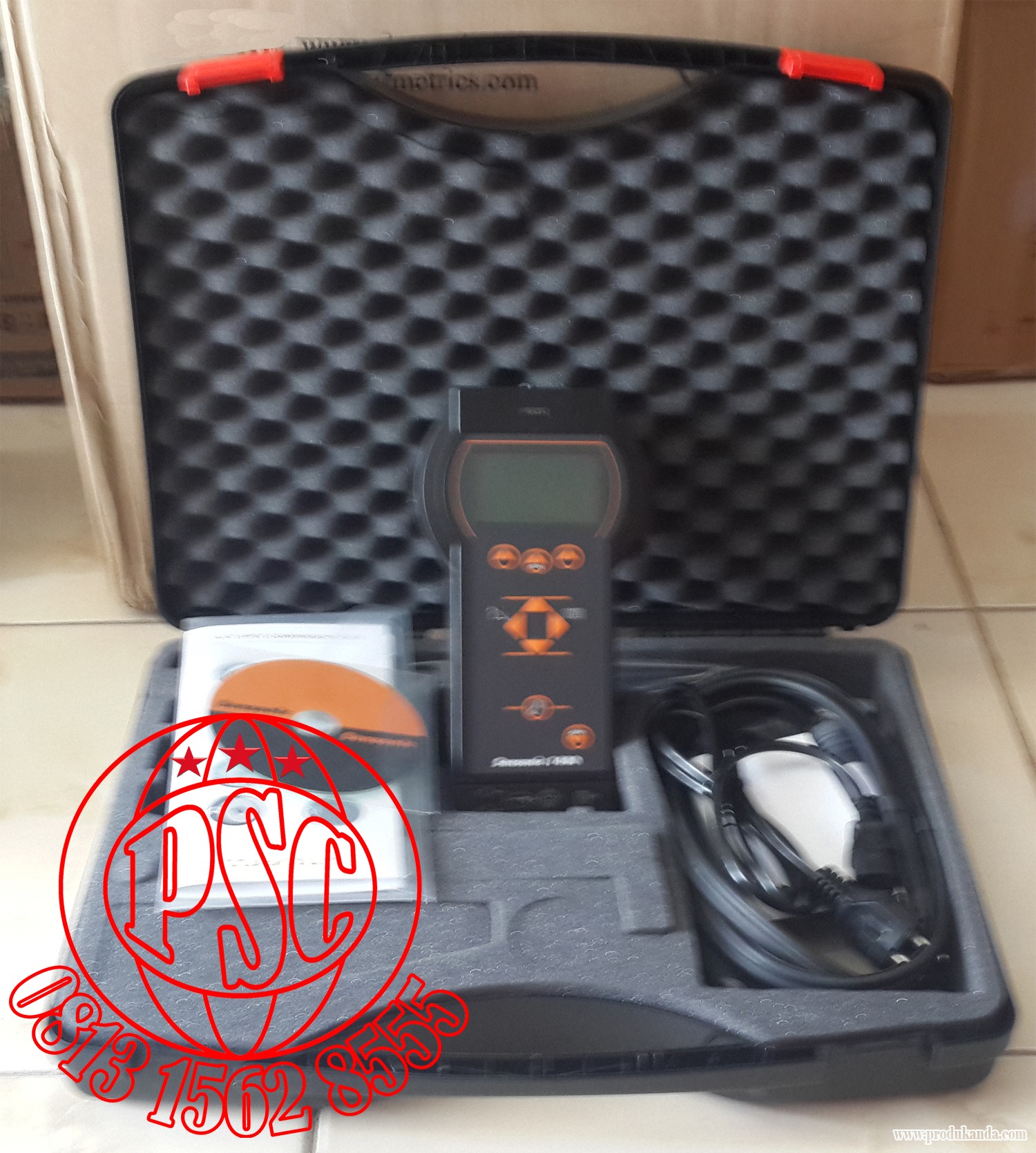

Sensonic 1400 Gas Analyzers

General parameters - Version A ( with single pressure sensor )

Dimensions ( W x H x D )

243 x 130 x 60 mm

257 x 130 x 60 mm ( with gas connectors )

Weight (just the analyser with 4 sensors, without any accessories)

615 g

Housing material

ABS case, rubber protective boot ( optional )

Operating conditions

T: 10 °C ÷ 50 °C, RH: 5 % ÷ 90 % ( non-condensing )

Storing temperature

-20 °C ÷ +55 °C

Power supply

Built-in Li-ion rechargeable battery ( 1600 mAh )

Operating time (fully charged battery)

Up to 16 hours

Number of gas sensors

3 or 4

Memory for results

For 64 measurement reports

Display

Graphical LCD 128 x 64, with variable contrast and LED backlight

Gas pump

Diaphragm, max 0.6 ÷ 0.9l/min.

Printer

External thermal IR printer MCP 8850 with charger

Communication interface with PC computer

RS-232C

Gas filtering

In-line filter included in the gas probe hose

General parameters - Version B ( with additional second pressure sensor )

Dimensions (W x H x D)

243 x 130 x 60 mm

271 x 130 x 60 mm ( with gas connectors )

Weight (just the analyser with 4 sensors, without any accessories)

635 g

Housing material

ABS case, rubber protective boot ( optional )

Operating conditions

T: 10 °C ÷ 50 °C, RH: 5 % ÷ 90 % ( non-condensing )

Storing temperature

-20 °C ÷ +55 °C

Power supply

Built-in Li-ion rechargeable battery ( 1600 mAh )

Operating time (fully charged battery)

Up to 16 hours

Number of gas sensors

3 or 4

Memory for results

For 64 measurement reports

Display

Graphical LCD 128 x 64, with variable contrast and LED backlight

Gas pump

Diaphragm, max 0.6 ÷ 0.9l/min.

Printer

External thermal IR printer MCP 8850 with charger

Communication interface with PC computer

RS-232C

Gas filtering

In-line filter included in the gas probe hose

Measurements of gas components

Table below shows the combination of all sensors/ranges. Please mind that the maximum possible gas sensors number in a device is 3

Method

Range | Resolution

Accuracy

Time (T₉₀)

O₂ – Oxygen

O2-A2 electrochemical sensor

20.95% | 0.01%

± 0.1% abs. or 5% rel.

45 sec

O2-A2 electrochemical sensor

25.00% | 0.01%

± 0.1% abs. or 5% rel.

45 sec

CO – Carbon monoxide

CO-AF electrochemical sensor

2 000ppm | 0.1ppm

± 5ppm abs. or 5% rel.

45 sec

CO-AF electrochemical sensor

4000ppm | 1ppm

± 5ppm abs. or 5% rel.

45 sec

CO-AF electrochemical sensor

20 000ppm | 1ppm

± 10ppm abs. or 5% rel.

45 sec

CO-AE electrochemical sensor

10% (100 000ppm) | 10ppm

± 50ppm abs. or 5% rel.

45 sec

CO-AX electrochemical sensor with low H₂ cross sensitivity

4 000ppm | 1ppm

± 5ppm abs. or 5% rel.

45 sec

NO – Nitric oxide

NO-AE electrochemical sensor

2 000ppm | 0.1ppm

± 5ppm abs. or 5% rel.

45 sec

NO₂ – Nitrogen dioxide

NO2-AE electrochemical sensor

1 000ppm | 0.1ppm

± 5ppm abs. or 5% rel.

45 sec

SO₂ – Sulphur dioxide

SO2-AE electrochemical sensor

2 000ppm | 0.1ppm

± 5ppm abs. or 5% rel.

45 sec

H₂S – Hydrogen sulfide

H2S-AE electrochemical sensor

2 000ppm | 0.1ppm

± 5ppm abs. or 5% rel.

45 sec

Other measurements / calculated results

Method

Range | Resolution

Accuracy

Time (T₉₀)

T_gas – gas temperature

K-type or S-type thermocouple

-10 ÷ 1000°C | 0.1°C

± 2°C

10 sec

T_amb – boiler intake air temperature

PT500 resistive sensor

-10 ÷ 100°C | 0.1°C

± 2°C

10 sec

Differential pressure

silicon piezoresistive pressure sensor

-25hPa ÷ +25hPa | 1Pa (0.01hPa)

± 2Pa abs. or 5% rel.

10 sec

Gas flow velocity (optional)

Indirect, with Pitot tube & second pressure sensor

1 ÷ 50m/s | 0.1m/s

0.3m/s abs. or 5% rel.

10 sec

RH – relative humidity

SHT11 capacitive polymer sensor (special probe needed)

5 ÷ 95% | 1%

± 5% abs.

30 sec

Lambda λ – excess air number

calculated

1 ÷ 10 | 0.01

± 5% rel.

10 sec

qA – stack loss

calculated

0 ÷ 100% | 0.1%

± 5% rel.

10 sec

Eta η – combustion efficiency

calculated

0 ÷ 120% | 0.1%

± 5% rel.

10 sec
