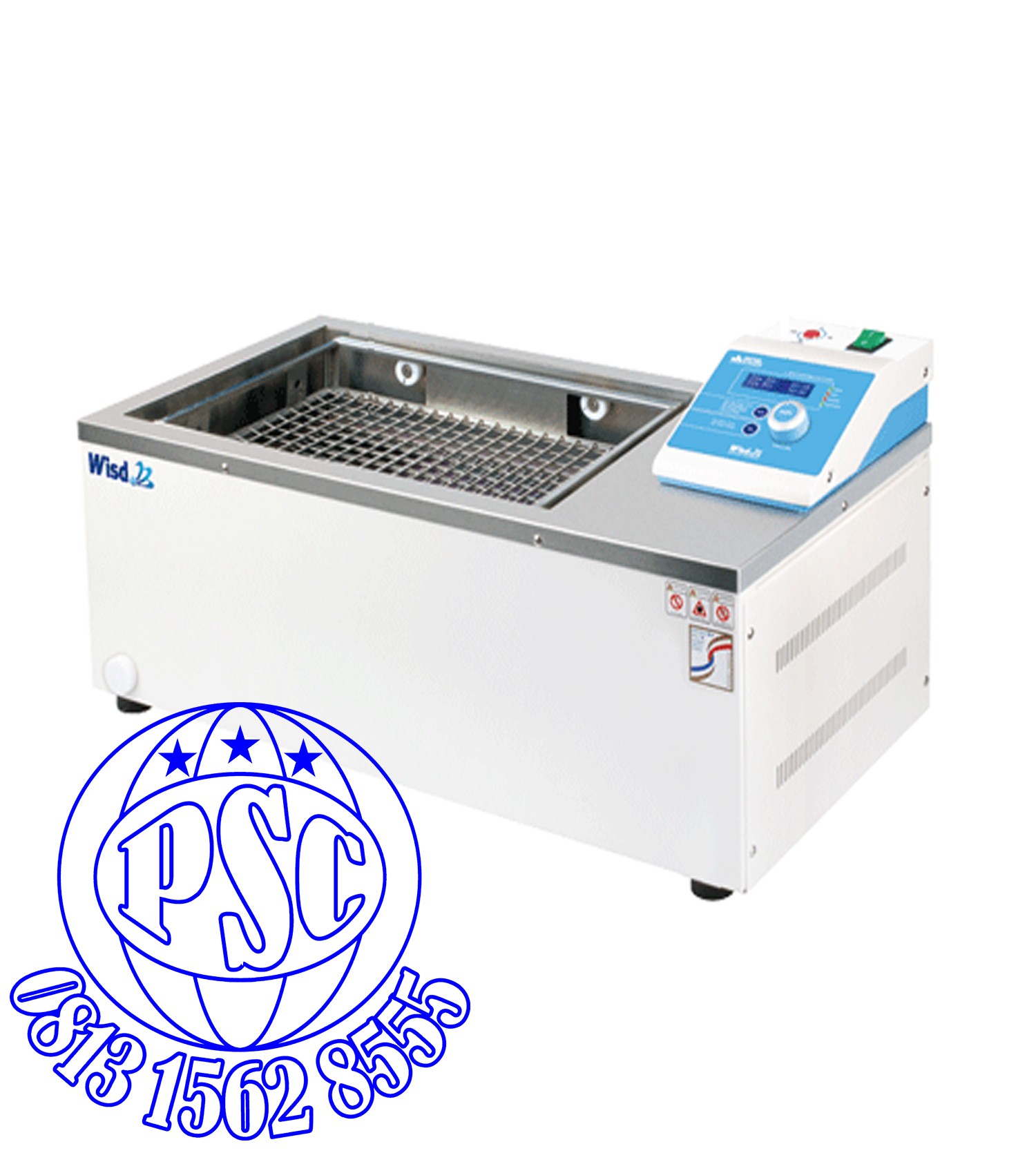

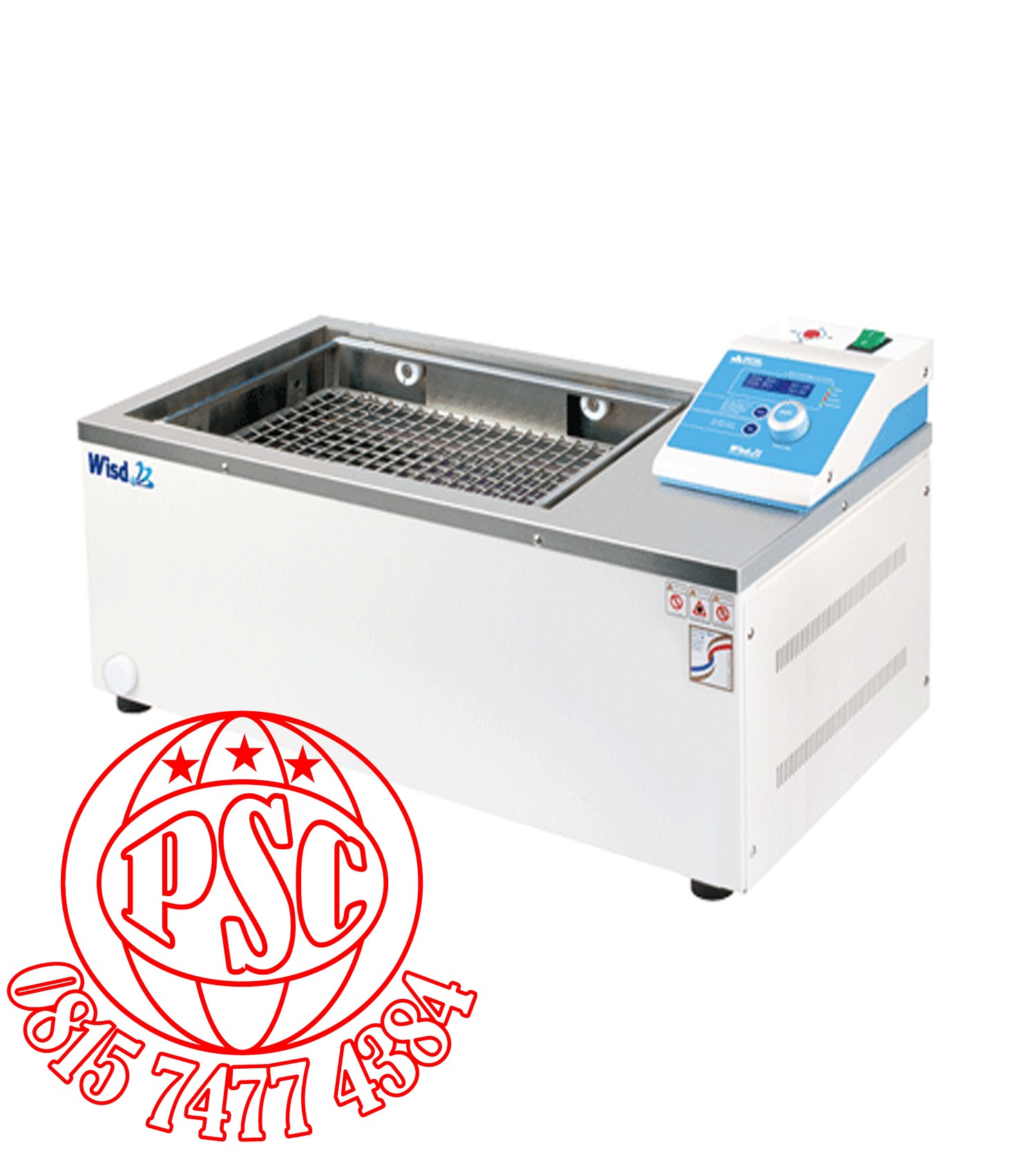

Shaking Water Bath MaXturdy Series Daihan Scientific

Specification

Model

MaXturdy 18

MaXturdy 30

MaXturdy 45

Capacity

18 Lit.

30 Lit.

45 Lit.

Max.Q’ty of Erlenmeyer Flask

250 ml × 4 ea

250 ml × 8 ea

250 ml × 15 ea

Temp. Range & Accuracy

Ambient +5 ℃ to 100 ℃,  ±0.1℃

Temp. Resolution

0.1℃-Display,   0.1℃-Control

Temp. Uniformity & Probe

±0.5℃ ,  PT100

Heating Power

1.4 kW

1.8 kW

2.4 kW

Shaking Speed & Resolution

20 ~ 250 rpm,  1 rpm-Display / 1 rpm-Control

Shaking Stroke ( mm )

15, 20, 30 Available ( 20 as factory Default )

Timer & Alarm

99 hr 59 min ( Delay & Continuous run ), Error status & Timer-end

Display

Digital LCD with Back - Light Function

Controller

Digital Fuzzy Controller with Jog - Shuttle Switch ( Turn+Push )

Safety Circuit

Over-Temp./-Current protection, Sensor Error Detection

Rack

Included Stainless steel Spring Rack : Universal-type

Drain Valve

Mounted

Material

Stainless steel ( ＃304 )-Internal,  Powder Coated steel-External

Dimension

( W x D x H )

Internal ( mm )

300 × 300 × h200

500 × 300 × h200

600 × 380 × h200

External ( mm )

563 × 353 × h340

763 × 353 × h340

863 × 433 × h340

Packing Size ( mm )

620 × 420 × h450

820 × 420 × h450

920 × 500 × h450

& Gross Weight ( kg )

24 kg

26 kg

32 kg

Power Supply

1 Phase, AC 120 V, 60 Hz or  230 V, 50 / 60 Hz
