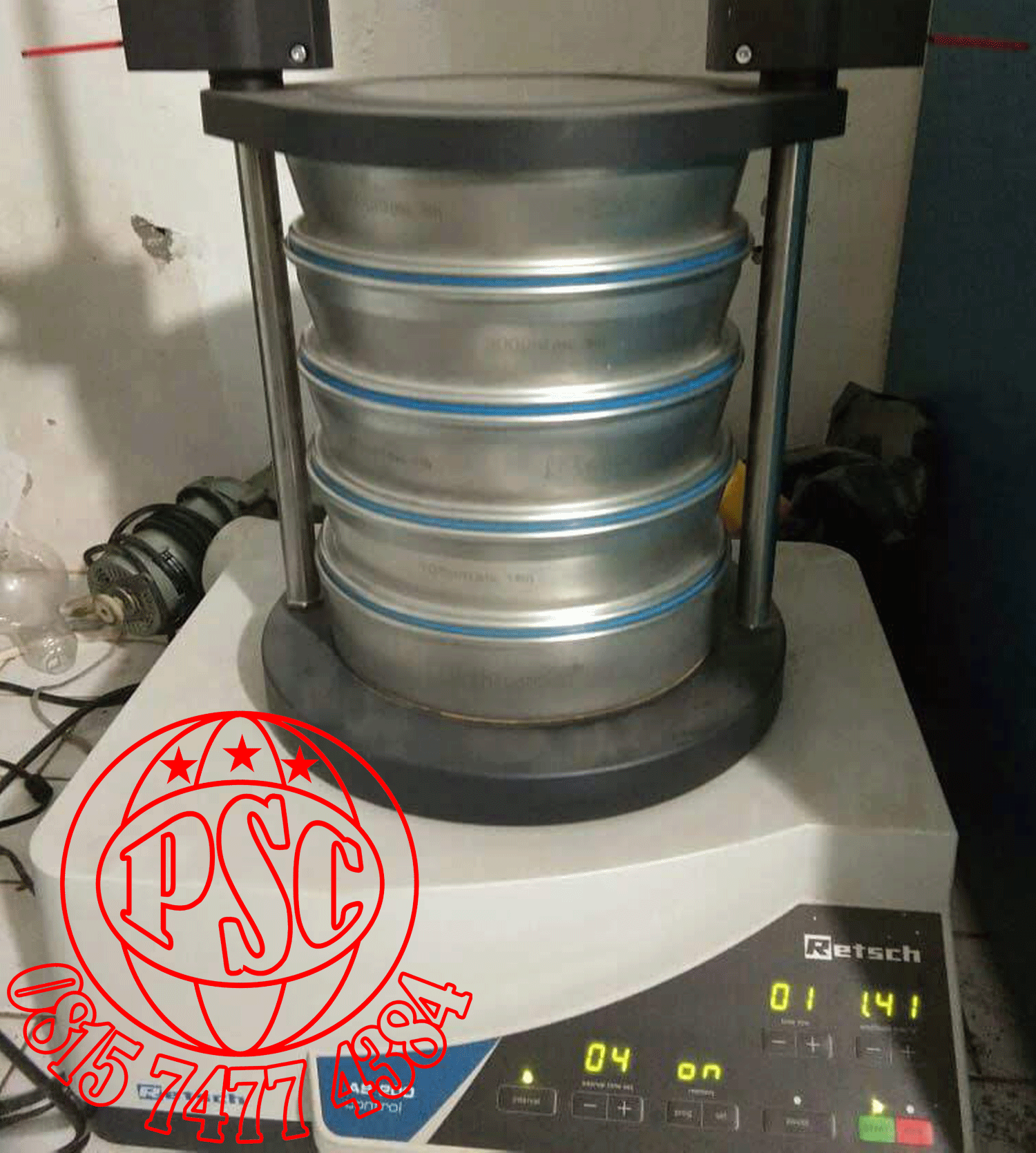

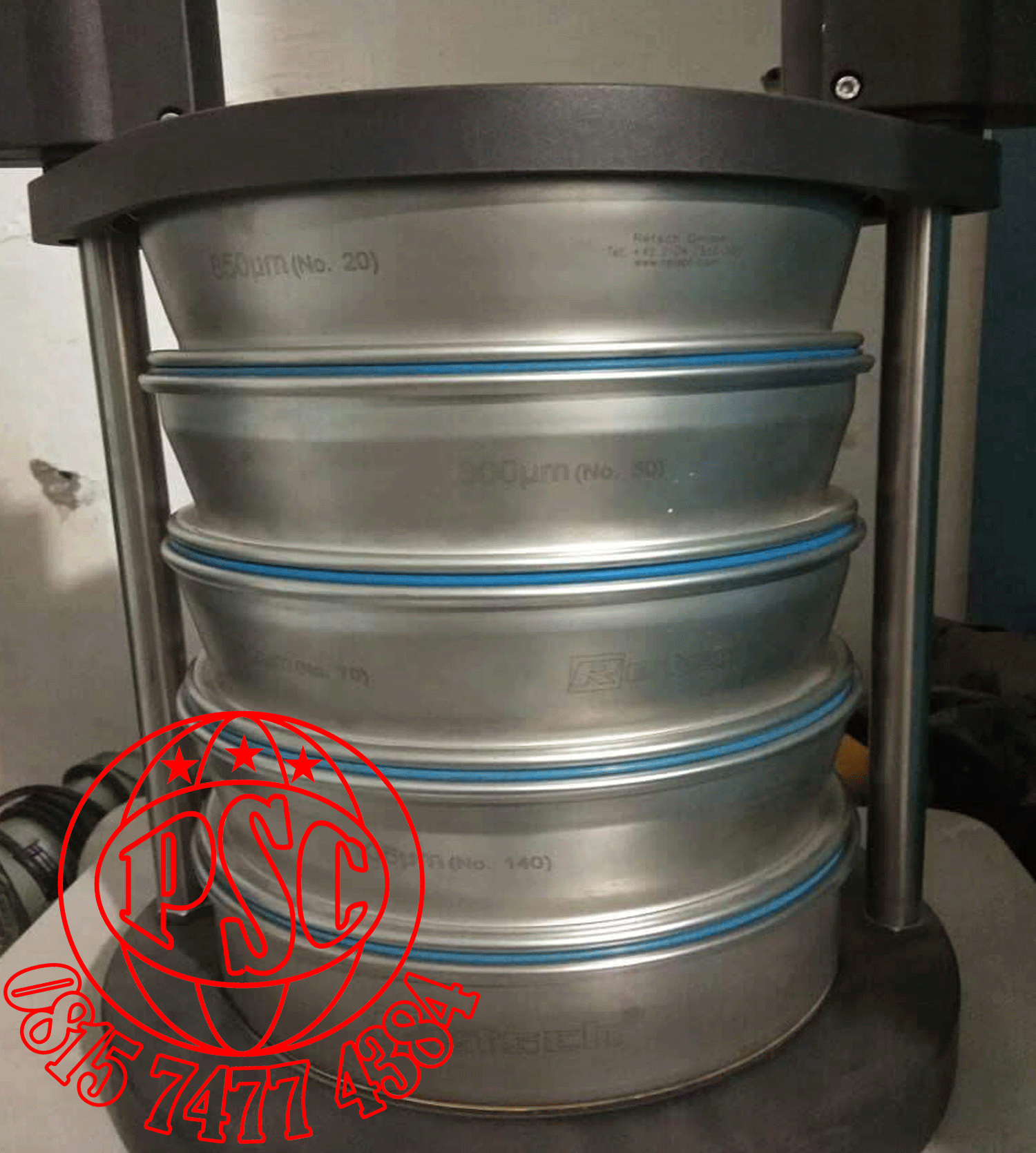

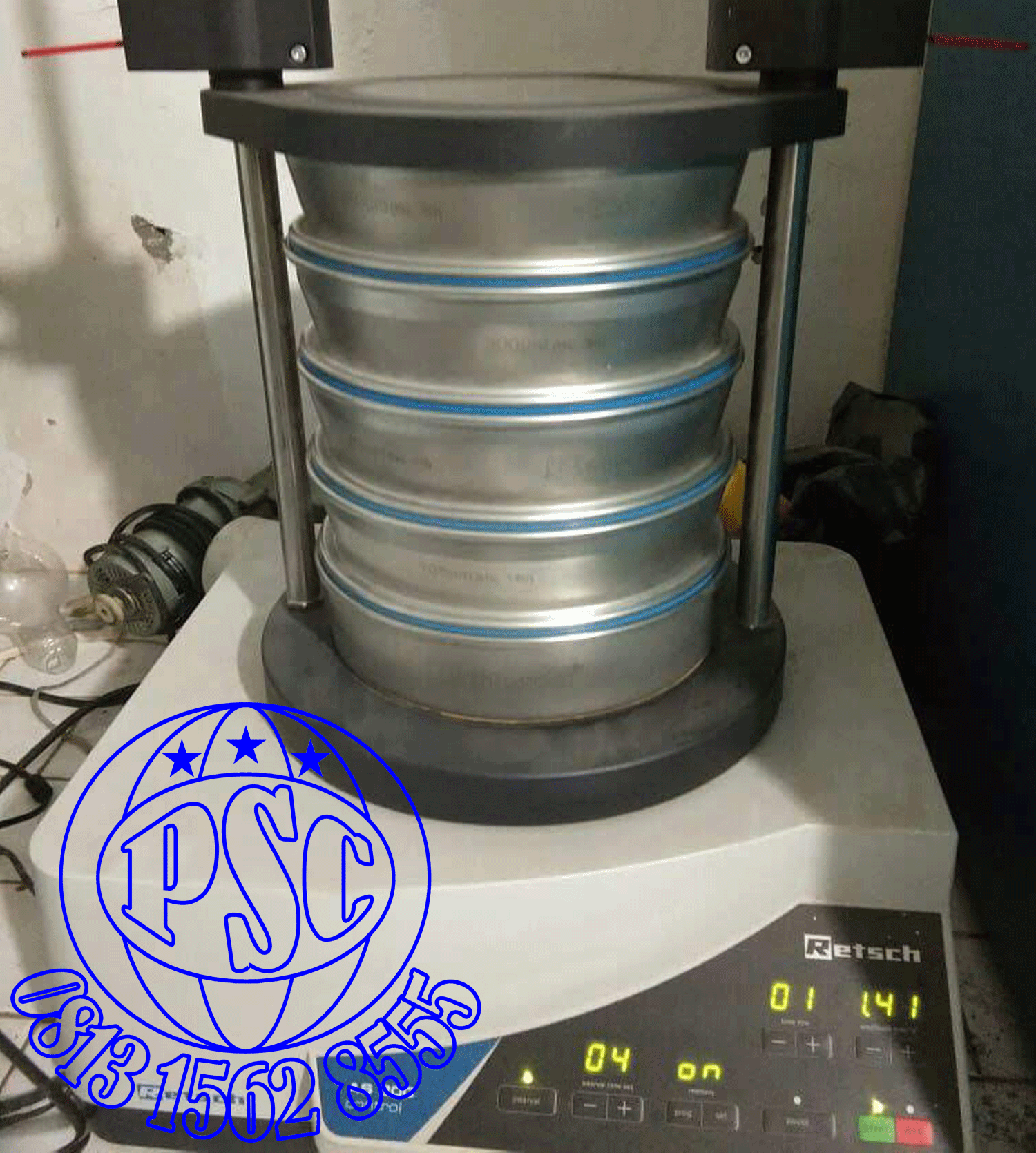

Vibratory Sieve Shaker AS 200 Control Retsch

The analytical sieve shakers of the series AS 200 are used in research & development, quality control of raw materials, interim and finished products as well as in production monitoring.

The controllable electromagnetic drive offers an optimal adaption for every product. Sharp fractions are obtained even after very short sieving times.

With its all-digital controls, up to 99 sieving programs and calibration certificate the sieve shaker AS 200 control is indispensable for all users who attachimportance to precision and operational convenience and need to comply with the guidelines of the ISO 9001.

Application Examples

Cement clinker, chemicals, coffee, construction materials, fertilizers, fillers, flours, grains, metals powders, minerals, nuts, plastics, sand, seeds, soils, washing powder, ... continue to application database

Product Advantages

NEW : up to 99 sieving programs

NEW : low noise operation thanks to optimized control

NEW : USB connection for use of EasySieve software

Suitable for dry and wet sieving

Excellent separation efficiency even with short sieving times

Efficient electromagnetic drive

3-D throwing motion which ensures optimum use of the open sieve area and lets the sample move equally over the whole sieving surface

Setting of sieve acceleration "g" for comparable and reproducible sieving results worldwide

Sieve stack up to 620 mm height

Free digital adjustment of all process parameters ( time, amplitude or sieve acceleration, interval )

Interval operation

Optional sieve software EasySieve for control of the shaker, easy evaluation & documentation of results

Fulfils all criteria for measuring equipment related to ISO 9001

Calibration certificate

Easy operation, ergonomic design

Maintenance-free

Features

Applications

Separation, fractioning, particle size determination

Field of application

Agriculture, biology, chemistry / plastics, construction materials,engineering / electronics, environment / recycling, food, geology /metallurgy, glass / ceramics, medicine / pharmaceuticals

Feed material

Powders, bulk materials, suspensions

Measuring range*

20 µm - 25 mm

Sieving motion

Throwing motion with angular momentum

Max. batch / feed capacity

3 kg

Max. number of fractions

11 - 23

Max. mass of sieve stack

6 kg

Amplitude

Digital, 0.2 - 3 mm

Controlled amplitude

Yes

Sieve acceleration

1.0 - 15.1 g

Time display

Digital, 1 - 99 min

Interval operation

1 - 99 s

Storable SOPs

99

Suitable for dry sieving

Yes

Suitable for wet sieving

Yes

USB interface

Yes

Including test certificate/can be calibrated

Yes

Suitable sieve diameters

100 mm / 150 mm / 200 mm / 203 mm ( 8" )

Max. height of sieve stack

620 mm

Clamping devices

"Standard", "comfort", each for wet and dry sieving

Protection code

IP 54 / IP 20

Electrical supply data

100-240 V, 50/60 Hz

Power connection

1 phase

W x H x D

417 x 212 x 384 mm

Net weight

~ 35 kg

Standards

CE
