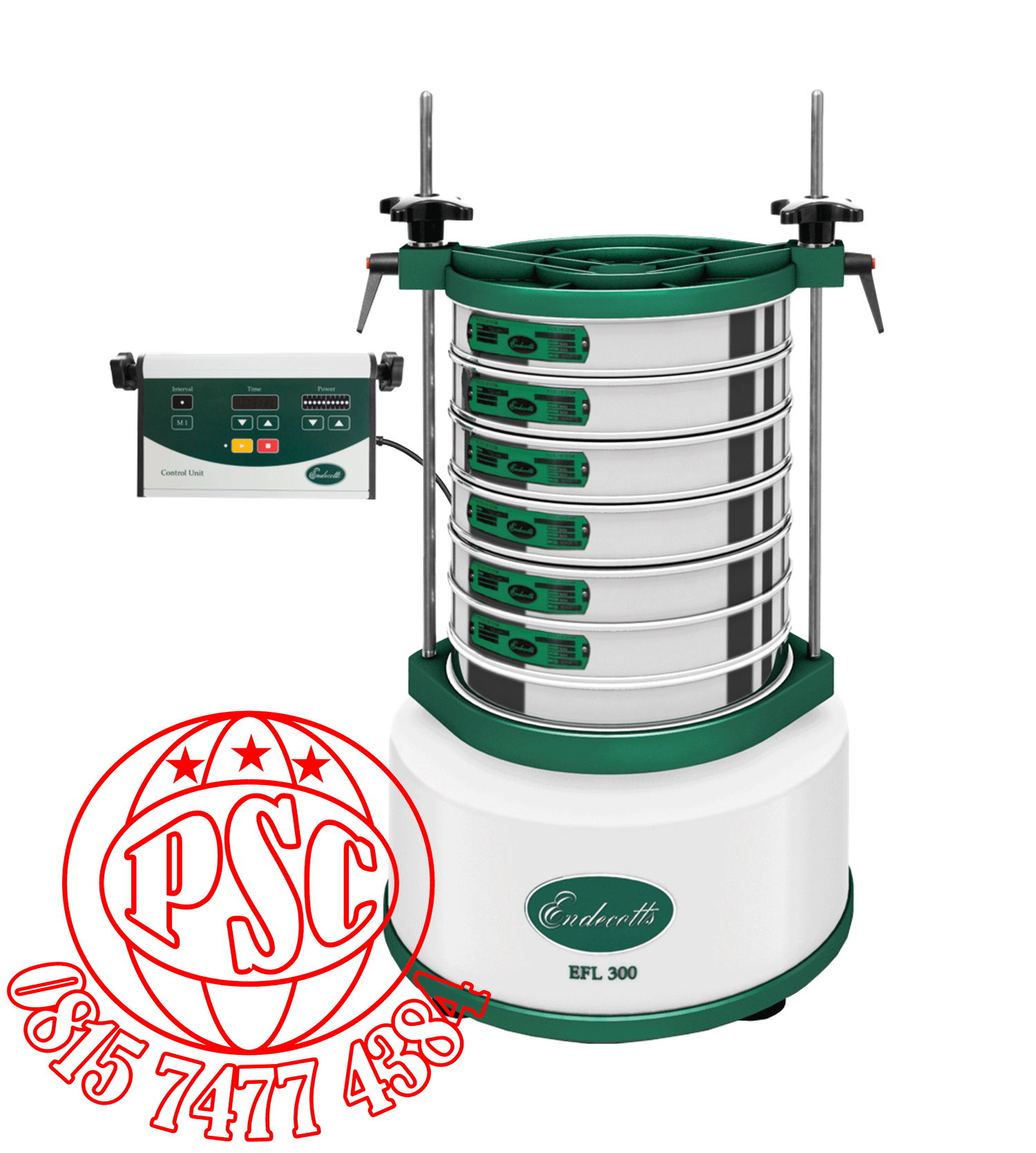

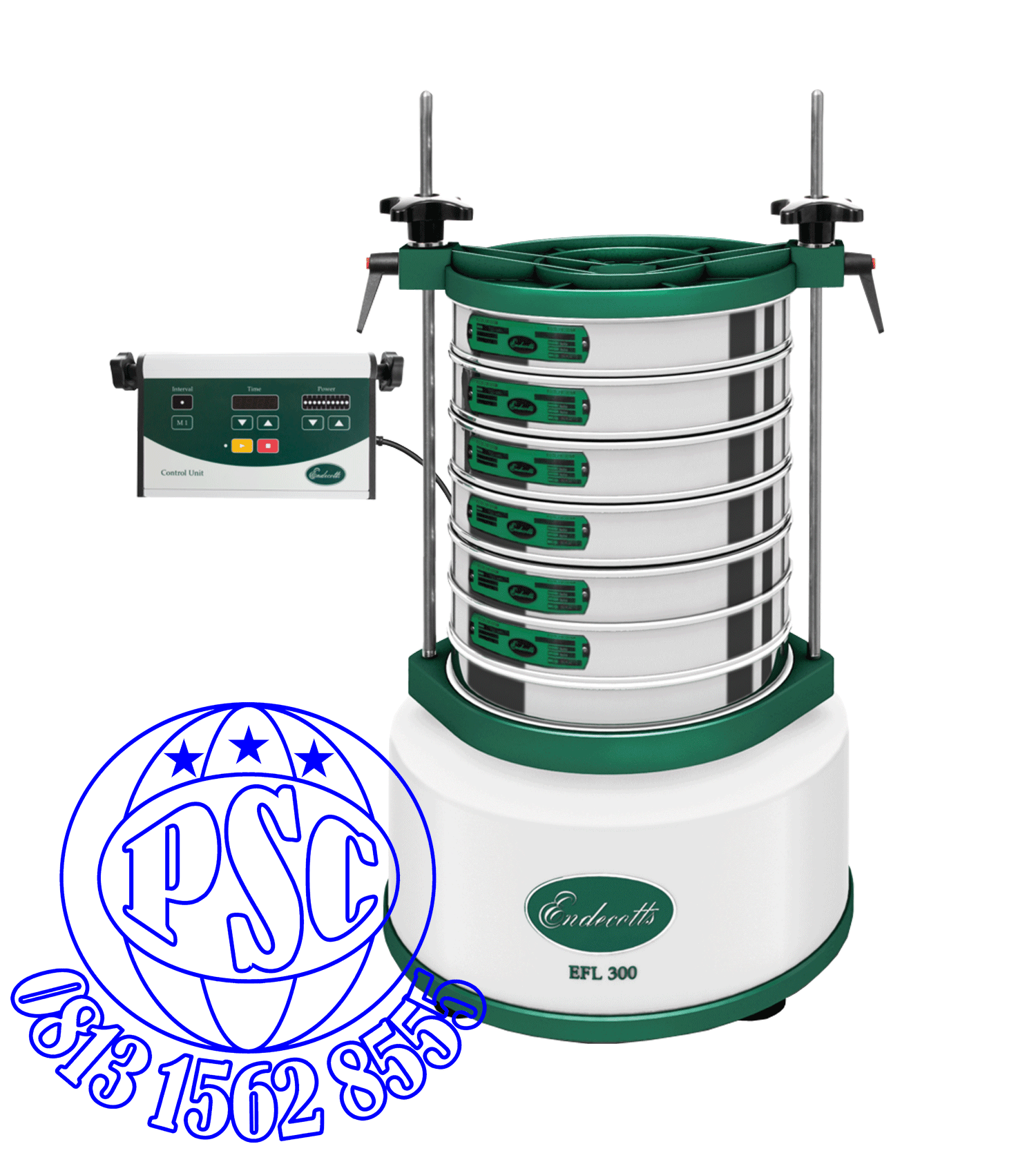

Sieve Shaker EFL 300 Endecotts

Advantages

New electromagnetic drive

Adjustable amplitude

Floor or table mounted

Suitable for wet or  dry sieving

Digital controls for easy and reliable operation via external interface

Economical

Specifications

Range

20 µm - 40 mm

Drive / sieving motion

Electromagnetic 3D

Max. batch / feed capacity

6 kg

Max. number of sieves

06-12

Max. mass of sieve stack

10 kg

Amplitude

0 - 2 mm

Digital setting in 10 steps

Time display

Digital, 00:10 - 99:50 min ( external unit )

Suitable for dry sieving

Yes

Suitable for wet sieving

Yes

Sieve diameter

100 mm / 150 mm / 200 mm 250 mm / 300 mm / 315 mm / 3" / 8" / 12"

Max. height of sieve stack

450 mm

Clamping device

Quick-release clamping system included

Model

Floor or benchtop

Protection code

IP 54

Electrical supply

Different voltages available

Power connection

1 Phase

W x H x D

427 mm x 240 mm

Net weight

~ 45 kg

Standards

CE
