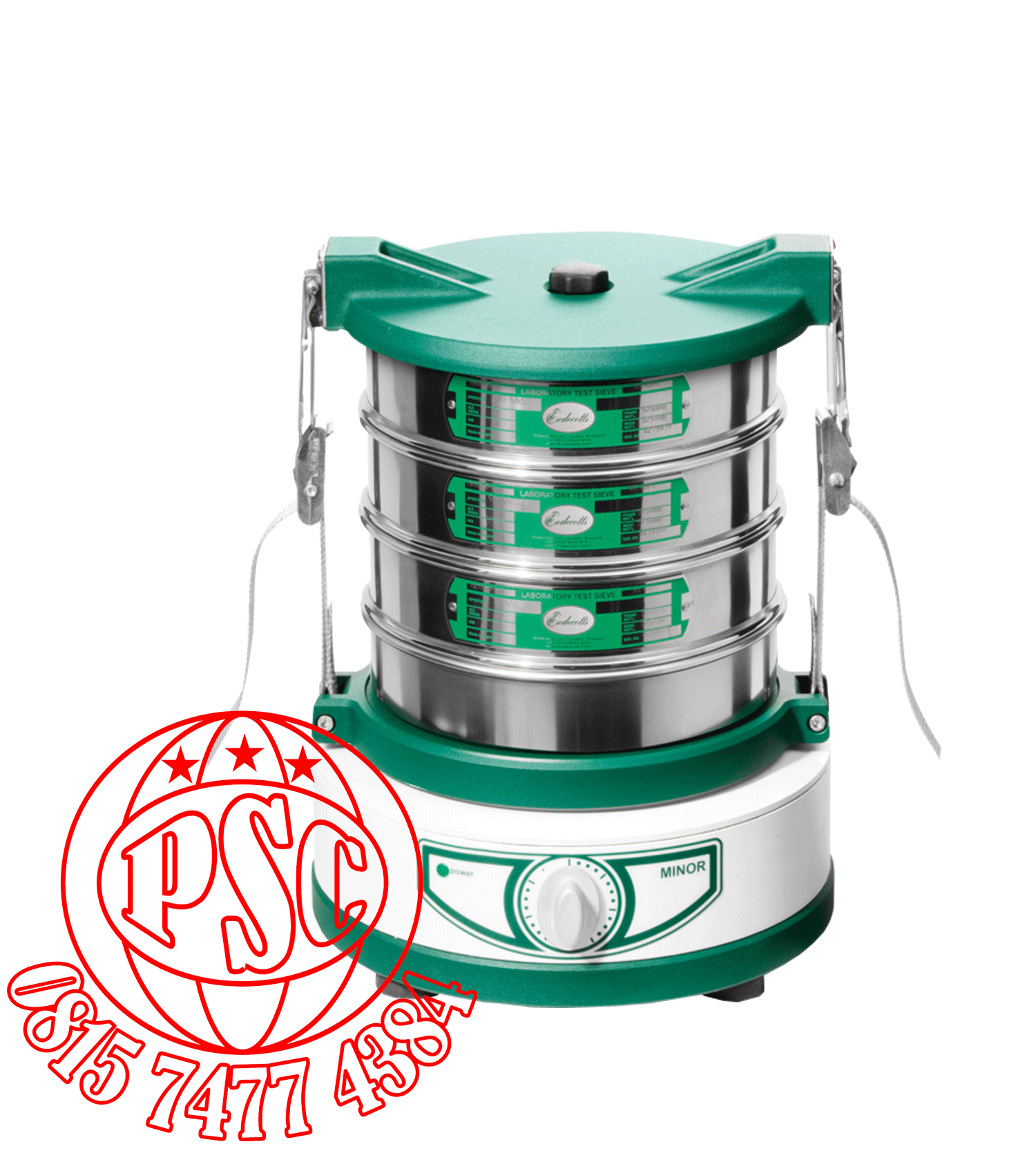

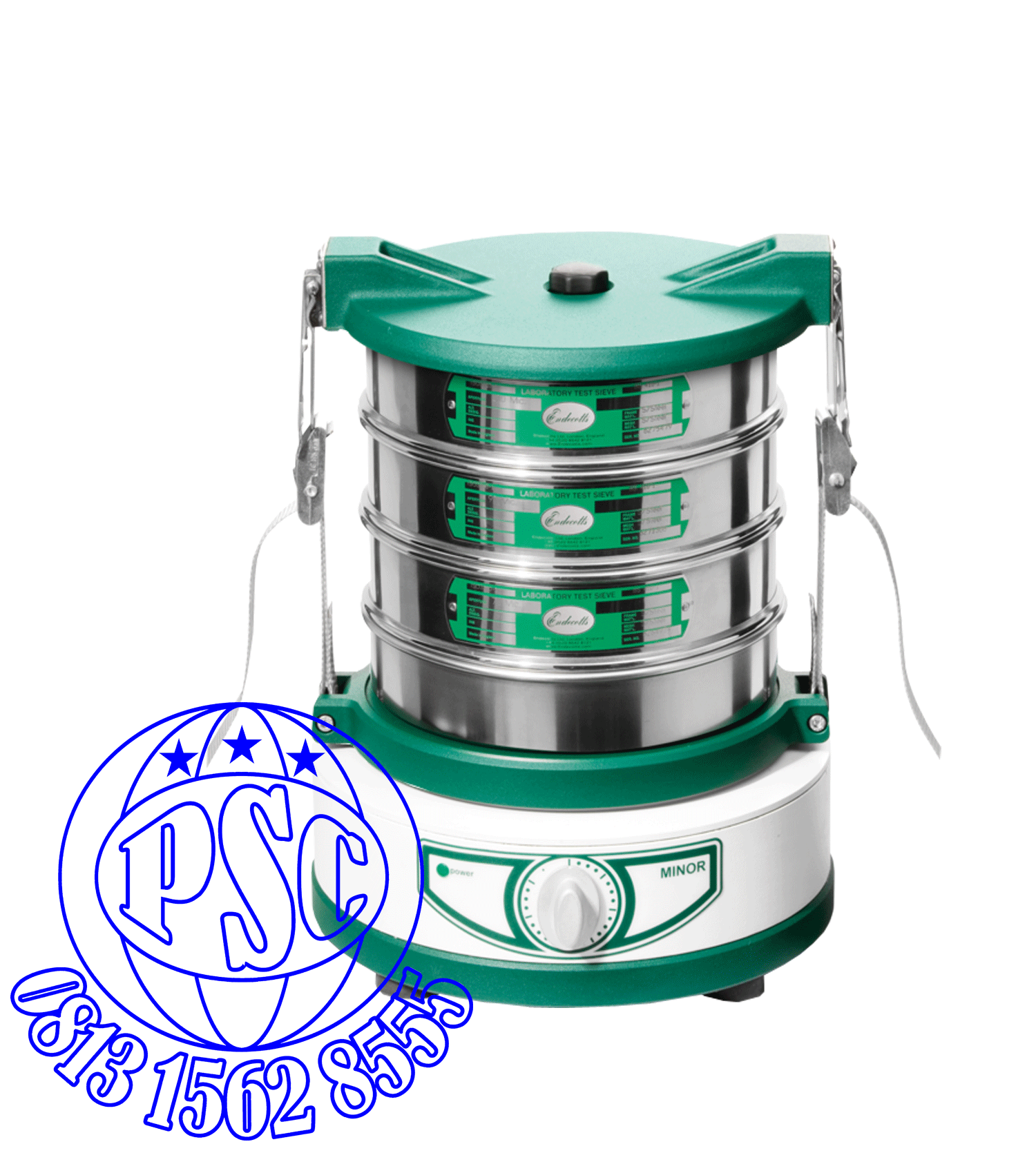

Sieve Shaker MINOR 200 Endecotts

Advantages

Electromagnetic drive for quiet and virtually maintenance free operation

Compact & portable ( weighing only 17 kg )

Requires only small storage space due to small footprint and easily removable clamping belt system ( included )

Easy to use

Different voltages available

Complies with the requirements of AASHTO T 27

Specifications

Range

38 µm to 125 mm

Drive / sieving motion

Electromagnetic

Max. batch / feed capacity

3 kg

Max. number of sieves

8 full height / 16 half height ( 200 mm / 8" dia sieves )

Amplitude

~ 1.6 mm*

Fixed

Speed

3,000 min-1 at 50 Hz

Time display

Analog, 0 - 60 min, continuously

Suitable for dry sieving

Yes

Suitable for wet sieving

-

Serial interface

-

Sieve diameter

100 / 200 mm

3" / 8"

Min. number of sieves

2 full height 200 mm / 8" dia sieves

Clamping device

Clamping belt system ( included )

Model

Benchtop

Protection code

IP 20

Electrical supply

Different voltages available

Power connection

1 phase

W x H x D

262 x 126 mm

Net weight

~16 kg

Standards

CE
