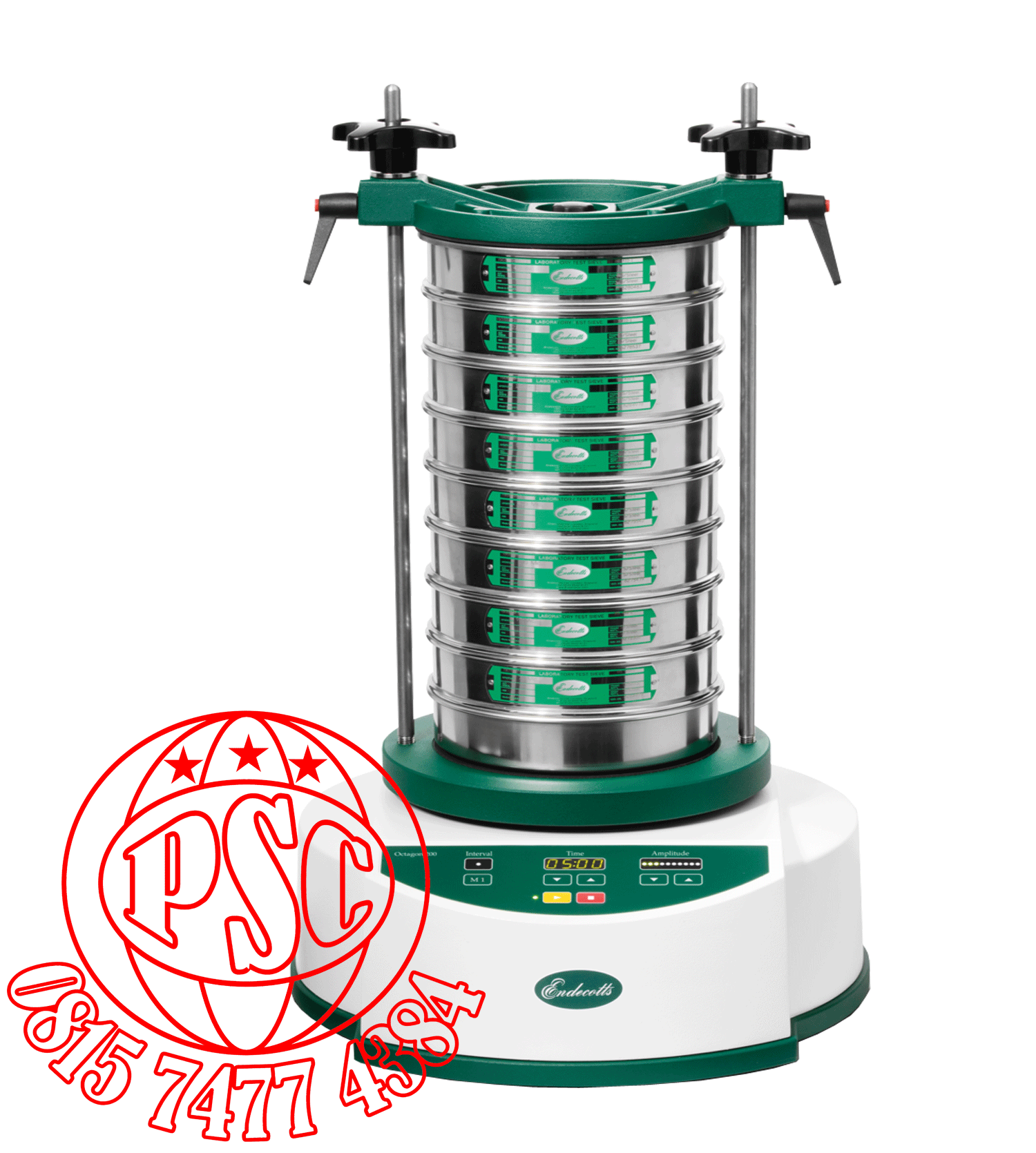

Sieve Shaker OCTAGON 200 Endecotts

Advantages

Easy-to-use sieve clamping system

Accepts up to 8 full height 200 mm ( 8" ) diameter sieves

Suitable for dry and wet sieving

10 amplitude settings & digital timer

3D sieving motion allows for high separation efficiency and non blinding sieving action

Different voltages available

No mechanical moving parts

Compact & portable

Specifications

Range

20 µm to 125 mm

Drive / sieving motion

Electromagnetic 3D

Max. batch / feed capacity

3 kg

Max. number of sieves

8 full height / 16 half height ( 200 mm / 8" sieves )

Amplitude

0 - 3 mm*

Digital setting in 10 steps

Speed

3,000 min-1 at 50 Hz

Time display

Digital, 00:10-99:50 min

Interval operation

Yes ( one mode )

Suitable for dry sieving

Yes

Suitable for wet sieving

Yes

Serial interface

-

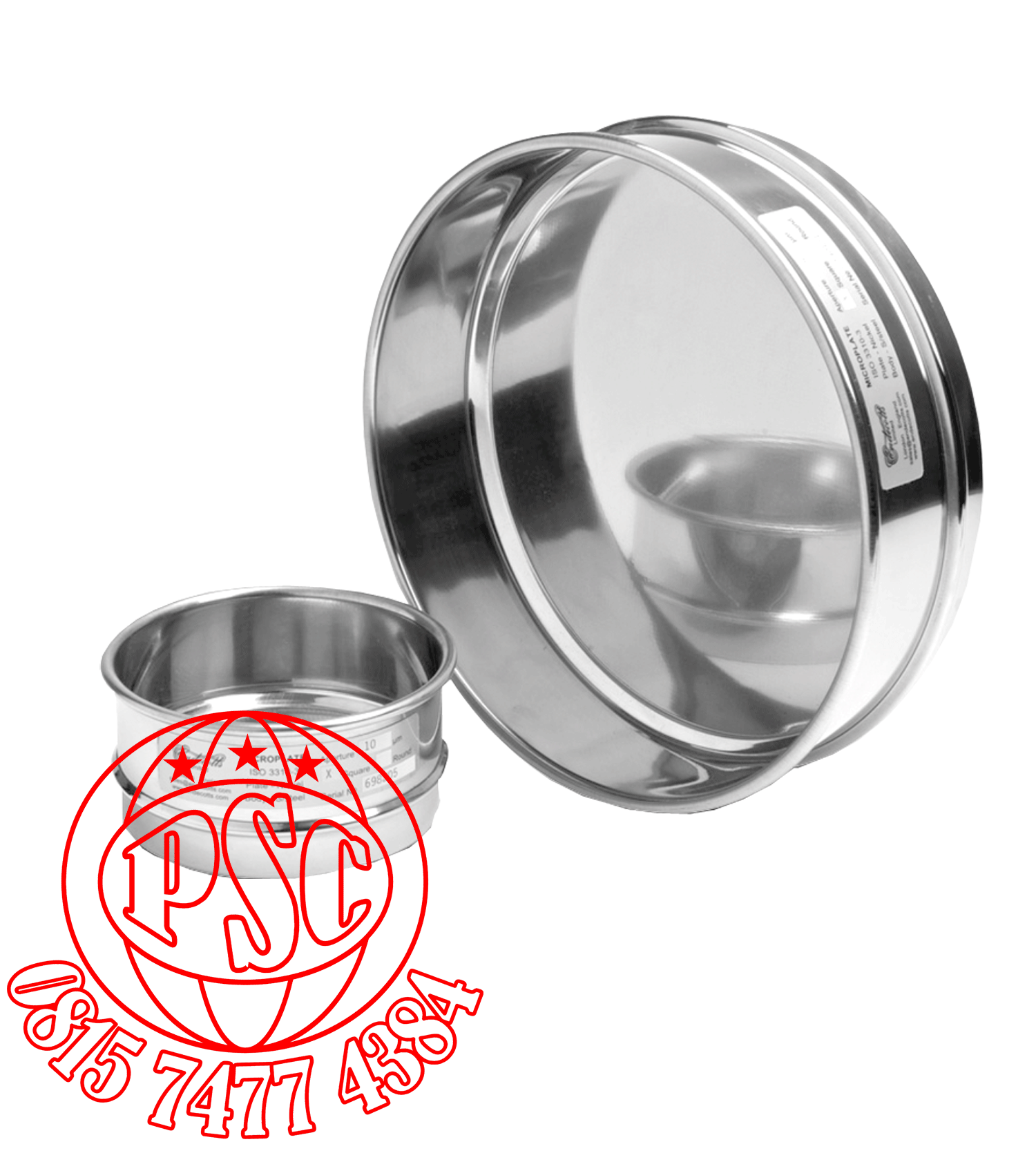

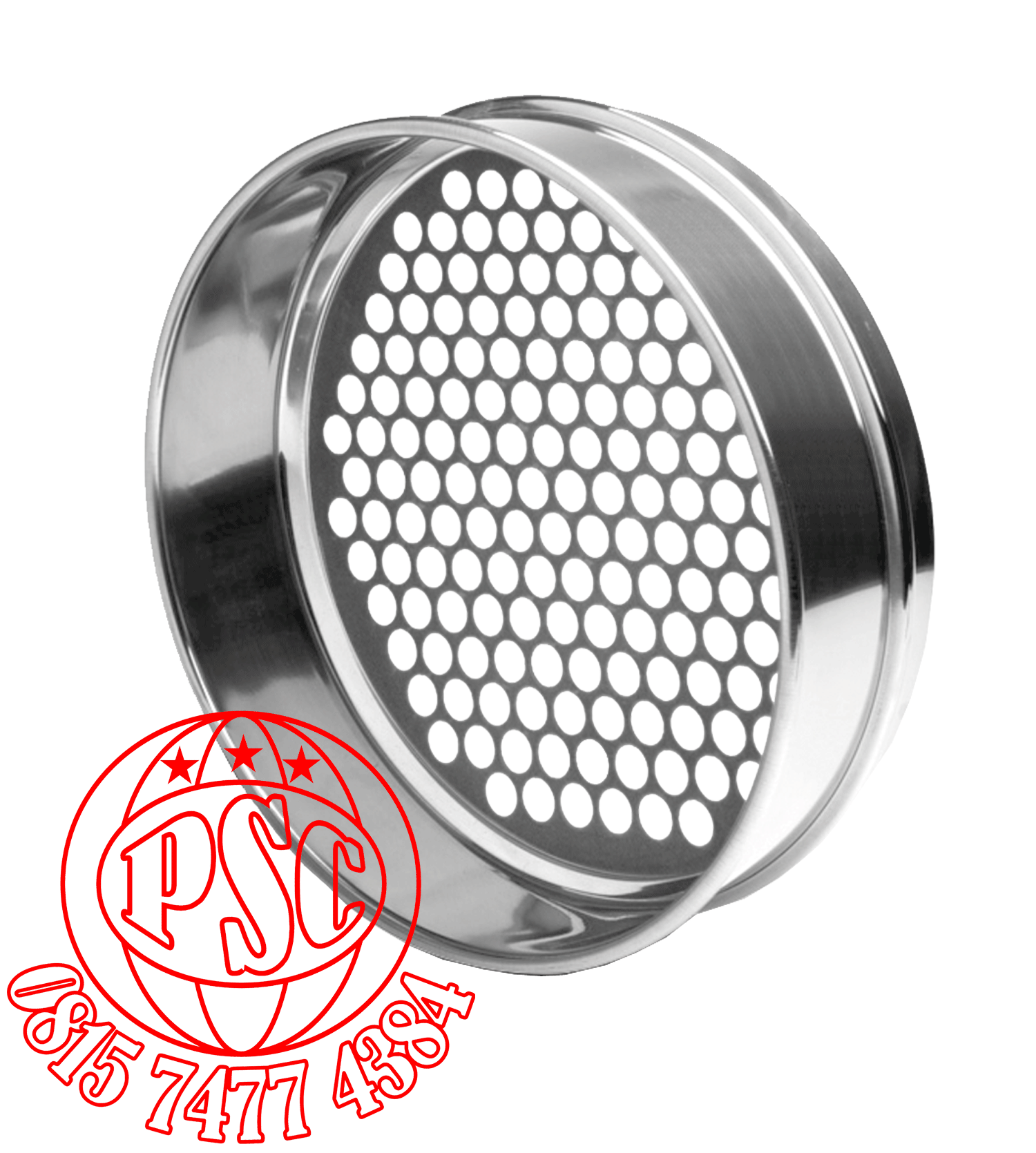

Sieve diameter

100 / 200 mm

8''

Max. height of sieve stack

Up to 450 mm

Clamping device

Quick-release clamping system ( included )

Model

Benchtop

Protection code

IP 54

Electrical supply

Different voltages available

Power connection

1 - Phase

W x H x D

418 x 232 x 435 mm

Net weight

~35 kg

Standards

CE
