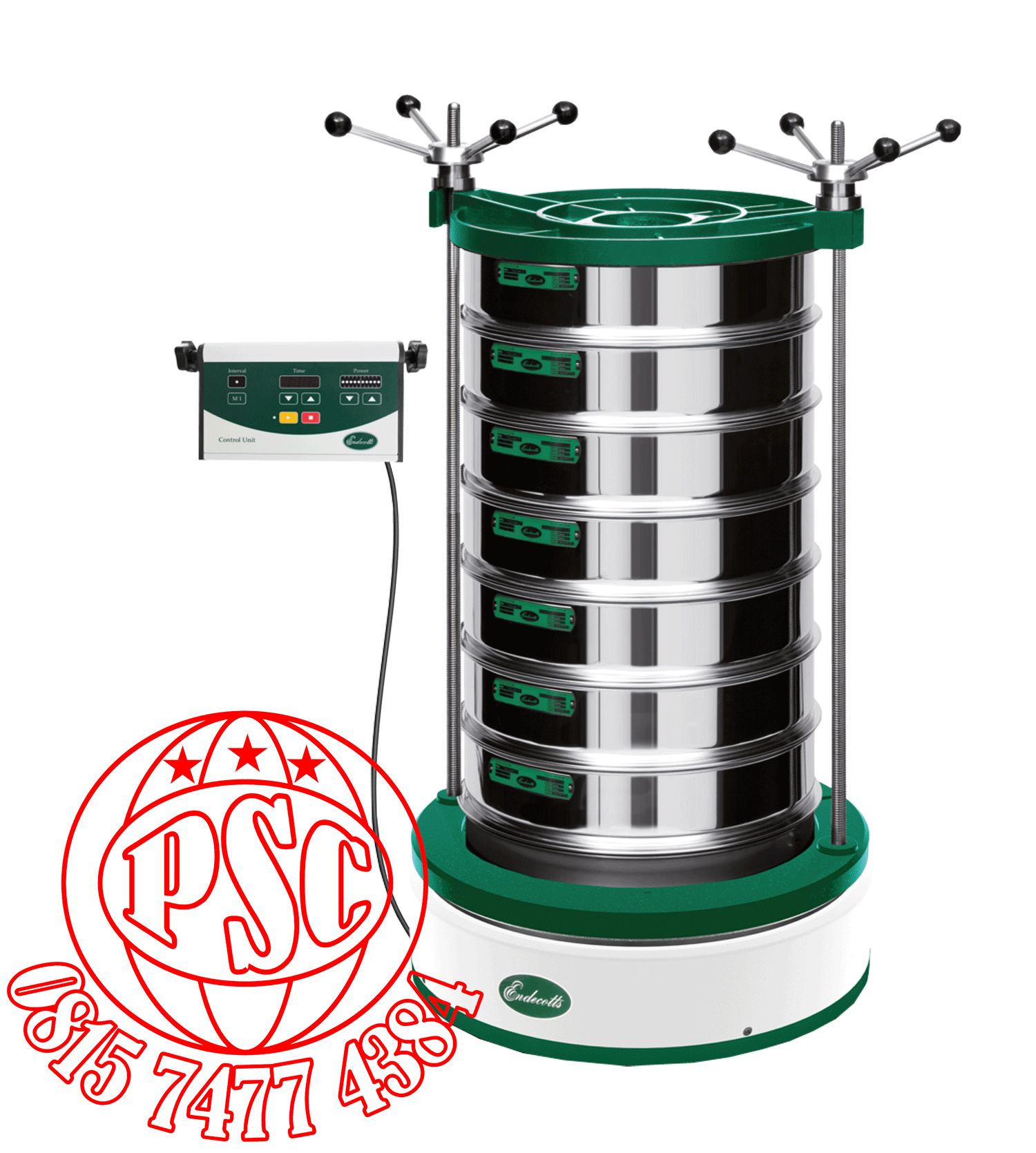

Sieve Shaker TITAN 450 Endecotts

Advantages

Electromagnetic drive for quiet and virtually maintenance free operation

Easily set to maximum efficiency

Digital controls for easy and reliable operation via external interface

Economical

No mechanical moving parts

Suitable for wet or dry sieving

Specifications

Range

20 µm to 125 mm

Drive / sieving motion

Electromagnetic 3D

Max. batch / feed capacity

20 kg

Max. number of sieves

7 full height 450 mm

Amplitude

0 - 2 mm

Digital setting in 10 steps

Speed

3,000 min-1 at 50 Hz

Time display

Digital, 00:10 - 99:50 min ( external unit )

Suitable for dry sieving

Yes

Suitable for wet sieving

Yes

Sieve diameter

250 / 300 / 315 / 350 / 400 / 450 mm

Max. height of sieve stack

Up to 830 mm

Clamping devices

Turn and twist clamping system ( included )

Model

Floor

Protection code

IP 54

Electrical supply

Different voltages available

Power connection

1- Phase

W x H x D

606 x 230 mm

Net weight

~ 140 kg

Standards

CE
