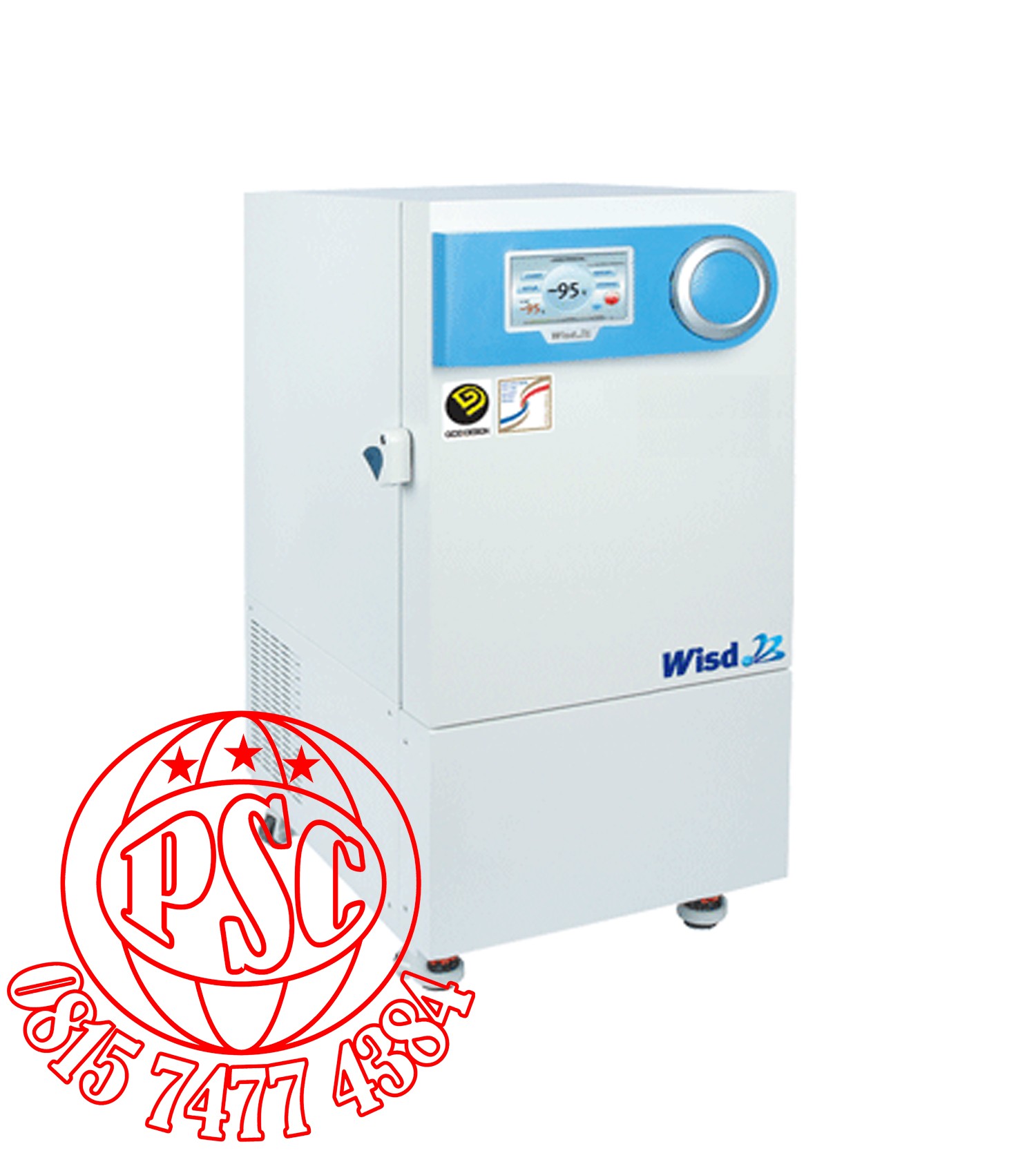

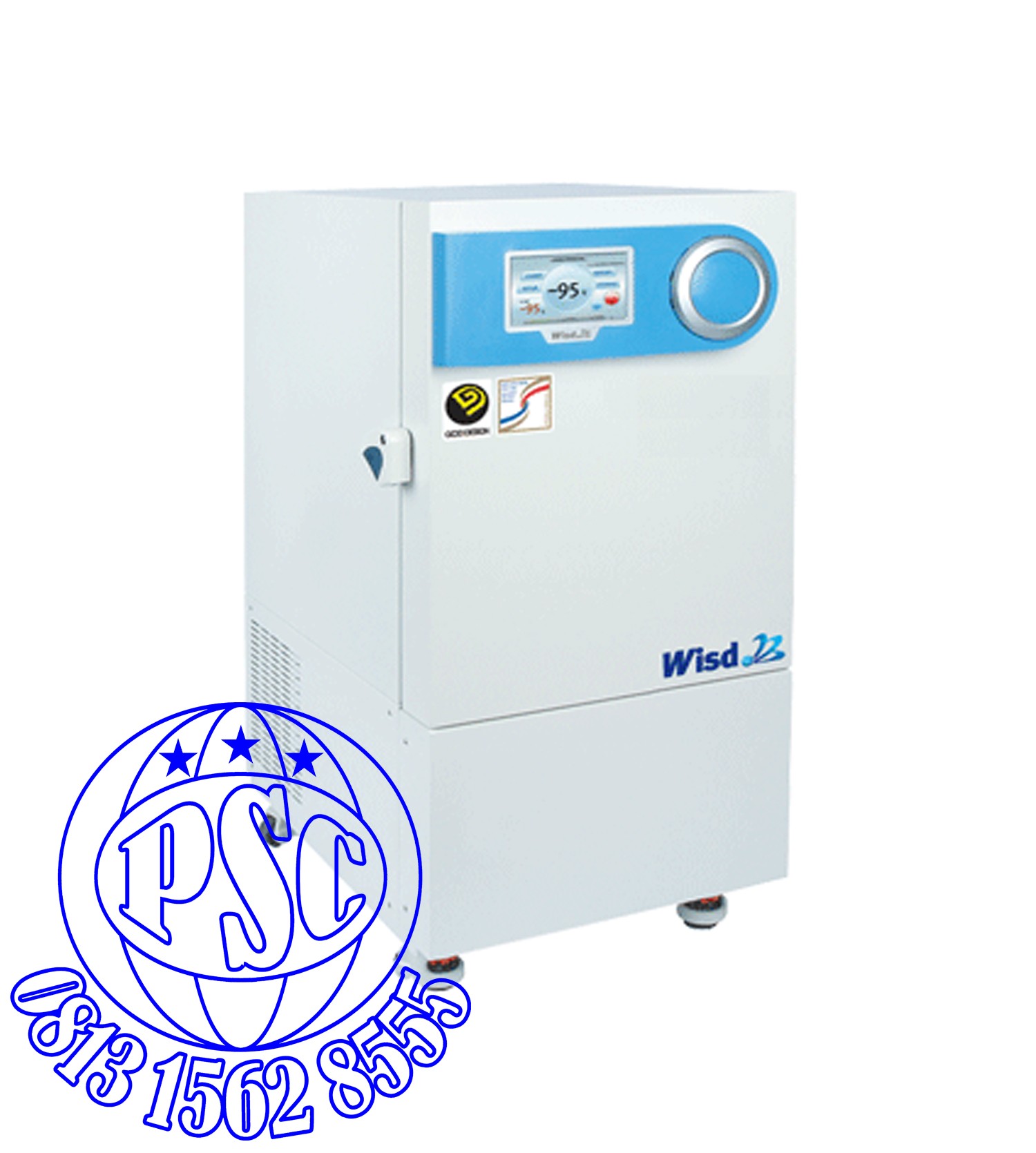

SimpleFreez Personal Digital Ultra-Low Temp Freezer SimpleFreez U25e & U80 Daihan Scientific

Specification

Model

SimpleFreez U25

SimpleFreez U80

Capacity

25 Lit.

82 Lit.

Freezing System

SimpleFreezTM  System

Temp.

Range

-86℃~-65℃

at Room Temp. of 30℃ and Humidity of 70%

Sensor

PT100 Sensor

Compressor

Hermetic Type

Condenser Type

Block Condenser, No Pin, Filter Free Mechanism

Refrigerant

Natural ( CFC Free Refrigerant System )

Controller

Digital Feedback Controller

7″ Full Touch Screen TFT LCD

Shelves

None

Included 1 Stainless steel Shelf

Max. Q'ty of Racks

None, only 10~15 boxes are applicable

4 pcs of 12 ( 3 x 4 )-Placed Rack ( RFU8 )

Material

Internal

Stainless steel ( #304 )

External

Powder Coated steel Plate

Inner Door

Powder Coated Stainless steel ( #304 )

Others

CE & RoHS Certified, GD-mark ( SimpleFreez 80 ) PL( Product Liability ) Insurance

Touch-Screen TFT LCD Smart-LabTM  Controller ( SimpleFreez 80 ) CFC-Free Refrigerants,

RS232 Communication link Built in Standard Warning and Alarm Functions

Remote Control Software ( SimpleFreez 80 )

Dimension

( W x D x H )

Internal (mm)

200 × 420 × 300

340 × 485 × 520

External (mm)

390 × 627 × 785

530 × 687 × 1,060

Weight

52 kg

60 kg

Packing Size (W x D x H) (mm)

880 × 860 × 1,300

960 × 760 × 1,350

& Gross Weight

69 kg

102 kg

Power Consumption

321 Wh

Power Supply & Cord Plug

1 Phase, AC 120V, 60Hz or  AC 230V, 50 / 60Hz
