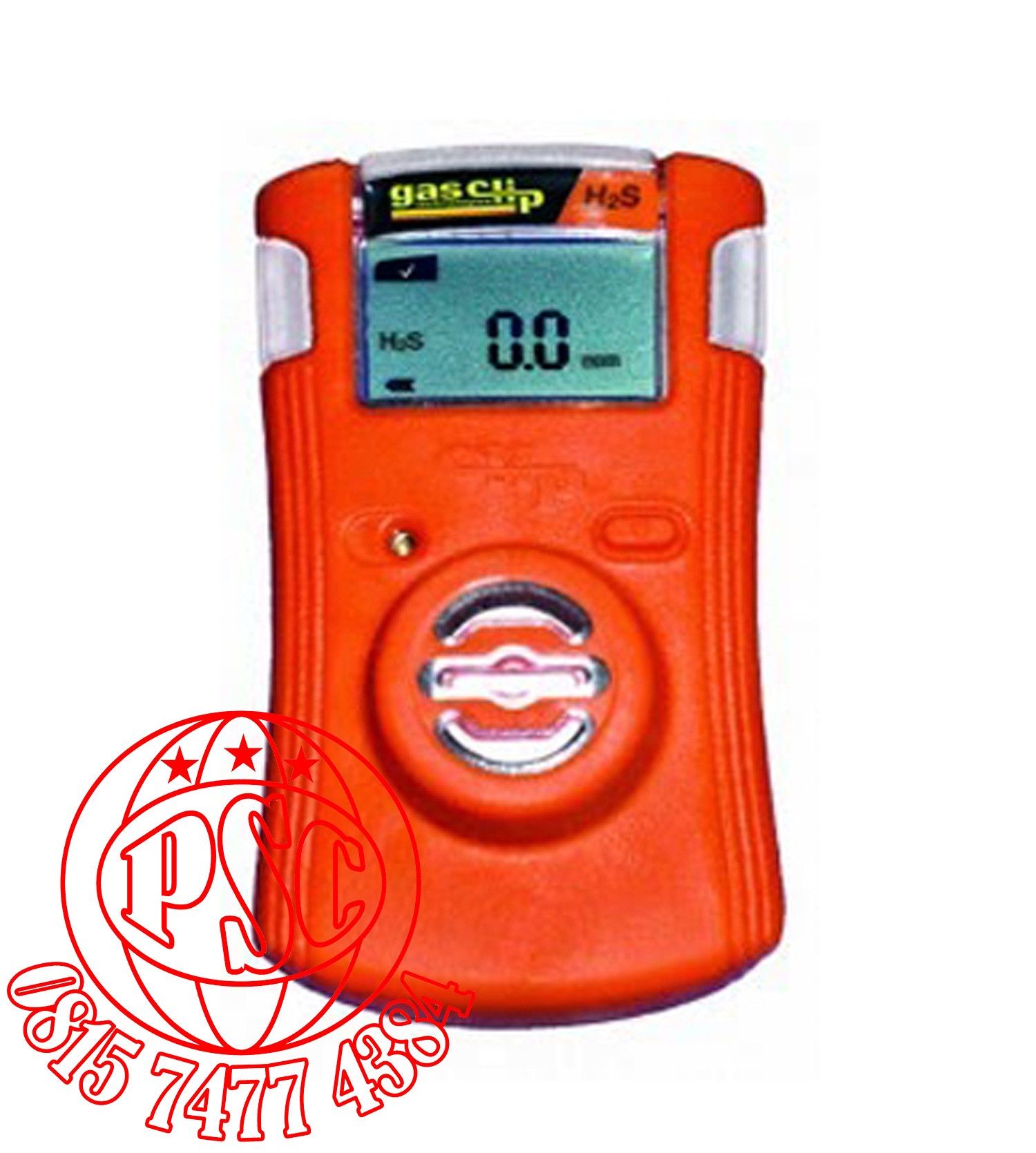

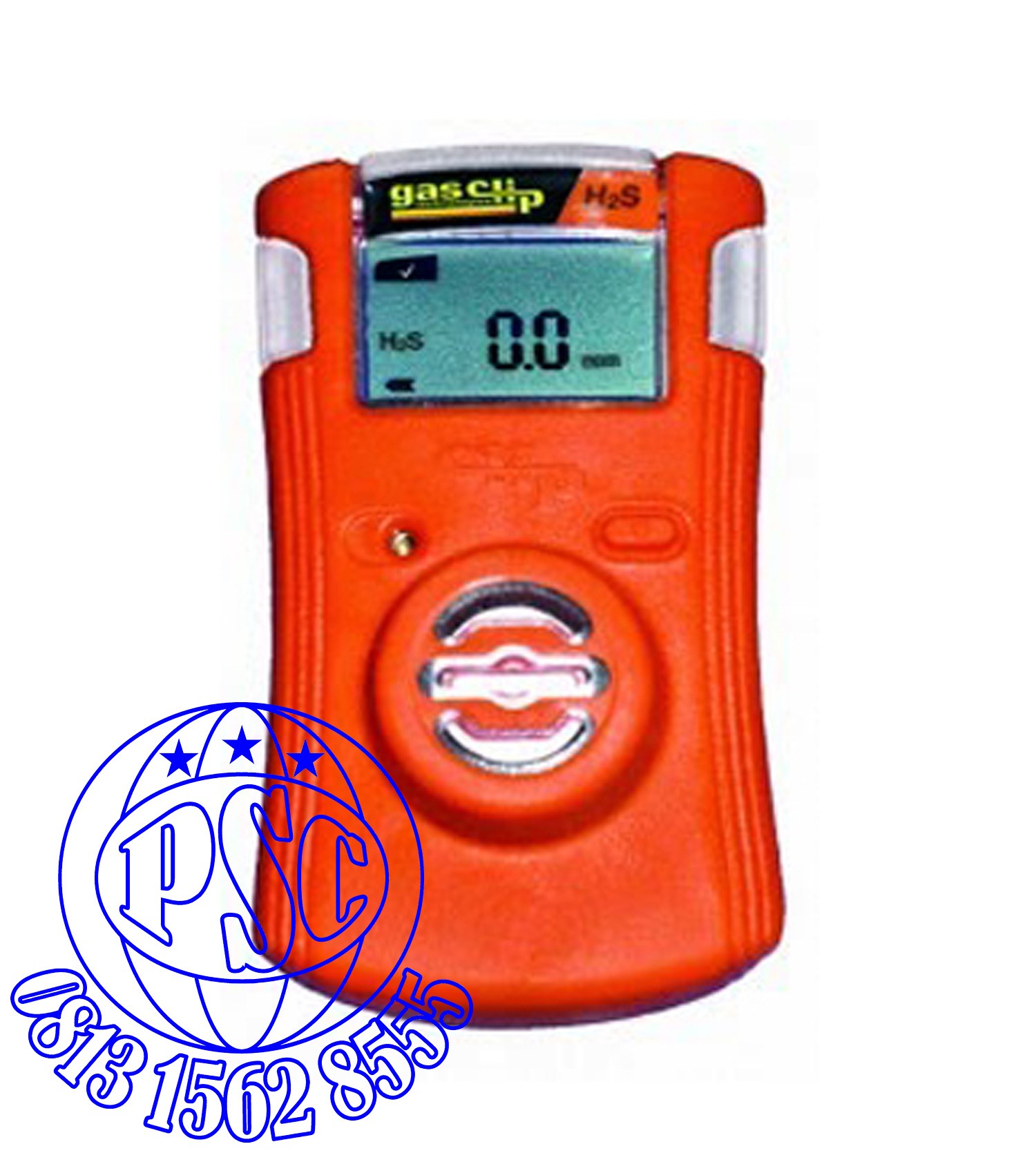

Single GasClip Plus SGC Plus
Specifications
Size	3.3” H × 2.0” W × 1.1” D
	( 85 mm H × 50 mm W × 28 mm D )
Weight	2.7 oz ( 76 g )
Temperature	H2S	-40 °C to +50 °C/ -40 °F to +122 °F
	CO	-40 °C to +50 °C/ -40 °F to +122 °F
Humidity 5 % to 95 % non-condensing relative humidity Alarms Visual, Vibrating and Audible ( minimum 95 db ) Tests Full function self-test on activation and every 20 hours; continuous automatic battery and sensor tests Ratings IP 67/ Complies with EMC directives 89/336/EEC Certifications UL 913 and CSA-22.2 No 157 Class 1 Division 1&2 Groups A, B, C and D; ATEX : II 1 G Ex ia IIC T4; IECEX: Ex ia IIC T4 Warranty 3 years from activation or 24 months of operational life ( whichever occurs first ); 1 year shelf life
Measuring Range	H2S	0-100 ( Low alarm limit : 10 ppm; High alarm limit : 15 ppm )
	CO	0-300 ppm ( Low alarm limit : 35 ppm; High alarm limit : 200 ppm )
