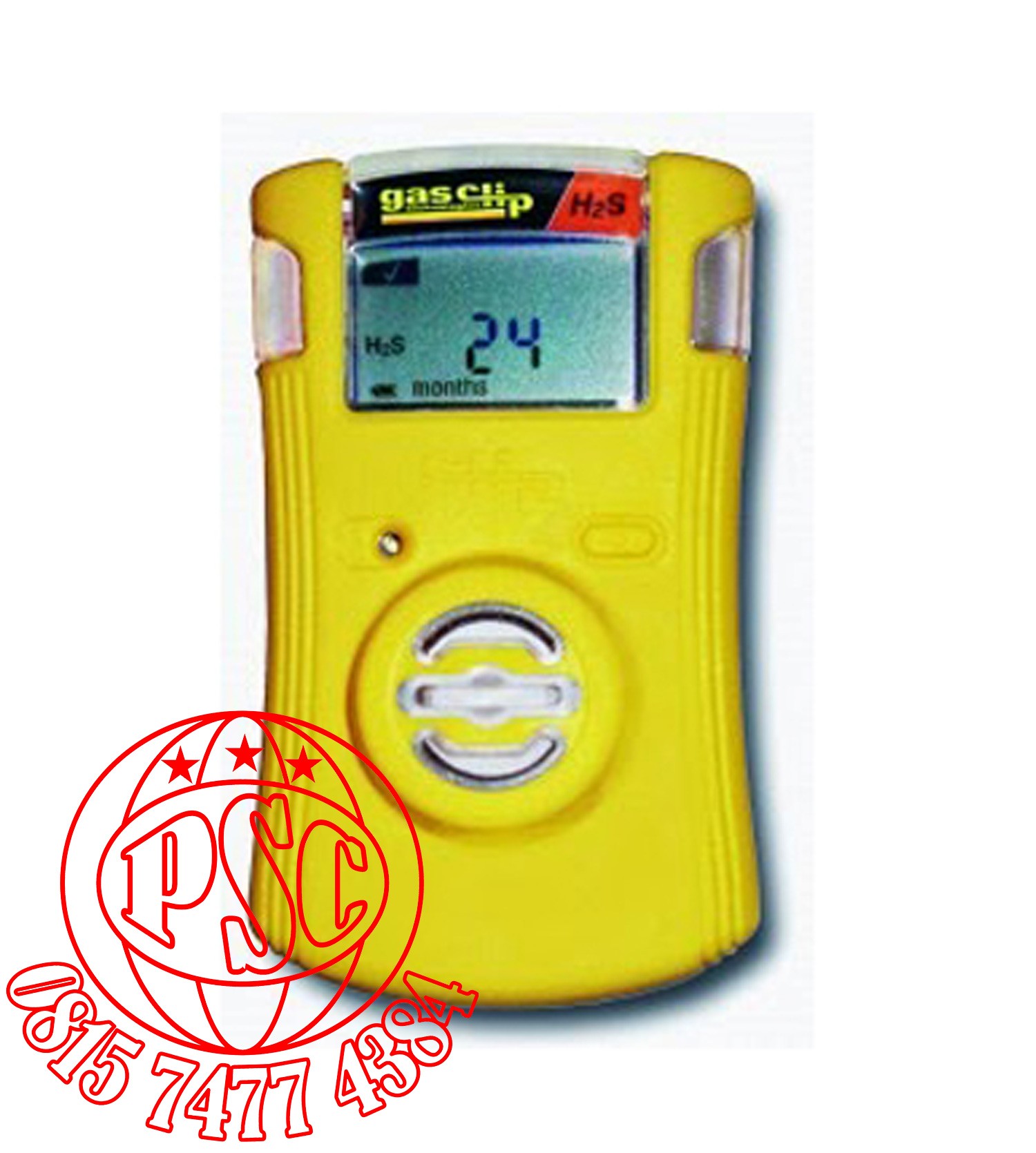

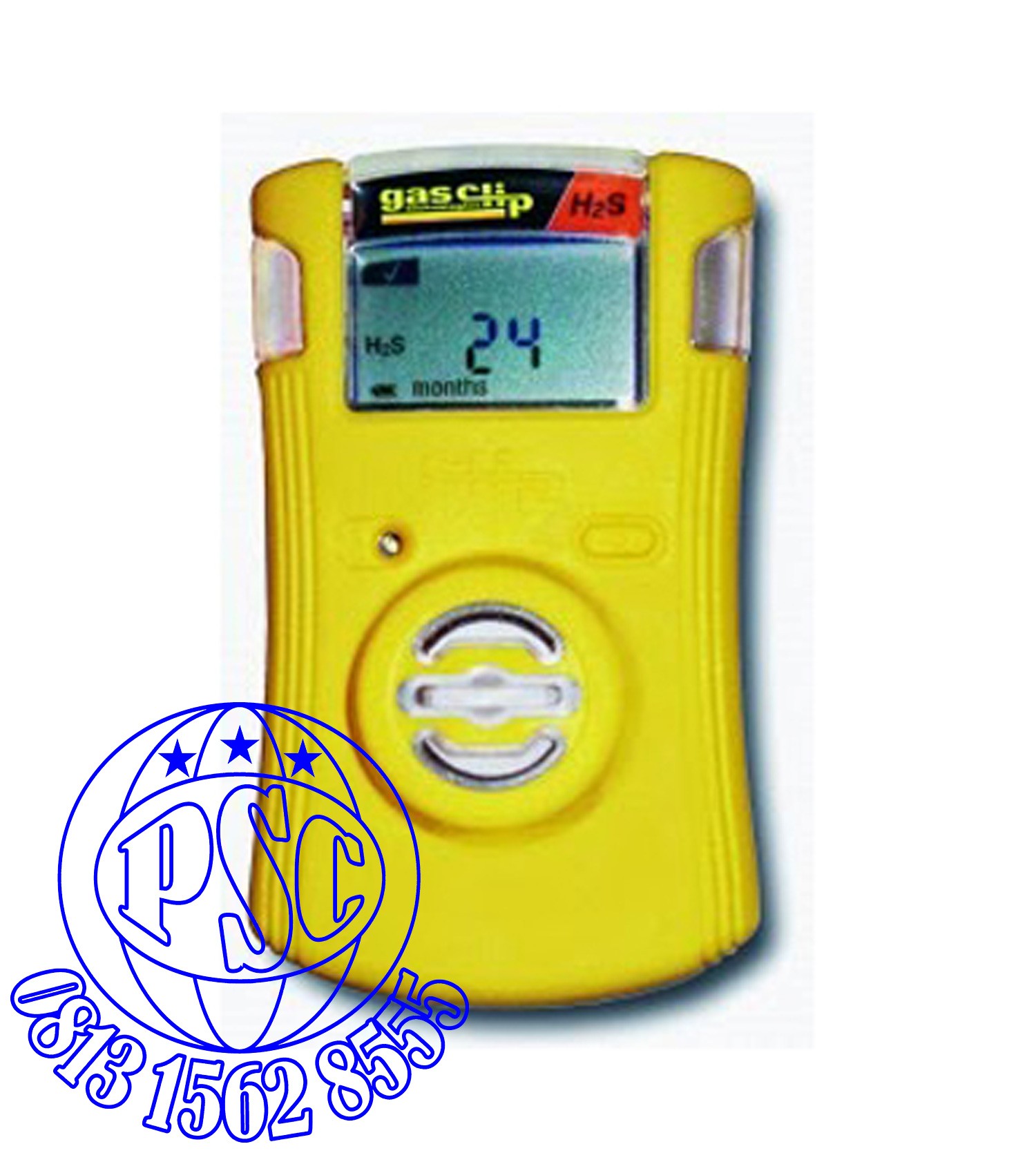

Single GasClip SGC | GasClip Technologies

Specifications

Size

3.3” H × 2.0” W × 1.1” D

( 85 mm H × 50 mm W × 28 mm D )

Weight

2.7 oz ( 76 g )

Temperature

H₂S

-40 °C to +50 °C/ -40 °F to +122 °F

CO

-40 °C to +50 °C/ -40 °F to +122 °F

O₂

-35 °C to +50 °C/ -58 °F to +122 °F

Humidity 5 % to 95 % non-condensing relative humidity Alarms Visual, Vibrating and Audible ( minimum 95 db ) Tests Full function self-test on activation and every 20 hours; continuous automatic battery and sensor tests Ratings IP 67/ Complies with EMC directives 89/336/EEC Certifications UL 913 and CSA-22.2 No 157 Class 1 Division 1&2 Groups A, B, C and D; ATEX: II 1 G Ex ia IIC T4; IECEX: Ex ia IIC T4 Warranty 2 years from activation, 1 year shelf life Measuring Range H2S: 0-100 (Low alarm limit: 10 ppm; High alarm limit : 15 ppm )

CO

0 - 300 ppm ( Low alarm limit: 35 ppm; High alarm limit : 200 ppm )

O₂

0 – 30 % ( volume ) ( Low alarm limit: 19.5 %; High alarm limit : 23.5 % ).
