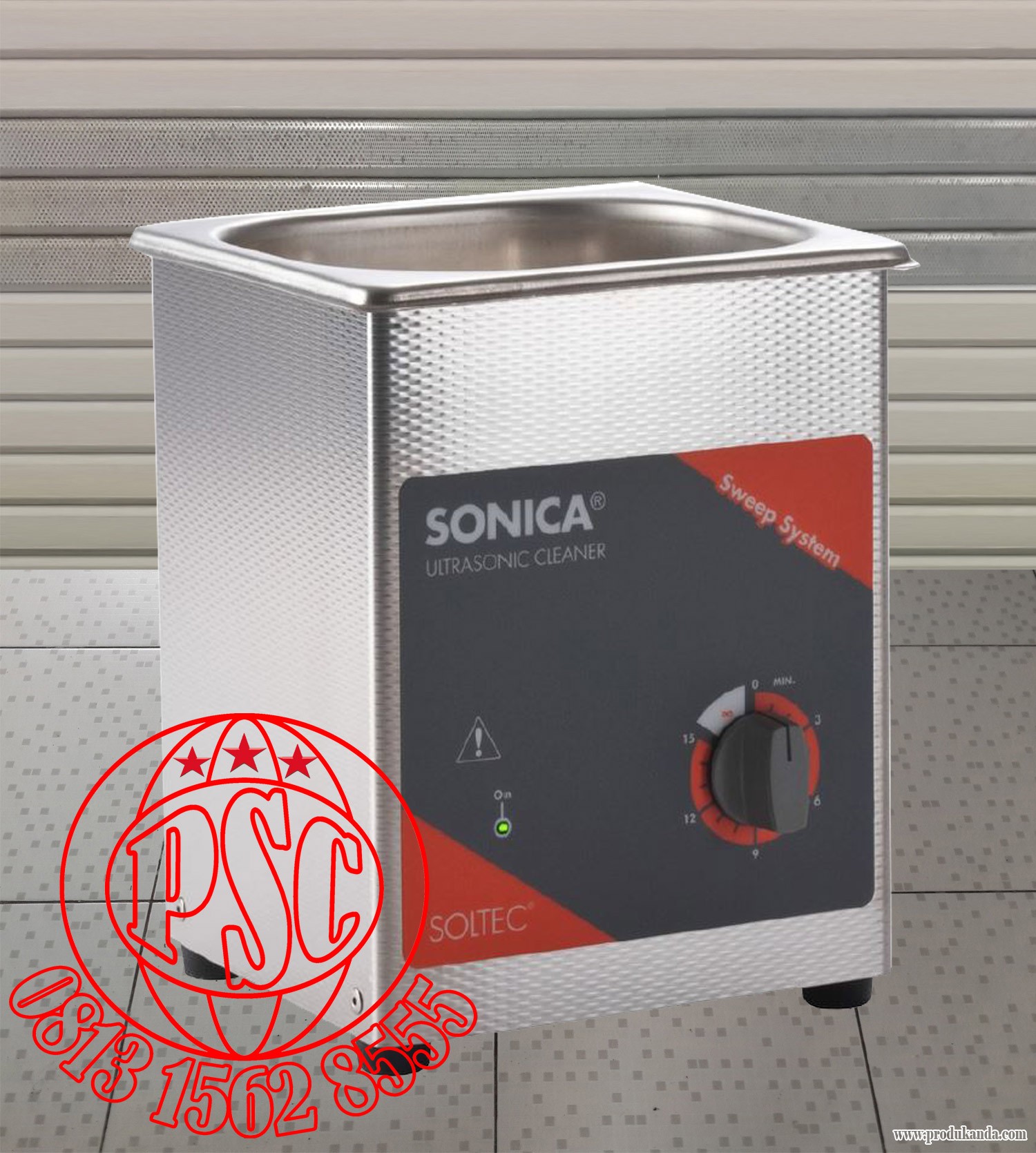

Sonica Ultrasonic Cleaners 1200 S3 Soltec
Technical Data
Main line voltage	230/240 V~50/60 Hz
Main input power/consumption	80 W
Main input power with heating	--
Peak HF Ultrasound Power	160 W
US frequency	40 Khz ± 5 % with SWEEP SYSTEM Technology
Liquid drain	NO
Transducers	1 ( 2 Piezoelectric ceramics each )
Tank capacity	1,9 L
Weight	2,2 Kg
Installation category	Class II according to EN 61010-1
Environmental conditions	Temp. Rel. Hum. 80 % up to 31 °C with linear decrease up to 50 % at 40 °C
IP grade	IP 22
CE-compliant	2004/108/EC EMC Directive ( EN61326 )
	2006/95/EC LV Directive ( EN 61010-1 )
	93/42/CEE Medical Device Directive
	Risk Class I according to the rule 12 to the Directive 93/42/EEC Annex IX
Approximately Internal Tank Dimensions
W/D/H ( mm )	150 / 140 / 100
Max filling volume tank	1,9 L
External Appliance Dimensions
W/D/H ( mm )	180 / 165 / 260
Max operative volume	1,5 L
