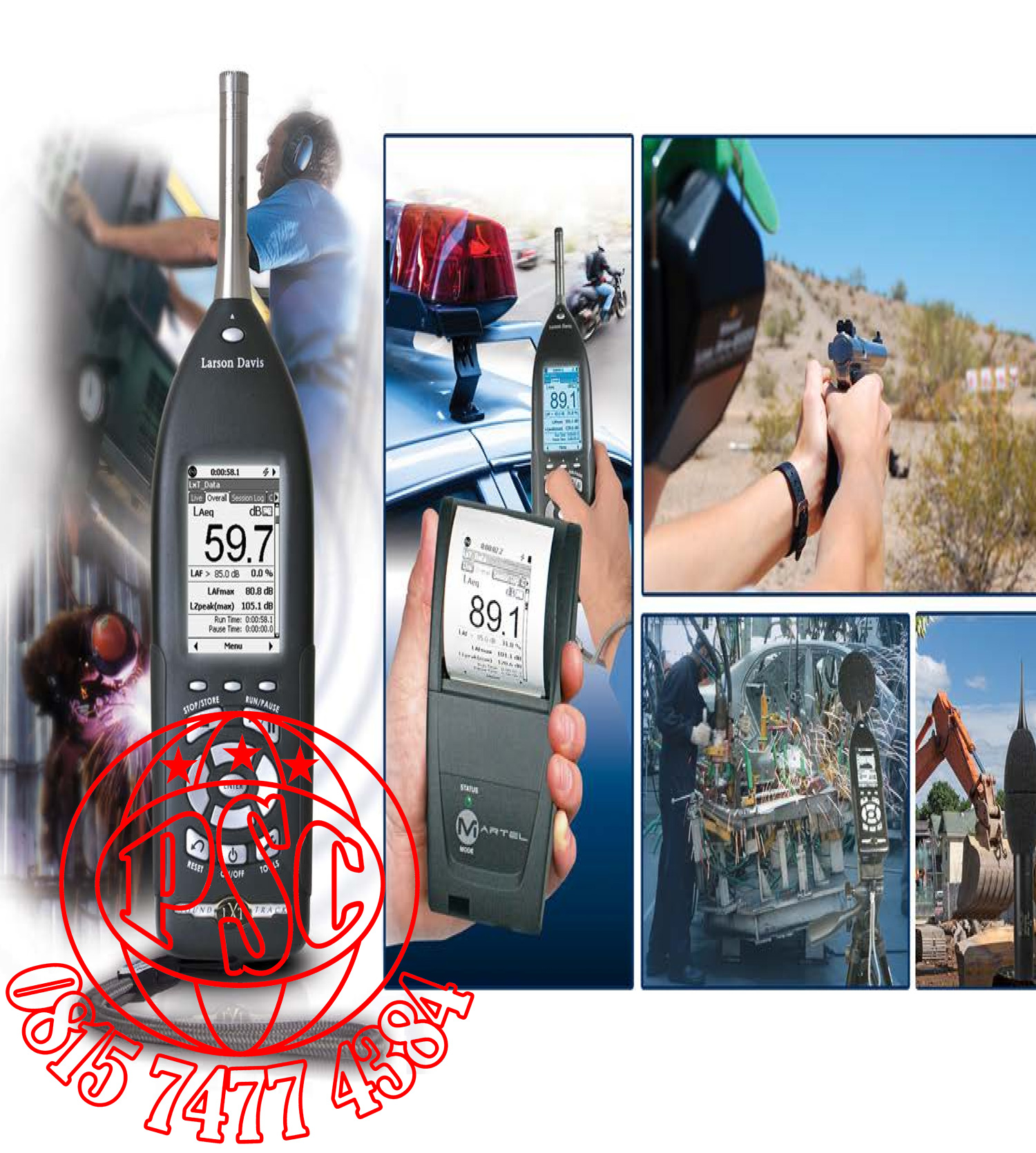

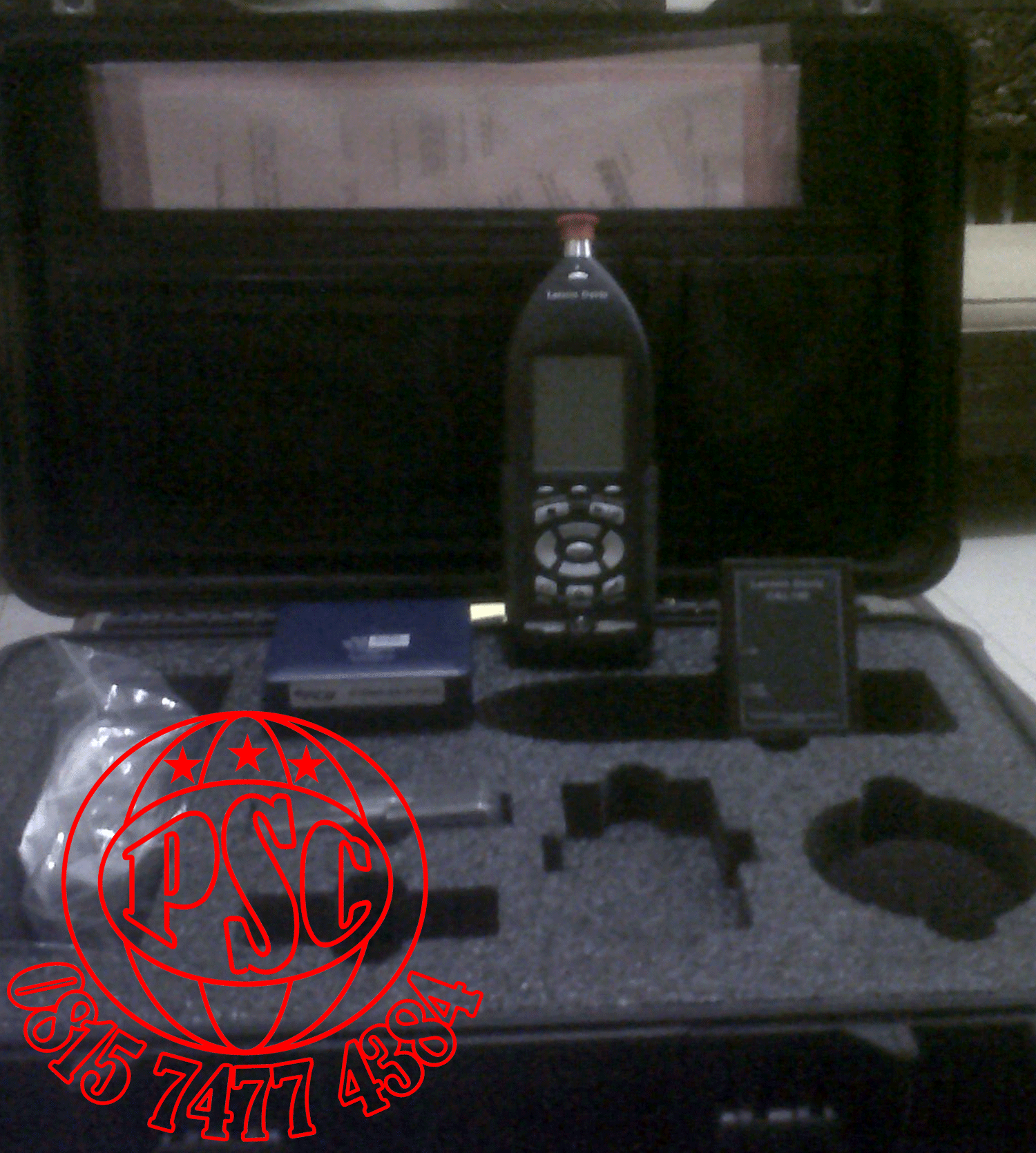

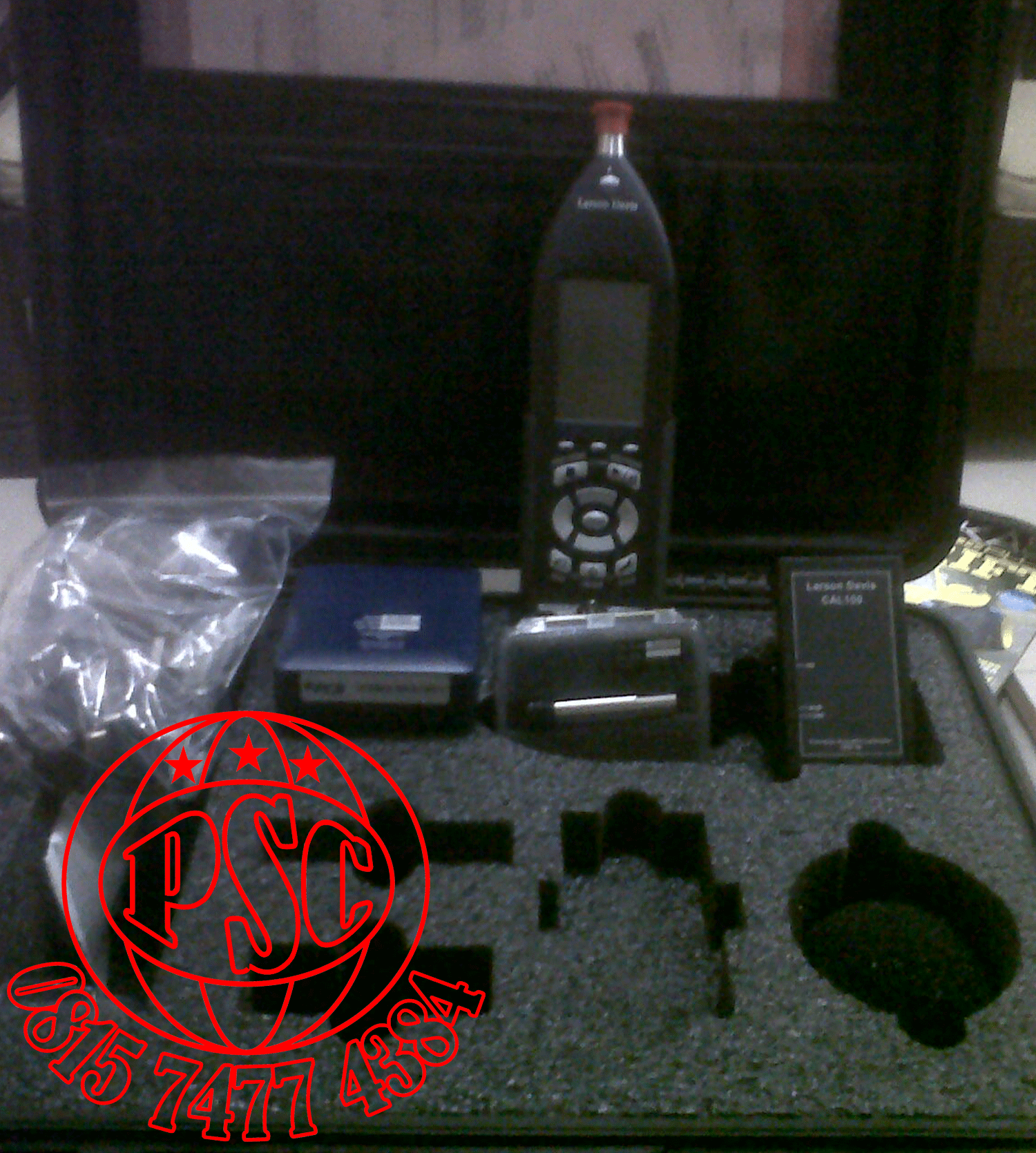

Sound Level Meter SoundExpert LxT Larson Davis

SoundExpert LxT Specifications

Averaging ( Integration Method )

Linear or Exponential

RMS Time Weighting

Slow, Fast or Impulse

RMS Frequency Weighting

A, C or Z

Peak Frequency Weighting

A, C or Z

Sample Rate

51200 Hz

Peak Rise Time

≤ 30 µs

Range  Level Error ( OBA )

≤ ± 0.1 dB

Compliance

ANSI Type 1, IEC Class  1

Ranges

Singel Range for Broadband

2 ranges  for OBA

Maximum Clock Drift at 77 °F ( 25 °C )

< 2.6 s per day

1/1 and 1/3 Octave Filters

1/1 Octave Filters

8 Hz to 16 kHz

1/3 Octave Filters

6.3 Hz to 20 kHz

Filter Selection

None, 1/1, 1/3, or 1/1 & 1/3

Frequency Weighting

A, C or Z ( unweighted )

Maximum Spectrum

Maximum in each band or at broadband  Lmax

Compliance

ANSI and  IEC Class  1

Logging and Measurement History

Logging Period

1 s to 24 hr

Logged Parameter

User selectable from Leq; Lmax; Lmin; LCSeq – LASeq; LAIeq – Laeq ; 1/1 OBA Leq, Lmax, Lmin; 1/3 OBA Leq, Lmax, Lmin,Battery, Internal Temperature

Measurement History Period ( Continuous run mode )

1 min to 24 hr

Measurement History Parameters

Leq; Lmin w/time;  Lmax w/time;  Lpeak w/time;  Ex- ceedance counts w/duration; LAeq, Lceq, 1/1 OBA Leq, Lmax, Lmin; 1/3 OBA Leq, Lmax, Lmin

Community Noise

Measured Parameters

LDEN, LDN

Day, Evening, Night Times

Programmable

Evening and Night Penalty

Programmable

Time Averaged Level Integration Time

Minimum

1 s

Maximum ( error < 0.5 dB )

> 23 days

Ln Percentile

Number of User Defined Ln’s

6

Ln Resolution

0.01 %

Distribution Table Resolution

0.1 Db

Markers

Number of Markers

10

Predefined Markers

5

Measurement Modes

Available Modes

Manual Stop, Timed Stop, Stop when Stable, Continu- ous, Single Block Timer, Daily Block Timer

Manual Stop

Measurement defined by run and stop button

Timed Stop

Time in hh:mm:ss

Stop When Stable

Change  < xx.x dB for hh:mm:ss

Continuous

Auto file store 1, 2, 4, 6, 12, 24, 48, 96, 144 times per day

Single Block Timer

Start date and time to end date and time

Daily Block Timer

3 unique start/stop  times per day, multiple days

AC/DC Output

Connector

2.5 mm stereo

AC Output Maximum Voltage

± 2.3 V peak

AC Output Recommended Load

≥ 16 Ω

DC Output Resolution

10 mV/dB ( 0 to 100 dB )

DC Output Time Weighting

Follows SLM Setting  ( F,S,I )

DC Output Frequency Weighting

Follows SLM Setting  ( A,C,Z )

Dynamic Range ( typical )

A Weighted

17 dB to 118 dB

C Weighted

19 dB to 118 dB

Z Weighted

24 dB to 118 dB
