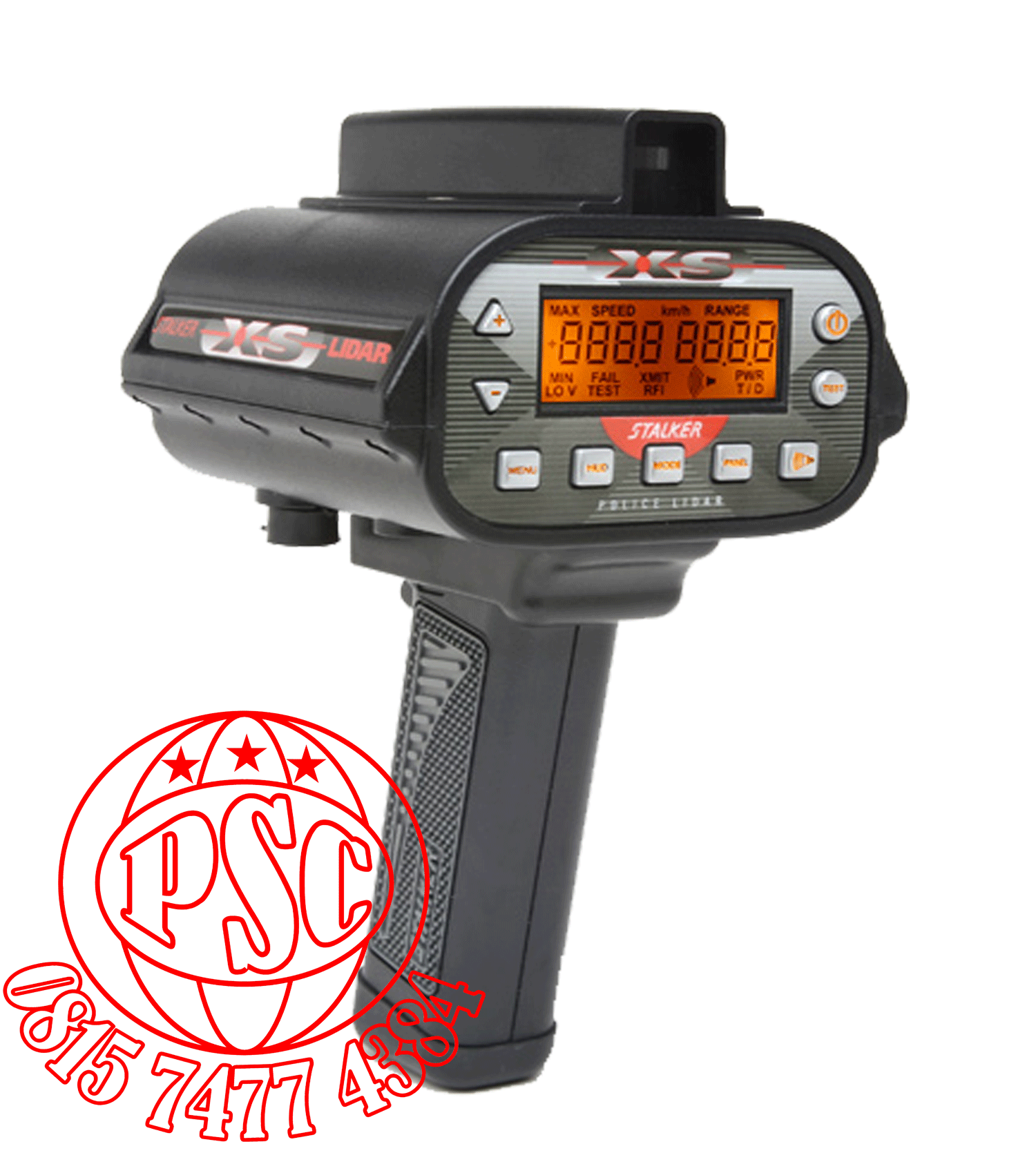

Speed Radar Gun Stalker XS LIDAR

Specifications

Model

XS LIDAR

Dimensions

22.6 cm Height, 11.9 cm Length, 11.9 cm Width

Weight

Including Battery Handle - 1.05 kg

Housing

High Impact Resistant polymer housing

Environmental

-30° to +60 °C, operating -40° to + 85 °F, non-operating

Humidity Protection

+37.2 °C, 90 % Relative Humidity

Battery Life

Typically 500+ charge cycles

Battery Charge

Li-ion battery : Approx. 2 - 3 shifts

Type

Handheld LIDAR offering Tracking mode, Single-Shot mode, and Time/Distance mode

Acquisition Time

0.33 second

Nominal Range

 XS LIDAR

 Minimum - Range mode <1.5 m - Speed mode 15 m

 Maximum 610 m

Range Accuracy

+/- 15 cm ( C82+/- 6 inches )

Speed Measure

481 km/h ( 299 mph; 260 knots )

Speed Accuracy

±1 km/h ( ±1 mph; ±1 knot )

Time/Dist. trigger mode

Separate trigger depressions when target enters and exits speed zone.

Remote Trigger

Remote trigger signal available through I/O Port.

Target Speed Tone

Variable audio tone corresponding to target speed

Target Return Tone

No tone when beam is off target; tone repetition increases as beam moves into target and return signal quality increases.

Switching Output

I/O Port signal for operation of external devices ( e.g. a camera ) Toggles when speed exceeds speed signal setting. ( special order only )

Operating Wavelength

905 ±10 nm Peak @ 25 °C

Eye Safety

Class 1M ( EU )

Pulse Width

< 30 nsec.

Beam Divergence

< 3 ± 0.5 mrad FWHM.

.9 m x .9 m @ 304.8 m
