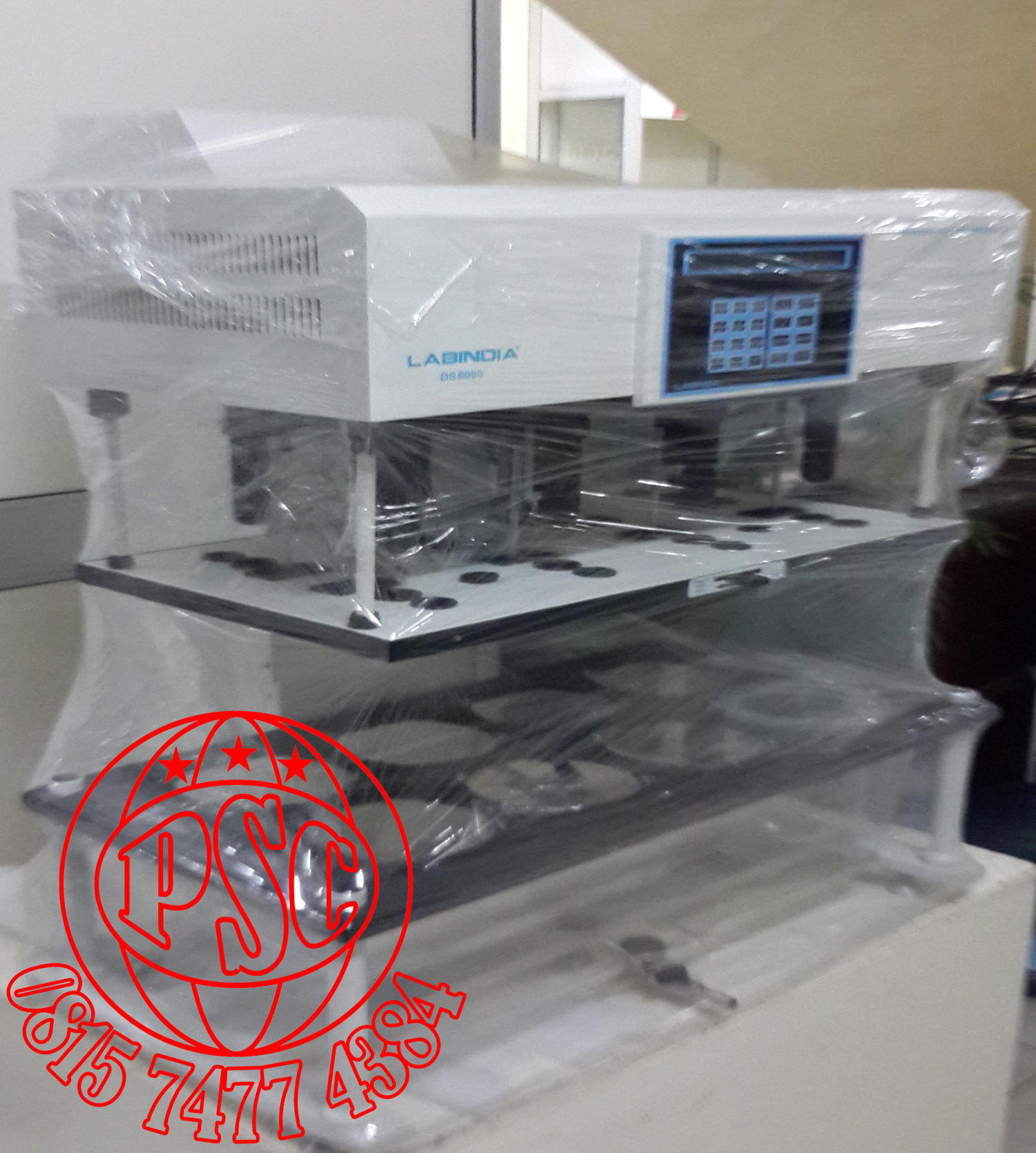

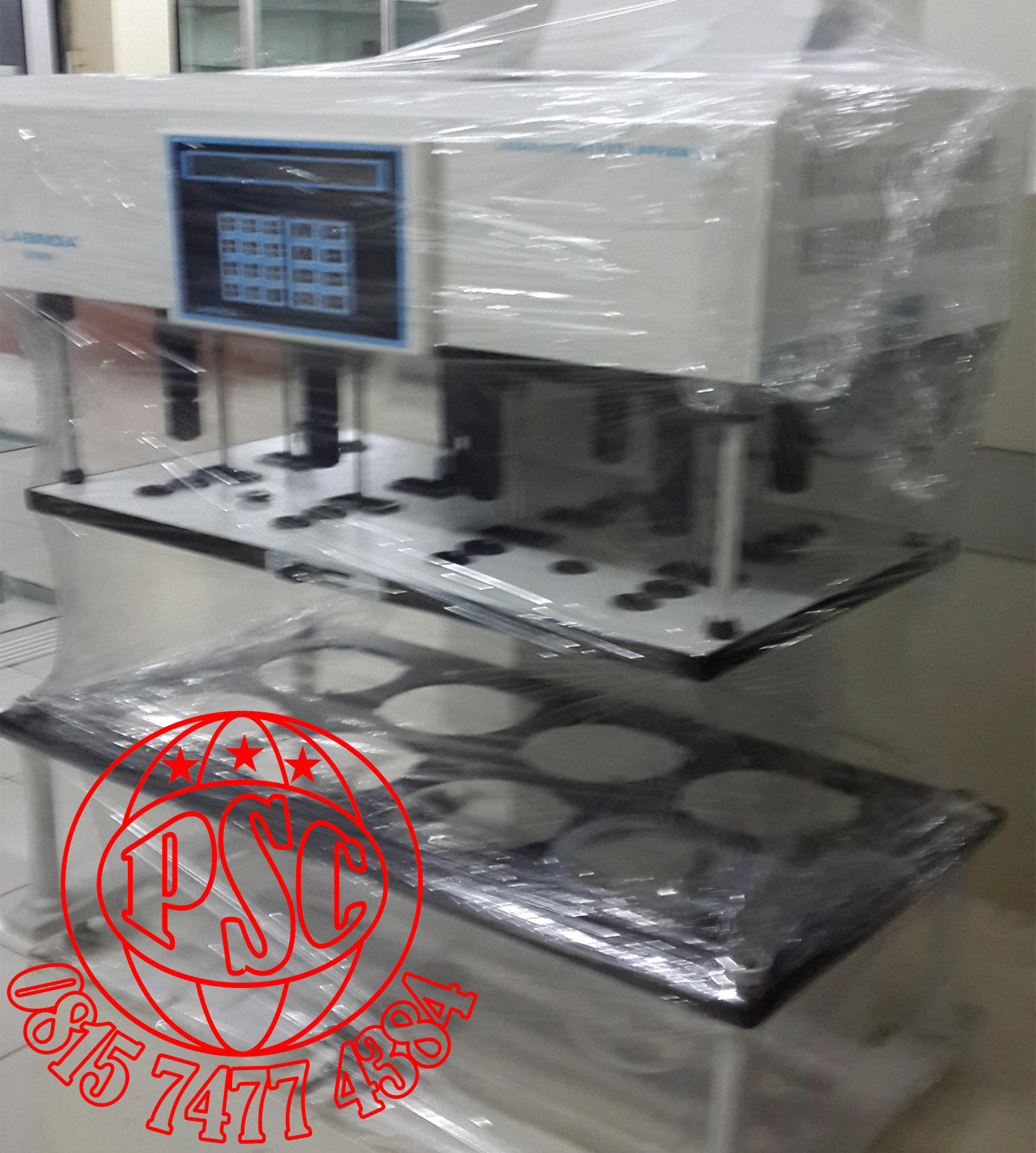

Tablet Dissolution Apparatus DS 8000 with Syringe Pump Labindia Analytical

Labindia Dissolution Tester: DS 8000 with syringe pump is designed for efficient volumetric accuracy with 1 million syringe cycles. Separate module for each syringe ensures less downtime of the system and valves made up of PEEK material provides extended life & functioning of the valves. The 6 + 2 ( 3 + 1 & 3 + 1 ) vessel configuration comes with Moulded Water Bath which enables comparative studies

Standard Features

1. Advanced micro controller based user friendly state-of-the-art product design with alphanumeric splash waterproof polyester soft keys. User interactive software in dialogue mode for ease of operation with protection against invalid entries

2. Conical shaped low evaporation recovery lids on the tablet dispenser reduces the media loss during long dissolution run

3. Mono shaft design allows easy changeover between Apparatus I & II thus eliminates the routine height validation check per USP

4. Apparatus for Intrinsic test & Stationary basket methods are also available

5. Tablet Dispenser drops 12 dosage form at single instance

6. Bionet Locking aids in easy placement & locking of vessels. once placed, vessels does not float when empty

7. Non-Volatile Memory storage of 15 methods with parameter

8. GLP Complaint report format with Alphanumeric entries of Sample name & identification number for authentication

9. RS 232C Interface for PC connectivity & Parallel port for printer

Intelligent Sampling System

Intelligent motorized sampling manifold complies to USP norms

Temperature monitoring system automatically records temperature of 6 bowls at specified points

C 3000 X 6 Syringe Pump

4-port Multi-Syringe Pump System performs rinsing the sample tubing path, replenishing the blank media volume to vessels & sample dilution tasks.

Volume accuracy better than 1%

Proprietary high efficiency & maintenance free stepper motor drive system

Cross contamination & carryover effects are avoided by the Built in Clean function which ensures entire liquid path is clean for the next run

Sample Collection

Microprocessor controlled sample collector positions the sample tray appropriately

12 x 6 x 2 collection trays are available.

Option of 1.5 ml & 2 ml HPLC vials tray is available
