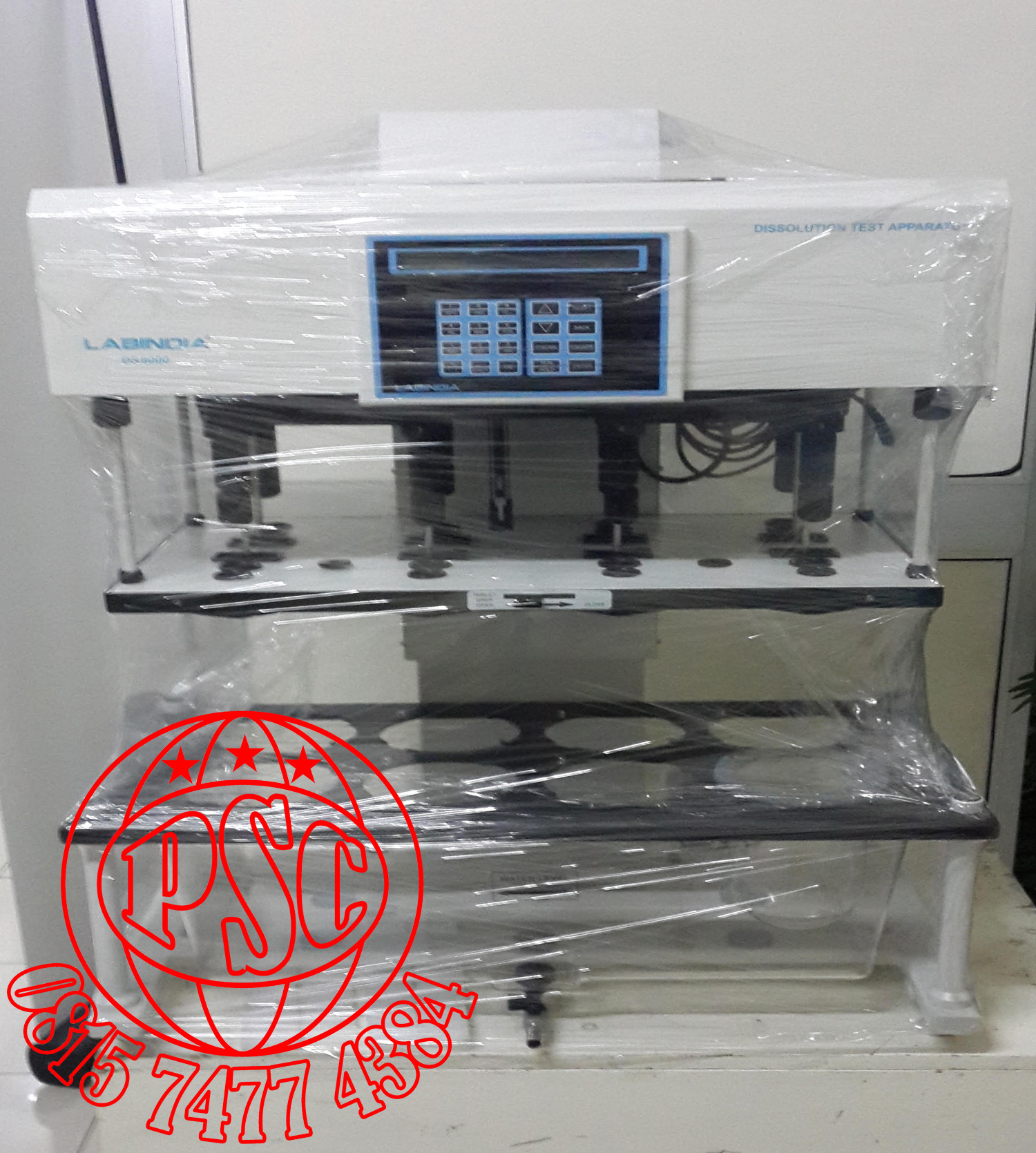

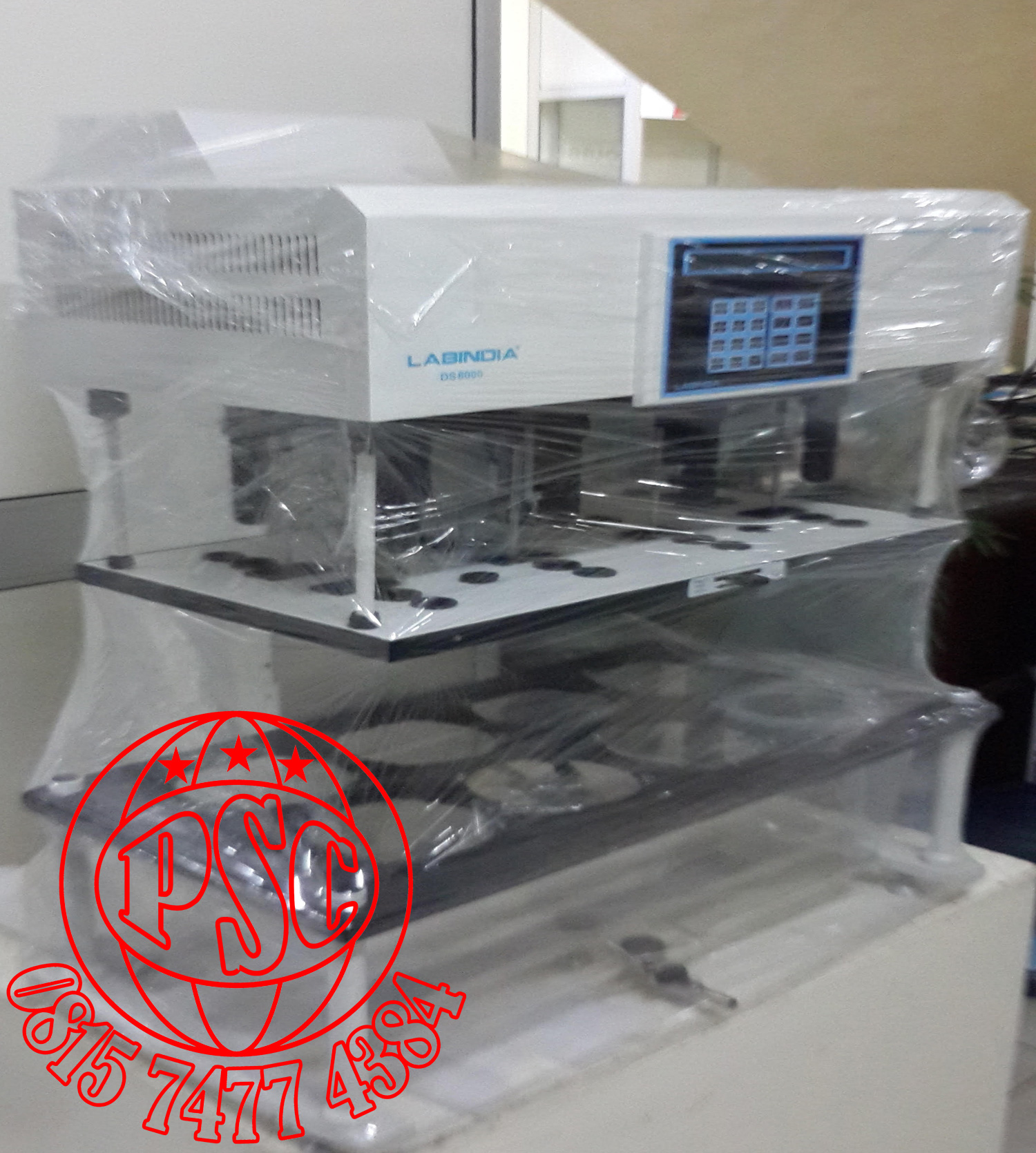

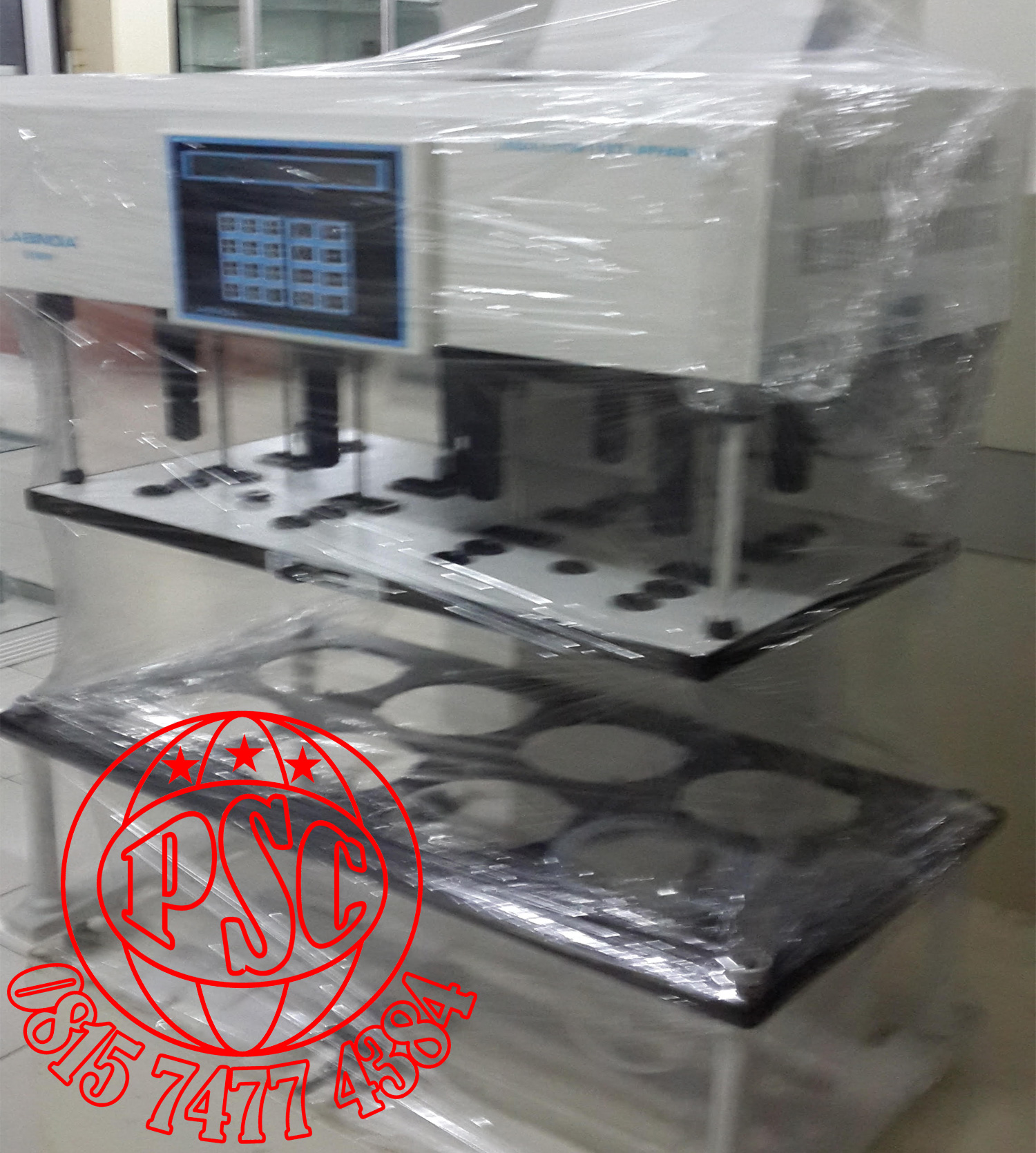

Tablet Dissolution Systems DS 8000 Auto Labindia Analytical

Labindia Dissolution Tester : DS 8000 ( Auto ) is a completely automated system with imported peristaltic pump along with sample collector with in-built facility to study the recovery test & rinse the entire sampling path to reduce cross contamination & carryover effects. The 6 + 2 ( 3+1 & 3+1 ) vessel configuration comes with Moulded Water Bath which enables comparative studies.

Standard Features

1. Advanced micro controller based user friendly state-of-the-art product design with alphanumeric splash waterproof polyester soft keys. User interactive software in dialogue mode for ease of operation with protection against invalid entries.

2. Conical shaped low evaporation recovery lids on the tablet dispenser reduces the media loss during long dissolution run

3. Support USP 1, 2, 5 & 6 and is complaint with USP, BP, IP specifications. Apparatus for Intrinsic test & Stationary basket methods are also available

4. Conical shaped low evaporation recovery lids on the tablet dispenser reduces the media loss during long dissolution run

5. Mono shaft design allows easy changeover between Apparatus I & II thus eliminates the routine height validation check per USP

6. Non-Volatile Memory storage of 15 methods with parameter

7. GLP Complaint report format with Alphanumeric entries of Sample name & identification number for authentication

8. RS 232C Interface for PC connectivity & Parallel port for printer

9. RS 232C Interface for PC connectivity & Parallel port for printer

Intelligent Sampling System

Intelligent motorized sampling manifold complies to USP requirements

Temperature monitoring system automatically records temperature of 6 vessels at specified time points

Peristaltic Pump

Bi-directional 12 channel peristaltic pump with tubings from ISMATEC, Switzerland

imported pump with click-n- go Cassette design along with volume calibration through software

Sample Collection

Microprocessor controlled sample collector positions the sample tray appropriately

10 x 6  or 16 x 6 sets of samples can be collected. For more sampling interval, 24 x 6 collection trays are available

Option of 1.5 ml & 2 ml HPLC vials tray is available
