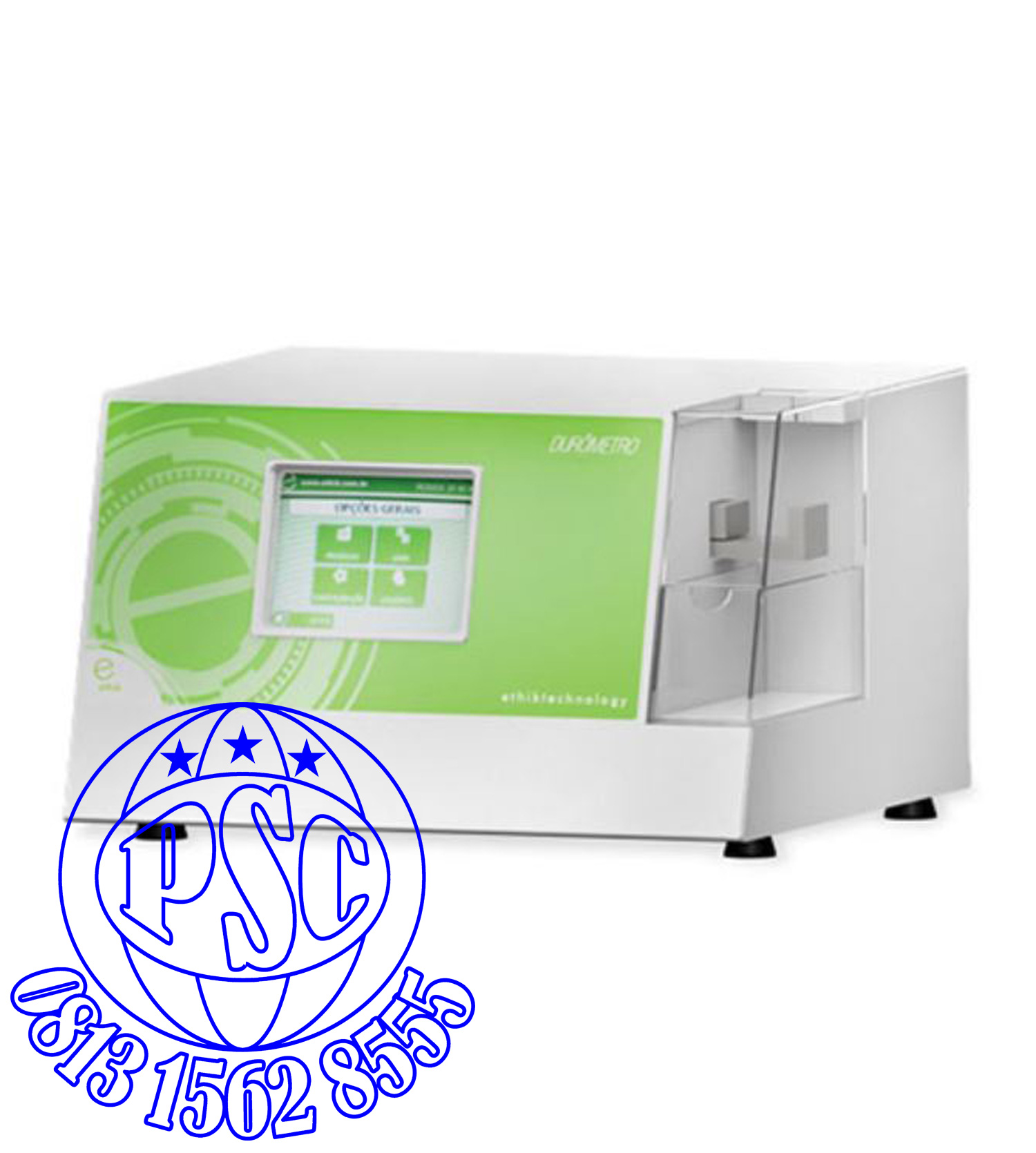

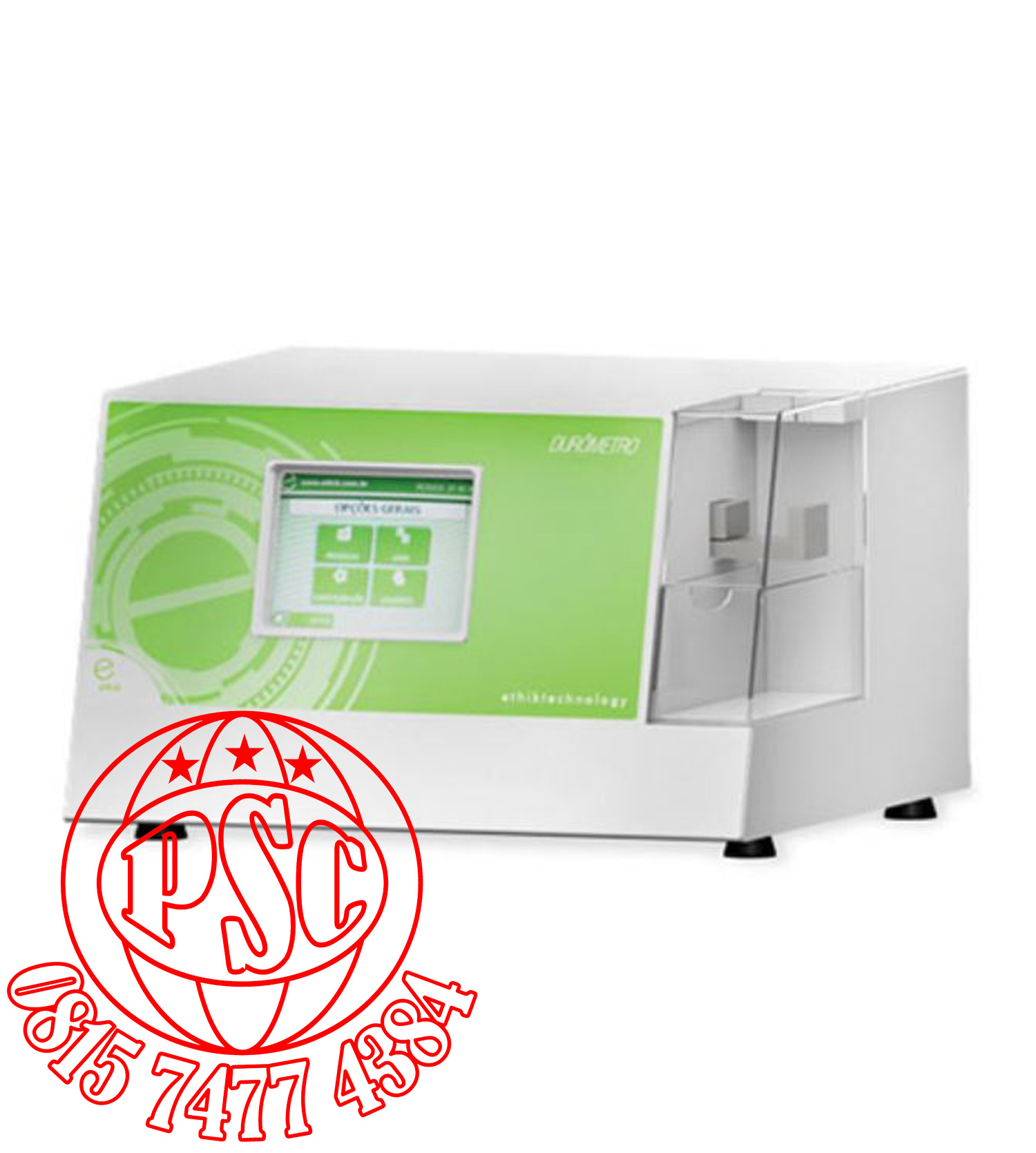

Tablet Hardness Tester Durometer 298 ATTS & 298 EDTS Ethik Technology

Technical Specifications

Physical characteristics of compressed

Maximum hardness of 30 Kgf, diameter or compression of até 30 mm and thickness of 12 mm

Resolução de leitura hardness

0.1

Resolutio of dimensional reading

0.1

Saída for retransmissão

4 to 20 mA

Hardness reading units ( manual seleção )

Kgf; N ou Lb ( pound )

Measured reading units ( EDTS only )

mm

Indicação Digital

TouchScreen colorful com 4 digits

Grau de proteção

IP 20

Disponível nas voltagens

110 ou 220 Vca

Plugue de Alimentação

3 pines NBR 14136

Durometer 298 ATTS and EDTS Information

Model

Long mm

Depth mm

Height mm

Weight Kg

Power W

ATTS & EDTS

415

360

5

100

Product description

Tablet hardness measuring equipment in 2 versions :

ATTS model for automated hardness measurement

EDTS model for hard- ness, diameter and thickness of the tablet.

ATTS Technical Characteristics

Automatic calculation of average and standard deviation

Designed for 30 mm diameter or length ( oblongs ) tablet and 12 mm of thickness

Automatic measure unit conversion

Collecting box for tested tablets

Clear test area for easy cleaning

Easy to use automatic test system

Interactive menu.

EDTS Technical Characteristics

Automatic calculation of average and standard deviation

Designed for 30 mm diameter or length tablet and 12 mm of thick- ness

Automatic measure unit conversion

Collecting box for tested tablets

Clear test area for easy cleaning

Automatic test system

Interactive menu.

Included Accessories & Components

Acrylic collecting box for tested tablets

Brush for cleaning

Operation manual

RBC Calibration Certificate for temperature controller.

Connection for Data Logger ( 4 to 20 mA )

Optional

IQ,OQ and PQ protocols

Software for RDC 17 and GAMP5 requirements

Matrix printer

Up to 50 kgf hardness
