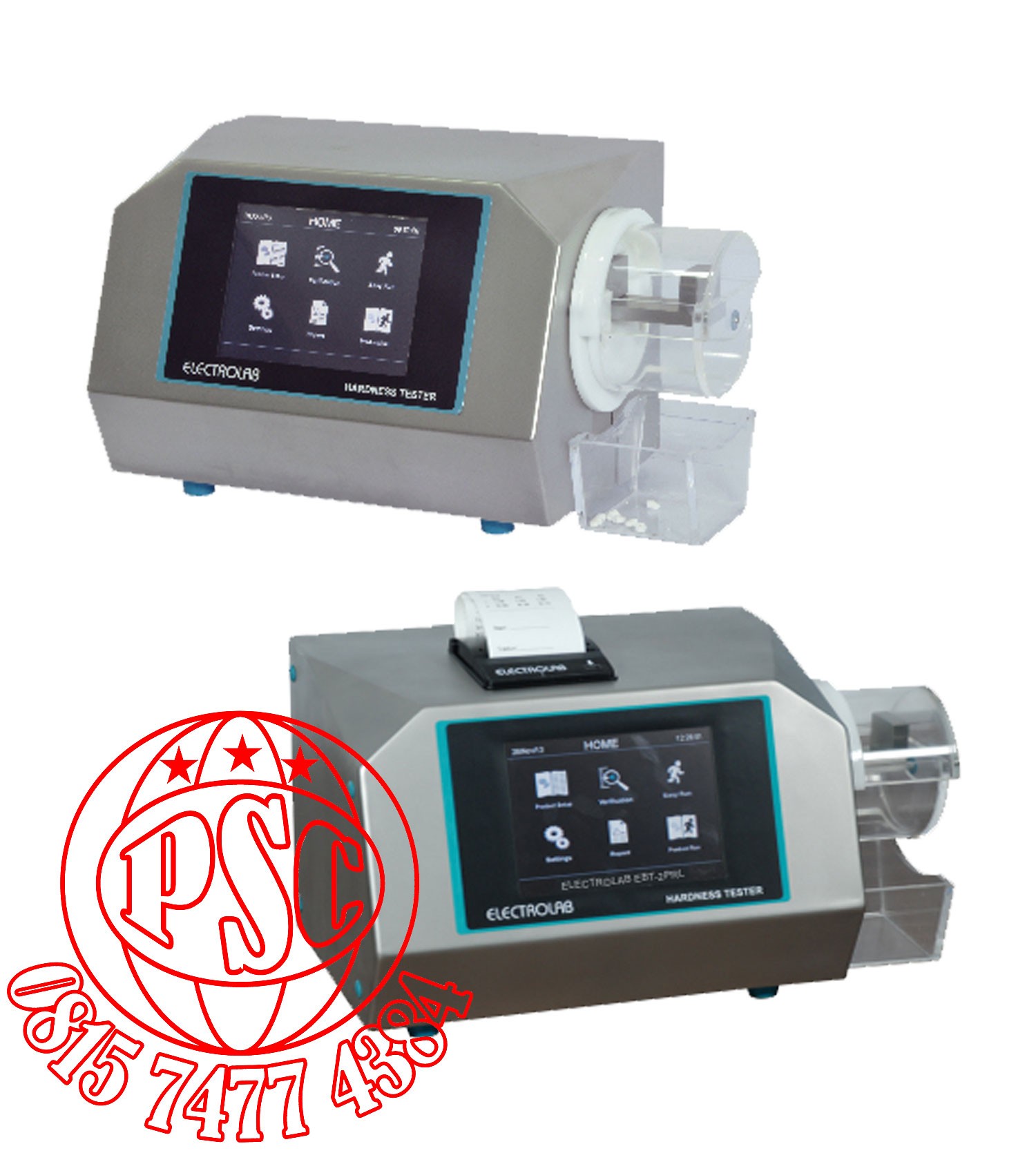

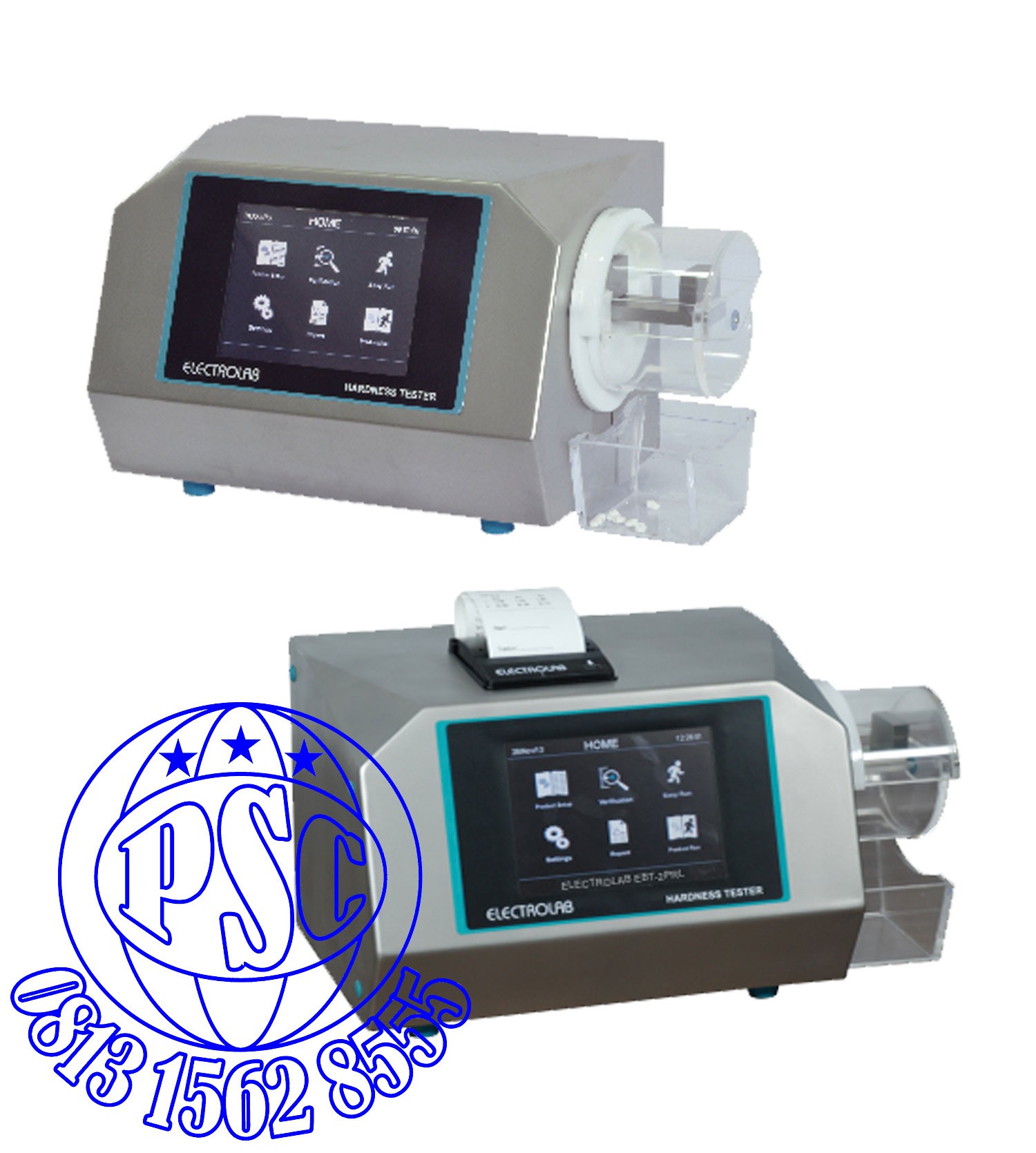

Tablet Tester EBT-2PL & EBT-2PLR Electrolab

Specifications

Model

EBT-2PL

EBT-2PRL

Parameters

Hardness and thickness

Hardness and thickness

cGMP compliance

Body can be Stainless Steel (SS) to comply with cGMP regulations or painted MS

Body can be Stainless Steel ( SS ) to comply with cGMP regulations or painted MS

Touch screen display

5.7"

5.7"

Samples per test

up to 100

up to 100

Measuring principle

Constant speed

Constant speed

Hardness range

3 to 800 N

3 to 800 N

Accuracy

1N

1N

Jaw opening

35 mm

35 mm

Units for hardness

N, Kp, Sc, user defined

N, Kp, Sc, user defined

Constant speed setting

1 mm/sec to 3 mm/sec

1 mm/sec to 3 mm/sec

Hardness/Thickness calibration

2 point calibration

2 point calibration

3 point verification linearity

3 point verification linearity

Interface

LAN, USB and serial

LAN, USB and serial

Embedded printer

No

Yes
