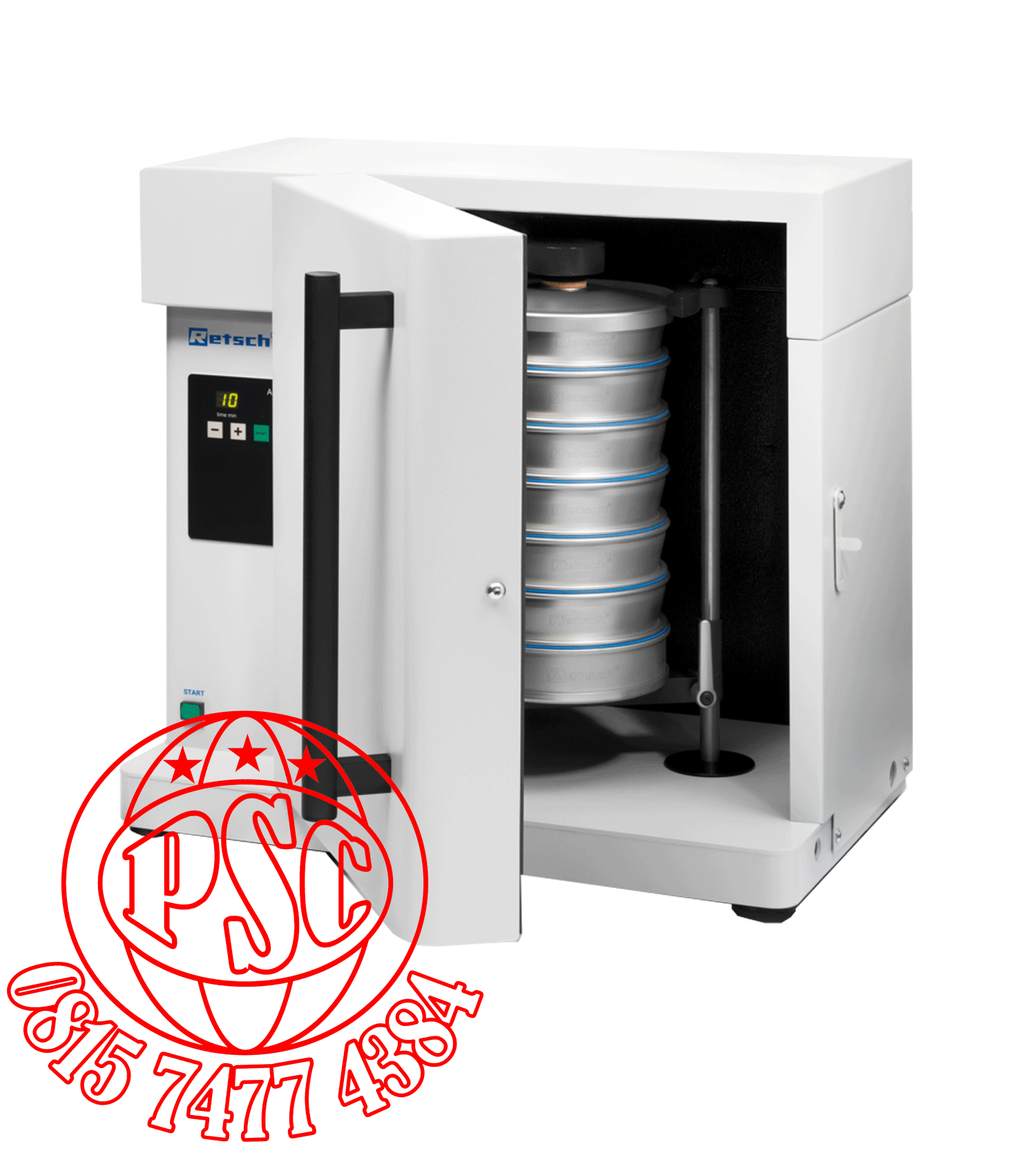

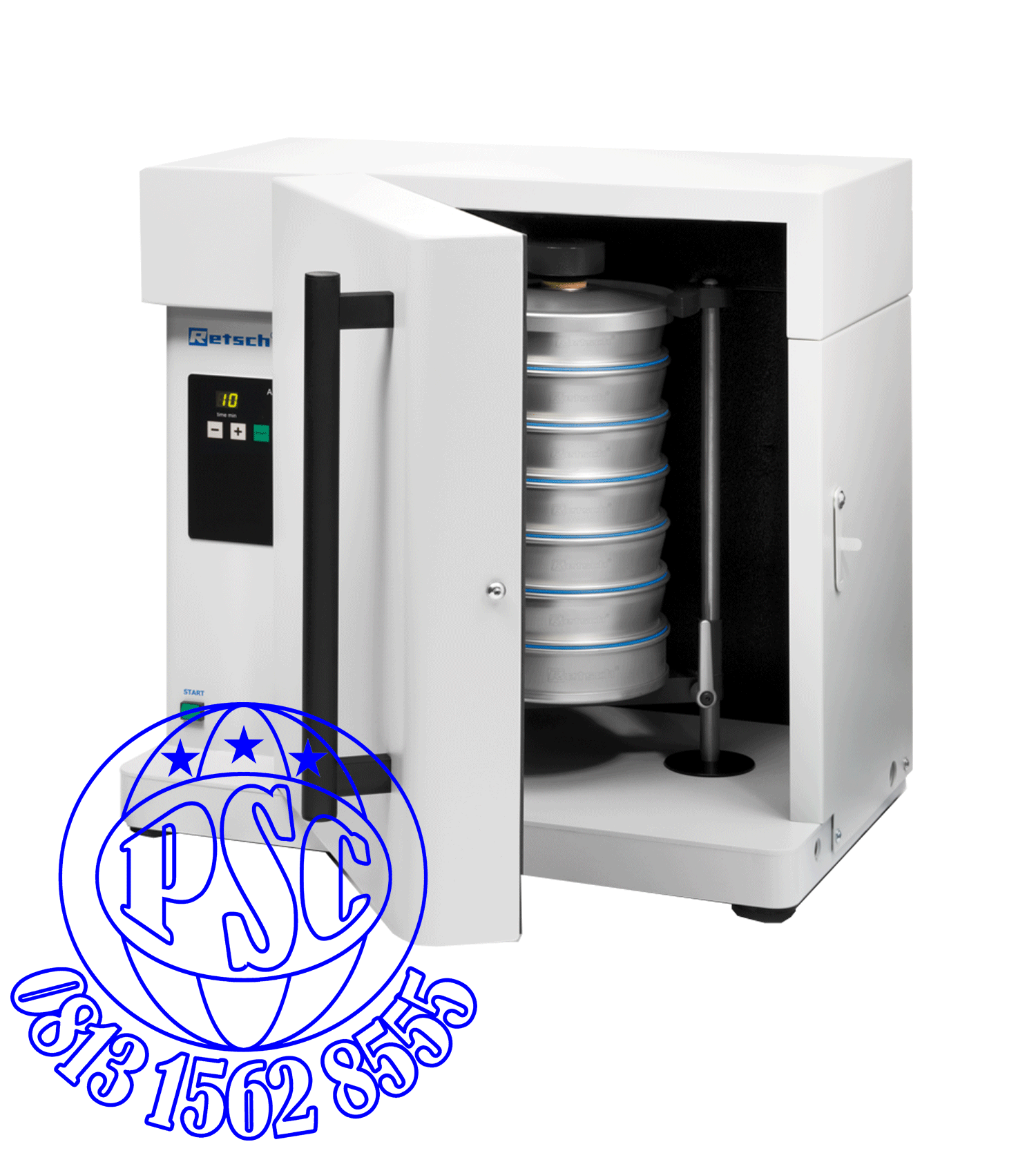

Tap Sieve Shaker AS 200 Tap Retsch

The analytical sieve shaker AS 200 tap is used in research & development, quality control of raw materials, interim and finished products as well as in production monitoring.

Its tapping motion supports the sieve analysis of certain products such as activated carbon, abrasives, metal powder, spices and diamonds, as specified in the corresponding standards.

Application Examples

Abrasives, cement, charcoal, coal, diamonds, spices, ...

Product Advantages

Horizontal circular sieving motion with vertical taps

Maintenance-free

Suitable for dry sieving

Excellent separation efficiency even with short sieving times

Sieve stack up to 350 mm height

Digital time setting

Easy operation, ergonomic design

Optional software EasySieve for control through RS232 serial interface, easy evaluation and documentation of results

Fulfils all criteria for measuring equipment related to ISO 9001

Features

Applications

Separation, fractioning, particle size determination

Field of application

Agriculture, biology, chemistry / plastics, construction materials,engineering / electronics, environment / recycling, food, geology /metallurgy, glass / ceramics, medicine / pharmaceuticals

Feed material

Powders, bulk materials

Measuring range*

20 µm - 25 mm

Sieving motion

Horizontal circular motion with taps

Max. batch / feed capacity

3 kg

Max. number of fractions

7-13

Max. mass of sieve stack

6 kg

Speed

280 min-1

No. of taps

150 min-1

Time display

Digital, 1 - 99 min

Suitable for dry sieving

Yes

Suitable for wet sieving

-

Serial interface

Yes

Including test certificate / can be calibrated

-

Suitable sieve diameters

200 mm / 203 mm ( 8" )

Max. height of sieve stack

350 mm

Protection code

IP 54 / IP 20

Electrical supply data

Different voltages

Power connection

1-phase

Power consumption

180 W

W x H x D

700 x 650 x 450 mm / with sound enclosure cabinet : 735 x 675 x 530 mm

Net weight

~ 68 kg / with sound enclosure cabinet : ~ 92 kg
