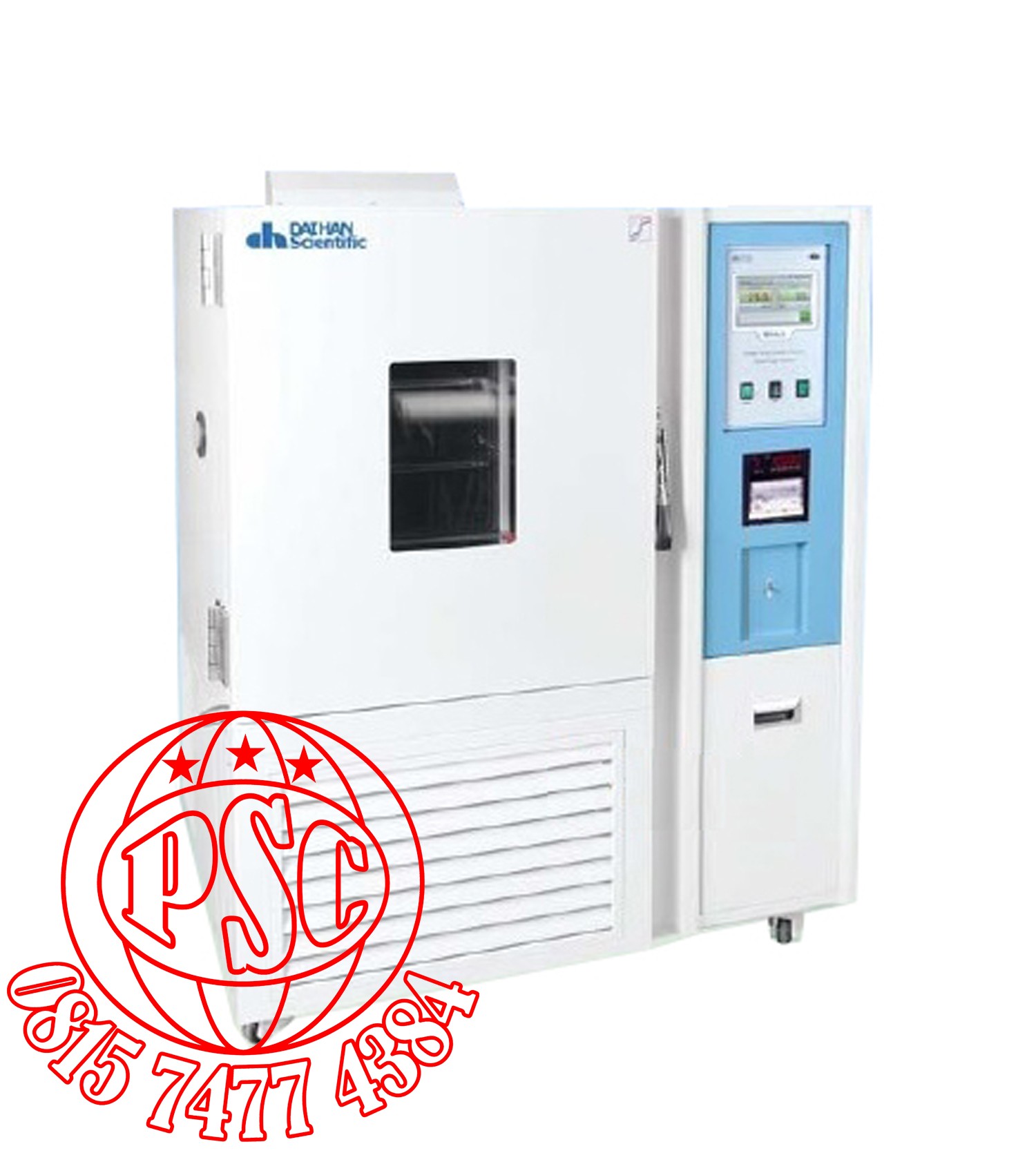

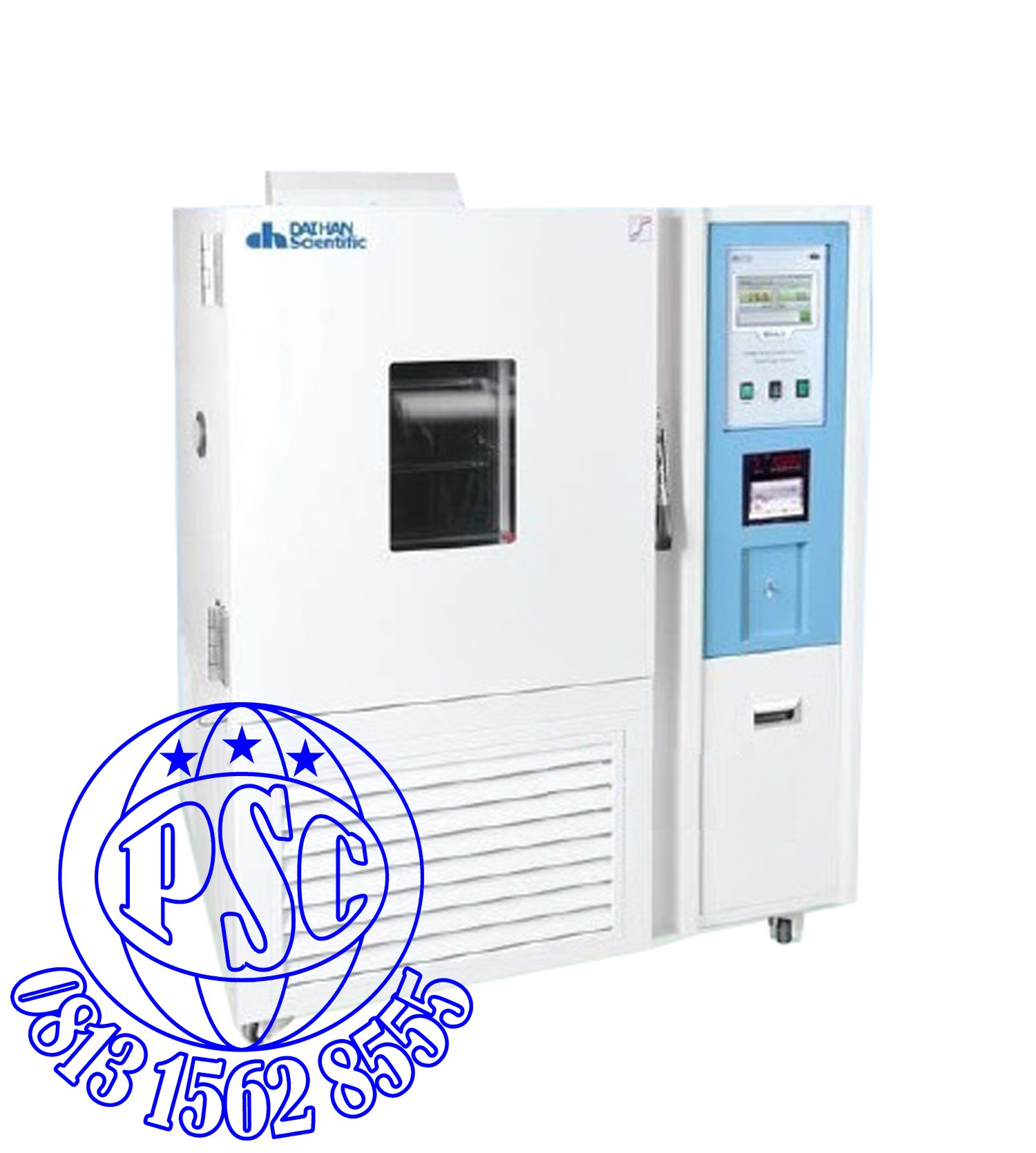

Temperature Test Humidity Chamber ThermoStable TM STH

Specification

Model

ThermoStable

ThermoStable

ThermoStable

ThermoStable

Spec.

STH-155

STH-305

STH-420

STH-800

Temp. Range

-20 ℃ to 100 ℃

Humidity Range

30 % to 98 % RH

Compressor

7/8 HP

1.5 HP

1.5 HP

3HP

Heater

for Temperatue

1.5 kW

2.0 kW

2.2 kW

2.5 kW

for Humidity

2.0 kW

3.0 kW

3.0 kW

3.0 kW

Model

ThermoStable

ThermoStable

ThermoStable

ThermoStable

Spec.

STH-L155

STH-L305

STH-L420

STH-L800

Temp./Humidity Range

-40 ℃ to 100 ℃/ 30 % to 98 % RH

Compressor

1.5 HP

2 HP

3HP

4HP

for Temperatue

1.5 kW

2.0 kW

2.2 kW

2.5 kW

Heater

for Humidity

2.0 kW

2.0 kW

3.0 kW

3.0 kW

Dimension

Interior ( mm )

505 × 505 × 610

620 × 620 × 800

700 × 700 × 820

1000 × 800 × 1000

( W x D x H )

Exterior ( mm )

1100 × 960 × 1550

1310 × 1080 × 1765

1390 × 1135 × 1690

1570 × 1245 × 2060

Capacity

155 Lit.

305 Lit.

420 Lit.

800 Lit.

Refrigerant

CFC - Free(R-404A) Refrigeration System

Accuracy

±0.3 ℃

Temp.

Stability

±0.3 ℃

Accuracy

±0.3 % RH

Humidity

Stability

±0.3 % RH at 70 %

Heat-up Time

35 min ( -20 ℃ to 80 ℃ )

Cool-down Time

45 min ( +20 ℃ to -20 ℃ )

Controller & Display

Smart-Lab Controller, 7” Full Touch Screen TFT LCD

Program Function

Multiple Programs ( Patterns by multiple Segments ) Supported

Sensor

PT100 & Capacitive Sensor

Material

Internal

Stainless-steel ( ＃304 )

External

Powder Coated steel

Shelves

3ea of Perforated Stainless steel Shelves of Adjustable Position

Safety Device

Over Temp. and Over Current Protector,

Sensor Error and Low Level Detector, Leakage Breaker

Others

CE Certified, PL ( Product Liability ) Insurance

Packing Dimension ( W x D x H )

134 × 116 × 175

152 × 125 × 207

160 × 130 × 202

178 × 141 × 237

Gross Weight

353 kg

369 kg

478 kg

678 kg

Power Consumption

4.7 kW

5.7 kW

6.3 kW

9 kW

6.2 kW

7.9 kW

9.9 kW

12.7 kW

Electric Reqts.

1 Phase AC 120 V, 60 Hz or AC 230 V, 50/60 Hz or 3 Phase
