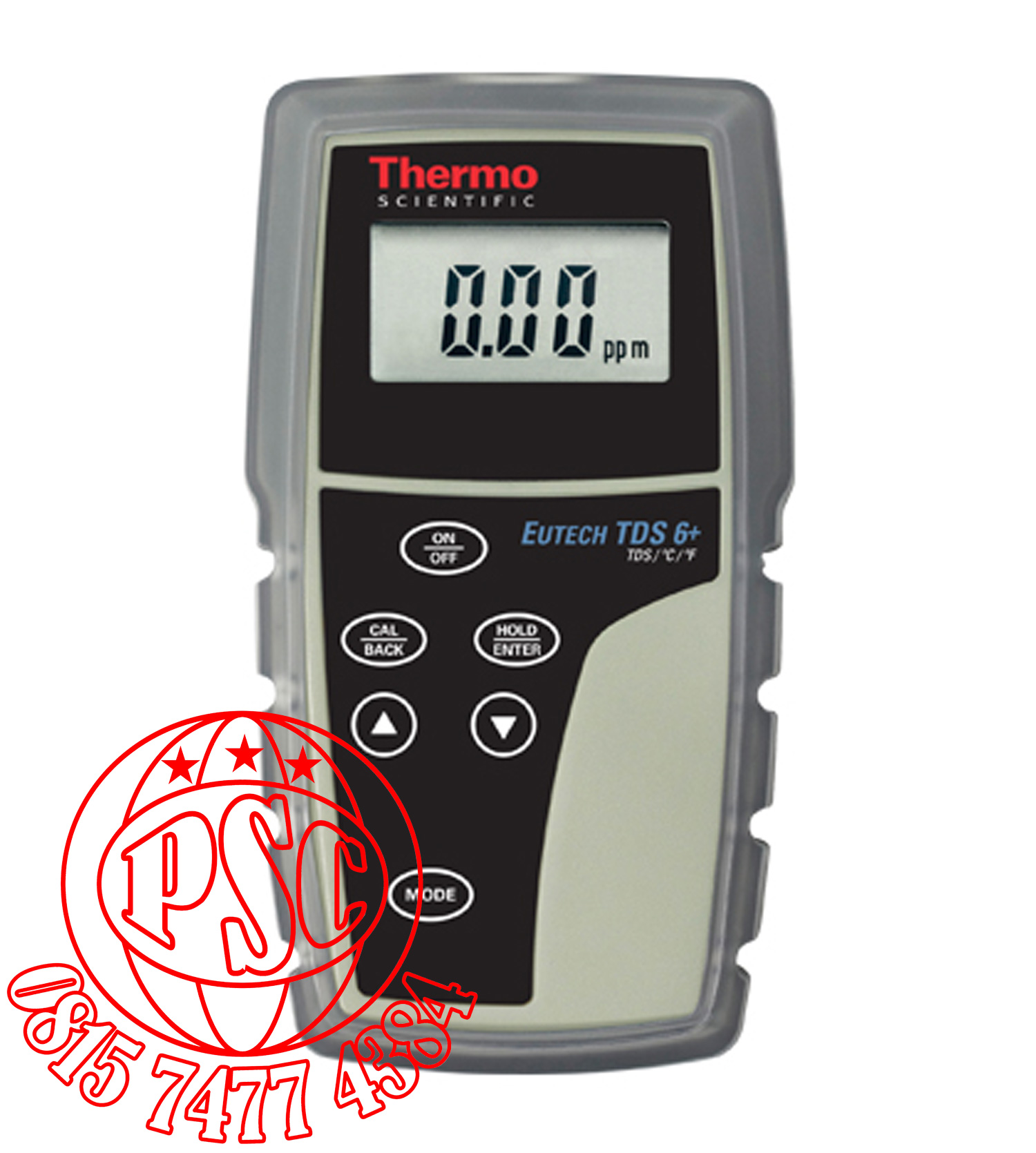

Thermo Scientific Eutech TDS 6Plus |
|
|
Specifications |
|
|
Product Specification |
Description |
|
TDS |
|
|
Range |
0.00 - 9.99 ppm |
|
( Maximum 199.9 ppt Depending on TDS Factor Setting ) |
10.0 - 99.9 ppm |
|
100 - 999 ppm |
|
|
1.00 - 9.99 ppt |
|
|
10.0 - 99.9 ppt |
|
|
Resolution |
0.05 % full scale |
|
Accuracy |
±1 % of full scale ±1 LSD |
|
TDS Factor |
0.30 to 1.00 |
|
Temperature |
|
|
Range |
0.0 to 100.0 ºC / 32.0 to 212 ºF |
|
( 80.0 ºC with supplied probe ) |
|
|
Resolution |
0.1 ºC / 0.1 ºF |
|
Accuracy |
±0.5 ºC / ±0.9 ºF |
|
Compensation |
ATC / MTC ( 0 to 80 ºC ) |
|
Normalization |
20.0 or 25.0 ºC |
|
Operating Temperature |
5 to 45 ºC |
|
Meter Features |
|
|
Calibration Points |
4 ( 1 per range ) auto, 5 ( 1 per range ) manual |
|
Temperature Coefficient |
0.0 - 10.0 % |
|
Cell Constant |
0.1, 1.0, 10.0 |
|
Auto-Off |
20 min after last key pressed |
|
Input |
BNC, 2.5 mm phono socket |
|
Power/Battery Life |
4 x 1.5 V ‘AAA’ alkaline batteries ( included ); > 500 hours |
|
Dimensions/Weight |
|
|
Meter ( L x W x H ) |
15.7 x 8.5 x 4.2 cm; 255 g |
|
Boxed ( L x W x H ) |
36 x 28 x 8 cm; 1555 g |
|
Order Information |
|
|
Order No. |
Item |
|
ECTDS603PLUSK |

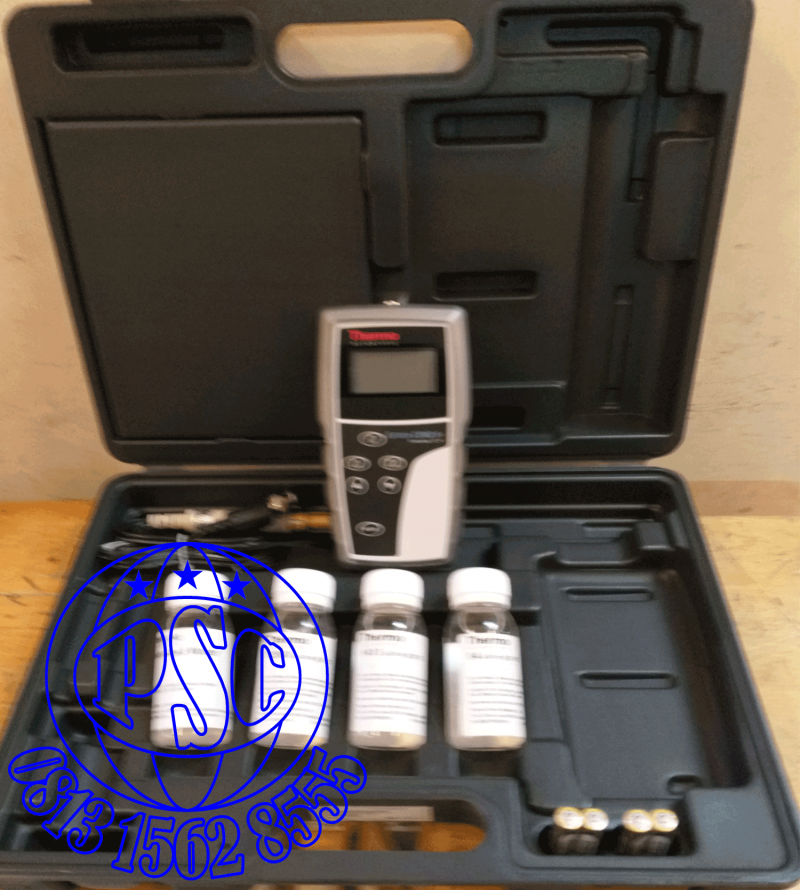

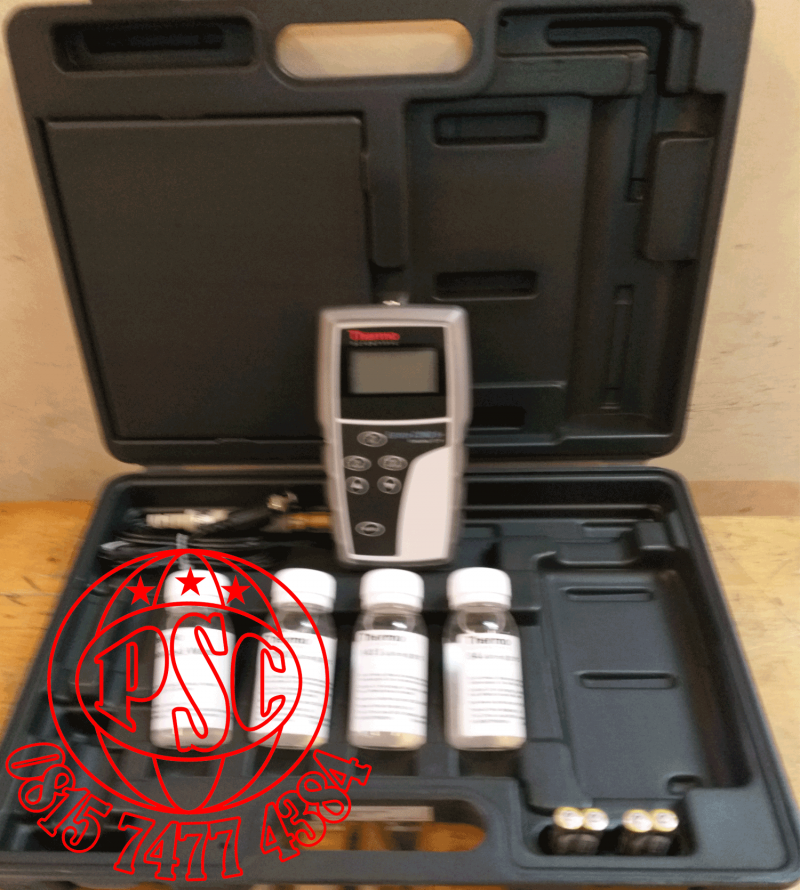

TDS 6+ with CONSEN91B electrode, 442 calibration solutions ( 50 ppm, 300 ppm, 3000 ppm ), and DI rinse water ( 60 mL each ), Grip-Clip, and batteries in hard carrying case |
|
ECTDS603PLUS |
TDS 6+ with CONSEN91B electrode, Grip-Clip, batteries |
|
CONSEN91B |
Replacement electrode with ATC, k=1.0 |
|
CONSEN72B |
Epoxy electrode with ATC, k=0.1 |
|
GRIPCLIP |
Grip-Clip electrode holder |
