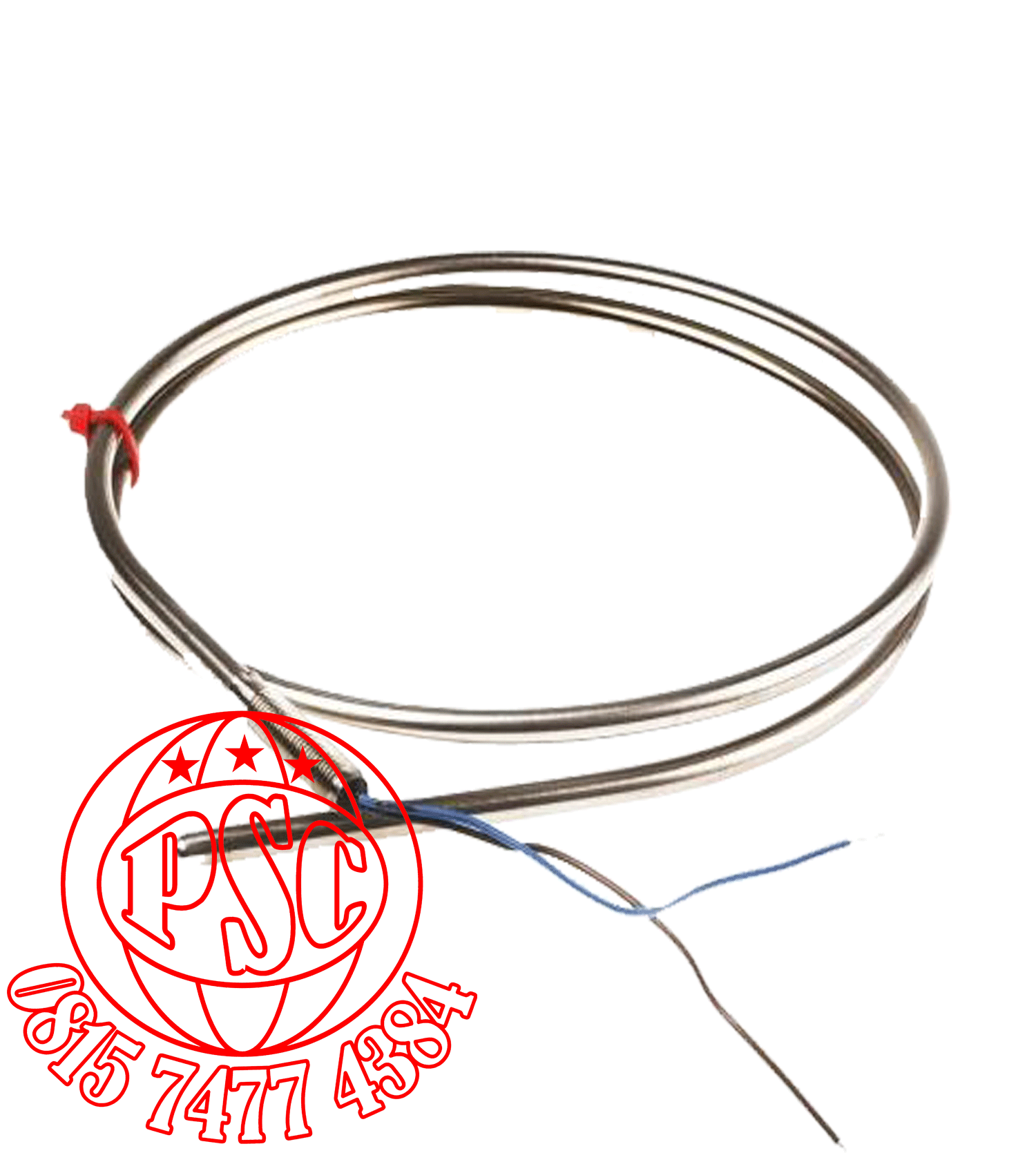

Thermocouple Type K Inconel 600

Type K Thermocouples, Stainless Steel and Inconel /Industrial Mineral Insulated

316 flexible Stainless Steel Sheath versions in diameters 1.5 to 3 mm, lengths 0.5 to 2 m. 100 mm of PVC covered cable. Temp. range 0 to +800 °C. Inconel Sheath versions in diam. of 1.5 to 6 mm, lengths 0.5 to 2 m. 100 mm of PVC covered cable. Temp. range 0 to +1100 °C.

Old Colour Code, BS1843

Thermocouples, bayonet adaptors, compensating and extension cables and connectors.,These BS1843 products are being phased out, having been replaced with a new colour code standard BS4937 Part 30 1993 ( IEC 584-3 1989 modified for international use ). System Calibration is available on selected probes and includes the full charge of the instrument and probe.

Specifications

Attribute

Value

Thermocouple Type

K

Probe Length

1 M

Probe Diameter

6 mm

Probe Material

Inconel 600

Minimum Temp. Sensed

0°C

Maximum Temp. Sensed

+1100 °C

Cable Length

100 mm

Termination Type

Cable

Standards Met

BS
