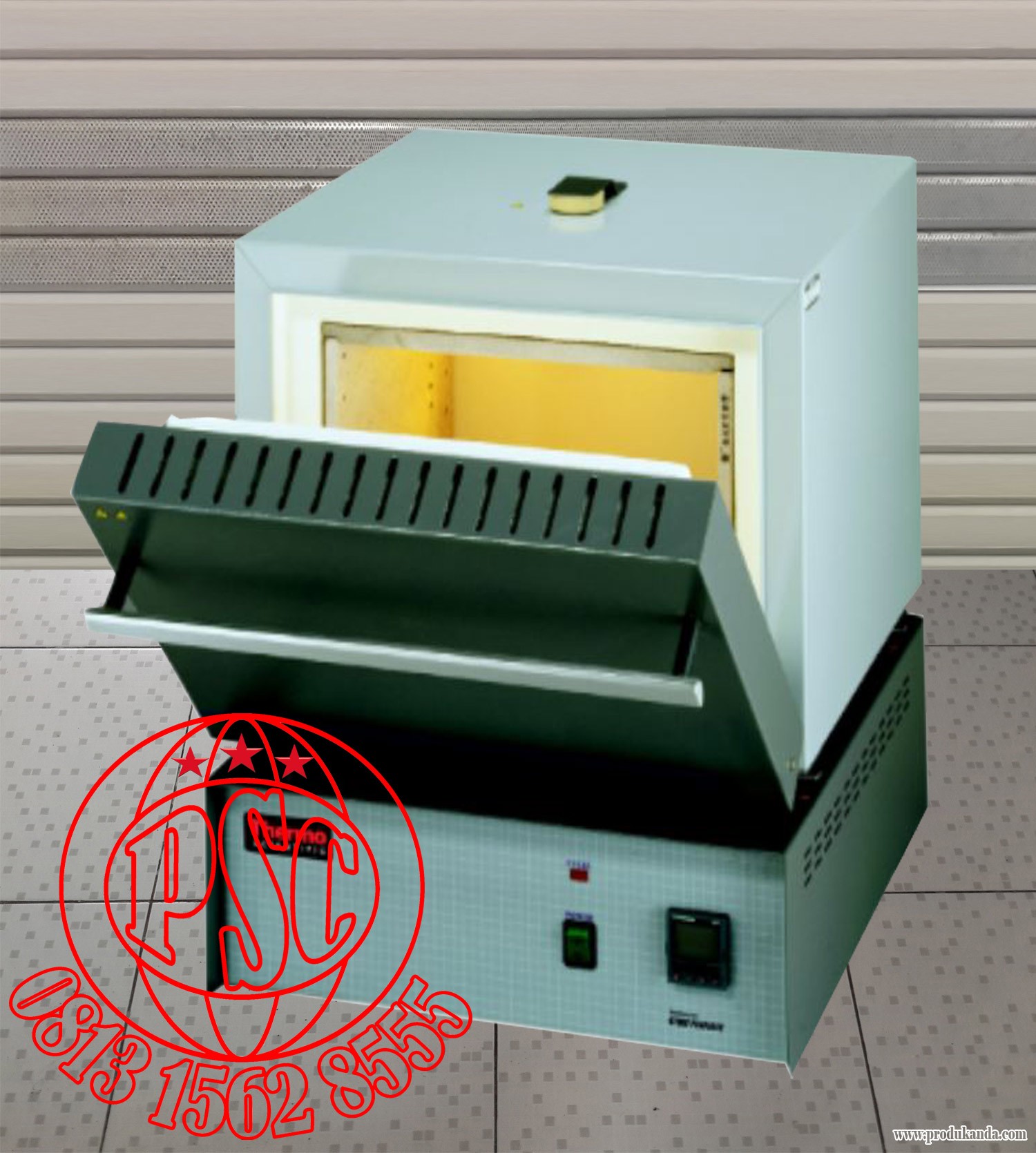

Thermolyne Premium Large Muffle Furnaces |
||
|
Model F6020C-33, F6010, F6020C, F6020C-33-80, F6020C-80, F6030CM, F6030CM-33 |
||
|
Specifications |
|
|
|
Product Size |
F6010 |
F6020C |
|
Amperage |
12.9 A |
18.3 A |
|
Capacity ( Metric ) |
14 L |
|
|
Certifications/Compliance |
CSA approved |
|
|
Capacity |
0.5 cu.ft., 14 L |
|
|
Capacity ( English ) |
0.5 cu.ft. |
|
|
Depth ( English ) Int |
10 in. |
|
|
Depth ( Metric ) Int |
25 cm |
|
|
Dimensions ( D x W x H ) Int |
10 x 12.8 x 6.8 in.( 25 x 33 x 18 cm ) |
|
|
Dimensions ( L x W x H ) Ext |
20.1 x 19.1 x 21 in.( 51 x 48.5 x 53.3 cm ) |
|
|
Height ( English ) Ext |
21 in. |
|
|
Height ( English ) Int |
6.8 in. |
|
|
Height ( Metric ) Int |
18 cm |
|
|
Height ( Metric ) Ext |
53.3 cm |
|
|
Length ( English ) Ext |
20.1 in. |
|
|
Hertz |
50/60 Hz |
|
|
Length ( Metric ) Ext |
51 cm |
|
|
Power Consumption |
3095 w |
4400 w |
|
Shipping Weight ( English ) |
134 lb. |
|
|
Shipping Weight ( Metric ) |
60.8 kg |
|
|
Shelves |
Stainless steel |
|
|
Temp Control |
Digital single setpoint ( A1 ) |
Digital single setpoint with ramp and dwell ( B1 ) |
|
Temp Range ( Metric ) |
100° to 1200°C |
|
|
Temp Stability |
±0.3 at 1000°C |
±1.5 at 1000°C |
|
Temp Uniformity |
±2.2 at 1000°C |
±4.5 at 1000°C |
|
Type |
Single setpoint |
|
|
Voltage |
240 V |
|
|
Width ( English ) Int |
12.8 in. |
|
|
Width ( English ) Ext |
19.1 in. |
|
|
Width ( Metric ) Ext |
48.5 cm |
|
|
Electrical Requirements |
240 V 50/60 Hz |
|
|
Width ( Metric ) Int |
33 cm |
|
|
Specification |
||
|
Product Size |
F6020C-33 |
F6020C-33-80 |
|
Amperage |
18.3 A |
|
|
Capacity ( Metric ) |
14 L |
|
|
Certifications/Compliance |
CSA approved, CE marked |
|
|
Capacity |
0.5 cu.ft., 14 L |
|
|
Capacity ( English ) |
0.5 cu.ft. |
|
|
Depth ( English ) Int |
10 in. |
|
|
Depth ( Metric ) Int |
25 cm |
|
|
Dimensions ( D x W x H ) Int |
10 x 12.8 x 6.8 in. ( 25 x 33 x 18 cm ) |
|
|
Dimensions ( L x W x H ) Ext |
20.1 x 19.1 x 21 in. ( 51 x 48.5 x 53.3 cm ) |
|
|
Height ( English ) Ext |
21 in. |
|
|
Height ( English ) Int |
6.8 in. |
|
|
Height ( Metric ) Int |
18 cm |
|
|
Height ( Metric ) Ext |
53.3 cm |
|
|
Length ( English ) Ext |
20.1 in. |
|
|
Hertz |
50/60 Hz |
|
|
Length ( Metric ) Ext |
51 cm |
|
|
Power Consumption |
4400 w |
|
|
Shipping Weight ( English ) |
134 lb. |
|
|
Shipping Weight ( Metric ) |
60.8 kg |
|
|
Shelves |
Stainless steel |
Stainless steel |
|
Temp Control |
Digital single setpoint with ramp and dwell ( B1 ) |
Digital programmable with 4 programs ( C1 ) |
|
Temp Range ( Metric ) |
100° to 1200°C |
|
|
Temp Stability |
±1.5 at 1000°C |
|
|
Temp Uniformity |
±4.5 at 1000°C |
|
|
Type |
Single setpoint |
Multiprogram |
|
Voltage |
240 V |
|
|
Width ( English ) Int |
12.8 in. |
|
|
Width ( English ) Ext |
19.1 in. |
|
|
Width ( Metric ) Ext |
48.5 cm |
|
|
Electrical Requirements |
240 V 50/60 Hz |
|
|
Width ( Metric ) Int |
33 cm |
|
