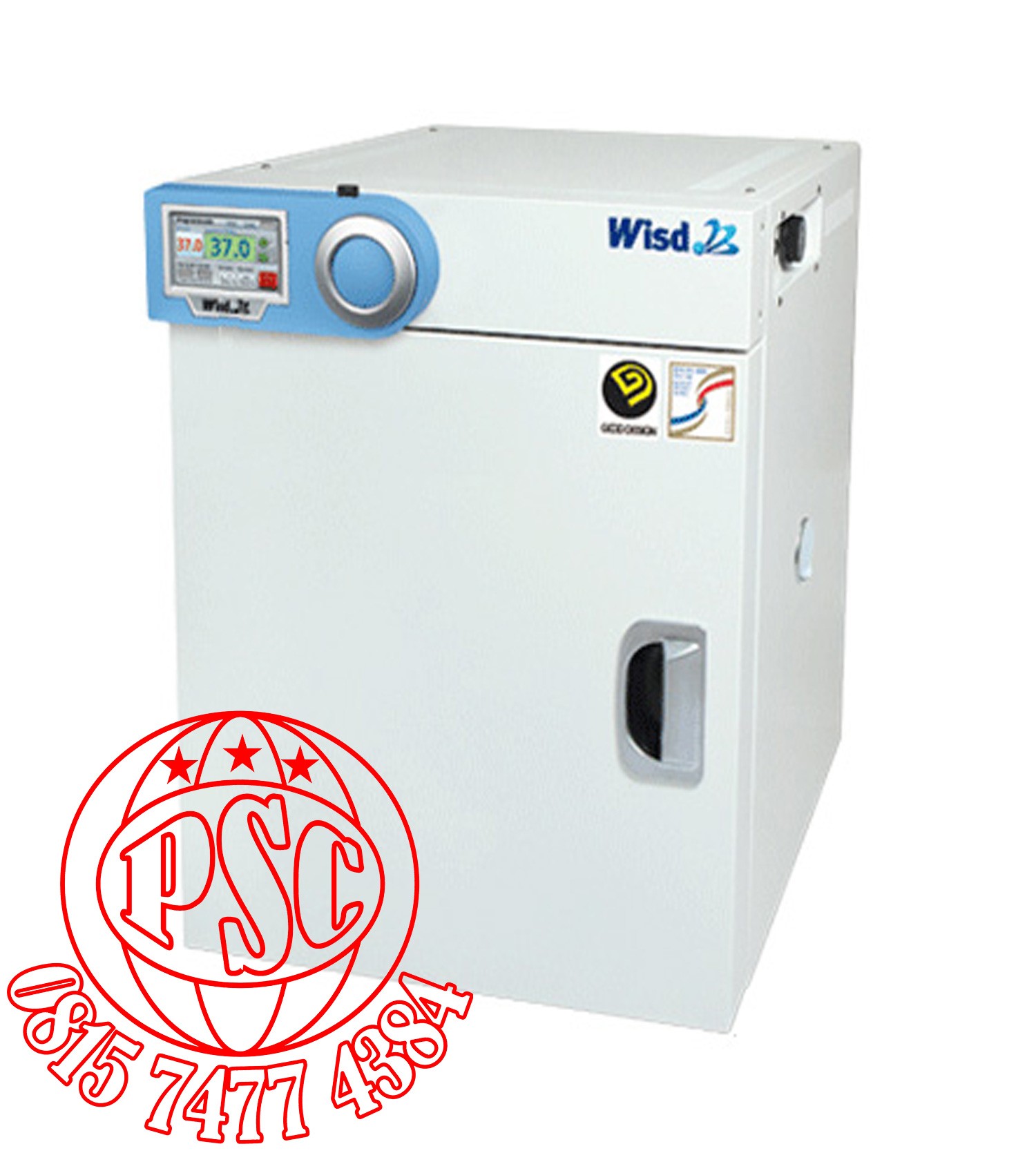

ThermoStable  SIG SMART Incubators, Gravity Convection Daihan Scientific

Specification

Models

ThermoStable

ThermoStable

ThermoStable

ThermoStable

SIG- 32

SIG- 50

SIG- 105

SIG- 155

Capacity

32 Lit.

50 Lit.

105 Lit.

155 Lit.

Dimension

( W x D x H )

Interior

312 × 290 × 360 mm

370 × 350 × 420 mm

485 × 410 × 535 mm

550 × 475 × 600 mm

Exterior

458 × 477 × 624 mm

518 × 537 × 701 mm

635 × 595 × 841 mm

700 × 660 × 906 mm

Heater Power

150 W

200 W

300 W

400 W

Temp.

Range

Ambient Temp. +5 ℃ to 70 ℃

Fluctuation

± 0.2 ℃ at 37 ℃, ± 0.3 ℃ at 50 ℃

Variation

± 0.6 ℃ at 37 ℃, ± 1.0 ℃ at 50 ℃

Sensor

PT 100

Control Resolution

±0.1 ℃

Heat-up Time

25 min. to 37 ℃ ,

30 min. to 37 ℃ ,

40 min. to 50 ℃

40 min. to 50 ℃

Recovery Time

8 min. to 37 ℃

10 min. to 37 ℃

( Door open 30 sec )

12 min. to 50 ℃

15 min. to 50 ℃

Controller

Smart-LabTM  Controller

RS232 Port

Available to connect with PC

Display

4″Full Touch Screen TFT LCD

Timer

99 hr 59 min ( delay/continuous function )

Material

Internal

Stainless steel ( #304 )

External

Powder Coated steel

Inner Door

Inner Tempered Glass Door

Shelves

2 ea of Teflon-coated steel Wire Shelves included, Load per Shelf : 16 kg

Ventilation

1 ea of Ventilation hole with Stainless steel Cap, Hole Diameter 40 mm

Circulation

Gravity Convection Type

Safety device

Over Temp. and Over Current Protector, Sensor Error Detector

Others

UL/CUL Certified, CE Certified, GD-mark Storage Function ( Temp. and Time ) Alarm ( Error Status and Timer-end )

Net Weight

32 kg

40 kg

59 kg

71 kg

Packing Size ( W x D x H )

568 × 592 × 698 mm

628 × 652 × 775 mm

731 × 710 × 1,018 mm

796 × 775 × 1,083 mm

Shipping Weight

39 kg

53 kg

67 kg

78 kg

Power Consumption

159 W

169.9 W

292.9 W

420.5 W

Energy Consumption, at 37°C

34 Wh

41 Wh

63 Wh

99 Wh

Energy Consumption, at 50°C

81 Wh

103 Wh

152 Wh

212 Wh

Power Supply

1 Phase 120 V, 60 Hz or 230 V, 50/60 Hz
