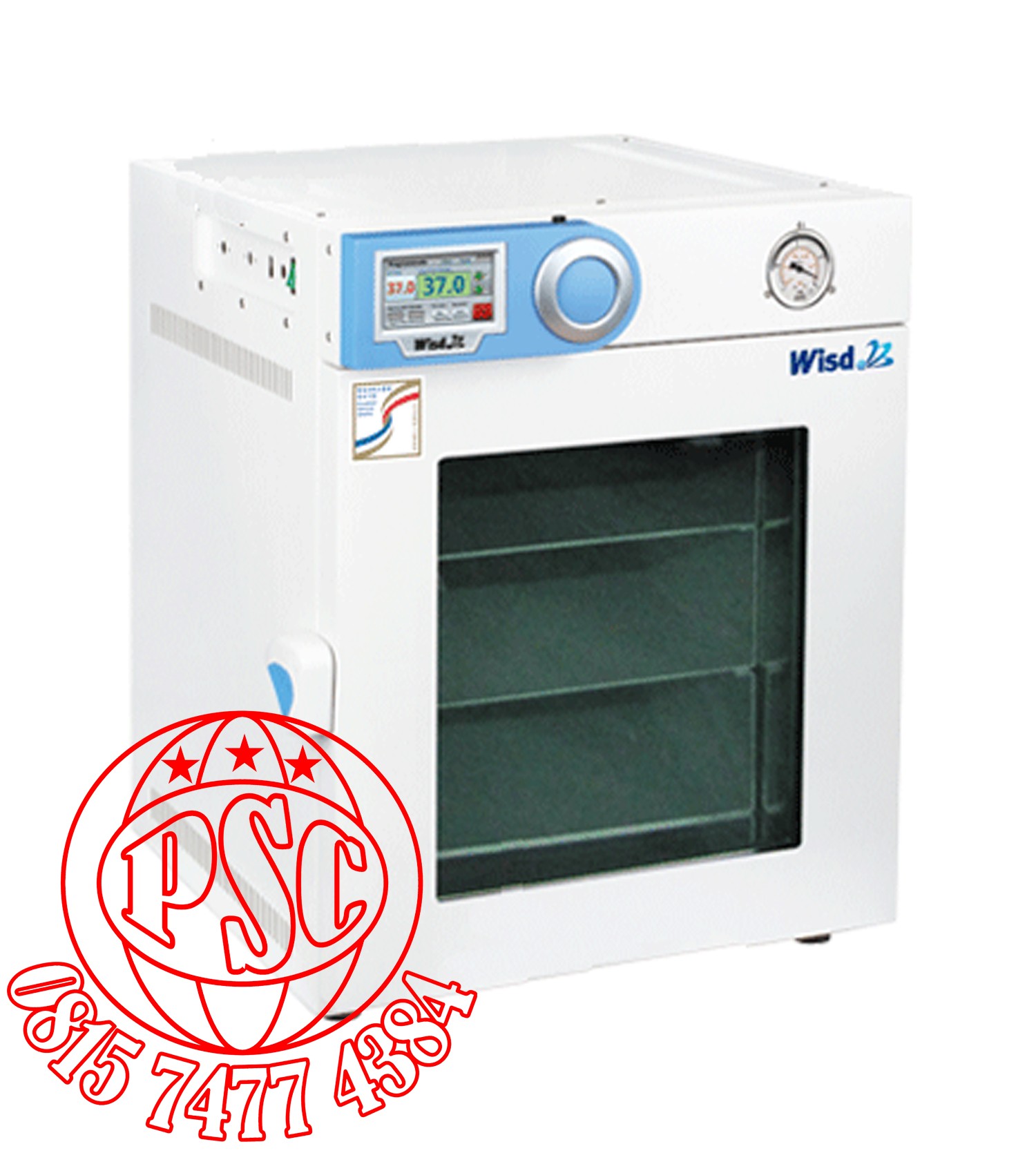

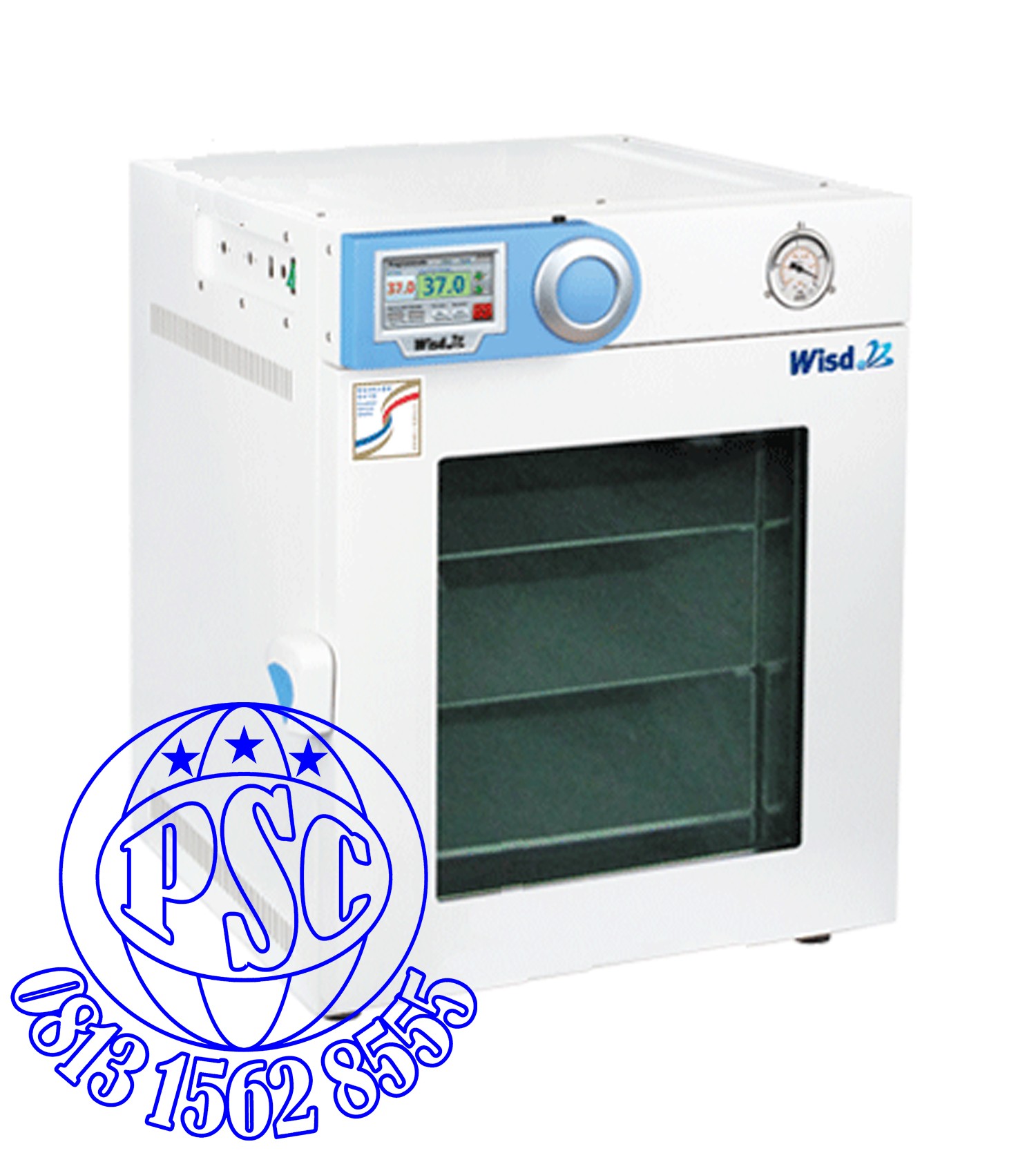

ThermoStable SOV SMART Vacuum Ovens Daihan Scientific

Specification

Model

ThermoStable SOV-20

ThermoStable SOV-30

ThermoStable SOV-70

Capacity

18.6 Lit.

30 Lit.

70 Lit.

Vacuum Range

10 ~ 750 mmHg

Temp.

Range / Sensor

Ambient +5 ℃ to 200 ℃ / PT100

Accu./ Uniformity

± 0.5 ℃ at 100 ℃ / ±2.0 ℃ at 100 ℃

Heating Power/Consumption

300 W × 2 ea

300 W × 2 ea

400W × 4 ea

Heat-up Time

50 min. to 100 ℃, 90 min. to 150 ℃

Timer & Alarm

99 hr 59 min ( with delay / Continuous run.), Error status & Timer-end

Display

4″Full Touch Screen TFT LCD

Controller

Smart-LabTM  Controller

Resolution

Control : ±1.0 ℃, Display : ±1.0 ℃

Shelves

Included 2 ea Aluminum Shelves

Safety Circuit

Over Temp. and Over Current Protector, Sensor Error Detector, Leakage Breaker

Material

Internal : Stainless steel ( ＃304), External : Powder Coated steel,

Window : Tempered Safety Glass 12T, Poly Carbonate 5T for Safety

Others

Program Function, WiReTM App & Web Service.

Dim

( W x D x H )

Internal

265 × 290 × 265 mm

300 × 330 × 300 mm

400 × 435 × 400 mm

External

472 × 443 × 542 mm

507 × 483 × 577 mm

570 × 588 × 677 mm

Vacuum Inlet Valve Size

OD. 10 mm

Net Weight

48 kg

56 kg

82 kg

Packing Size ( W x D x H )

572 × 660 × 840 mm

710 × 762 × 970 mm

780 × 826 × 1,030 mm

& Gross Weight

67 kg

76 kg

114 kg

Power Consumption

600 W

600 W

1.7 kW

Power Supply & Cord Plug

1 Phase, AC 120 V, 60 Hz or  AC 230 V, 50 / 60 Hz
