740 Portable Suspended Solids Monitor Partech

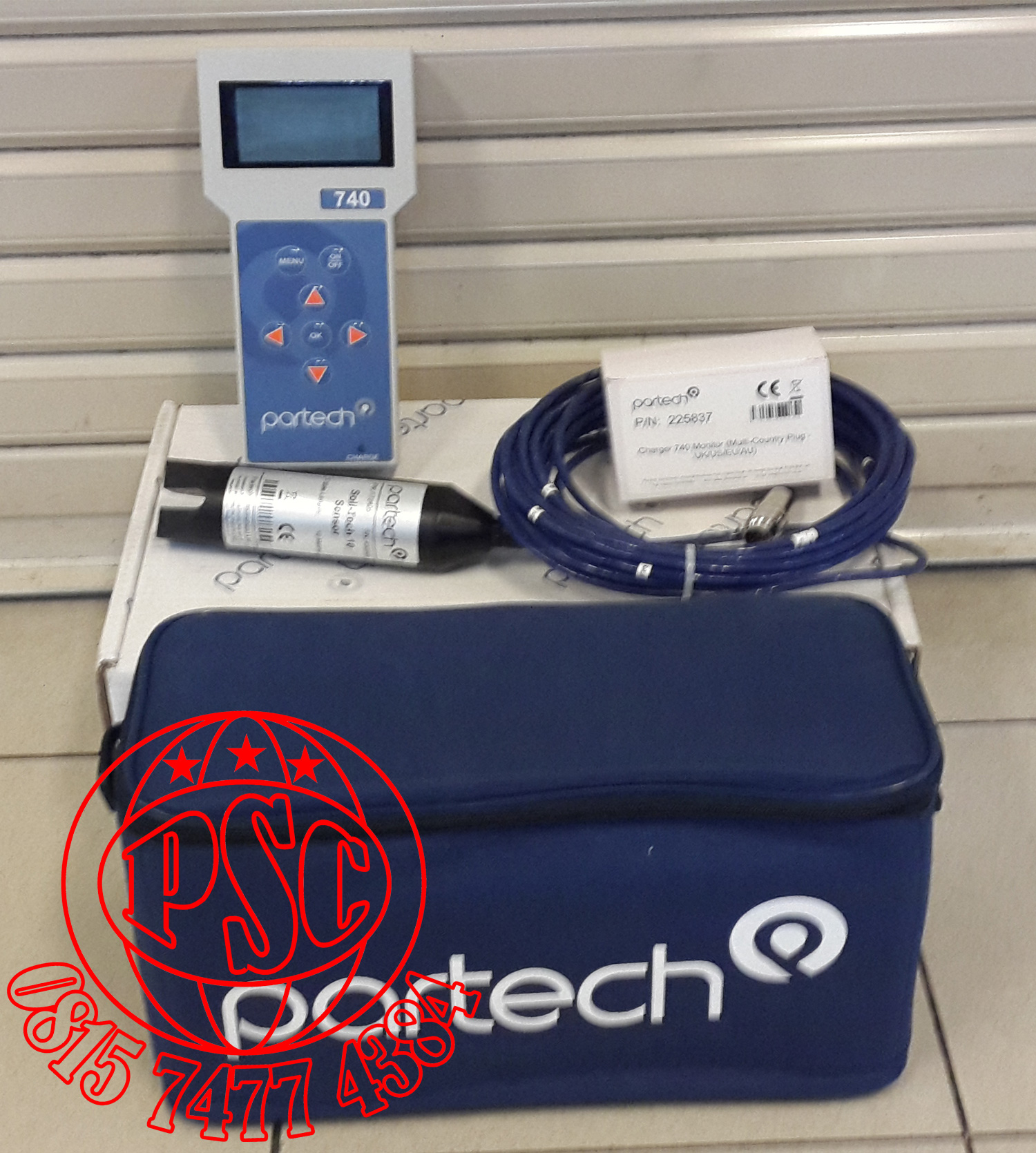

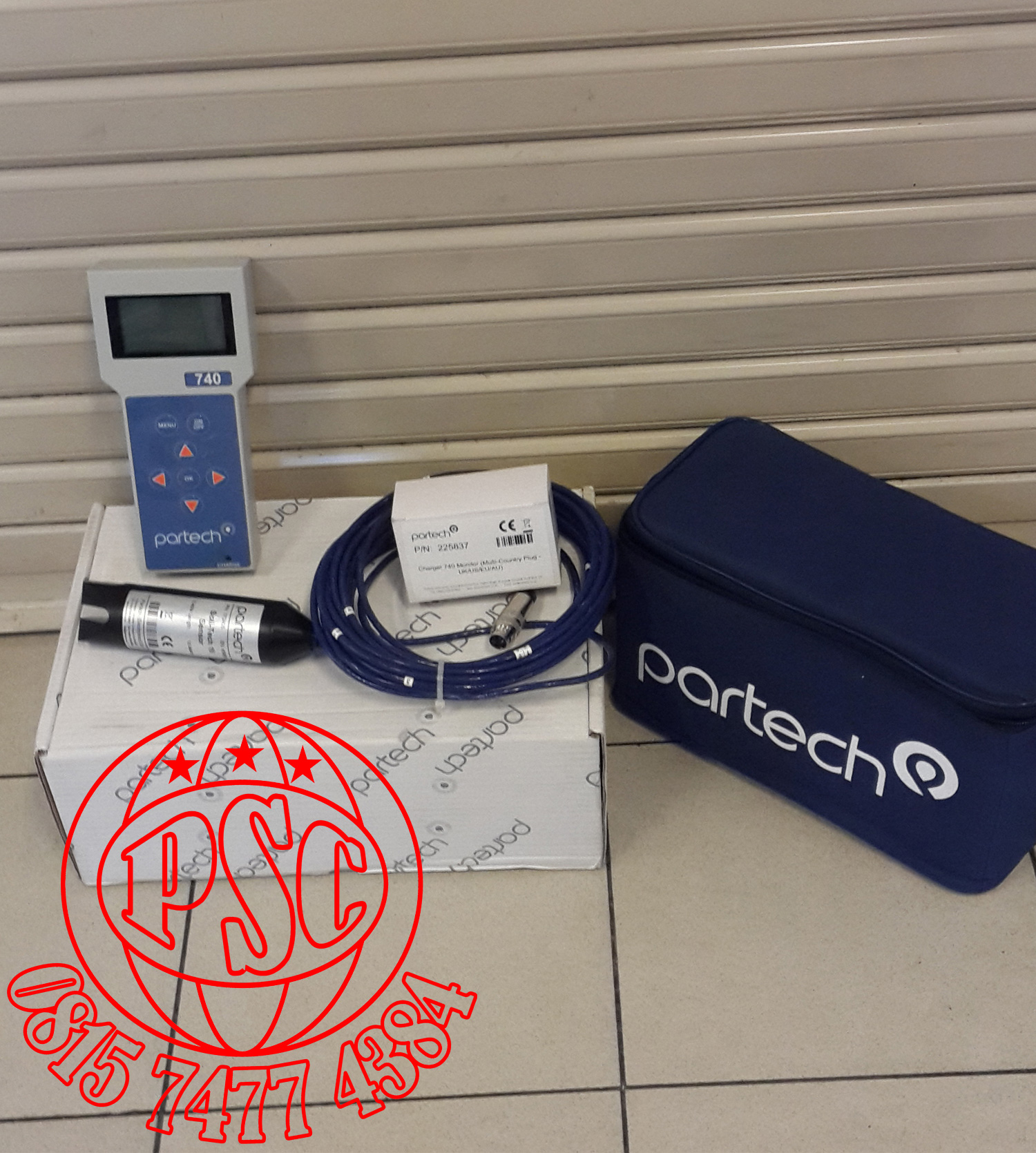

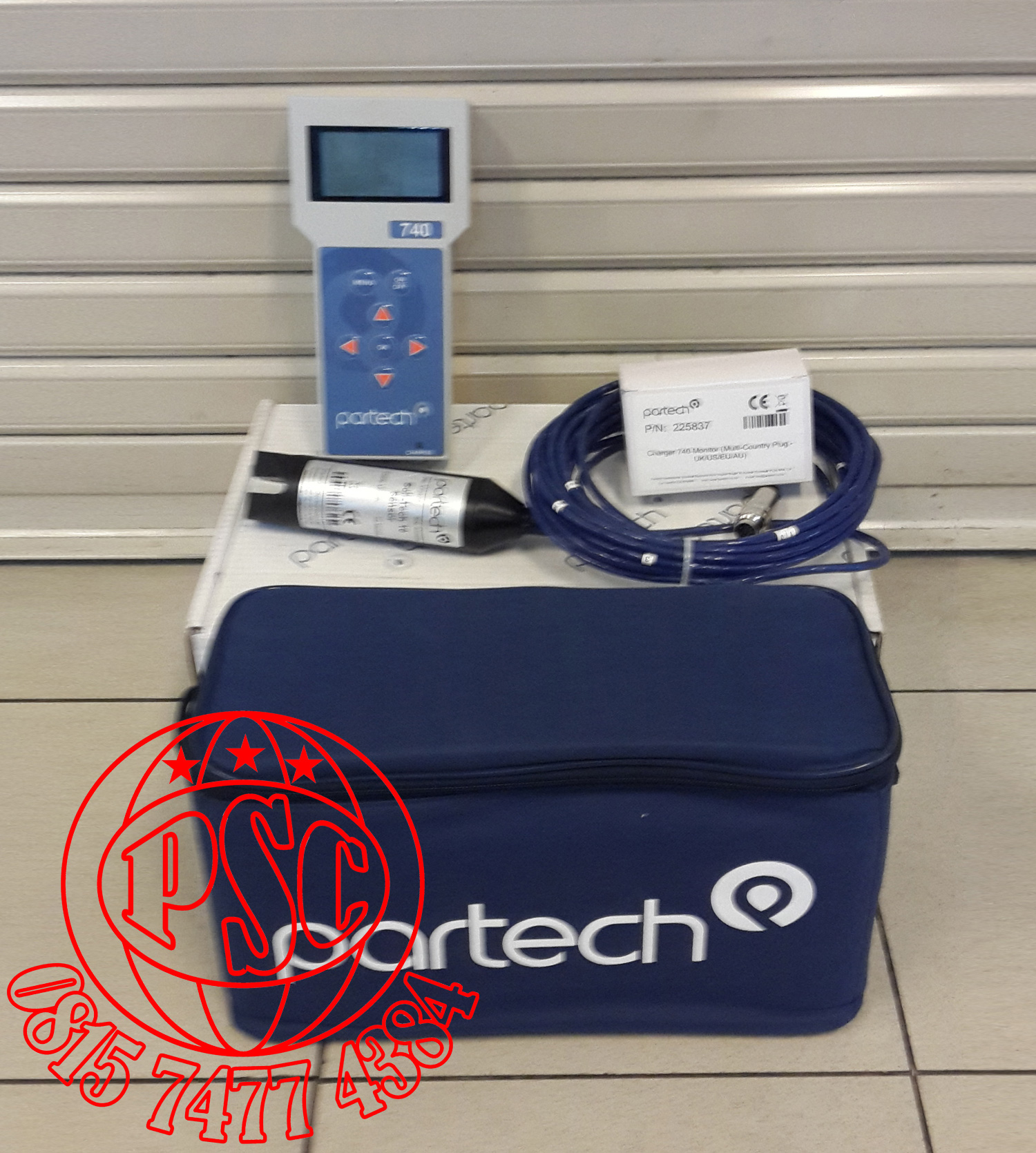

The 740 Monitor provides, quick and accurate readings of Suspended Solids, Sludge Blanket Level, and Turbidity via an intuitive menu structure from a totally portable package. The robust IP65 enclosure incorporates a security strap and protective case to prevent accidental dropping, impact damage and abrasion of the display surface. The display itself is a high contrast LCD that has been designed to work over a wide temperature range with no loss of clarity. A rugged carrying case holds the above, together with the measuring probe, cable, battery charger and instruction manual.
Specifications
Physical
Dimensions ( H x W x D )	Monitor : 224 x 106 x 39 mm
	Sensor : 45 mm Diameter, 155 mm long
Weight	Monitor : 0.5 kg
	Sensor : 0.6 kg ( inc 5 metres of cable )
Protection Class	Electronics : IP65
	Sensor : IP68
Enclosure Material	Monitor : ABS
	Sensor : Black Acetal Co-Polymer
	Bag : Nylon
Cable Entry	Plug for Sensor and Charger
Cable Size	5 mm OD
Cable Length	5 metres standard, 100 metres maximum
Electrical
Power Supply	Rechargeable battery
Charger	90-264 VAC, UK, US, EU and Australian plug style
	Optional Car Charger available
Environmental Data
Operating Temperature	Monitor : -20 to 60 °C
	Sensor : 0 - 60 °C
Storage Temperature	-20 to 60 °C
Location	Indoor/Outdoor, Portable
User Interface
Display	Graphical Display providing 4 1/2 Digits with 2 message lines
Setup	Via 6 button keypad
Units of Measurement	mg/l, g/l, ppm, NTU, FTU, % SS
