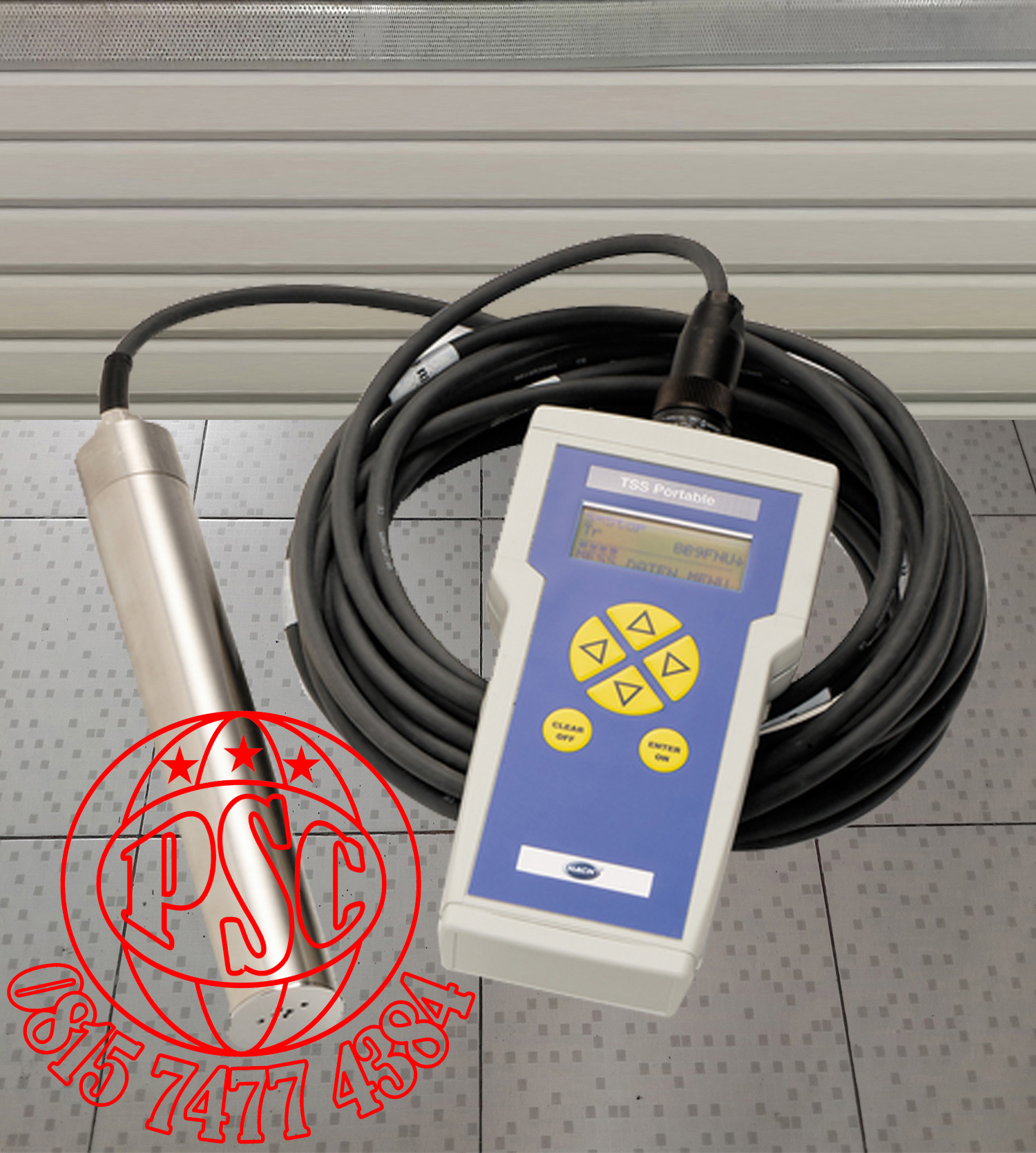

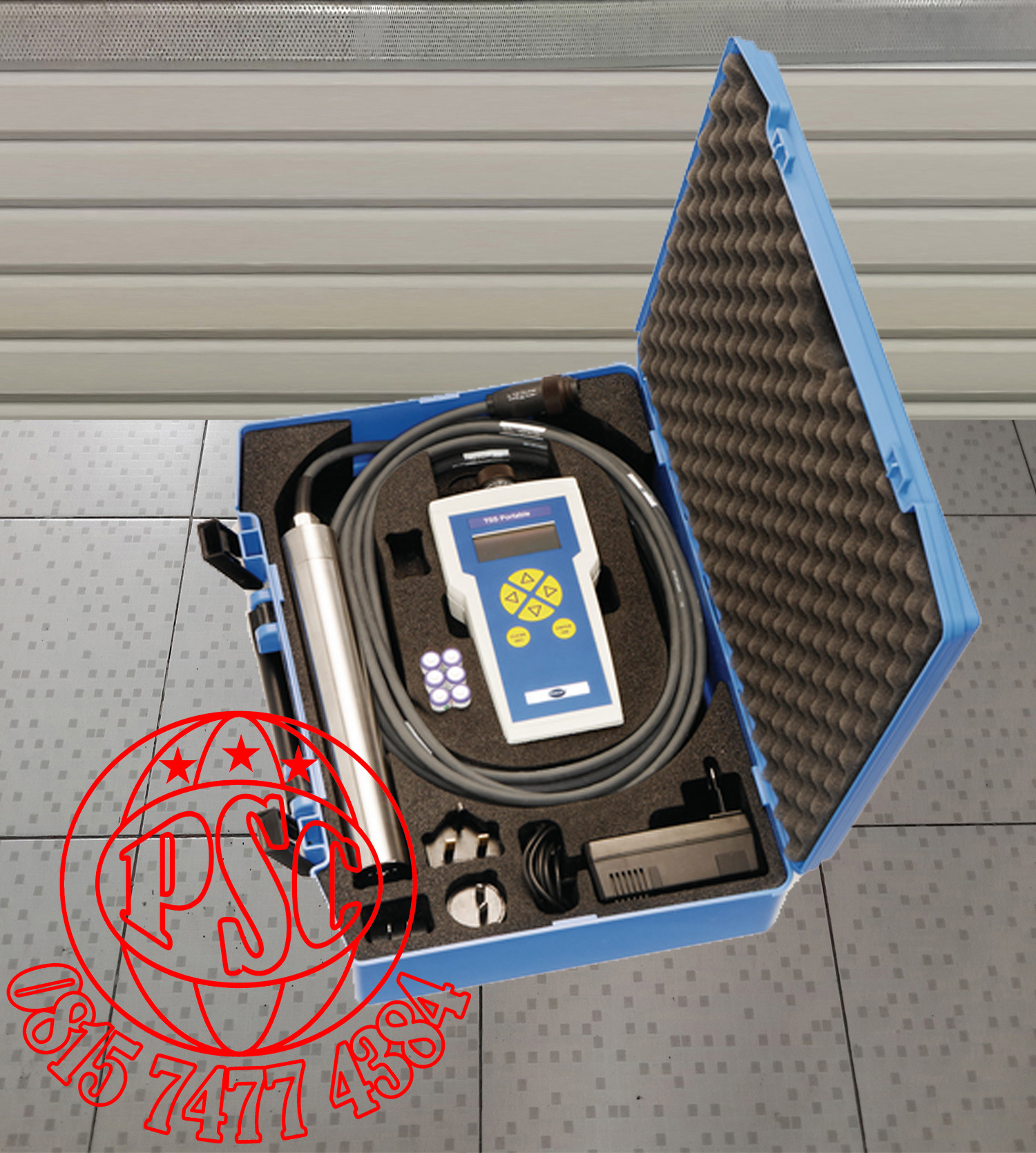

TSS Portable Hand-held Turbidity Suspended Solids and Sludge Level System Hach
Specifications
Cable Length	10 m ( 32.8 ft .) cable with marks for distance
Current Input	Approx. 60 mA
Diameter	40 mm
Dimensions	Case L : 450 mm ( 17.7 in )
	Meter ( H X W X D ) : 110 x 230 x 40 mm ( 4.33 x 9.06 x 1.57 in.)
	Probe ( Ø X L ) 40 mm x 29 cm ( 1.57 x 11.42 in.)
Display	Alphanumerical display, 4 rows of 16 characters
Length	290 mm
Material	Sensor Body : stainless steel;
	Probe : stainless steel;
	Sensor Window : sapphire
Measurement Modes	Continuous measurement, integration time settings 0 - 1000 seconds
Measuring Principle	Combined multiple beam alternating light method with infrared diode system and beam focusing.; Turbidity : 2-channel 90° scattered light measurement in accordance with DIN/EN 27027/ISO 7027; additional measurement value verification through six-channel multiple-angle measurement; Solids : Modified absorption measurement; six-channel multiple-angle measurement;
Measuring Range TSS	0.001 - 400 g/L ( upper range depending on sample characteristics )
Measuring Range Turbidity	0.001 - 9999 FNU
Memory	Up to 290 measuring points
Operating Pressure	0 to 10 bar ( 0 to 145 psi )
Operating Temperature Range	0 - 60 °C
Power	Automatic shut down after 4 minutes ( if no button has been pressed and no permanent measurement is activated )
Precision Suspended Solids	< 4 % ± 0.001 g/L , whichever is greater
Precision Turbidity	< 3 % or ± 0.02 NTU , whichever is greater
Pressure Range	Max. 10 bar
Protection Class	Probe IP68; Control unit IP 55
Range	TSS 0.001 - 400g/L
	Turbidity 0.001 - 9999 FNU
Relative Humidity	0 - 95 %
Resolution : Suspended Solids	0.01 at 1 - 9.999 g/L
	Suspended Solids : 0.1 at 10 - 99.9 g/L
	Suspended Solids : 1 at greater than 100 g/L
Resolution turbidity	0.001 @ 0 - 0.999 NTU
	0.01 @ 1 - 9.99 NTU
	0.1 @ 10 - 99.9 NTU
	1 at greater than 100 NTU
Sensor Cable	10 m
Weight: Probe	3.5 lbs ( 1.6 kg )
Meter	1.2 lbs ( 0.54 kg )
Width 2	450 mm
