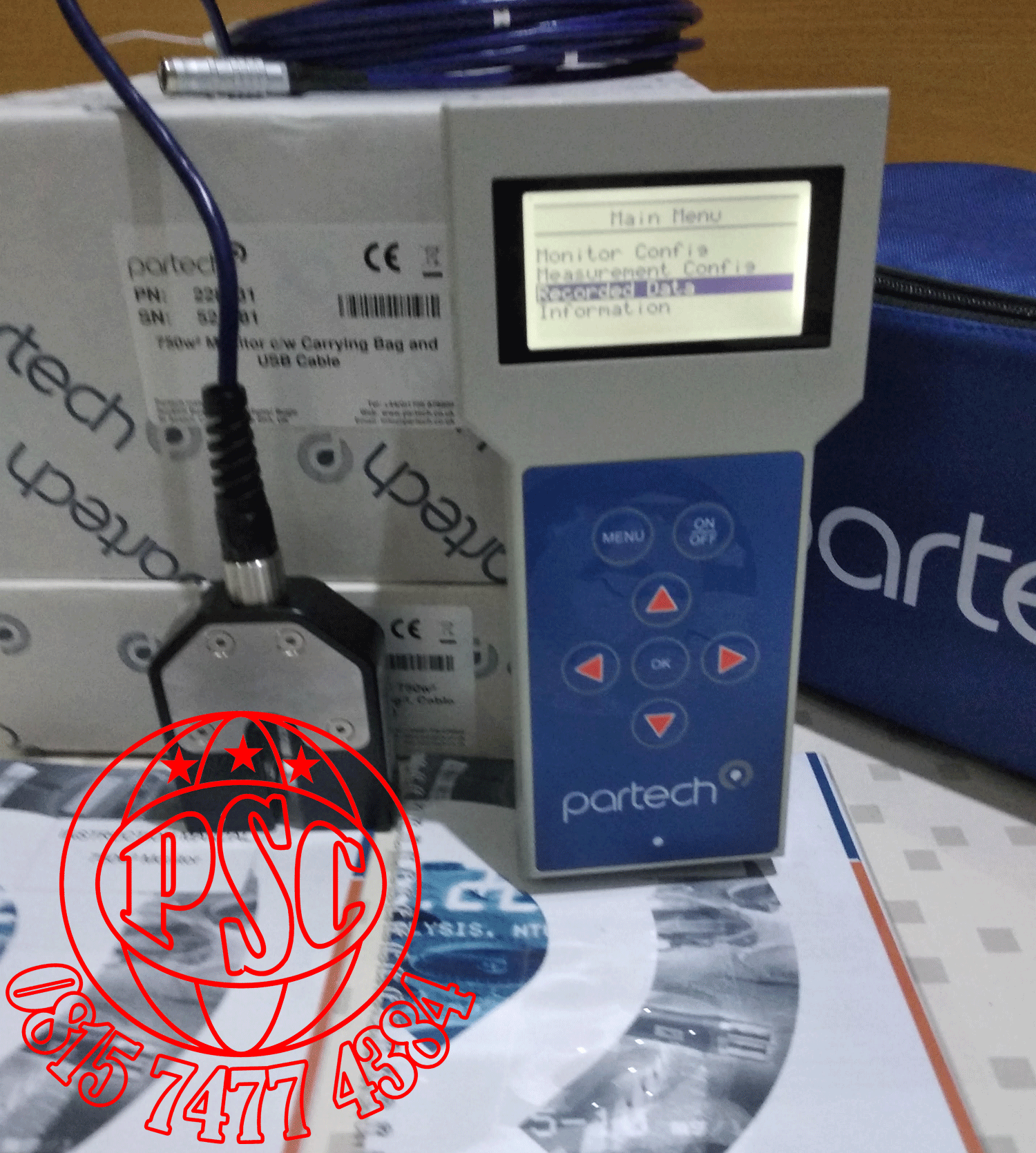

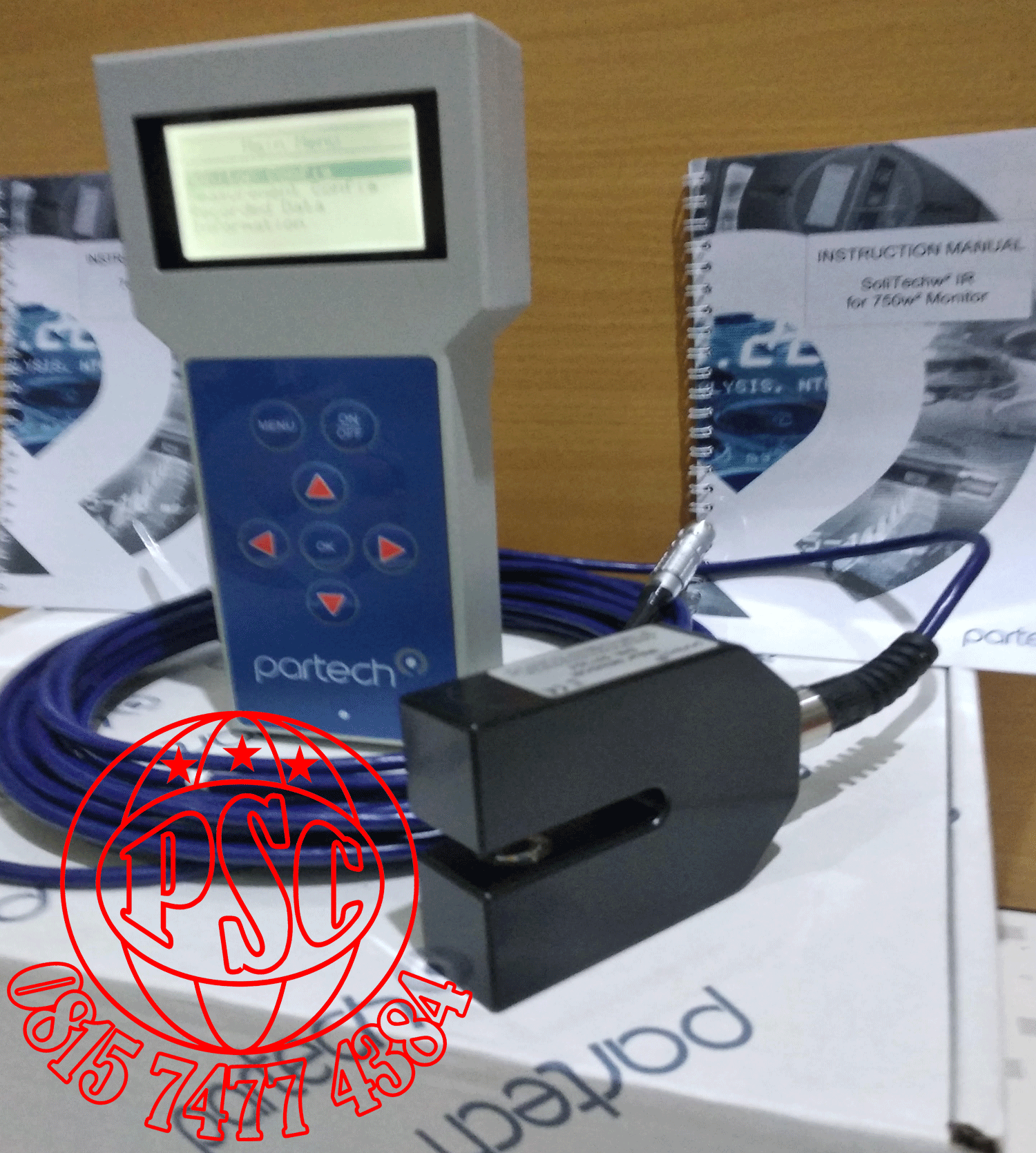

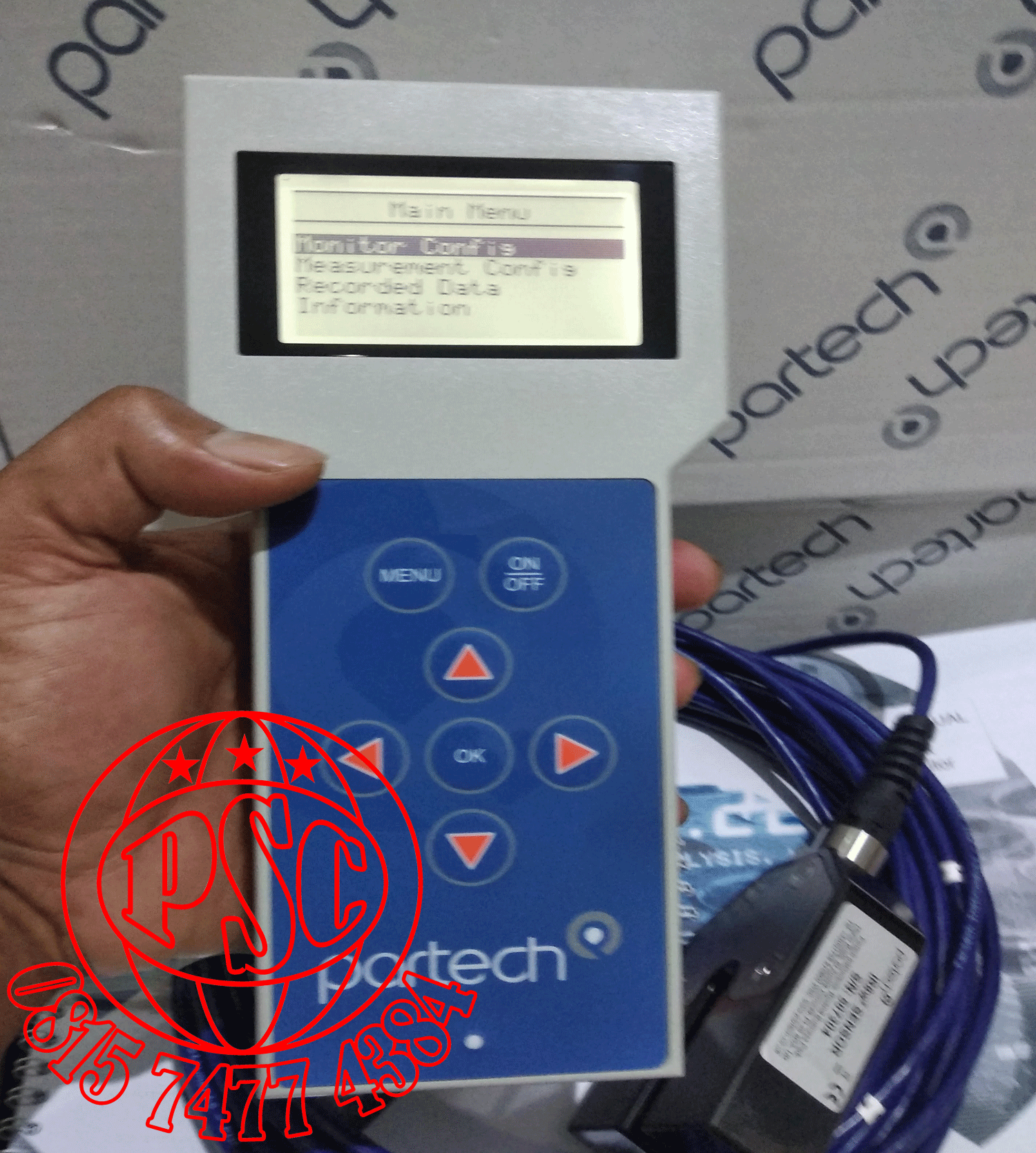

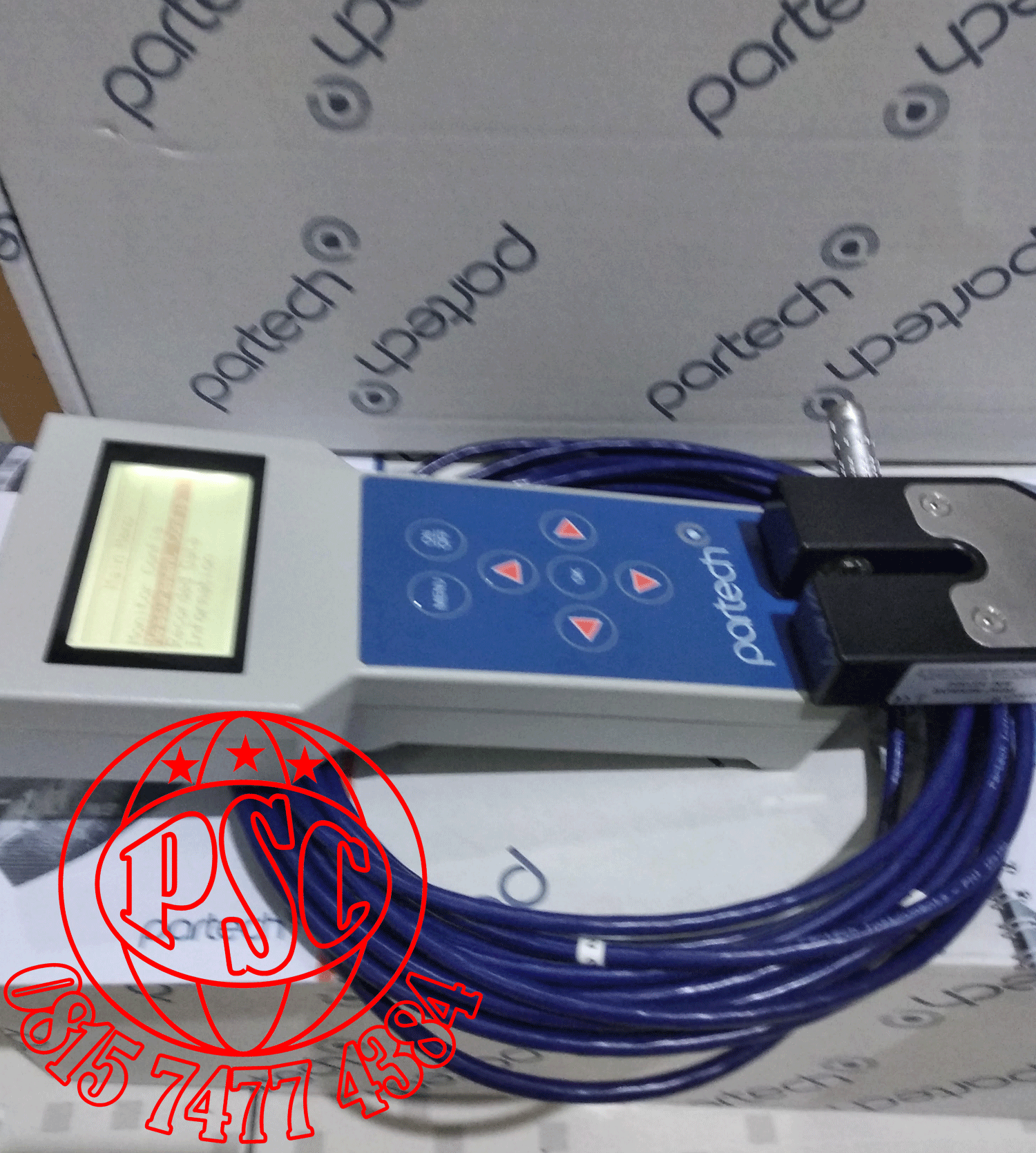

TSS Meter 750w² Monitor Partech

Compatibles Sensors

SoliTechw² Sensor

0-200

SoliTechw² Sensor

0-1,500

SoliTechw² Sensor

0-10,000

SoliTechw² Sensor

0-30,000

Product Data Sheet

Physical

Weight

0.75 kg

Protection Class

IP 65

Enclosure Material

ABS

Cable Connection

4 Way Lemo Circular Plug - For Sensor

5 Way Lemo Circular Plug - For Charger

Environmental Data

Operating Temp. -20 to 60°C

0 to 60°C Storage Temperature

Power Source

Internal Rechargeable Battery Pack

Charging

USB Power Adaptor and Cable

User Interface

Display

Sunlight readable graphical LCD Setup via 7 button membrane keypad

Data Recorder

Minimum 500 points per sensor, actual capacity will depend on configuration

Interface to PC

USB cable for data download

Measurements

MLSS,TSS,Turbidity, Sludge Blanket

SoliTechw² IR Sensors

Range : 0-200 mg/l

Range : 0-1,500 mg/l

Range : 0-10,000 mg/l

Range : 0-30,000 mg/l

pH

WaterTechw² pH 8000*

Redox

WaterTechw² Redox 8000*

Dissolved Oxygen

OxyTechw² RDO Pro-X*

Order Codes

Part No

Description

228531

750w² Monitor complete with Carrying Bag and charger

229340

USB Power Adaptor, 90 to 264 VAC Input, 5 VDC 2.1A Output, 10 Watt, UK Plug

229341

USB Power Adaptor, 90 to 264 VAC Input, 5 VDC 2.1A Output, 10 Watt, EU Plug

229342

USB Power Adaptor, 90 to 264 VAC Input 5 VDC 2.1A Output, 10 Watt, US Plug

229443

USB Power Adaptor, 90 to 264 VAC Input, 5 VDC 2.1A Output, 10 Watt, AUS Plug

229385

USB Power Adaptor, 10 to 16 VDC Input, 5 VDC 2.1A Output, Car Charger
