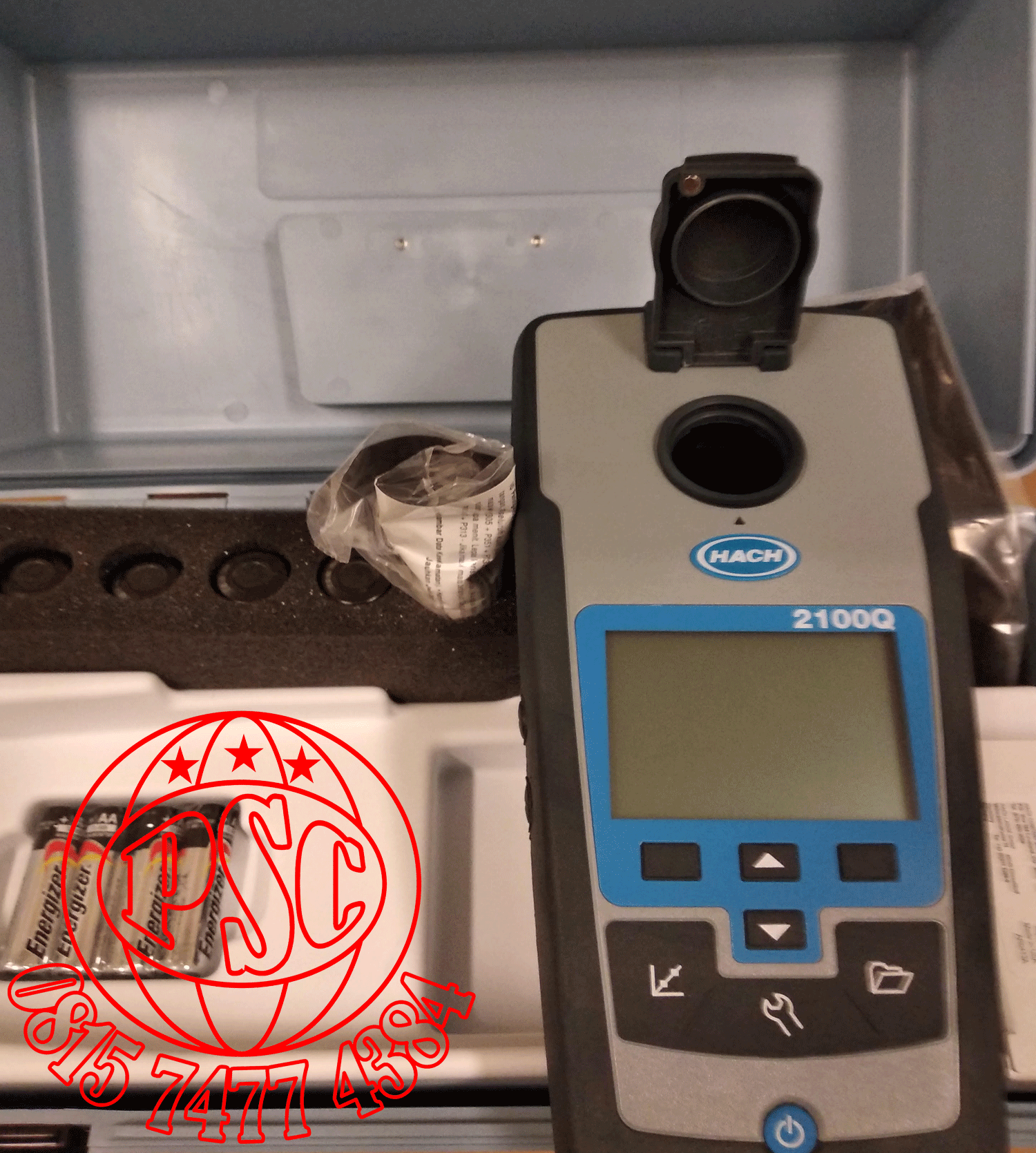

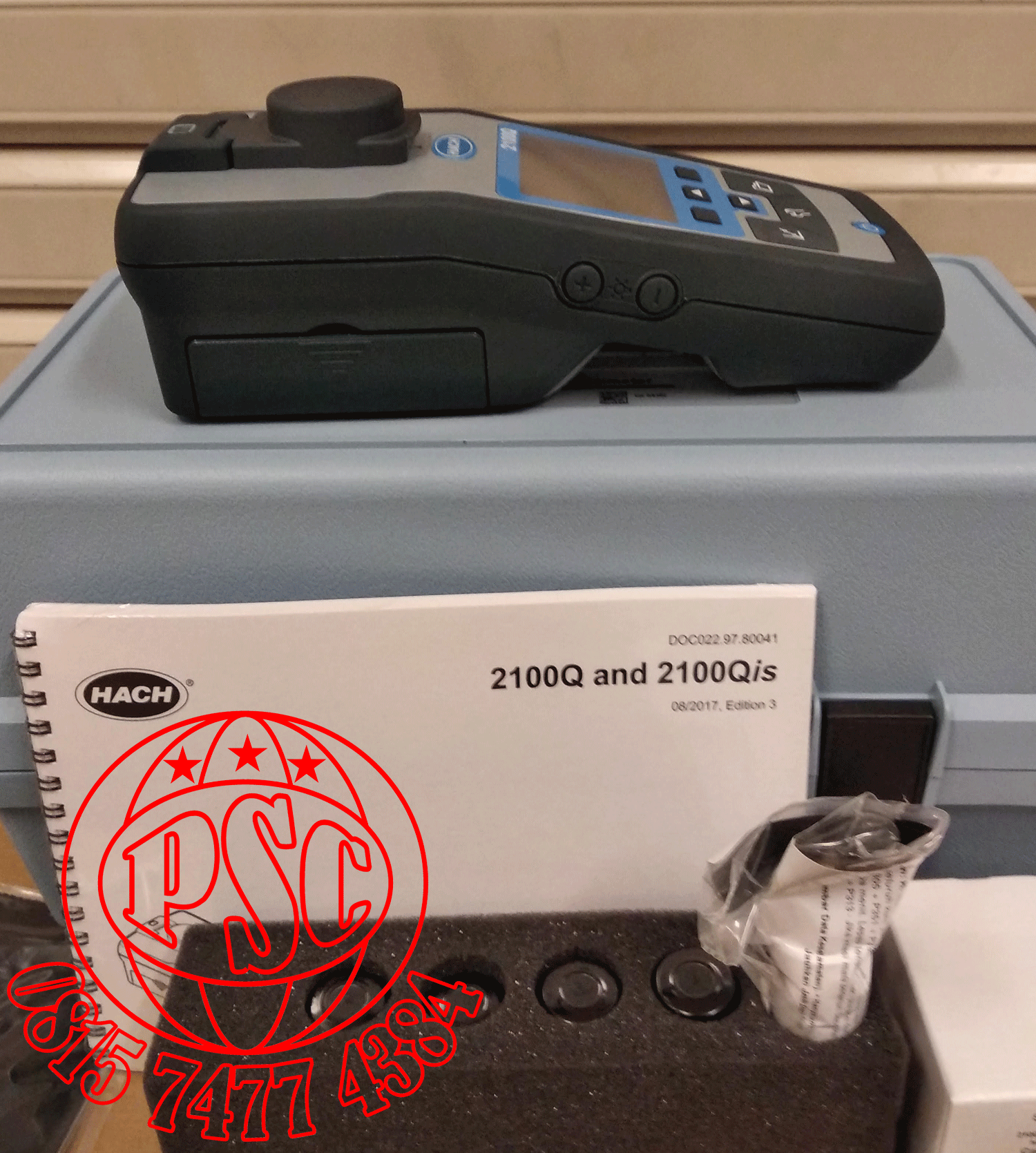

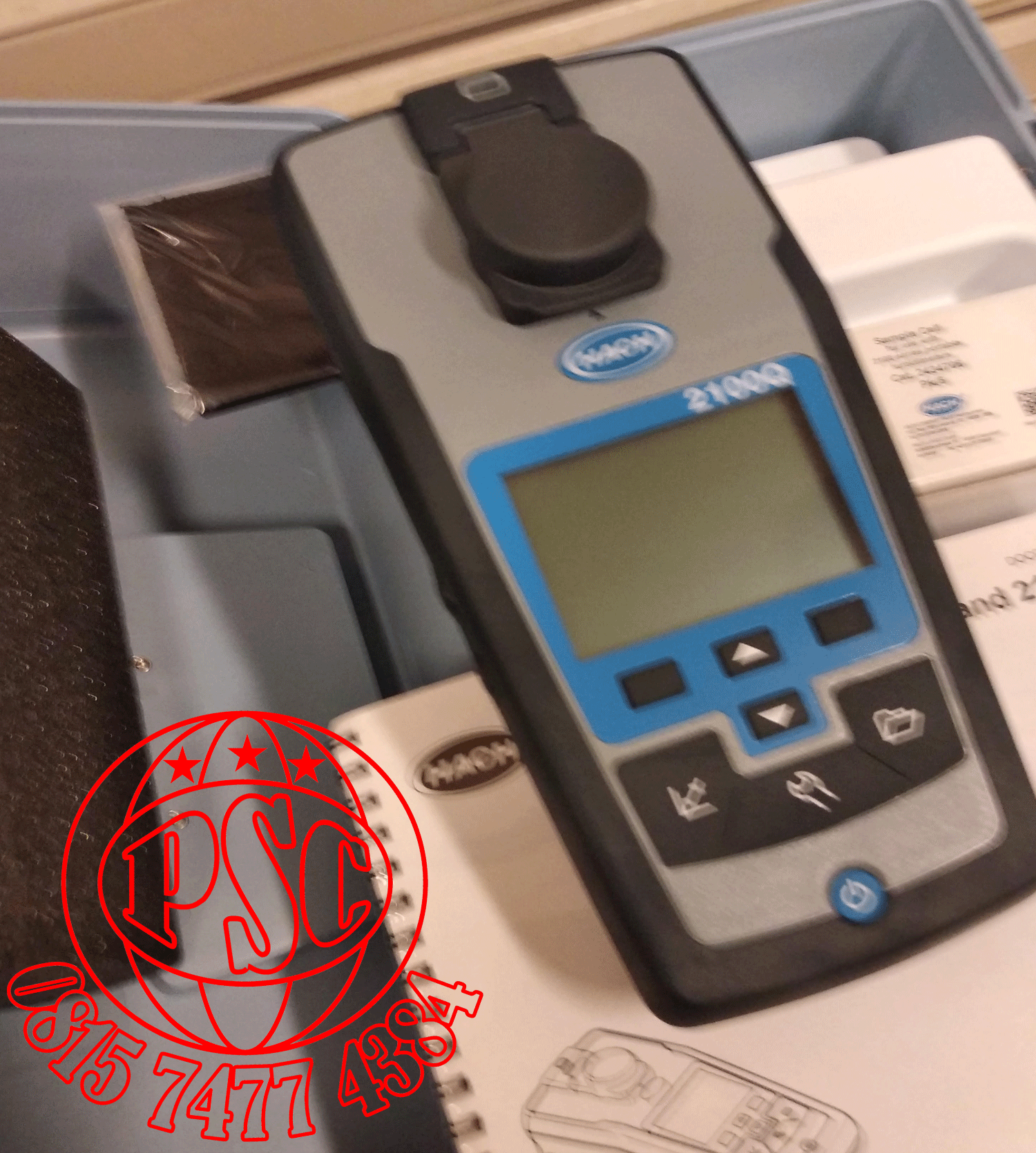

Turbidity Meter 2100Q Hach |
|
|
Specifications |
|
|
Accuracy |
± 2 % of reading plus stray light |
|
Battery Requirements |
4, AA |
|
Certifications |
CE certified |
|
Compliance Certifications |
CE/WEEE |
|
Data logging |
500 records |
|
Dimensions ( H x W x D ) |
77 mm x 107 mm x 229 mm |
|
Display Size |
240 x 160 pixels |
|
Display Type |
Graphic LCD |
|
Enclosure Rating |
IP67 |
|
Height |
3.0 in |
|
Includes |
Instrument, case assembly, 4 AA alkaline batteries, 6 sample cells,StablCal ampule kit, silicone oil, oiling cloth, manual. |
|
Interface |
Optional USB |
|
Light source |
tungsten filament lamp |
|
Manual Languages |
English, French, German, Italian, Spanish, Portuguese ( BR ), Portuguese ( PT ) , Bulgarian, Chinese, Czech, Danish, Dutch, Finnish, Greek, Hungarian,Japanese, Korean, Polish, Romanian, Russian, Slovenian, Swedish, Turkish |
|
Max. operating humidity |
90 % |
|
Measurement method |
Ratio turbidimetric determination using a primary nephelometric light scatter signal ( 90° ) and transmitted light scatter signal |
|
Measurement Modes |
Normal ( Push to Read ), Signal Averaging, Rapidly Settling Turbidity |
|
Operating temperature range |
0 to 50 °C |
|
Path Length |
25 mm |
|
Power Requirements |
100 - 240 V AC / 50/60 Hz ( with optional Power or USB+Power module ) |
|
Power requirements ( Hz ) |
50/60 Hz |
|
Power requirements ( Voltage ) |
100 - 240 VAC |
|
Power Supply |
Batteries ( see Battery Requirements ) or Optional Power Supply |
|
Range |
0 to 1000 |
|
Range 2 |
NTU |
|
Reading modes |
Normal ( Push to Read ) |
|
Signal Averaging |
|
|
Rapidly Setting Turbidity |
|
|
Regulatory |
EPA Method 180.1 |
|
Repeatability |
± 1 % of reading or 0.01 NTU , whichever is greater |
|
Resolution |
0.01 NTU on lowest range |
|
Response Time |
6 s in normal reading mode |
|
Sample Cell Compatibility |
25 mm x 60 mm round |
|
Sample requirements |
15 mL ( 0.5 oz ) |
|
Sample Volume |
15 mL ( 0.5 oz ) |
|
Signal Averaging |
Selectable on/off |
|
Storage conditions |
-40 °C to 60 °C |
|
Stray Light |
< 0.02 NTU |
|
Units |
NTU |
|
User Interface |
Button Graphic User Interface |
|
User Interface Languages |
English, French, German, Italian, Spanish, Portuguese ( BR ), Portuguese ( PT), Bulgarian, Chinese, Czech, Danish, Dutch, Finnish, Greek, Hungarian, Japanese, Korean, Polish, Romanian, Russian, Slovenian, Swedish, Turkish |
|
Warranty |
1 year |
|
Weight |
0.53 kg without batteries |
