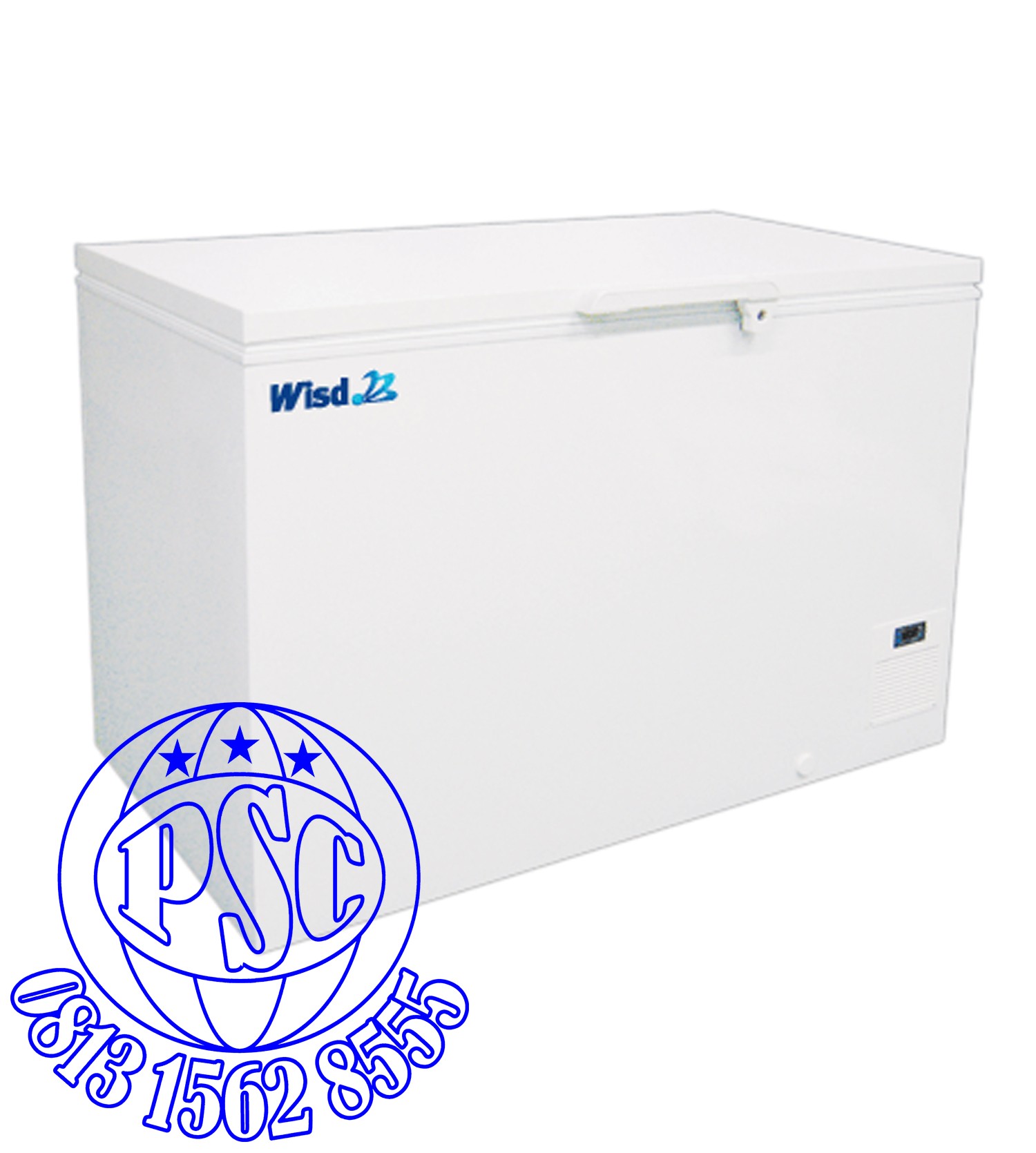

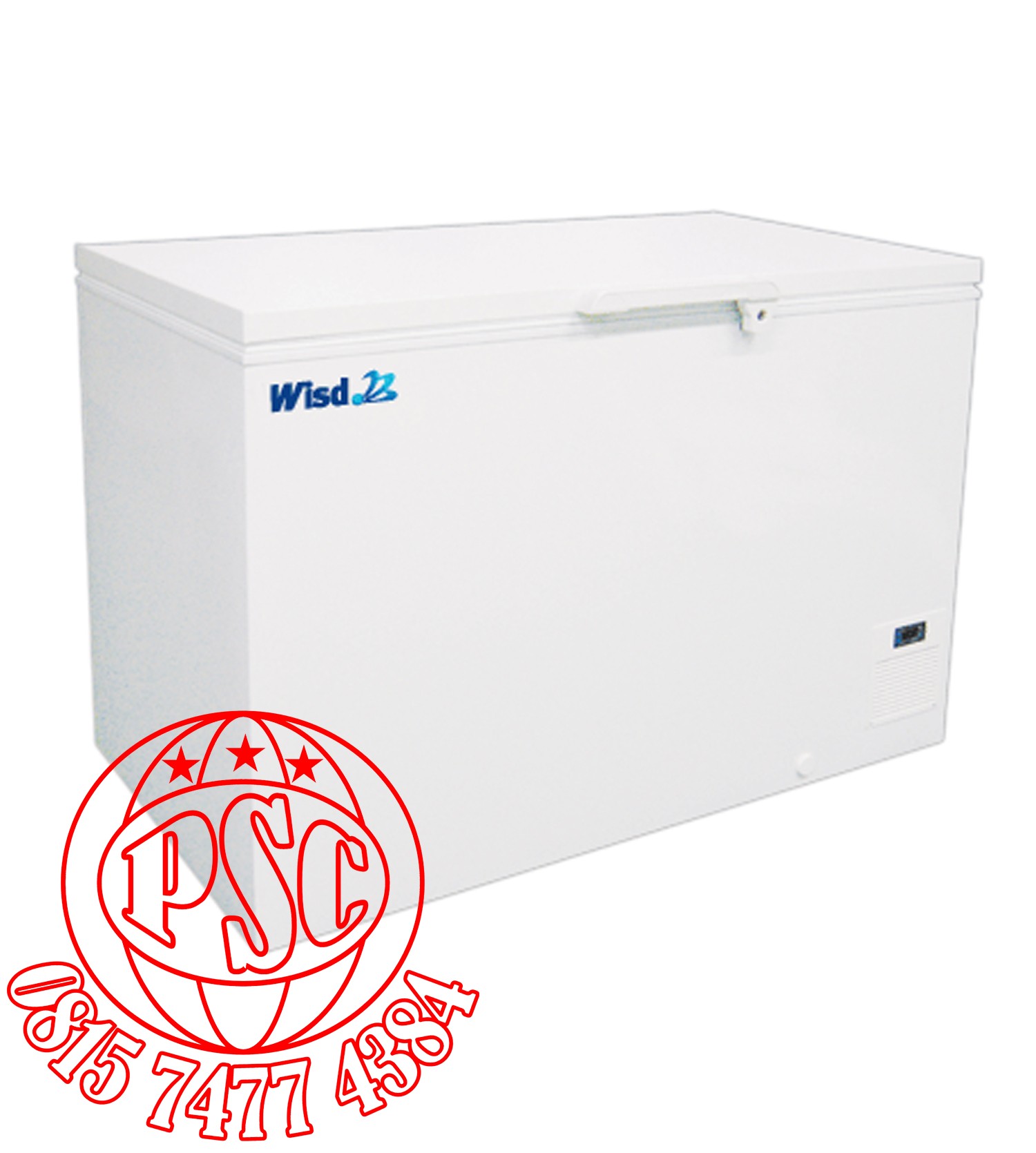

SimpleFreezTM  Economic Digital Ultra-Low Temp. Freezer, Chest WUF Daihan Scientific

Specification

Capacity & Model

136 Lit.

237 Lit.

314 Lit.

375 Lit.

438 Lit.

“WUF-11”

“WUF-21”

“WUF-31”

“WUF-41”

“WUF-51”

Freezing System

SimpleFreezTM  System

Temp.

Range

-86℃ ~ -65℃ at the Room Temperature of 30℃ and the Humidity of 70%

Sensor

PT100 Sensor

Compressor

Hermetic Type

Condenser Type

Block Condenser, No Pin, Filter Free Mechanism

Refrigerant

Natural ( CFC Free Refrigerant System )

Controller

Digital Feedback Controller

Max. Q'ty of Racks

6pcs of 11(1x11)- Placed Rack & 3pcs of 7(1x7)-Placed Rack

12pcs of 11(1x11)- Placed Rack & 3pcs of 7(1x7)-Placed Rack

18pcs of 11(1x11)- Placed Rack & 3pcs of 7(1x7)-Placed Rack

21pcs of 11(1x11)- Placed Rack & 3pcs of 7(1x7)-Placed Rack

27pcs of 11(1x11)- Placed Rack & 3pcs of 7(1x7)-Placed Rack

Material

Internal

Aluminum Plate

External

Steel Plate with Acrylic Acid Resin Coating

Dimension

( W x D x h )

Internal (mm)

520 × 450 × 680

850 × 450 × 680

1,100 × 450 × 680

1,300 × 450 × 680

1,500 × 450 × 680

External (mm)

720 × 730 × 860

1,050 × 730 × 860

1,300 × 730 × 860

1,500 × 730 × 860

1,700 × 730 × 860

Weight

45 kg

55 kg

67 kg

73 kg

82 kg

Packing Dim.(W x D x H) (mm)

900 × 940 × 1150

1280 × 940 × 1150

1580×940×1150

1800×940×1150

2050×940×1150

Gross Weight

98 kg

100 kg

120 kg

126 kg

135 kg

Power Consumption

300 W

400 W

450 W

500 W

550 W

Power Supply& Cord Plug

1 Phase, AC 120V, 60Hz or  AC 230V, 50 / 60Hz
