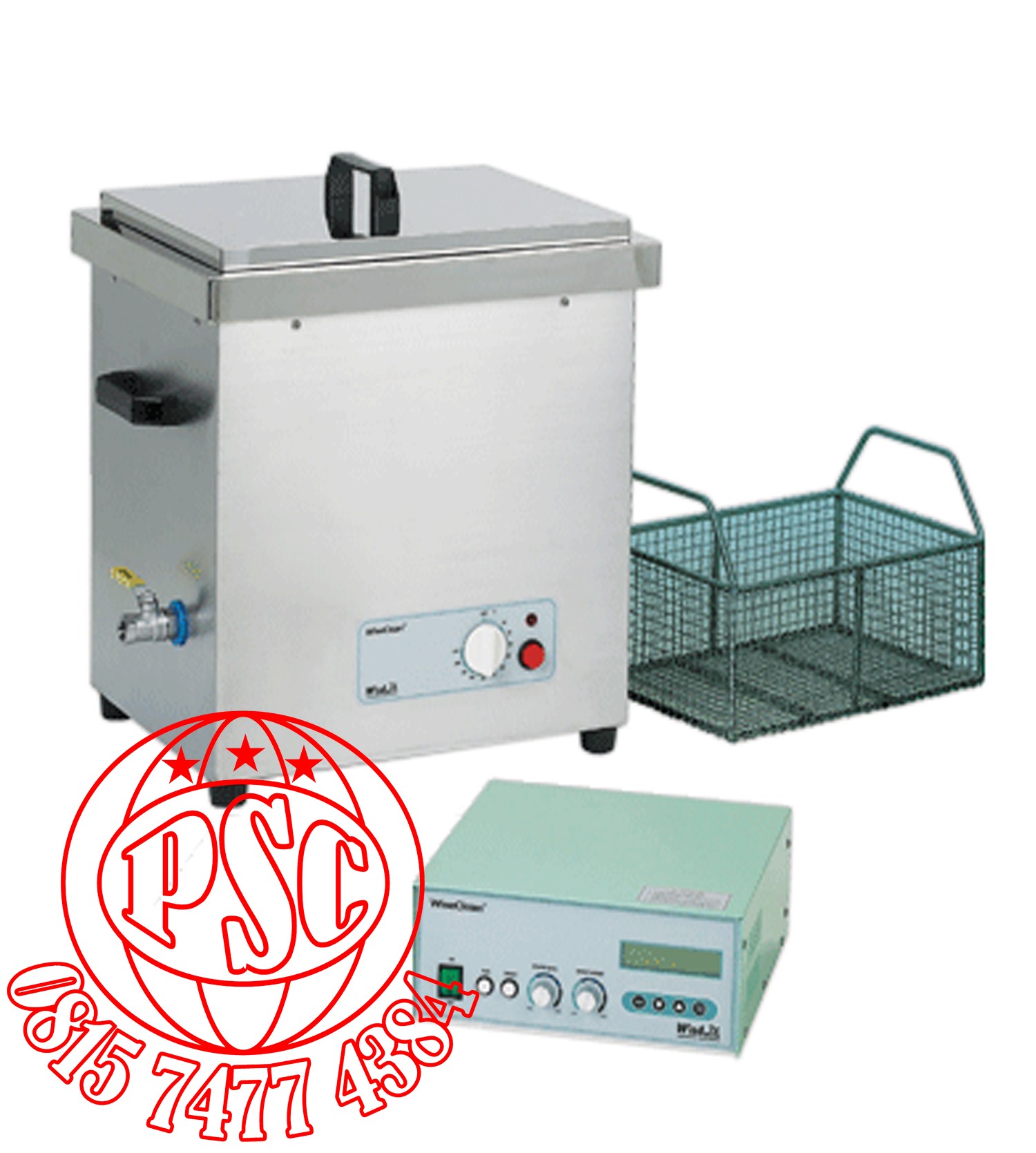

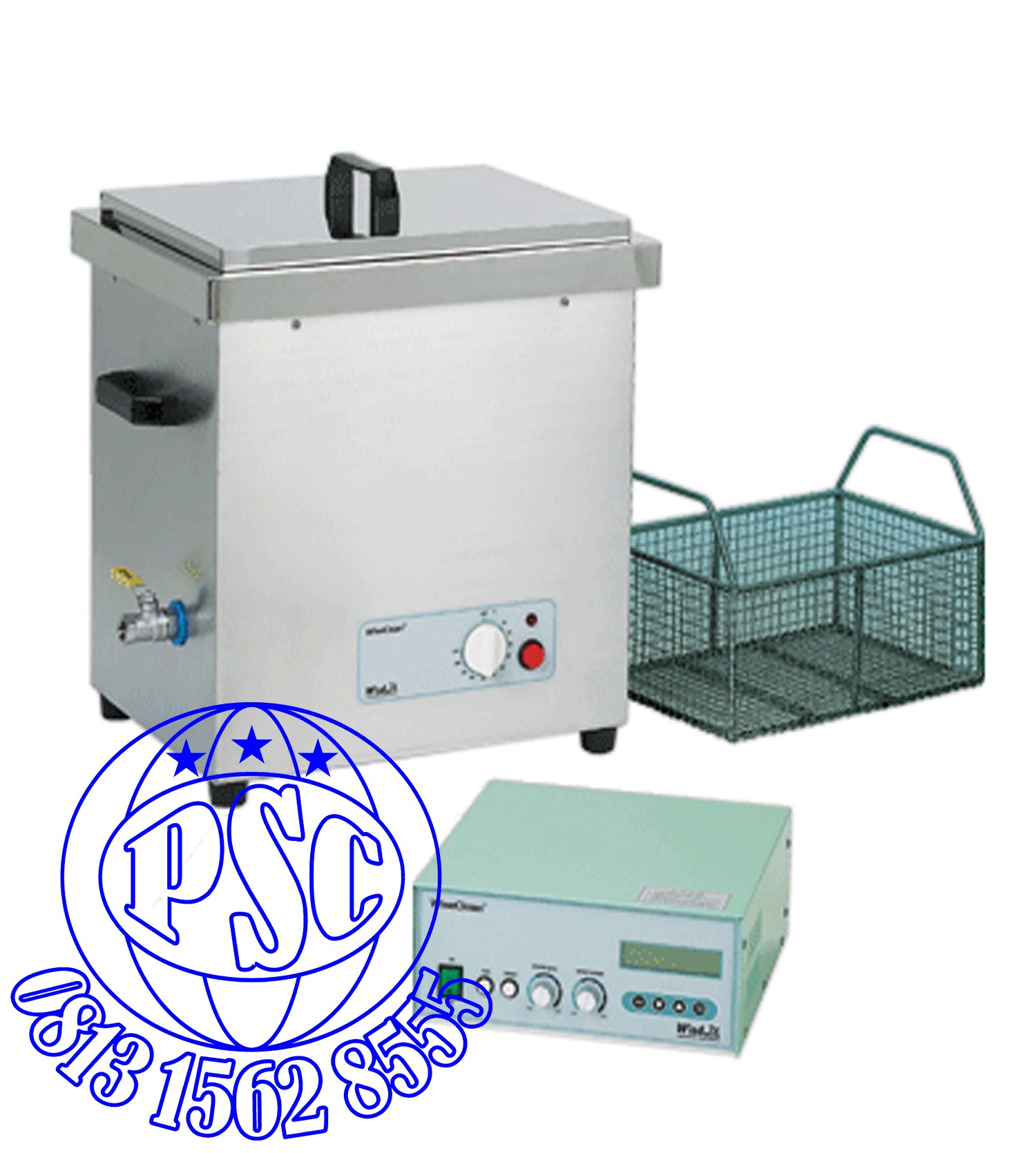

DAIHAN-brand® Large Capacity Ultrasonic Cleaner-set

“WUC-N”, Remote Control System, 30~74 Lit. with Digital Remote Generator/Stainless steel Flat Lid/Drain Valve, Highly Effective Cleaning, without Basket, up to 105 ℃, 40 kHz

Digital Ultrasonic Cleaner WUC-N.

Specification

Model

30 Lit. “WUC-N30H”

47 Lit. “WUC-N47H”

60 Lit. “WUC-N60H”

74 Lit. “WUC-N74H”

HF-frequency

40 kHz

HF-peak out

704 W

990 W

1,210 W

1,430 W

Heat temp.

Ambient to 105 ℃

Heating Power

990 W

Timer ( min )

0~99 min

Tank Size inner W x D x H

400 × 300 × 250 mm

450 × 350 × 300 mm

500 × 400 × 300 mm

550 × 450 × 300 mm

Tank Size external W x D x H

480 × 380 × 400 mm

530 × 430 × 450 mm

530 × 430 × 450 mm

580 × 480 × 450 mm

Power Consumption

1,694 W

1,980 W

2,200 W

2,420 W

Weight net

26 kg

31 kg

36 kg

41 kg

Packing Dim W x D x H mm

620 × 520 × 640 mm

670 × 570 × 710 mm

720 × 620 × 710 mm

770 × 670 × 710 mm

Gross Weight

32 kg

37 kg

42 kg

47 kg

Remote Generator

Display

LCD

Power Consumption

600 W

900 W

1,200 W

1,500 W

Weight net

9 kg

10 kg

10 kg

10 kg
