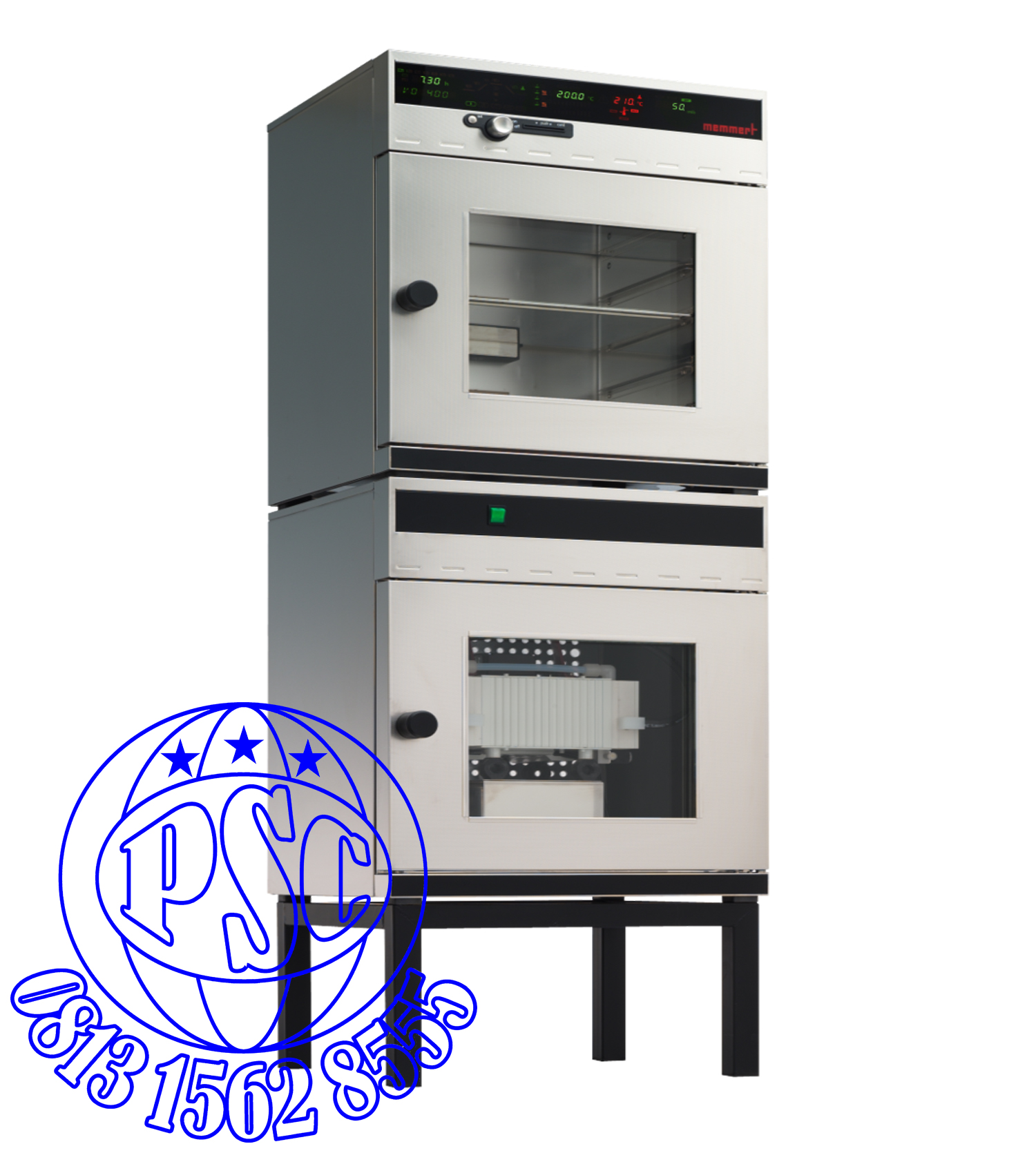

Vacuum Ovens   VO200 Memmert

Standard delivery Vacuum Oven

Temperature

Temperature temperature measured through 4-wire Pt100 sensor individually for each thermoshelf

Working temperature range min. 5 °C above ambient up to +200 °C

resolution of display for actual values 0.1 °C up to 99.9 °C, 0.5 °C from 100 °C

resolution of display for setpoint values 0.1 °C up to 99.9 °C, 0.5 °C from 100 °C

resolution of display/setting accuracy 0.5 °C up to 99.9 °C, 1 °C from 100 °C

Control of standard components

Vacuum digital electronic pressure control through solenoid valves

Vacuum setting accuracy 1 mbar

Vacuum adjustment range from 5 mbar to 1100 mbar - digital ( LED )

Vacuum rapid air intake for door opening ( door is blocked under vacuum ) - programme reactivation at stored values

Vacuum vacuum drying process ( vacuum cycles ) is continued after power failure

Vacuum one programmable, digitally controlled inlet for air

Controller digital display of all set parameters, such as temperature, weekdays, time, pressure, programe status and set-up values

Controller separate LED-symbol for each thermoshelf in operation

Controller digital display of actual temperature for each thermoshelf individually

Control technology

Calibration  three freely selectable temperature and pressure values

Communication

Interface  USB-interface incl. Memmert software "Celsius" for programming and documentation of temperature and pressure

documentation  integrated ring memory as data logger for GLP-conforming long-term documentation of all relevant parameters - 1024 kB

documentation  programme stored in case of power failure

Programming chip-card control incl. 1 MEMoryCard XL with 32 kB storage capacity ( max. 40 ramps )

Programming multifunctional programming via menu on 8-digit alphanumeric digital display ( language to be chosen via set-up )

Heating concept

VO direct heating  fuzzy-supported MLC ( Multi-Level-Controlling ) microprocessor controller adapting its performance to the volume ( local temperature sensing ) for each thermoshelf

Thermo shelves  2 connections for thermoshelves in the rear ( 1st and 2nd level )

Standard equipment

Scope of delivery works calibration certificate for +160 °C at 20 mbar pressure for each supplied thermoshelf together with the vacuum oven

Door full-sight glass door, inside spring-loaded,15 mm thick glazed panel in safety glass, outside with anti-splitter screen

Interior hermetically welded stainless steel interior of extremely corrosion-resistant stainless steel, material 1.4404

Interior additional interior mountings of stainless steel, material 1.4404 ( removable for cleaning ), consisting of mounting at the sides with guide bars for thermoshelves and on top ( diffusor ) to avoid turbulences when aerating

Interior all tubings made of stainless steel, material no. 1.4571

Internals 1 thermoshelf of aluminim, material 3.3547 ( ASTM B209 ) with integrated large-area heating

Stainless steel interior

Volume 29 Liter

Dimensions W x H x D in mm w ( A ) x h ( B ) x d ( C ) : 385 x 305 x 250 mm

Max. number of internals 2

Max. loading of chamber 40 kg

Max. loading per internal 20 kg

Textured stainless steel casing

Dimensions w ( D ) x h ( E ) x d ( F ) : 550 x 600 x 400 mm

Housing rear zinc-plated steel

Electrical data

Voltage Electrical load 230 V, 50/60 Hz

Approx. 1200 W

Packing/shipping data/Setting Up

Transport information The appliances must be transported upright

Customs tariff number 8419 8998

Country of origin Federal Republic of Germany

WEEE-Reg.-No. DE 66812464

Dimensions approx incl. carton B x H x T: 670 x 810 x 540 mm

Net weight approx.55 kg

Gross weight carton approx.76 kg

Vacuum oven VO 400 Memmert

Standard delivery Vacuum oven

Stainless steel interior

Volume 49 Liter

Dimensions W x H x D in mm w ( A ) x h ( B ) x d ( C ) : 385 x 385 x 330 mm

Max. number of internals 2

Max. loading of chamber 60 kg

Max. loading per internal 20 kg

Textured stainless steel casing

Dimensions w ( D ) x h ( E ) x d ( F ) : 550 x 680 x 480 mm

Housing rear zinc-plated steel

Electrical data

Voltage Electrical load 230 V, 50/60 Hz

Approx. 2000 W

Packing/shipping data/Setting Up

Transport information The appliances must be transported upright

Customs tariff number 8419 8998

Country of origin Federal Republic of Germany

WEEE-Reg.-No. DE 66812464

Dimensions approx incl. carton B x H x T : 670 x 890 x 630 mm

Net weight approx.83 kg

Gross weight carton approx.104 kg

Vacuum oven VO 500 Memmert

Standard delivery Vacuum oven

Stainless steel interior

Volume 101 Liter

Dimensions W x H x D in mm w ( A ) x h ( B ) x d ( C ) : 545 x 465 x 400 mm

Max. number of internals 2

Max. loading of chamber 60 kg

Max. loading per internal 20 kg

Textured stainless steel casing

Dimensions w ( D ) x h ( E ) x d ( F ) : 710 x 760 x 550 mm

Housing rear zinc-plated steel

Electrical data

Voltage Electrical load 230 V, 50/60 Hz

Approx. 2400 W

Packing/shipping data/Setting Up

Transport information The appliances must be transported upright

Customs tariff number 8419 8998

Country of origin Federal Republic of Germany

WEEE-Reg.-No. DE 66812464

Dimensions approx incl. carton B x H x T: 820 x 970 x 670 mm

Net weight approx. 110 kg

Gross weight carton approx. 135 kg
