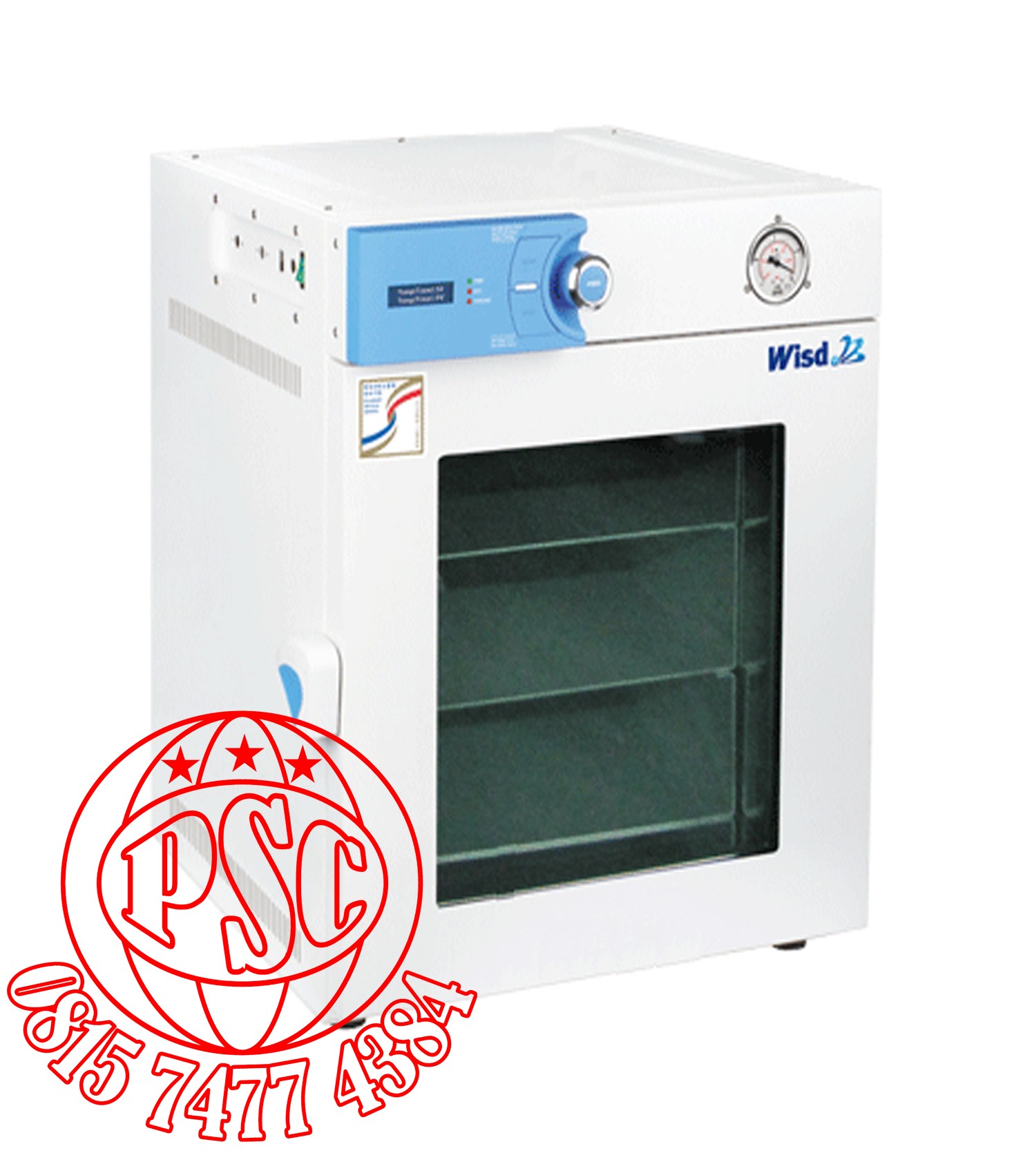

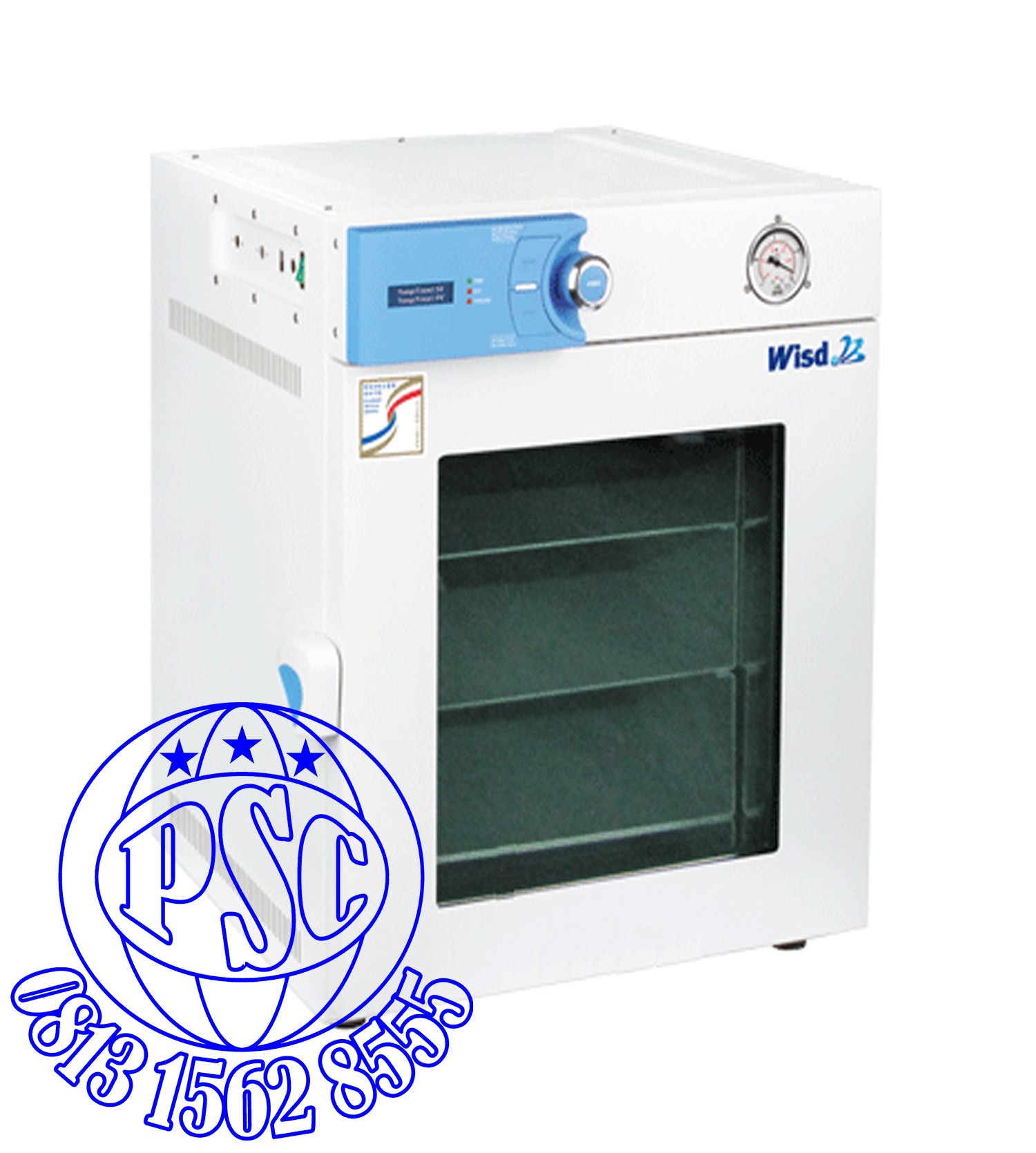

ThermoStable  OV Precise Vacuum Ovens Daihan Scientific

Specifications

Model

ThermoStable OV-20

ThermoStable OV-30

ThermoStable OV-70

Capacity

18.6 Lit.

30 Lit.

70 Lit.

Vacuum Range

10 ~ 750 mm Hg

Temp.

Range / Sensor

Ambient +5 ℃ to 200 ℃ / PT100

Accu./ Uniformity

± 0.5 ℃ at 100 ℃ / ±2.0 ℃ at 100 ℃

Heating Power/Consumption

300W × 2 ea

300W × 2 ea

400W × 4 ea

Heat-up Time

50 min. to 100 ℃, 90 min. to 150 ℃

Timer & Alarm

99 hr 59 min ( with delay / Continuous run.), Error status & Timer-end

Display

Digital LCD with Back Light

Controller

Digital Fuzzy Controller with Jog-Dial Switch ( Turn & Push )

Resolution

Control : ±1.0 ℃, Display : ±1.0 ℃

Shelves

Included 2 ea Aluminum Shelves

Safety Circuit

Over Temp. and Over Current Protector, Sensor Error Detector, Leakage Breaker

Internal : Stainless steel ( ＃304 ), External : Powder Coated steel,

Material

Window : Tempered Safety Glass 12T, Poly Carbonate 5T for Safety

Others

Storage Function ( Temp and Timer ) Locking Mode ( Jog - Dial Input Disabled )

Dim ( W x D x H )

Internal

265 × 290 × 265 mm

300 × 330 × 300 mm

400 × 435 × 400 mm

External

472 × 443 × 542 mm

507 × 483 × 577 mm

570 × 588 × 677 mm

Vacuum Inlet Valve Size

od. 10 mm

Net Weight

48 kg

56 kg

82 kg

Packing Size ( W x D x H )

572 × 660 × 840 mm

710 × 762 × 970 mm

780 × 826 × 1,030 mm

& Gross Weight

67 kg

76 kg

114 kg

Power Consumption

600 W

600 W

1.7 kW

Power Supply & Cord Plug

1 Phase, AC 120V, 60Hz or AC 230V, 50 / 60Hz

Specification

Model

“VOP-60”

“VOP-100”

Pumping Speed ( 50/60 Hz )

50 / 60 Lit./min

100 / 120 Lit./min

Ultimate Pressure ( Pa)

6.7×10-2 ( 6.7×10-1 )

Motor Power

Single Phase 220 V, 200 W, 4 poles

Single Phase 220 V, 400 W, 4 poles

Motor Speed ( 50/60 Hz )

1430 / 1730 RPM

Recommended Oil

COSMA-100

Oil Capacity

800 mL

900 mL

Suction Pipe ( OD × ID )

NW25 ( KF25 )

Temp. Range

7~40℃

Weight

17 kg

25 kg

Dimensions ( W x D x H )

165 × 411 × 234 mm

171 × 464 × 238 mm
