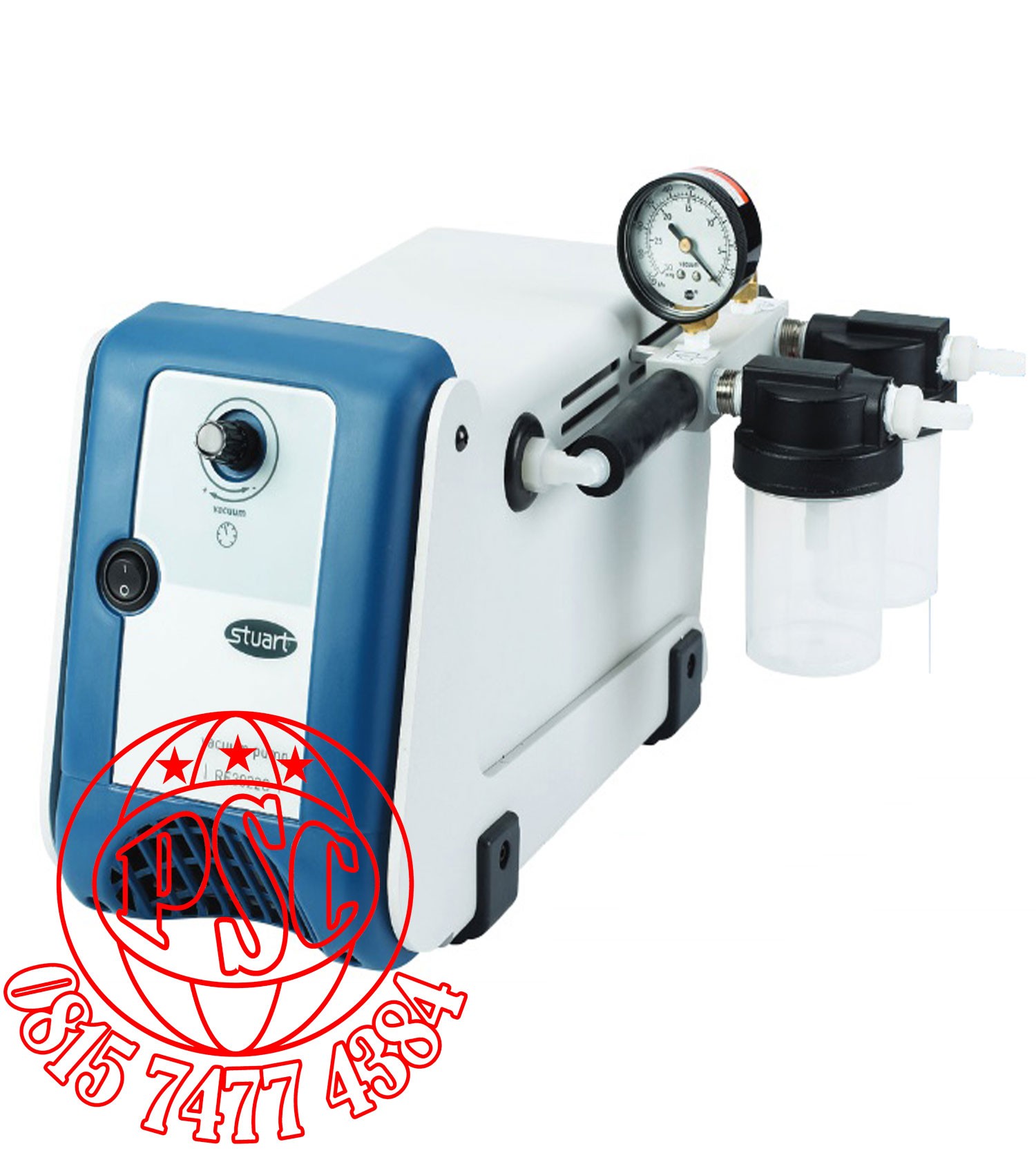

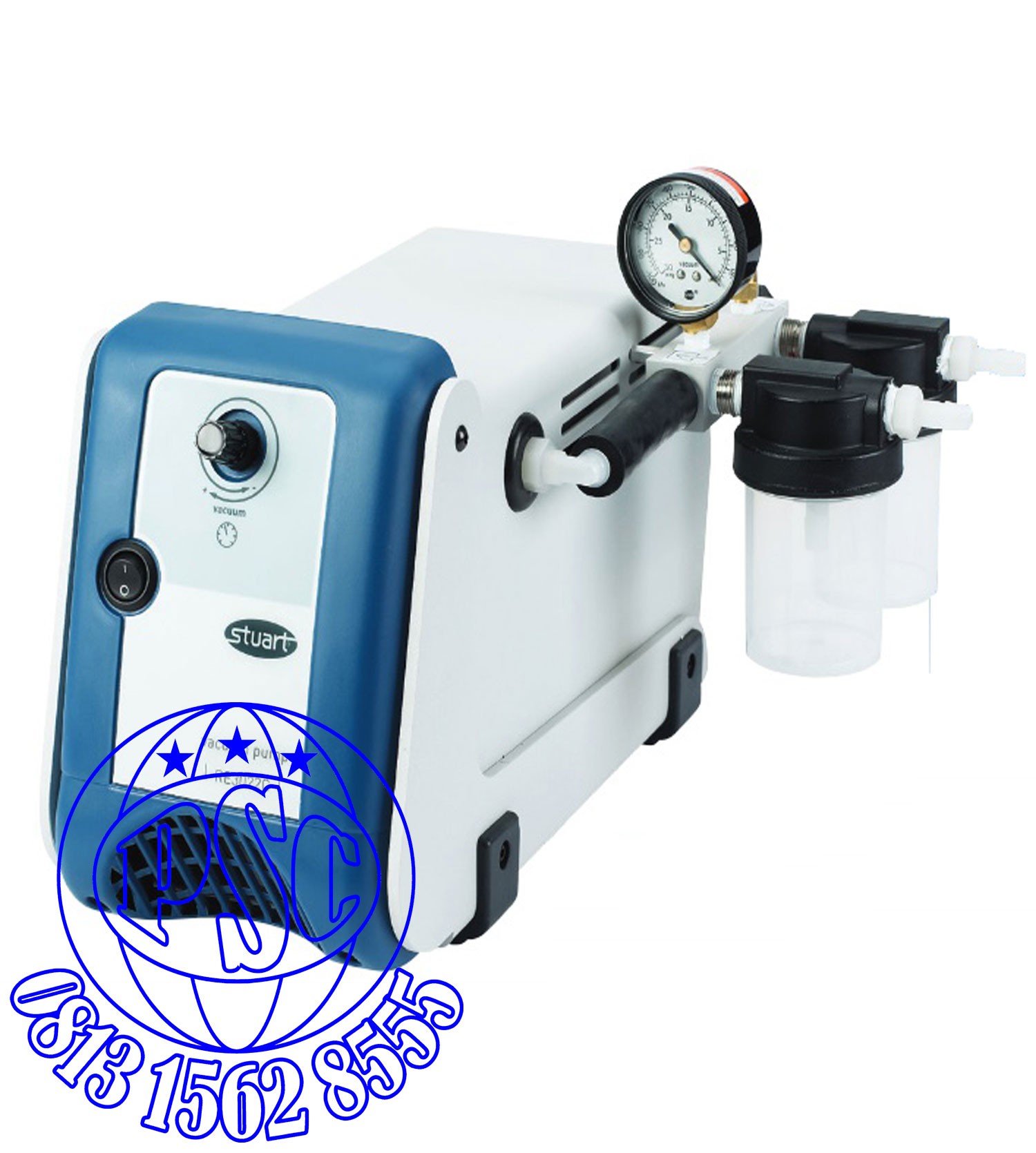

Vacuum Pump - RE3022C Stuart

Quiet operation, no vibration

Long life PTFE heads and diaphragm

Vacuum regulator for easy adjustment

Integral catch pots. No maintenance dry system

The RE3022C is a powerful, compact vacuum pump. Constructed with solid PTFE heads, PTFE diaphragms and Kalrez® valves the pump is designed to withstand the challenging role of a chemical laboratory pump.

The pump is useful for any applications requiring vacuum generation and is ideal for use with the Stuart rotary evaporator. By utilising a pump to place the rotary evaporator under vacuum, distillation efficiency is greatly improved. By reducing the pressure within the glassware of the rotary evaporator solvents can be evaporated off at lower temperatures ensuring the bath can be kept at a safer temperature.

The RE3022C includes vacuum regulator and catch pots to protect the pump from liquid ingress, as standard.

Specifications

Ultimate pressure

12 mbar

Flow rate

21 per min

Net weight

9.6 kg

Dimensions ( w x d x h )

172 x 352 x 223 mm

Electrical supply

230 V, 50-60 Hz, 150 W
