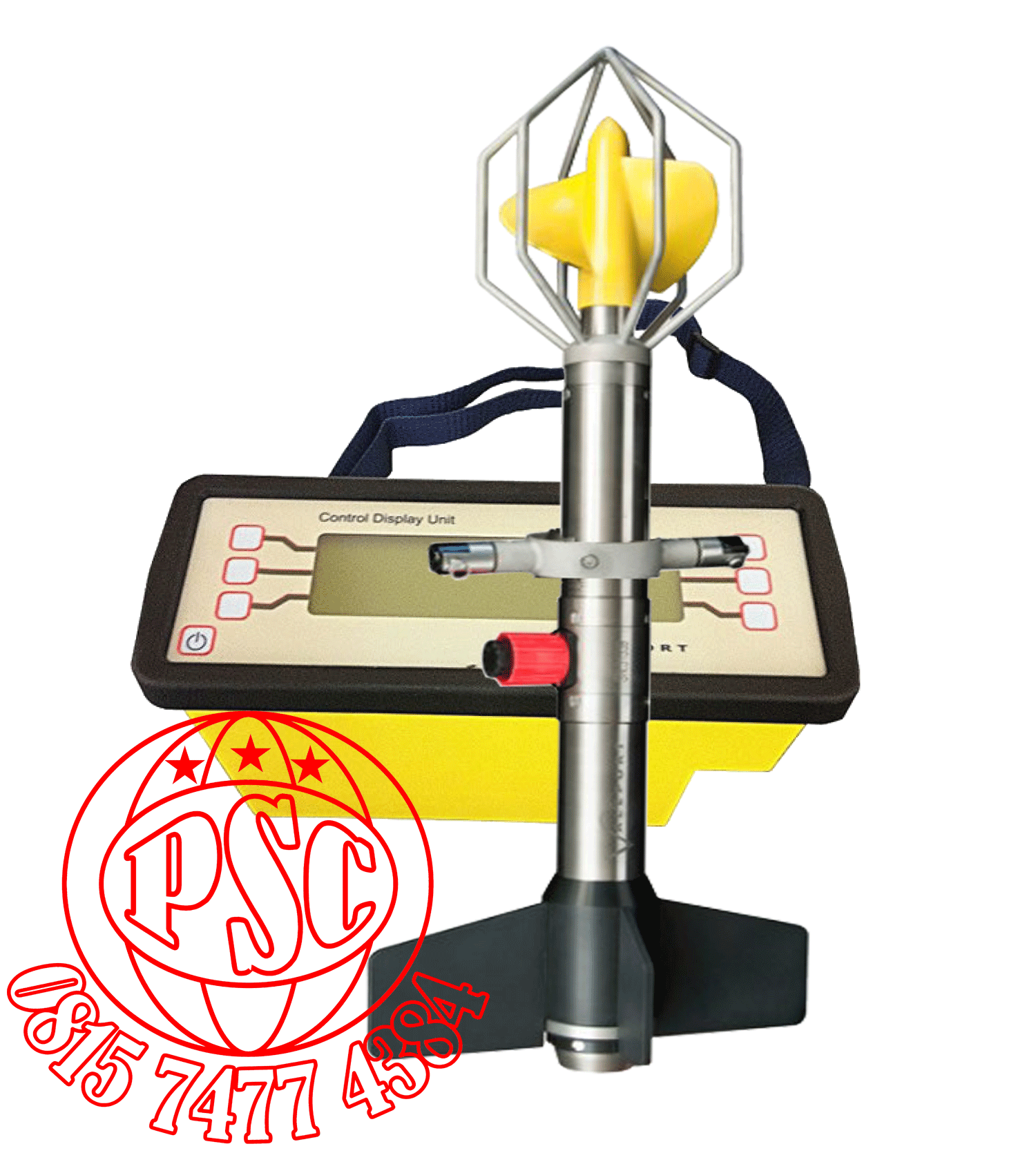

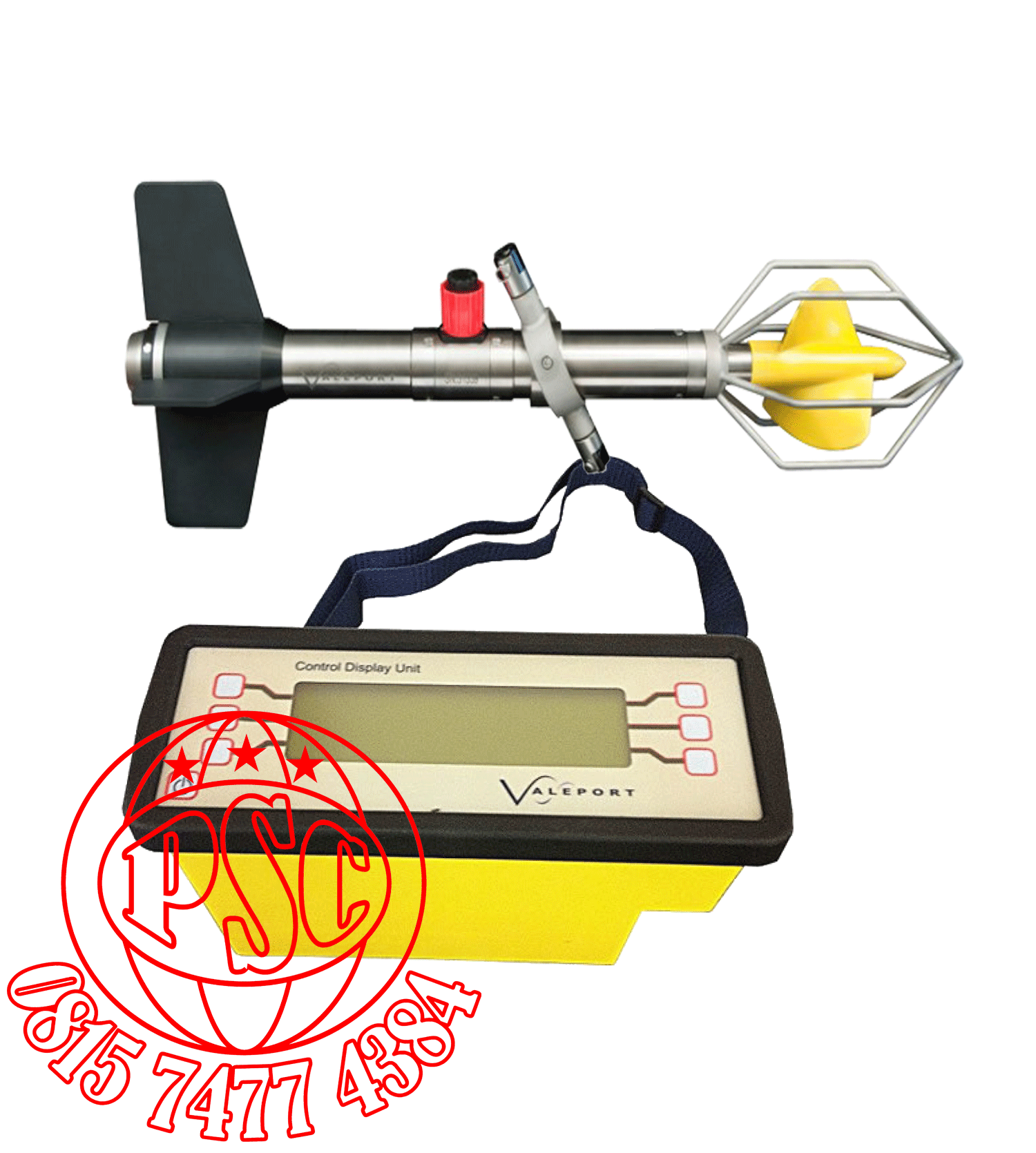

Valeport Model 106 Lightweight Current Meter |
|
|
Specifications |
|
|
Sensor |
|
|
Speed |
|
|
Type |
High Impact Styrene Impeller |
|
Size |
125 mm diameter by 270 mm pitch |
|
Range |
0.03 to 5 m/s |
|
Accuracy |
±1.5 % of reading above 0.15 m/s |
|
±0.004 m/s below 0.15 m/s |
|
|
Direction |
|
|
Type |
Flux gate compass |
|
Range |
0 to 360° |
|
Accuracy |
± 2.5° |
|
Resolution |
0.5° |
|
Temperature |
|
|
Type |
Thermistor |
|
Range |
-5 to 35 °C |
|
Accuracy |
± 0.2 °C |
|
Resolution |
0.01 °C |
|
Pressure |
|
|
Type |
Strain Gauge Transducer |
|
Range |
50, 100, 200 or 500 dBar |
|
Accuracy |
± 0.2 % Range |
|
Resolution |
0.025 % Range |
|
Data Acquisition |
|
|
Data Recovery |
|
|
Direct to PC via communications port. Maximum RS232 data rate of 19200 baud |
|
|
Switching On/Off |
|
|
The Model 106 may be used with a dedicated display unit for real time operations allowing instrument setup and data display. |
|
|
Size |
244 x 193 x 94 mm, 2 kg |
|
Protection |
IP67 ( 10 secs @ 0.3 m ) |
|
Memory |
512 Kbyte Solid State Memory. Each parameter record uses 2 bytes. As an example, this gives a duration of over 1 week with full parameter sampling every 10 seconds, or 220 days with sampling every 5 minutes. |
|
Power |
|
|
Internal |
1 x D cell. 1.5v alkaline cell gives approximately 30 days at 10 second sample rate, or 56 days at 5 minute sample rate. 3.6v Lithium cell gives approximately 90 days at 10 second sample rate, or 180 days at 5 minute sample rate. |
|
External |
For external supply, 12-20v DC is required. Power can also be taken from the Model 8008 CDU. |
|
Communications |
|
|
Fitted with Subconn MCBH10F ( Brass ) RS232 to PC over cable lengths up to 200 m. |
|
|
Digital Current Loop to Model 8008 CDU, or to PC over longer cable |
|
|
lengths ( requires additional adaptor ). |
|
|
Physical |
|
|
Instrument |
|
|
Materials |
Titanium, acetal and ABS plastic |
|
Size |
640 mm x 50 mm Ø, ( tail 133 mm wide x 270 mm high ) |
|
Weight |
3 kg ( air ), 2 kg ( water ) |
|
Depth Rating |
500 m |
|
Shipping |
|
|
Model 106 Size |
84 x 42 x 39 cm |
|
Model 106 Weight |
17 kg |
|
50 m Cable Size |
42 x 33 x 49 cm |
|
50 m Cable Weight |
11 kg |
|
Software |
|
|
System is supplied with DataLog TM Windows based PC software, for instrument setup, data extraction and display of tabular and graphical data plots. DataLog is license free |
|
|
Ordering |
|
|
0106001SC |
Model 106 Self Recording/Direct Reading unit, fitted with speed and direction sensors. Supplied with communications lead ( 3 m Y lead ), switch cap, set of tools, operating manual, software and system transit case. |
|
0106003SC |
As 0106001SC plus Temp option |
|
0106004SCXX |
As 0106001SC plus Depth option |
|
0106005SCXX |
As 0106001SC plus Temperature & Depth option ( XX denotes pressure transducer range ) |
|
0105005SC |
Control Display Unit set, comprising deck lead and Model 8008 CDU |
