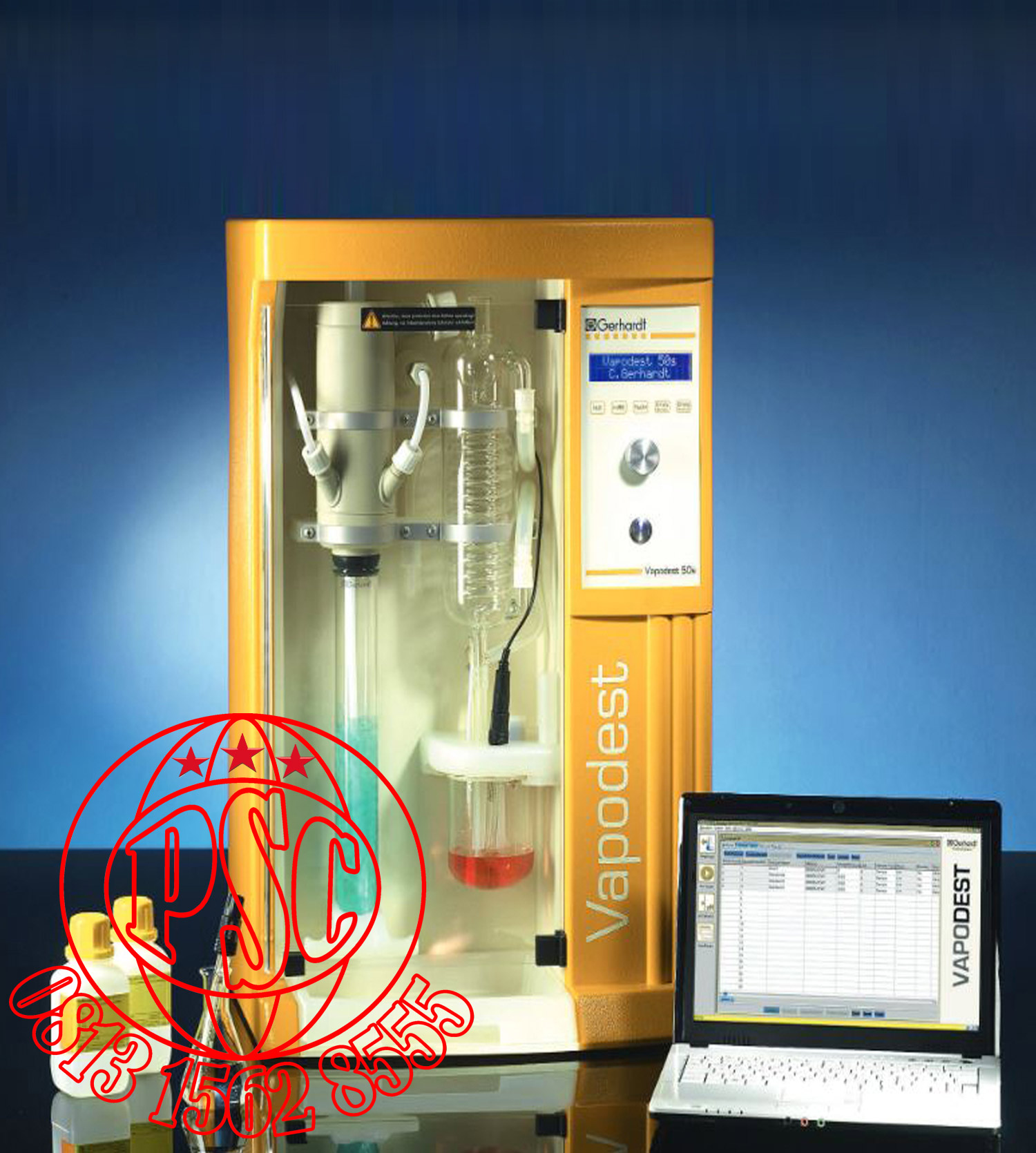

Vapodest Vap50s Automatic Steam Distillation Gerhardt

Vapodest Vap50s Carousel Automatic Steam Distillation Gerhardt

Technical Data

Type

VAP 50s

VAP 50s carousel

Cooling water consumption [ l/min ]

ca. 5

ca. 5

Distillation time [ min ]

02-Apr

02-Apr

Recovery rate [ % ]

> 99,5

> 99,5

Reproducibility [ % ]

+/- 1

+/- 1

Detection limit N [ mg ]

0,1

0,1

Rated voltage [ VAC ]

230

230

Frequency [ Hz ]

50

50

Rated power input [ W ]

1600

1830

Weight [ kg ] ca.

37

198

Dimensions W / D / H [ mm ]

440/340/690

1010/ 670/1655

1) 1290 mm with board attached on the side for monitor or printer

Order Information.

VAP50s VAPODEST ® 50s, Distillation system, Version tandard, especially for the Kjeldahl determination

12-0040

VAP50s VAPODEST ® 50s, Distillation system, Version acid resistant,

12-0470

Equipped with acid resistant pumps1 )

VAP50s OT VAPODEST ® 50s OT, Distillation system, identical to 12-0040, prepared for a possible upgrade to a VAPODEST ® 50s carousel at a later time

12-0048

VAP50s C VAPODEST ® 50s carousel, distillation system complete with carousel for  20 x 250/300 ml tubes

12-0050

VAP50s C VAPODEST ® 50s carousel, distillation system  complete with carousel for 16 x 400 ml tubes

12-0051

VAP50s C VAPODEST ® 50s carousel, distillation system  complete with carousel for 12 x 800 ml tubes

12-0052

VAP50s C VAPODEST ® 50s carousel, distillation system  complete with carousel for 16 x BS 400 ml tubes

12-0053

Special voltages on request

1) special for dosing of phosphoric acid max. 85 % and hydrochloric acid max. 5 % - more acids on request
