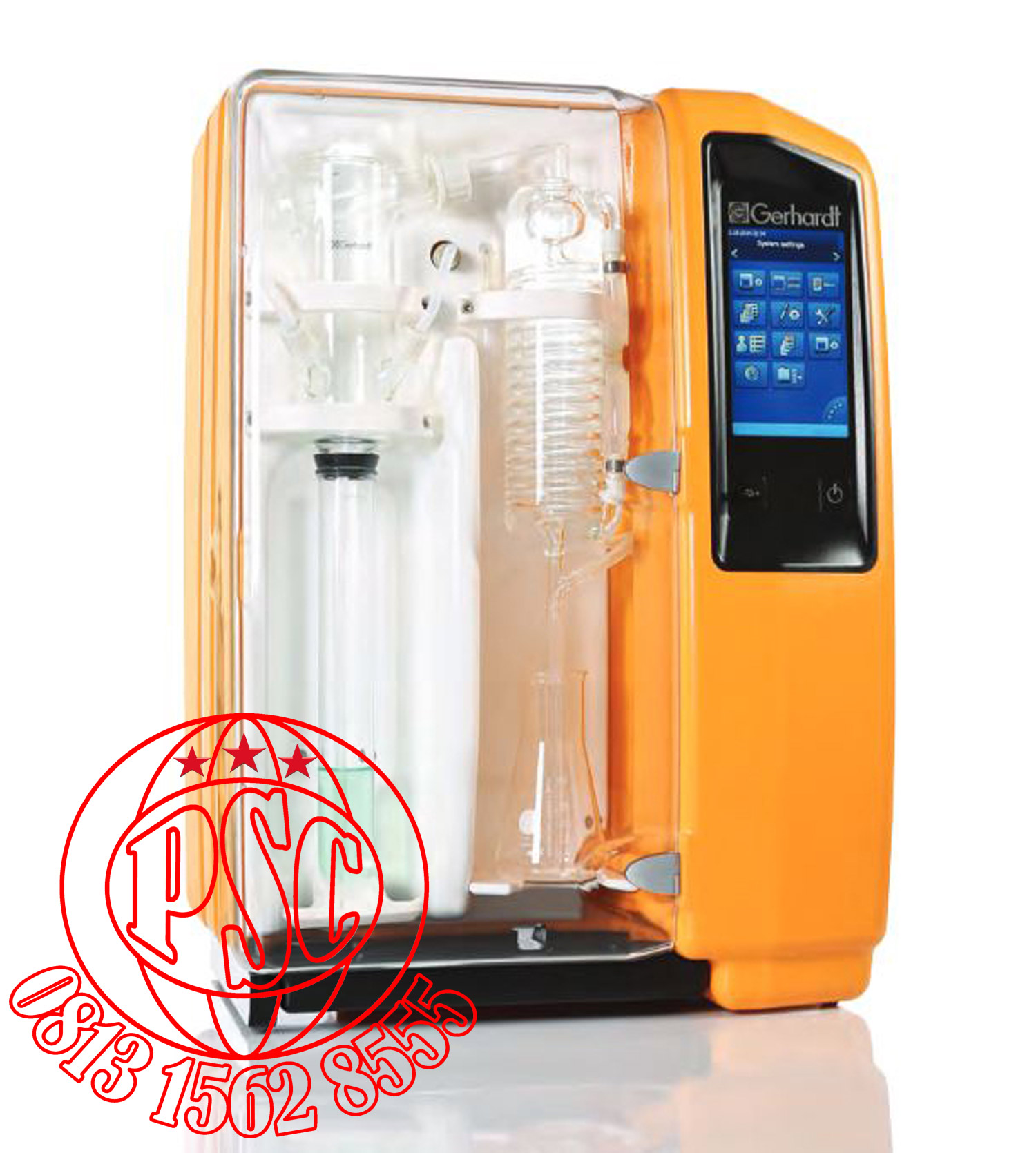

Vapodest 400 Comfortable Steam Distilation Gerhardt

MODEL WITH EXTENDED FUNCTIONS DESIGNED FOR KJELDAHL ANALYSIS

Technical Specifications

VAP 400

Variable steam power

10 -100 %

Size of Display

7 inch, 480 x 800 pixel, touchscreen

Stand-By-Mode

Yes

Distillation time / sample

Approx. 3.5 min

Recovery

> 99.5 %

Reproducibility

± 1 %

Detection limit

0.1 mg N absolute

Safety door

Yes

KJELDATHERM® -tube KTG 250/300 ml volume

Standard configuration

Different sizes of digestion tubes can be used

Yes

Different sizes of Kjeldahl-flasks can be used

Yes

Connection to level control

Yes

Level sensors for tanks

Optional

Cooling water pressure

0.5 - 6 bar

Nominal voltage*

230 V, 50 Hz

Nominal wattage

2200 W

Weight

Approx. 34 kg

Dimensions ( W x D x H )

527 x 390 x 697 mm

Pre-defined methods

Yes

Customer defined methods

Yes

Pump calibration

Yes

Order-No.

12-0540
