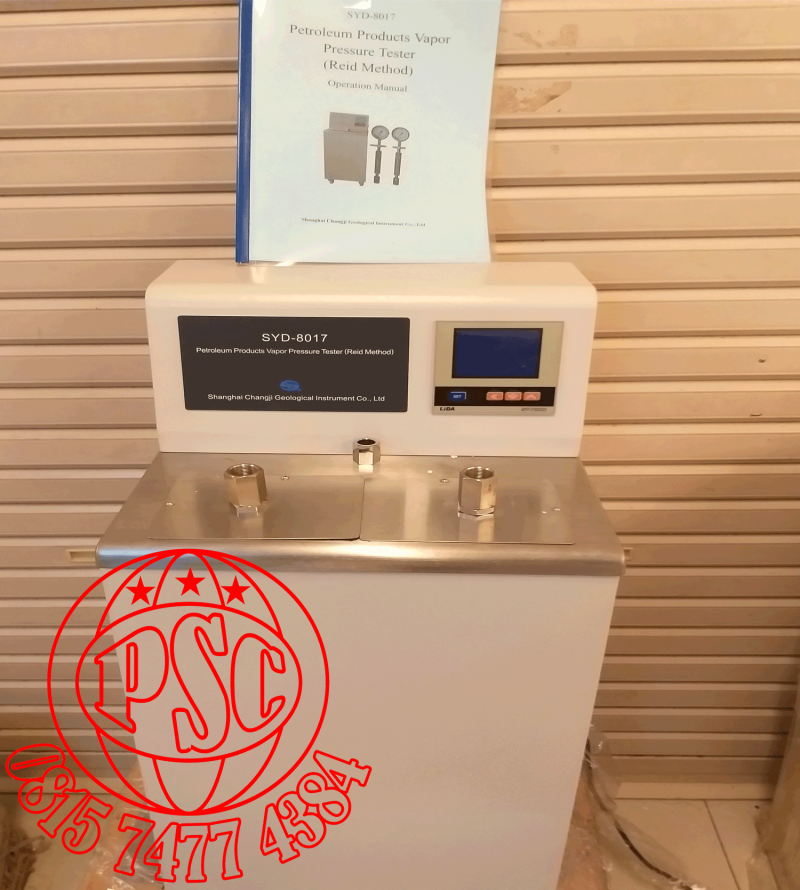

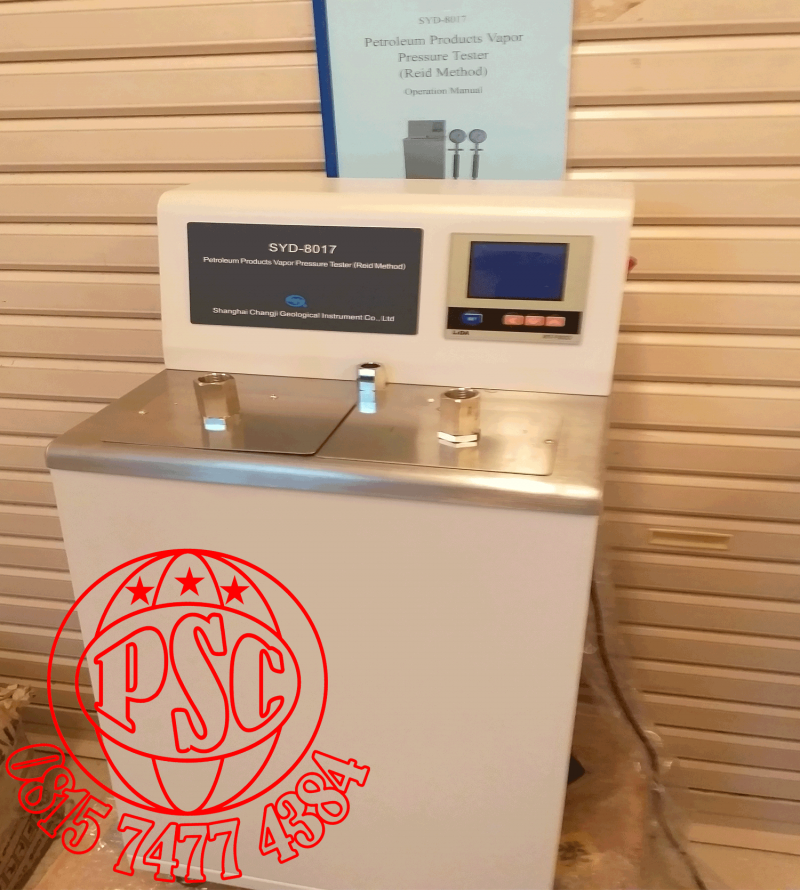

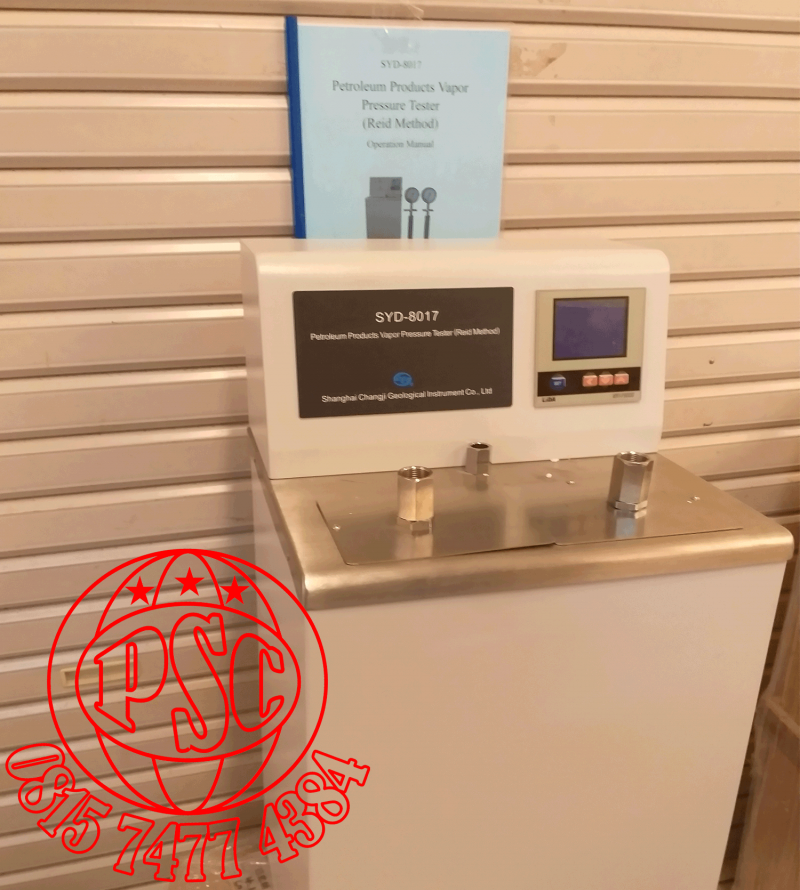

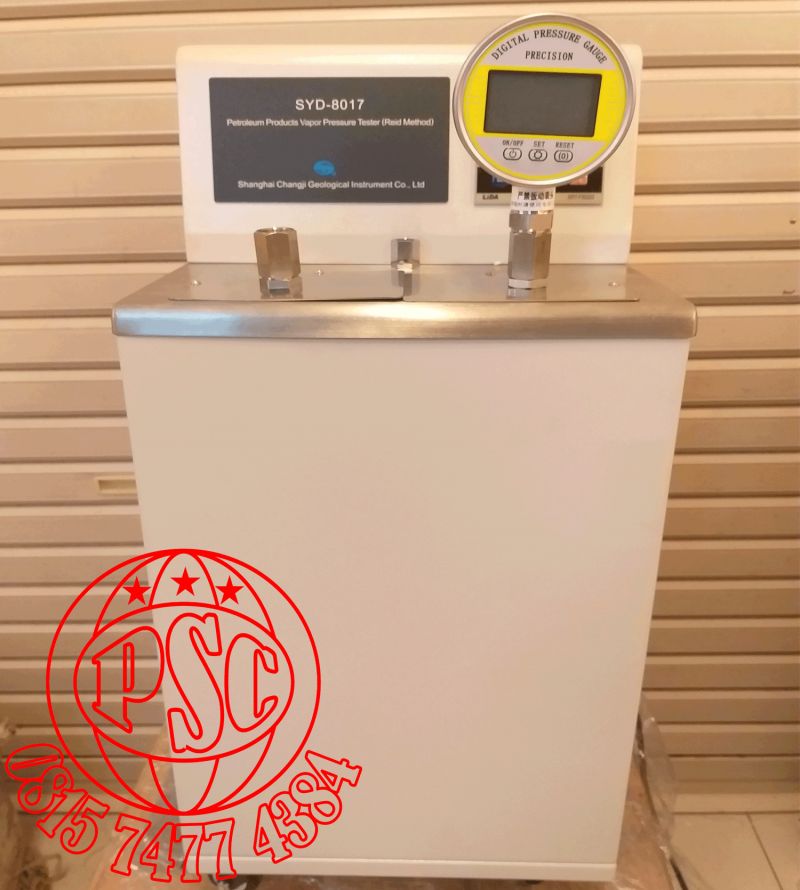

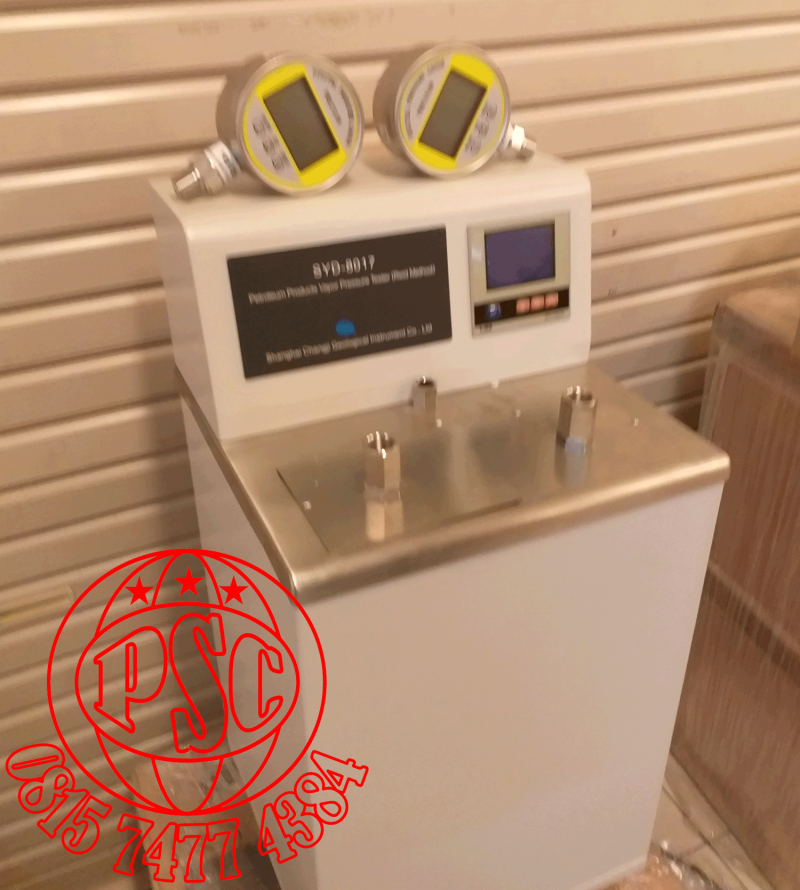

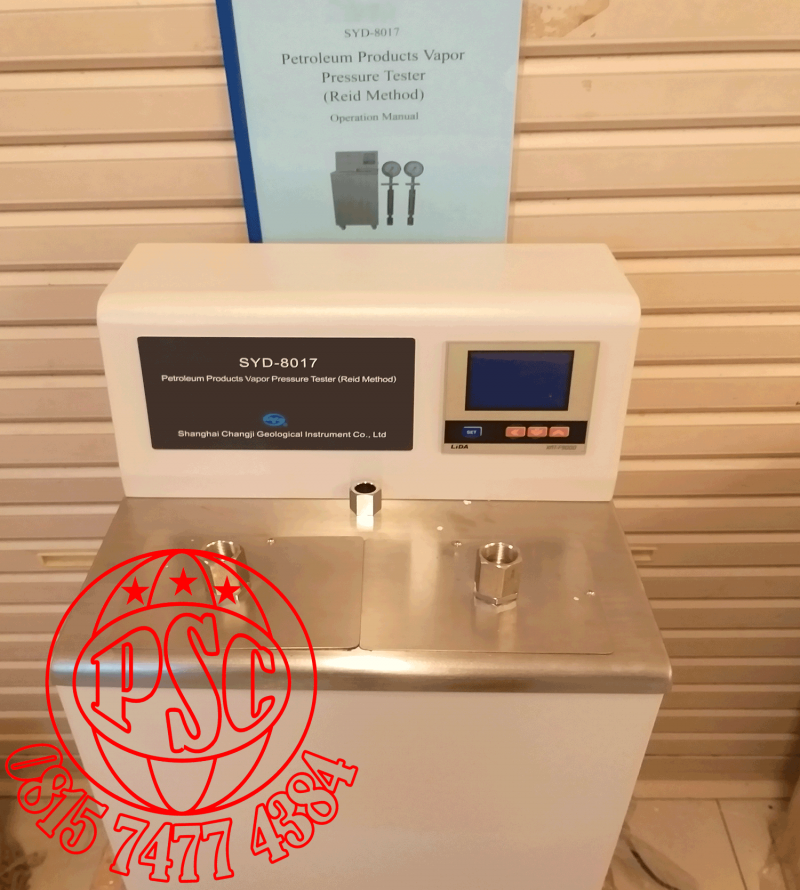

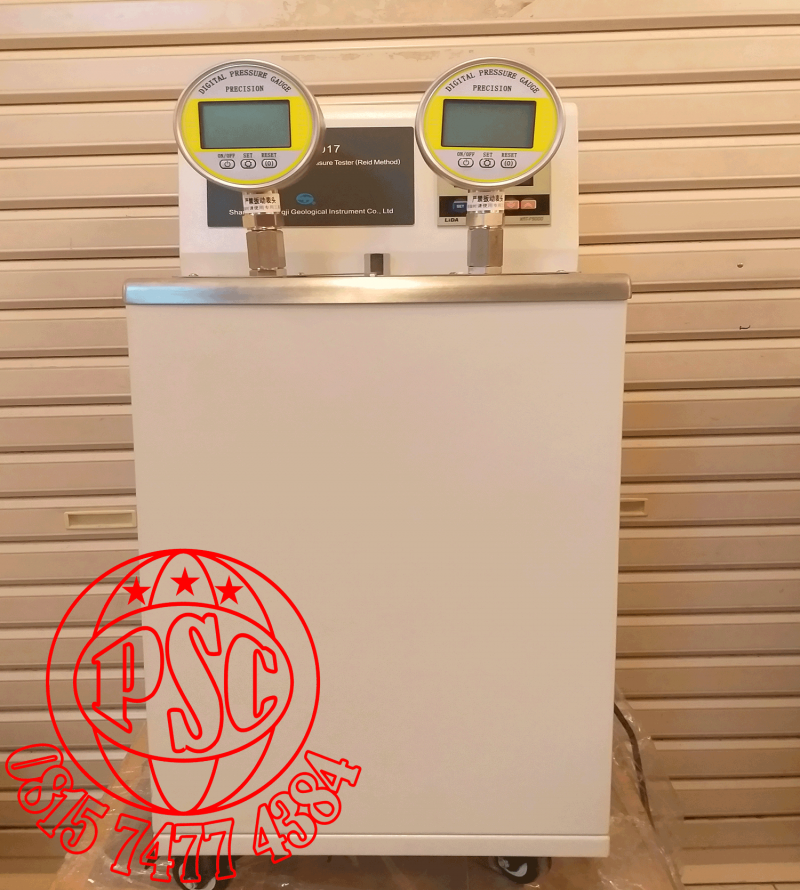

SYD-8017 Vapor Pressure Tester ( Reid Method ) |
|||
|
SYD-8017 Petroleum Products- Determination of vapor pressure- Reid method. It is used to test make determination for vapor pressure of gasoline, volatile crude oil and other volatile petroleum products. |
|||
|
Specifications |
|||
|
Power supply |
AC ( 220 ±10 % ) V, 50 Hz |
||
|
Heating power of bath |
1600 W |
||
|
Temp. control range of bath |
( Room temp.~90 ) ºC |
||
|
Temp. control accuracy of bath |
±0.1 ºC |
||
|
Accuracy of pressure meter |
±0.4 % |
||
|
Ambient temperature |
( -10~35 ) ºC |
||
|
Relative humidity |
≤85 % |
||
|
Maximum power consumption |
1700 W |
||
|
Dimension |
350 × 340 × 750 mm |
||
|
Accessories & documents List |
|||
|
Name |
Unit |
Qty |
Memo |
|
SYD-8017 Vapor Pressure Tester (Reid Method) |
Set |
1 |
|
|
Single opening pressure bomb |
Set |
2 |
|
|
Pressure gauge, 0 MPa~0.1 Mpa |
Piece |
2 |
|
|
Mercury thermometer 0 ºC~50 ºC, scale division 0.1 ºC |
Piece |
1 |
Suitable for Reid vapor pressure ( 20.0~75.0 ) kPa |
|
Screw valve with outer screw thread ( for sealing air chamber ) |
Piece |
2 |
|
|
Screw cap with inner screw thread ( for sealing gasoline chamber ) |
Piece |
2 |
|
|
Small gasket ( outer diameter Φ14.5 mm, inner diam. Φ8 mm ) |
Piece |
4 |
|
|
Sealing ring for pressure meter ( outer diameter Φ18 mm, inner diameter Φ6 mm ) |
Piece |
4 |
|
|
8# Rubber stopper |
Piece |
1 |
|
|
Stopping ring for thermometer ( 1# ) |
Piece |
2 |
|
|
Fuse 10 A ( φ5 × 20 ) |
Piece |
2 |
|
|
Operation manual |
Piece |
1 |
|
|
Quality certificate |
Piece |
1 |
|
|
Product Warranty Card |
Piece |
1 |
|
|
Temperature control device usage manual |
Piece |
1 |
|
|
Reagent & Auxiliary Equipments |
|||
|
Name |
Specification |
Qty |
Memo |
|
Naphtha |
500 ml |
1 bottle |
As the cleaning agent to for oxygen compound gasoline sample |
|
Acetone |
500 ml |
1 bottle |
|
|
Refrigerator |
Smallest |
1 set |
Constant temp. 0-1 ºC |
