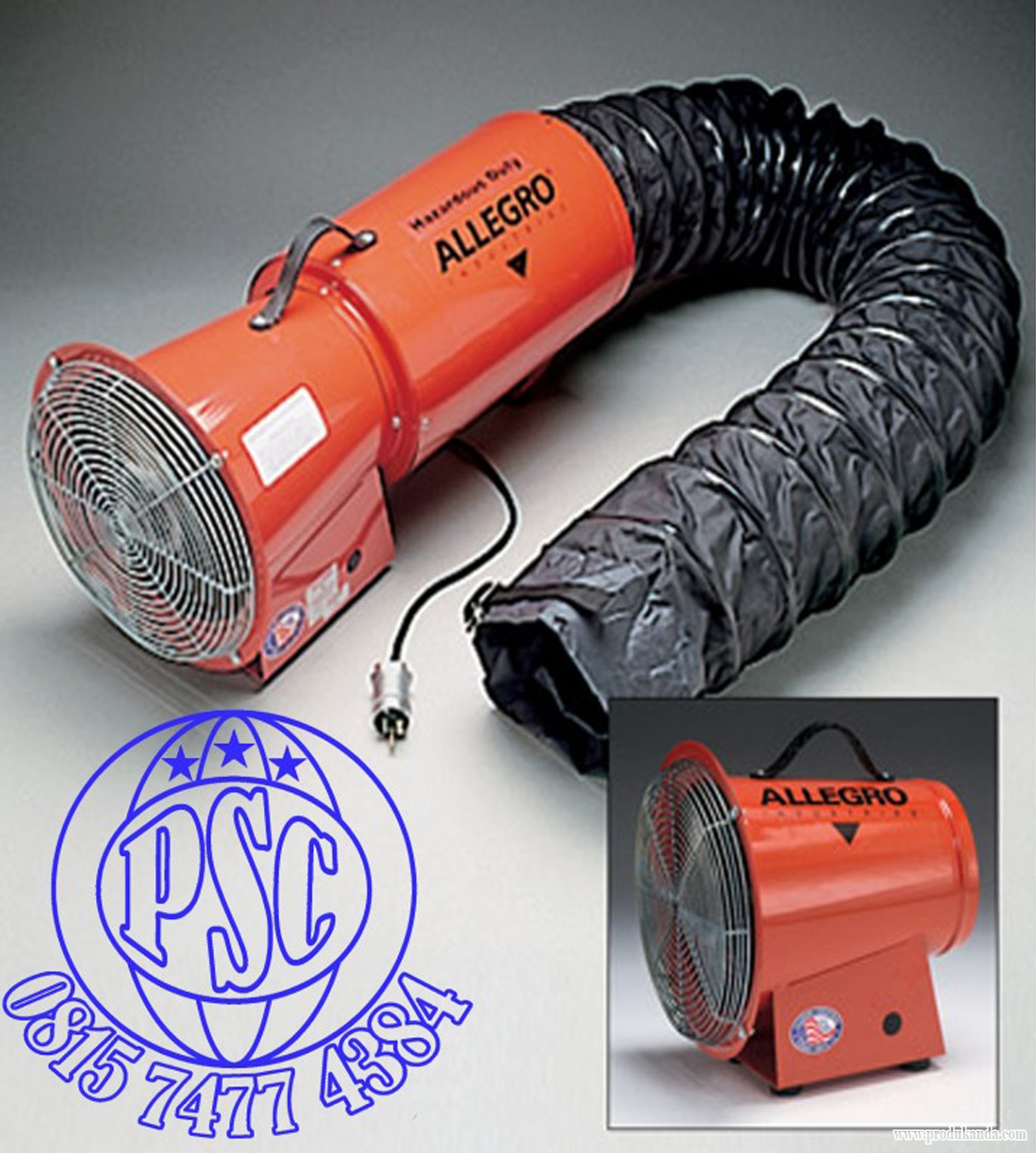

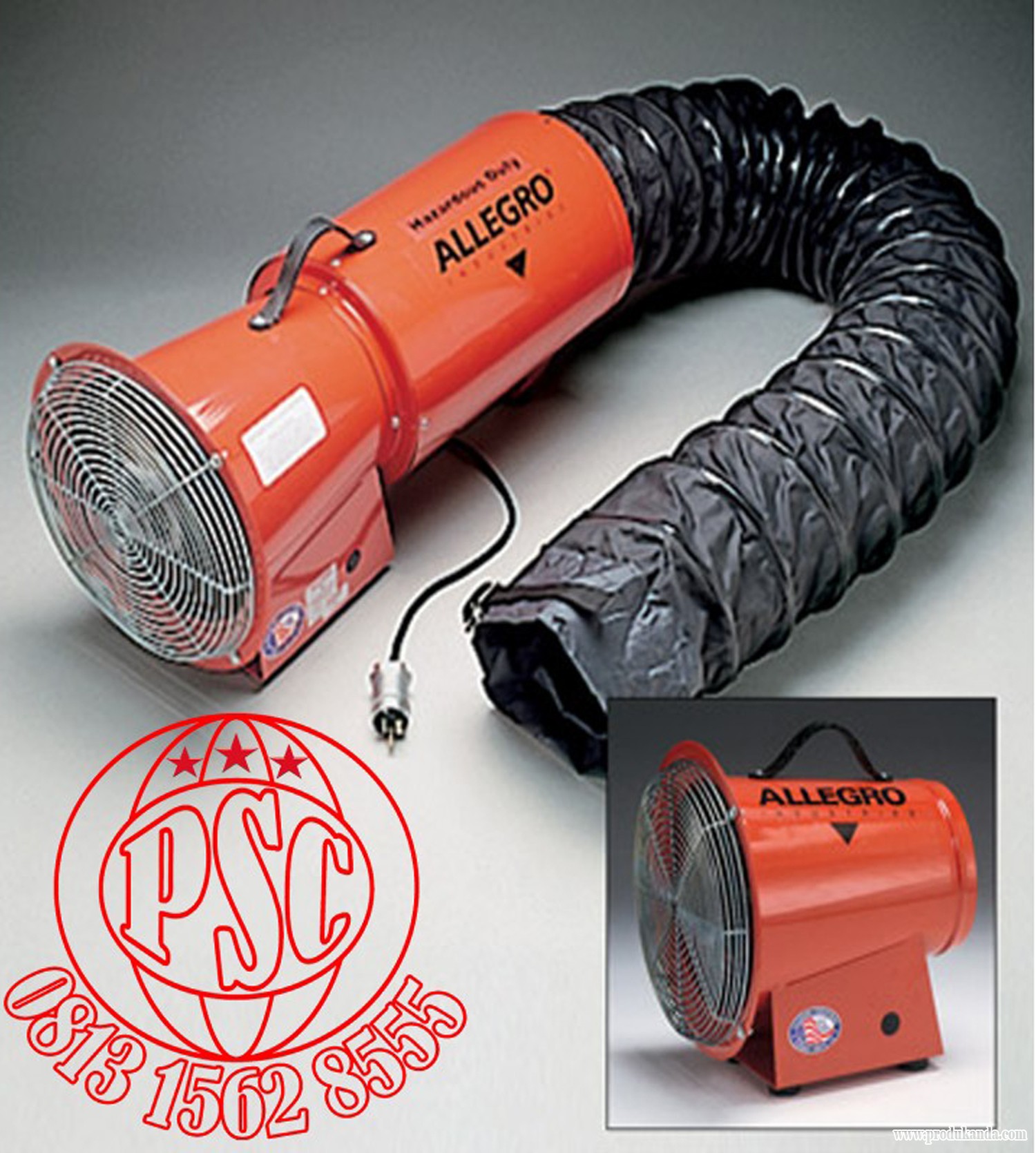

VENTILATION BLOWER, EXPLOSION PROOF

Part Number

9513-05, 9514-05, 9514-06

Style

AXIAL FAN

CONSTRUCTION

Epoxy powder coated in safety orange

Flange on intake side ( for optional inlet adapter )

18 gauge steel housing with welded motor mount construction

Steel/chrome plated grill

Carry handle made of 3-ply rubber belting

Equipped with four rubber feet

MOTOR

HP

⅓ HP

Voltage/Hz

115 VAC, 60 Hz, Single Phase

RPM

3250

Current Draw

2.2 A

Cord

25’ ( 7.62 m ) SJOOW 18/3 AWG 300 V, medium duty

Plug

NEMA 115V, 20 Amp, “ECP” type

FAN

Aluminum hub

Anti-Static glass reinforced Polyamide ( PAGAS ) six blade fan

Mounted 1⅝” ( 4.12 cm ) from grill for safety and a grill gap of 5/16” (.79 cm )

DUCTING

Black single-ply, neoprene coated, vinyl/polyester material, temperature resistant up to 250 °F ( 121.1 °C )

Retractable, non-collapsible design, Class 1 hard drawn spring steel wire helix ( meets ASTM 227 specs )

HAZARDOUS   LOCATION RATING

Class : I

Class : II

Divisions : 1 & 2

Division : 1 & 2

Groups : C & D

Groups : F & G

BLOWER DIMENSIONS

Blower P/N

Length In (cm)

Width In (cm)

Height In (cm)

Weight Lbs (Kg)

9513-05

14” (35.5 cm)

13⅝” (34.6 cm)

15” (38.1 cm)

31 lbs (14 kg)

9514-05

28” (71.1 cm)

13⅝” (34.6 cm)

15” (38.1 cm)

49 lbs (22.2 kg)

9514-06

36” (91.4 cm)

13⅝” (34.6 cm)

15” (38.1 cm)

57 lbs (25.8 kg)

FLOW RATES

( CFM calculated using 15’ ( 4.57 m ) of 8” ( 20.3 cm ) ducting )

Free Air ( m³/hr )

One 90° Bend ( m³/hr )

Two 90° Bends ( m³/hr )

890 CFM ( 1512.12 )

825 CFM ( 1401.68 )

770 CFM ( 1308.24 )
