Rion VT-05/VT-06 Viscotester
The Rion VT-05/VT-06 Viscotester provides a unique objective and cost-effective means of directly measuring the viscosity of liquids/fluids. The viscosity of many substances is of crucial importance yet, up to now, measurement of this quantity has often been achieved through indirect, complicated and/or expensive methods. Application areas include chemicals, paint, petrochemicals, adhesives and foodstuffs.

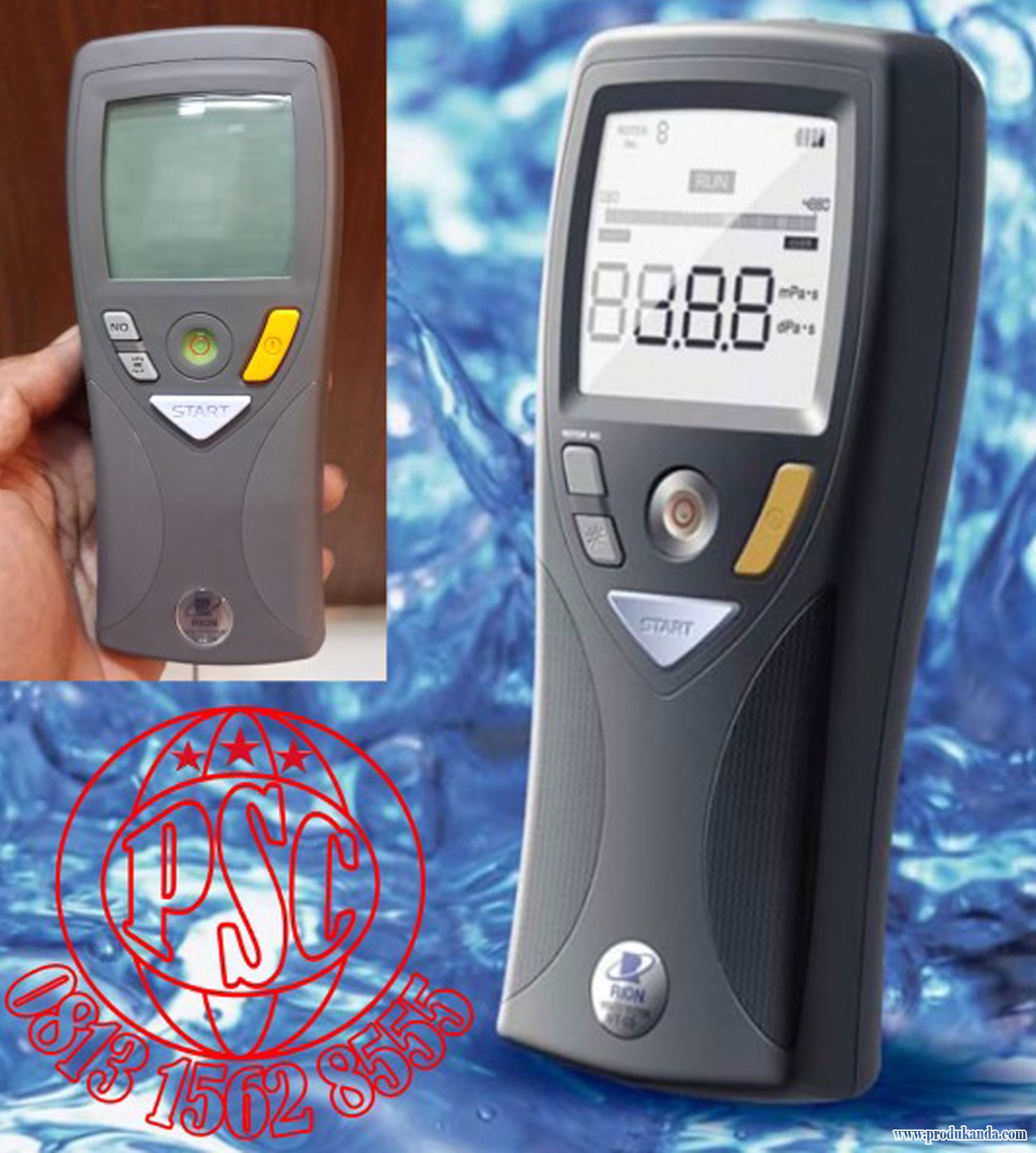

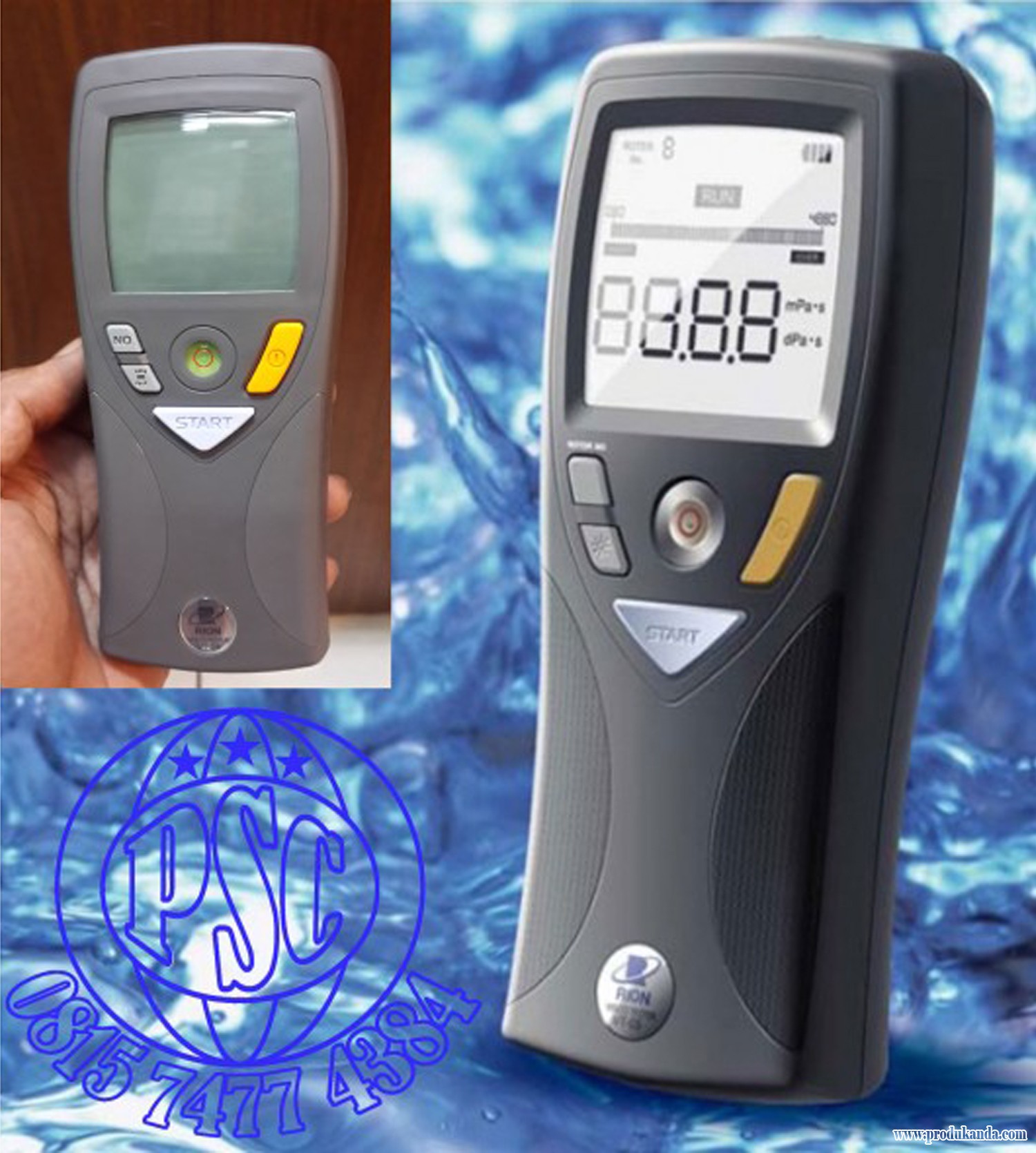

The VT-05 ( for lower viscosity fluids ) and VT-06 ( for higher viscosity fluids) consist of a hand-held ( or it can be mounted on a stand) meter with an integral digital display with a rotor that is connected to the rear of the device. With the meter held ( approximately ) horizontally, the appropriate rotor is submerged in the fluid to be tested. The meter will then give a direct digital readout of the viscosity of the fluid in millipascal/decipascal seconds ( the SI unit for Viscosity )
The VT-05 can measure up to 300 mPas. The VT-06 can measure up to 4000 dPas.
Examples of typical viscosity ( at 23 °c ) :
Milk - 2.6 mPas;
Olive Oil - 71 mPas;
Tomato Ketchup - 43 dPas;
Toothpaste - 320 dPas.
A summary of features for the VT-05/VT-06 :
Direct, objective and repeatable measurement of viscosity;
Extremely simple operation
Direct digital readout of viscosity in SI units
Cost effective;
Supplied with rotors and other accessories ready for immediate use
VT-05 Measurement Range up to 300 mPas
VT-06 Measurement Range up to 4000 dPas
VT-05 Accuracy ± 5 % of measurement range
VT-06 Accuracy ± 10 % or reading - reproducibility ± 5 %
Lightweight ( 260 g without batteries )
Runs on 4 AA cells ( including nickel-hydride rechargeables )
Specifications	VT-05	VT-06
Measurement range	No. 4 rotor: 2 to 33 mPa.s	No. 3 rotor: 0.3 to 13 dPa.s ( with No. 3 cup )
	No. 5 rotor: 15 to 150 mPa.s	No. 1 rotor: 3 to 150 dPa.s ( with JIS 300 mL beaker *1 )
	No. 3 rotor: 50 to 300 mPa.s	No. 2 rotor: 100 to 4000 dPa.s ( with JIS 300 mL beaker *1 )
Sample fluid capacity	Approx. 460 mL ( with Cup A or Cup B )	No. 1 and No. 2 rotor ( with JIS 300 mL beaker*1 ) approx.300 mL
		No. 3 rotor ( with No. 3 cup ) approx. 170 mL
		Clearance between rotor end and cup bottom : about 15 mm
Measurement accuracy	Within ±5 % of max. measurement range for each rotor	±10 % of indicated value, reproducibility ±5 %
Rotor speed	62.5 rpm
Power supply	IEC LR6 (size AA) alkaline batteries, nickel-hydride rechargeable batteries, AC adapter VA-05J
Dimensions and Weight	175 ( H ) × 77 ( W ) × 40 ( D ) mm ( without protruding parts ), Approx. 260 g ( without batteries )
Supplied accessories	No. 3 rotor ( dia.45 × 47 × 160 mm ) SUS304 1	No. 1 rotor ( dia. 24 × 53 × 166 mm ) SUS304 1
	No. 4 rotor ( dia.78 × 46 × 159 mm ) A1050 ( Alumite ) 1	No. 2 rotor ( dia. 15 × 1 × 113 mm )     SUS304 1
	No. 5 rotor ( dia.61.2 × 36 ×149 mm ) A1050 ( Alumite ) 1	No. 3 rotor ( dia. 45 × 47 × 160 mm ) SUS304 1
	Cup A ( dia. 92 × 76 mm, without hole ) A1050 ( Alumite ) 1	No. 3 rotor ( dia. 52.6 × 75 mm ) SUS304 1
	Cup B ( dia. 92 × 76 mm, with hole ) A1050 ( Alumite ) 1	Extension rod ( 900 mm.300 X 3 ) 1
	IEC LR6 ( size AA ) alkaline batteries 4	IEC LR6 ( size AA ) alkaline batteries  4
	*1 JIS R 3503 : 1994, ø 78 X 103 ( H )
