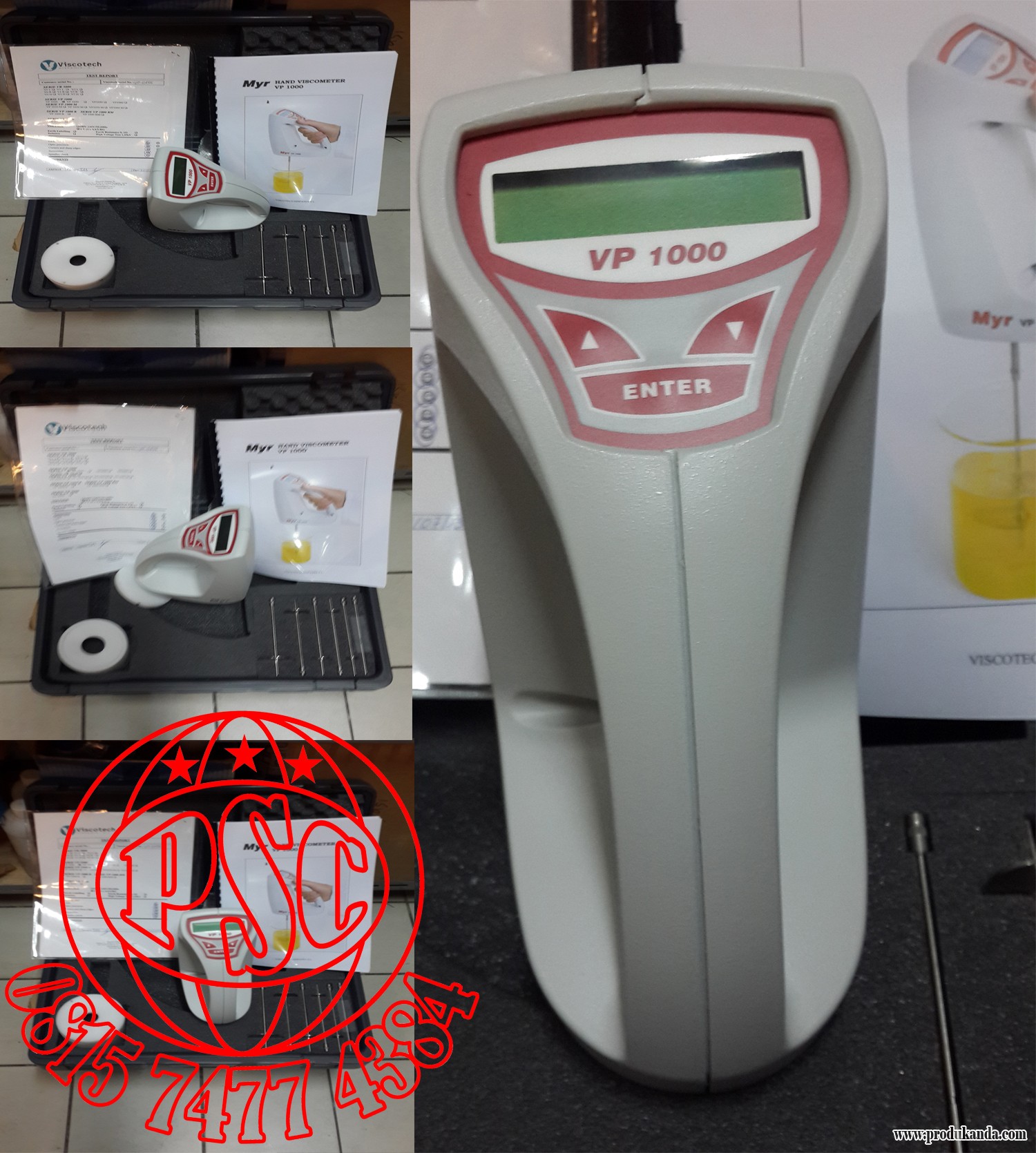

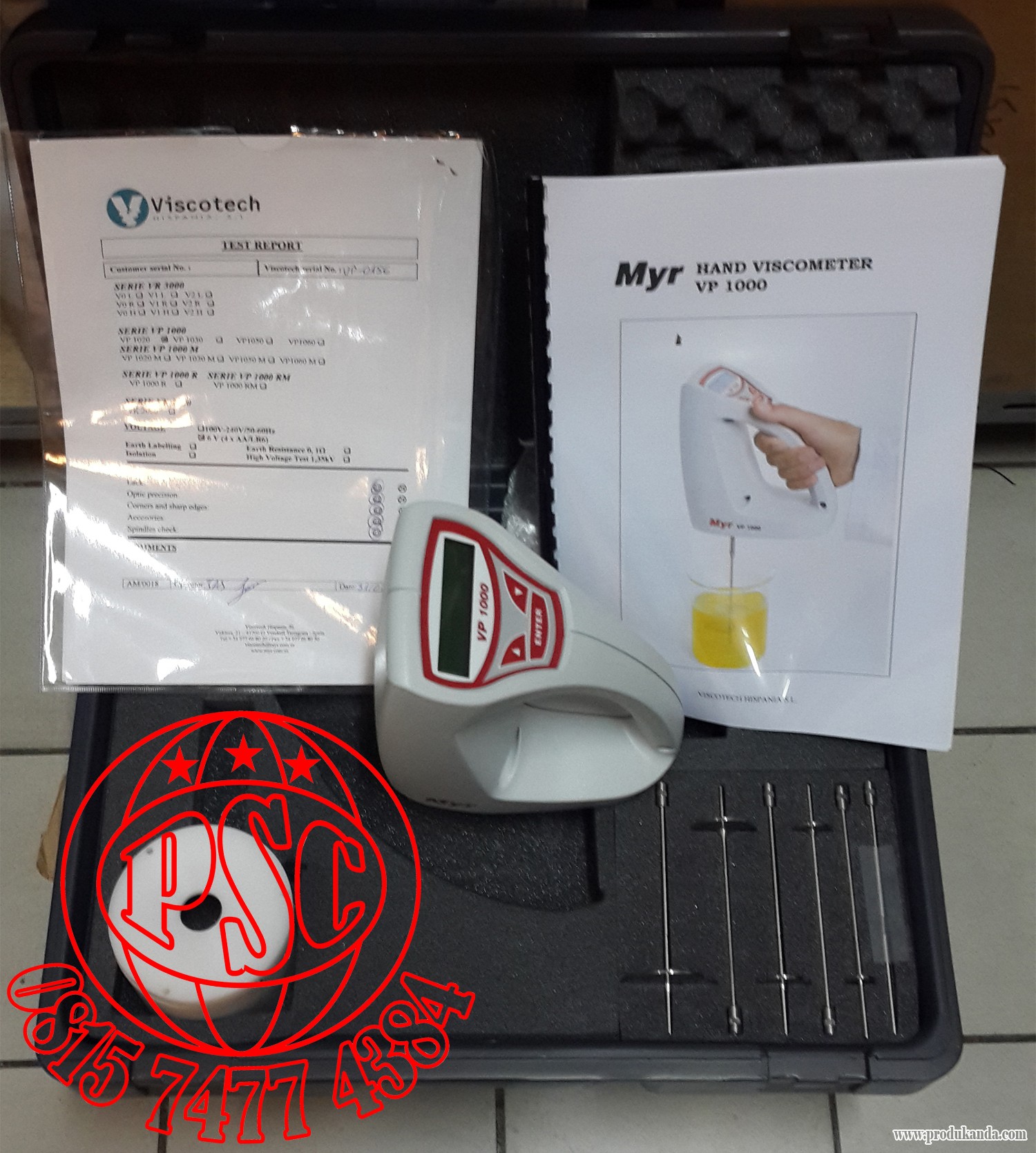

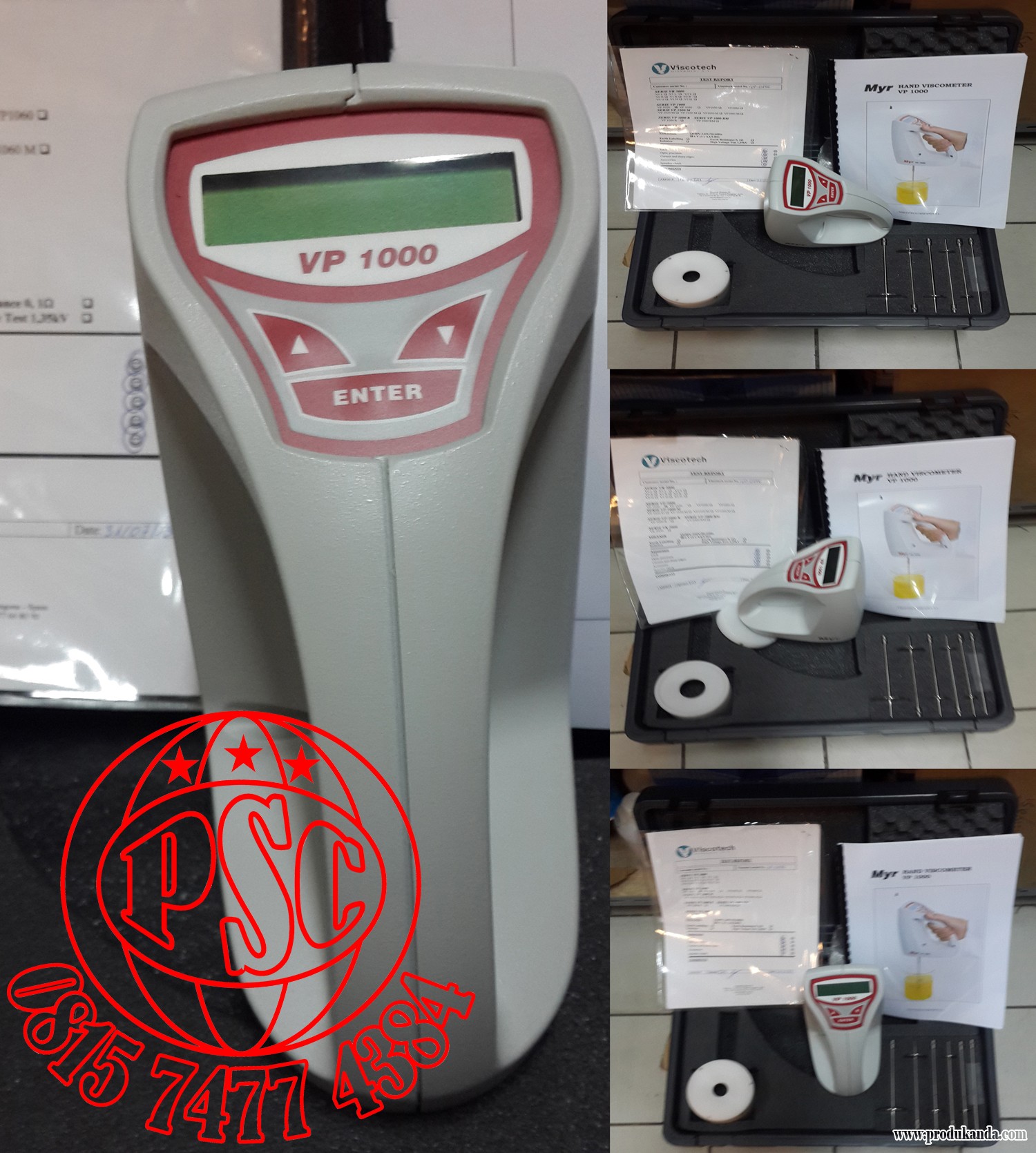

VISCOMETER VP 1000
The first portable rotary viscometer acc. To Brookfield Method allows quick determination of viscosity during production process. Along with his intuitive an easy functionality and his light weight, this instrument provides great versatility. Its main feature, the compatibility to the Brookfield method, allows comparative measurements with results obtained in quality control laboratories using standard rotary viscometers.
It is also possible to use the VP 1000 as a bench instrument by ordering separately the stand.
Small and ergonomic battery operated instrument: Userfriendly: Just press one key – ENTER – to begin with rotation and measurement, to stop motor and to enter into the spindle selection screen.
Viscosity reading is shown in screen together with full scale %. Instrument displays maximum measurement range for each selected spindle ( FSR ), allowing end user to select easily the most appropriate spindle for each specific application.
MYR portable viscometer VP 1000 is used to measure viscosity in samples from different industrial sectors.
Displayed data
Speed		rpm ( depending on the version )
Spindle selected		R2-R7 ( R1 as option )
Dynamic viscosity		mPas
Full scale percentage		%
Full scale range ( FSR )		mPas
Battery status warning with self-disconnection
Viscosity range
MODEL	SPEED	VISCOSITY RANGE	VISCOSITY RANGE ( R1 )
VP 1020	20 rpm	200 - 200.000 mPas	50 - 500 mPas
VP 1030	30 rpm	130 - 133.300 mPas	33 - 333 mPas
VP 1050	50 rpm	80 - 80.000 mPas	20 - 200 mPas
VP 1060	60 rpm	66 - 66.600 mPas	16 - 166 mPas
Accuracy	± 2 %full scale range
Repeatability	± 1 %
Technical Details
Alkaline battery	4 x AA/LR6 ( 6 V )
Rechargeable battery	4 x AA/R6 ( 6 V )
Autonomy	24-30 hours non-stop use
Weight	1.150 g
Protection classification	IP 20
